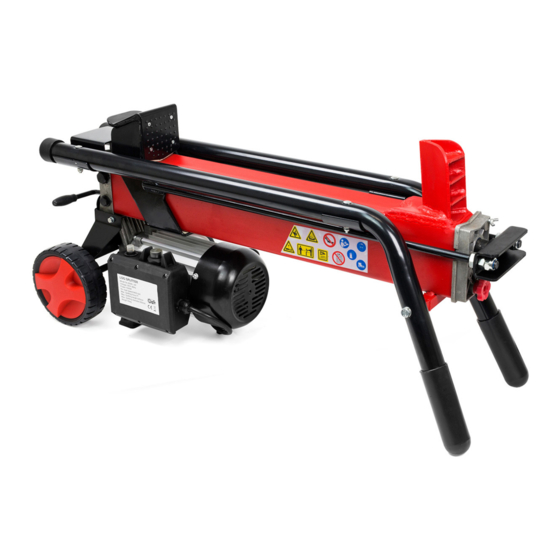

7 TON ELECTRIC HYDRAULIC LOG SPLITTER
ITEM: 65061-XP
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
Advertisement
Table of Contents
Related Manuals for Xtreme Power 65061-XP
Summary of Contents for Xtreme Power 65061-XP
- Page 1 7 TON ELECTRIC HYDRAULIC LOG SPLITTER ITEM: 65061-XP OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 3 IMPORTANT SAFETY INFORMATION Never place hands or body near a hydraulic fluid leak or check for a leak with hands or other body parts. High-pressure fluid can be forced under the skin resulting in serious injury. Never split a log that contains any foreign materials such as nails for example. CHECK DAMAGED PARTS.
- Page 4 IMPORTANT SAFETY INFORMATION NEVER use an extension cord longer than 25 feet. Minimum cord gauge must be 16, an undersized cord will cause a drop in line voltage resulting in a loss of power and overheating. ALWAYS use your hand to operate the control lever and the switch. NEVER use your foot or any extension device.
- Page 5 ASSEMBLY NOTE: This log splitter is assembled at the factory and has been pre-filled with hydraulic oil. Refer to the diagram below should it become necessary to disassemble the unit for repair or replacement of parts. NOTE: This machine is only intended for homeowners and non-commercial users to split firewood as detailed in the instructions and not for any other purpose.
-
Page 6: Assembly And Operation
ASSEMBLY AND OPERATION Always wear safety glasses, gloves and shoes as well as suitable clothing when operating this log splitter. Never wear jewelry, or loose clothing and be sure to tie long hair back so as not to get tangled in moving parts. Keep hands and feet clear of the ram and wedge at all times. - Page 7 ASSEMBLY 5. Raise the motor end of the splitter and make sure it is secure. 6. Pour approximately 3.2 liters of hydraulic fluid into the tank. 7. Check the fluid level of the dipstick, add more fluid of needed. 8. Replace the fluid drain bolt and tighten securely. 9.
-
Page 8: Parts Diagram
PARTS DIAGRAM... -
Page 9: Parts List
PARTS LIST... -
Page 10: Troubleshooting
TROUBLESHOOTING 1. Switch off the power and unplug the log splitter. 2. Always check the hydraulic oil leve before operation. Operating the log splitter without adequate hydraulic oil can cause damage to the log splitter. 3. Wipe the unit after each use with an oil rag to prevent rust. 4. -
Page 11: Please Read The Following Carefully
OF NOTE PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
