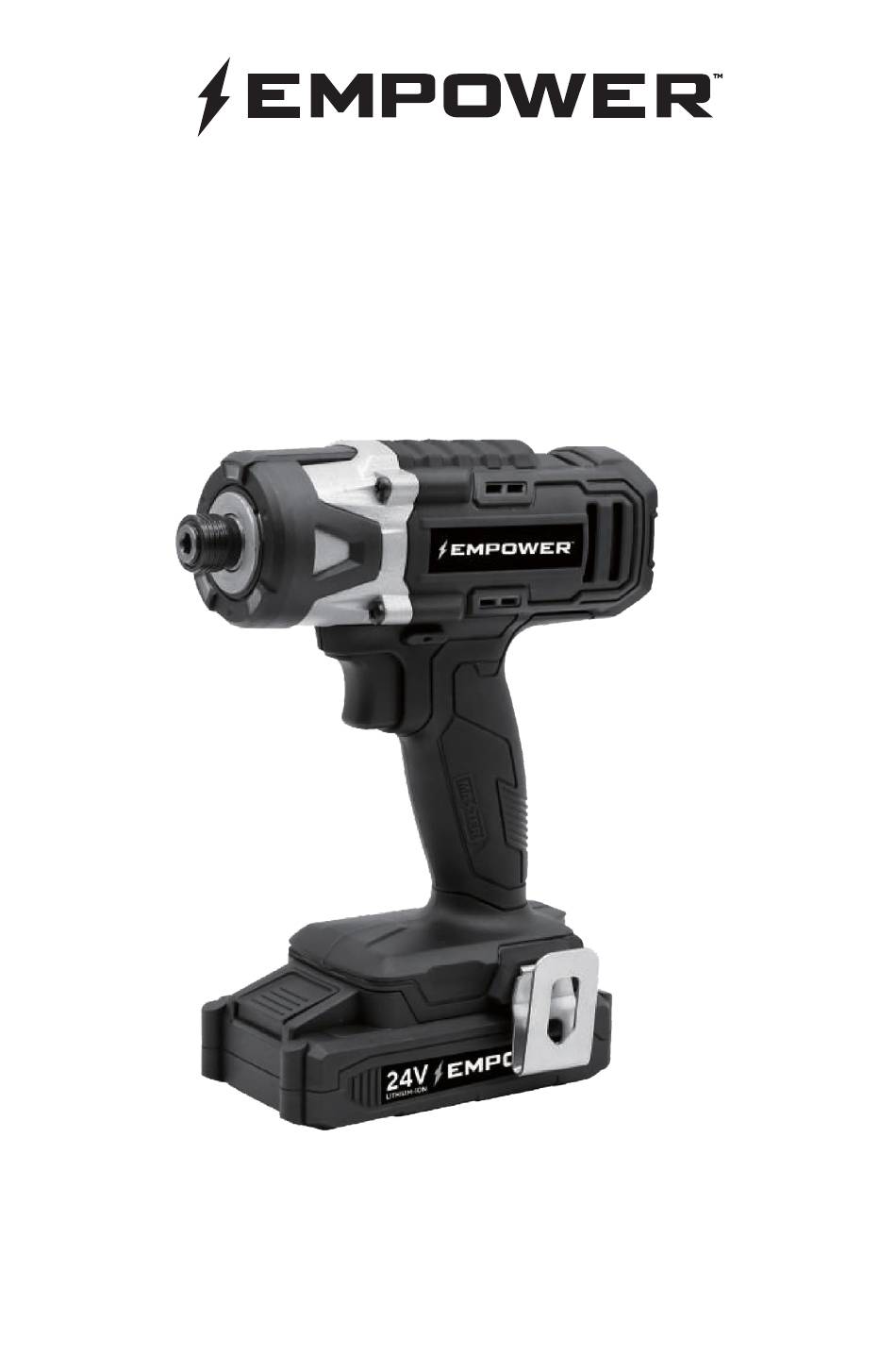

1/4" 24V MAX CORDLESS IMPACT DRIVER
MODEL: CIS334A
Instruction Manual
SAVE THIS MANUAL
You will need this manual for safety instructions, operating procedures, and
warranty.
Put this manual and the original sales receipt in a safe dry place for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIS334A and is the answer not in the manual?

Questions and answers

Summary of Contents for Empower CIS334A

  • Page 1 1/4" 24V MAX CORDLESS IMPACT DRIVER MODEL: CIS334A Instruction Manual SAVE THIS MANUAL You will need this manual for safety instructions, operating procedures, and warranty. Put this manual and the original sales receipt in a safe dry place for future...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS................ P.2 SAFETY NOTES FOR BATTERY AND CHARGER............P.4 SPECIFICATIONS......................P.4 PACKAGE CONTENT....................P.4 FUNCTIONAL DESCRIPTION..................P.5 ASSEMBLY ........................P.5 OPERATING PROCEDURES..................P.6 MAINTENANCE......................P.9 PARTS LIST........................P.10 EXPLODED VIEW......................P.11 WARRANTY ........................P.12 WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in serious personal injury.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric tools, machines or equipment, basic safety instructions should always be followed to reduce the risk of fire, electric shock, and personal injury. KEEP THE WORK AREA CLEAN: Clean areas prevent injuries. CONSIDER THE WORK AREA ENVIRONMENT: Do not use power tools in damp, wet, or poorly lit locations.
  • Page 4 applicable. It is safer than using your hands and it frees up both hands to operate the tool. DON’T OVERREACH: Always maintain proper footing and balance Do not reach over or across tools or machinery in use. IMPORTANT SAFETY INSTRUCTIONS MAINTAIN TOOLS WITH CARE: Keep tools sharp and ...
  • Page 5: Safety Notes For Battery And Charger

    SAFETY NOTES FOR BATTERY AND CHARGER 1. CHARGE AT ROOM TEMPERATURE: Operating temperature must be higher than 32°F and lower than 122°F. 2. DO NOT CHARGE IF THE CHARGER’S CORD OR PLUG IS DAMAGED: Charging with a damaged cord may results in fire or electrical shock.
  • Page 6: Functional Description

    FUNCTION DESCRIPTION Chuck Sleeve Metal Gear Housing 3. Direction Button (Forward / Self-lock / Reverse) 4. Variable Speed Trigger Switch 5. Rubber Handle 6. Battery Release Button 7. Battery Pack 8. LED Light 9. 1/4” Fast Load Chuck Metal Belt Hook ASSEMBLY TO INSTALL/ REMOVE BATTERY PACK (SEE FIG.1) To Install: Place the battery pack in the tool.
  • Page 7: Operating Procedures

    OPERATING PROCEDURES Fig. 3 BATTERY PACK Light The green light is the power indicator. When the charger  is connected to AC household current, the green light is on. (Fig.3) When the battery is properly inserted into the charger Light ...
  • Page 8 APPLICATION If the tool shows signs of decreased power, stop, and recharge  the battery. Do not use the tool to do heavy work when battery is not fully charged as it may drain the battery very quickly and can cause damage to battery.
  • Page 9 OPERATING PROCEDURES INSTALLING/REMOVING BITS The 1/4” fast load chuck provides fast, easy one-handed bit loading and ejecting. To install bits: 1. Lock, forward / self-lock / reverse switch on the tool by placing the direction of rotation selector in self-lock (middle) position. Remove battery pack.
  • Page 10: Maintenance

    OPERATING PROCEDURES VARIABLE SPEED You can vary the spindle rotation speed by changing the pressure on the trigger. ROTATION DIRECTION (SEE FIG.4) Your tool is equipped with a 3-position switch (forward / self-lock / reverse) through the housing above the trigger. When the knob is pushed toward the right, the rotation is forward (clockwise).
  • Page 11 COMPONENT LIST Qty. No. Description Qty. No. Description C-Circlip Big gear ring Quick change sleeve ring Washer Quick change sleeve 6902Z Bearing Quick change sleeve spring 1 Motor gear Shaft Circlip Screw LED bracket plate Motor connecting piece LED transparent cover 755#Motor LED Light Forward / Reverse switch 1...
  • Page 12: Exploded View

    EXPLODED VIEW...
  • Page 13: Warranty

    This Empower limited three year warranty is subject to the following terms: What Is Covered Your product is warranted against original defects in material and workmanship for a period of three years from the date of purchase, when used for private household purposes in accordance with the owner’s manual.
