Table of Contents

ATTENTION!
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS DEVICE
NOTICE:
If your package is missing parts or you are having issues with assembly, please call us directly , Our
customer service team will address any questions or concerns you may have.
Have this manual open and ready for reference.

SAFETY

To reduce risk of injury when assembling & using the chair, follow these precautions:
• Read all of these instructions before assembling and using your salon chair.
• It is helpful to have 2 people assemble and turn the chair upright after assembling.
• Do not over-extend the chair(0~150kg), creating the risk of falls or tipping the
chair, and its occupant over, resulting in injury
PRODUCT MANUAL

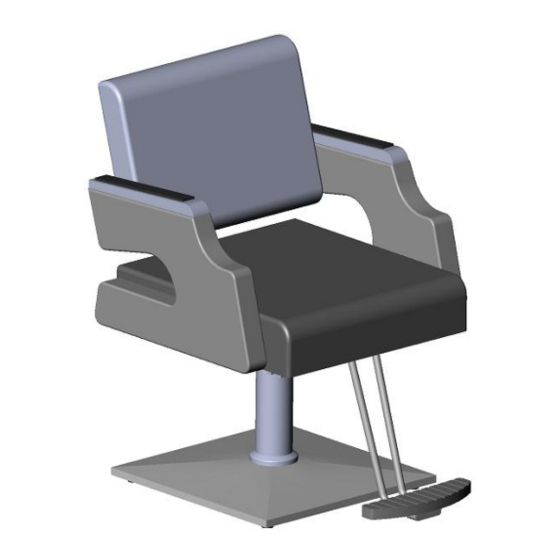

Model:HZ88105
PRODUCT MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HZ88105 and is the answer not in the manual?

Questions and answers

Summary of Contents for SILLA HZ88105

  • Page 1 PRODUCT MANUAL Model:HZ88105 ATTENTION! PRODUCT MANUAL PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS DEVICE NOTICE: If your package is missing parts or you are having issues with assembly, please call us directly , Our customer service team will address any questions or concerns you may have.
  • Page 2 PARTS & FEATURES Part code Part Name Number Part code Part Name Number Base Pump Foot bar Seat Right handrest Left handrest Backrest Backrest connector Leg support Foot rest...
  • Page 3 INSTALLATION INSTRUCTION First:Installation hydraulic pump to the base Parts needed: Base + pump + foot bar Step 1:Install pump to Base with 6 fixing bolts . Step 2: Place assembled Base & Pump on floor. Use Allen Wrench to loosen the screws in the crossbar.
  • Page 4 Third：Install backrest connectors to the handrests Parts needed: 2 backrest connectors + installed seat & handrests Step 1 : Remove 4 bolts which pre-fixed on the handrests. Step 2 : Install 2 backrest connectors to the handrests with the 4 removed bolts. Please follow up the diagram beside Backrest connector...
  • Page 5 Fifth：Install the installed seat to the installed base&pupm Parts needed : Installed seat + installed base&pupm Step 1: Place the installed seat onto the hydraulic pump(please note the pin on the pump toward the gap of the pump joint) Please follow up the diagram beside.
  • Page 6 Seventh：install the installed footrest on the seat 1.Step 1 : Remove 2 bolts which pre-fixed in the seat Step 2 : Install the installed footrest to the seat by 2 given bolts and tighten them . Please follow up the diagram beside.
