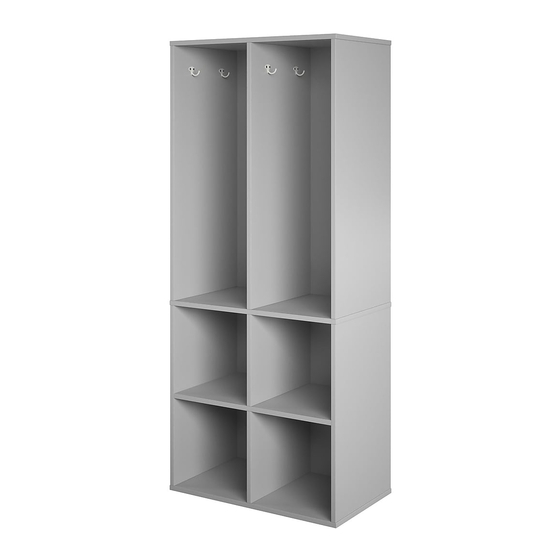

4 cube tall entry storage
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
6984013COM
4 CUBE TALL ENTRY STORAGE
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B346984013COM00GO
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
You
Tube

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6984013COM and is the answer not in the manual?

Questions and answers

Related Manuals for American Home 6984013COM

Summary of Contents for American Home 6984013COM

  • Page 1 6984013COM 4 CUBE TALL ENTRY STORAGE B346984013COM00GO Date of Purchase ___ / ___ / ___ Lot Number: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Do Not Return This Product! Contact our customer service team for help first.

  • Page 2: Helpful Hints

    Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting.

  • Page 3: Before You Start

    Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight.

  • Page 4: Board Identification

    Board Identification Not actual size BOTTOM LEFT PANEL-UPPER 6984013 6984013 6984013 010GO 020GO 030GO QTY: 1 PC QTY: 1 PC QTY: 1 PC RIGHT PANEL-UPPER LEFT PANEL-LOWER RIGHT PANEL-LOWER 6984013 6984013 6984013 040GO 050GO 060GO QTY: 1 PC QTY: 1 PC QTY: 1 PC SHELF-MID PARTITION UPPER...
  • Page 5 Board Identification Not actual size PARTITION-MID PARTITION-LOWER 6984013 6984013 100GO 110GO QTY: 1 PC QTY: 1 PC BACK PANEL UPPER BACK PANEL LOWER 6984013 6984013 120GO 130GO QTY: 1 PC QTY: 1 PC ameriwoodhome.com Tube...
  • Page 6 Board Identification Not actual size ameriwoodhome.com Tube...

  • Page 7: Part List

    Hardware Bag Reference number: COM0GO 6984013 Part List Actual Size Ø6 x 25mm Ø8 x 30mm Ø8 x 40mm Ø15 x 10mm ×28 ×2 ×16 ×16 CAM LOCK CAM BOLT WOOD DOWEL WOOD DOWEL TGO2100 TGO2001 TGO2900 TGO2910 Ø4.2 x 45mm Ø3 x 12mm Ø3.5 x 14mm ×12...
  • Page 8 STEP ×16 ×8 1.1 Cam bolt (2) into (A), (G), (E), (F) as illustrated 1.2 Insert (3) into (E), (F) as illustrated. ameriwoodhome.com Tube...
  • Page 9 STEP ×16 ×8 ×4 2.1 Attach (12) into (C), (D) with (7) as illustrated. 2.2 Insert (3) into (C), (D), (I), (J), (K) as illustrated. ameriwoodhome.com Tube...
  • Page 10 STEP ×4 ×8 ×4 3.1 Attach (12) into (H) with (7) as illustrated. 3.2 Insert (3) into (H) as illustrated. ameriwoodhome.com Tube...
  • Page 11 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×6 4.1 Attach (C), (D), (H) into (A) with (1) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Page 12 STEP ×6 5.1 Attach (C), (D), (H) into (G) with (5) as illustrated. FINISHED EDGE ameriwoodhome.com Tube...
  • Page 13 STEP Quick Assembly Ø8 x 40mm LOCK ×2 ×4 Proper orientation of CAM LOCK 6.1 Attach (J), (K) into (I) with (4) as illustrated. 6.2 Attach (E), (F) into (I) with (1) as illustrated. FINISHED EDGE FINISHED EDGE FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
  • Page 14 STEP ×6 7.1 Attach (E), (F), (K) into (B) with (5) as illustrated. FINISHED EDGE ameriwoodhome.com Tube...
  • Page 15 STEP Quick Assembly LOCK ×6 Proper orientation of CAM LOCK 8.1 Attach (E), (F), (J) into (G) with (1) as illustrated. ameriwoodhome.com Tube...
  • Page 16 STEP ×45 9.1 Attach (L),(M) into (A), (B), (C), (D), (E), (F), (G), (J), (K), (H) with (6) as illustrated. ameriwoodhome.com Tube...
  • Page 17 STEP ×1 ×1 ×1 ×1 Hole wall Drill a 3/16" (5mm) diameter hole in the wall. Tap the wall anchor (10) into the hole until it is flush. Warning This unit must be anchored to a stud or wall as shown. Failure to do so could cause severe injury ameriwoodhome.com Tube...
  • Page 18 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 25 lbs / 11 kgs Hook: 5 lbs / 2 kgs 25 lbs / 11 kgs 20 lbs / 9 kgs Warning: Risk of injury to persons - do not place a television on this furniture.
  • Page 19 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You"...
  • Page 20 de l'aide. ameriwoodhome.com Tube...
  • Page 21 (7) VIS (8) VIS (9) VIS (10) (11) (12) Page 8 Page 14 Page 15 ameriwoodhome.com Tube...
  • Page 22 Page 19 ameriwoodhome.com Tube...
  • Page 23 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
  • Page 24 Español Página 4, 5 & 6: Identificación de la Junta Página 7: Lista de No es la talla actual Tamaño real (A) ARRIBA (1) BLOQUEO DE LEVA (B) INFERIOR (2) PERNO DE LEVA (C) PANEL IZQUIERDO SUPERIOR (3) TACO DE MADERA (D) PANEL DERECHO SUPERIOR (4) PASADOR DE MADERA (E) PANEL IZQUIERDO-INFERIOR...
  • Page 25 Español Página 17 Taladre un orificio de 3/16 "(5 mm) de diámetro en la pared. Golpee el anclaje de pared (10) en el orificio hasta que quede al ras. Advertencia: Esta unidad debe anclarse a un montante o pared como se muestra. No hacerlo podría causar lesiones graves.
