Summary of Contents for Gorilla 01-3013

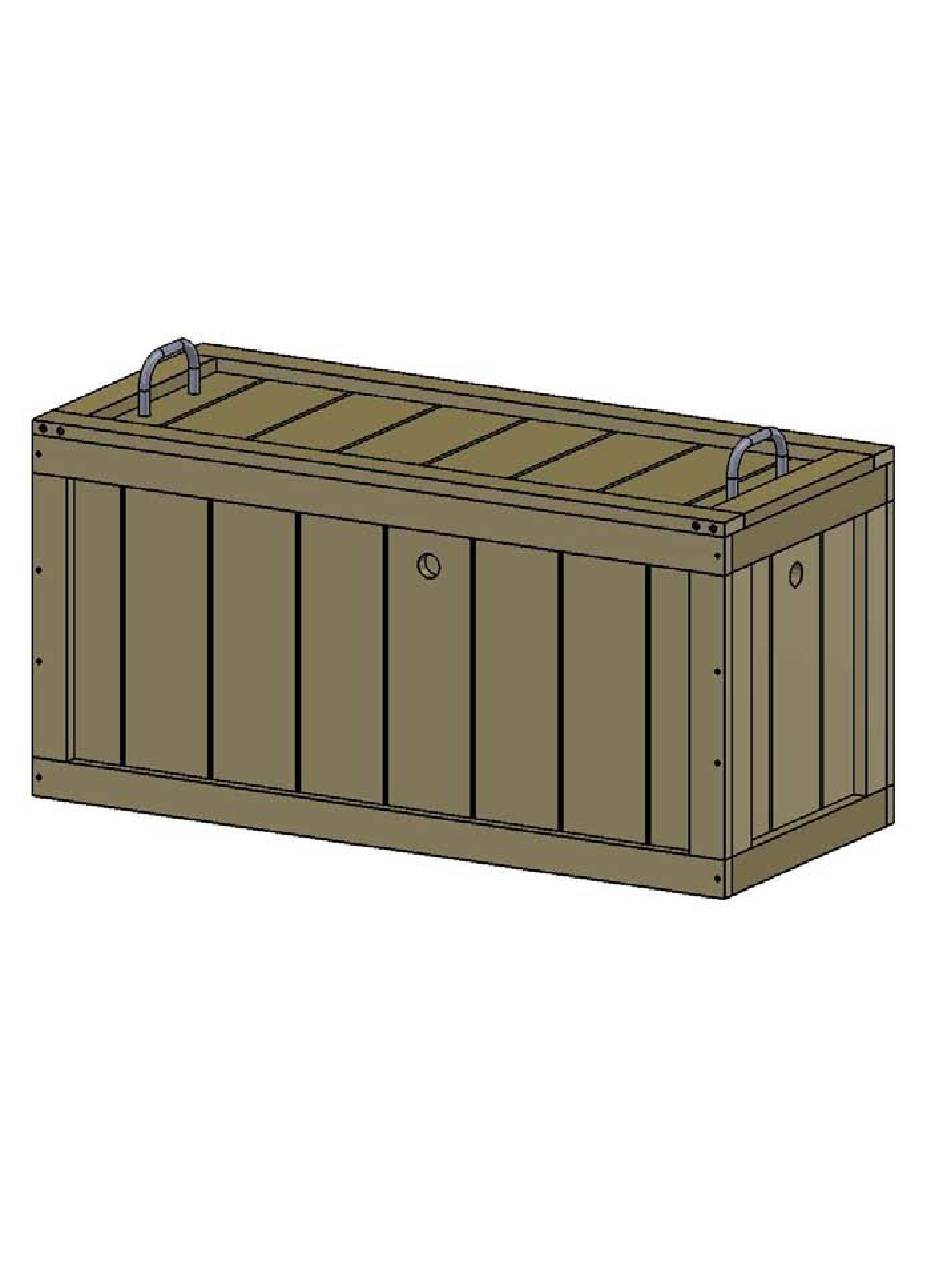

- Page 1 (01-3013) Toy Chest -FOR RESIDENTIAL USE ONLY- -FOR CHILDREN AGES 3-11- ASSEMBLY MANUAL All Rights Reserved Latest Revision: March 1, 2013...
- Page 2 TABLE OF CONTENTS Warranty and Safety Guidelines………………………………………..……..Pages 1-5 General Information, Tool List and Kit Contents…………………………....Page 6 Hardware and Lumber Checklist...……..………………………………………..Pages 7-8 Attach Front and Rear to Sides..………..…………………………..………...…..Step 1 Attach Bottom……………………………..…………………………..……....Step 2 Attach Ropes to Lid………………………..………...……….…………...…..Step 3 Drainage Holes......................Step 4 PLEASE READ OWNER’S MANUAL CAREFULLY BEFORE STARTING ASSEMBLY! Page 2...
- Page 3 Limited Manufacturers Warranty The “seller” warrants its play sets to be free from defects in workmanship and materials, under normal use and conditions at its original installation, for one year. Cosmetic defects or natural defects of wood (e.g., warping, seasonal checking or cracking, knots, or knot holes, etc.) that do not affect the structural integrity of the product are not covered by this warranty.
- Page 4 Important Safety Guidelines This product is intended for residential use only and not intended for use in any public setting. A safety surface such as mulch or recycled tire should be used under the product to prevent injury from falls. As with any home project, good judgment and respect for power tools will greatly reduce the risk of injury.
- Page 5 Safety and Maintenance Tips for Your New Play Set: (continued) This product should be inspected on a regular basis. If any of the following conditions are noted, they should be removed, corrected, or repaired immediately to prevent injuries. • Hardware that is loose, worn or that has protrusions or projections. •...
- Page 6 General Info to Review Before Installation • Identify all of the parts for your toy chest. Empty each box and lay out pieces so you can see each part. Your instruction book will have detailed drawings that will make it easy for you to recognize individual parts.
- Page 7 11-0030 - TOY CHEST HARDWARE 6/22/2012 REV: B J.H. #8 X 1-1/2" WOOD SCREW QTY: 30 #2 SQUARE DRIVE BIT QTY: 1 USE THE RULER TO THE RIGHT TO MEASURE YOUR BOLTS AND SCREWS. PICTURE VIEWS SHOWN ABOVE ARE 1:1 SCALE AND CAN BE USED TO MATCH BOLT AND SCREW SIZES.
- Page 8 PICTURE DESCRIPTION QTY. FRONT/REAR PANEL 1-1/2" THICK X 18-3/4" HIGH X 40" LONG SIDE PANEL 1-1/2" THICK X 18-3/4" HIGH X 15-1/2" LONG BOTTOM PANEL 2-11/16" THICK X 14-1/16" WIDE X 37- 1/16" LONG TOP PANEL (LID) 1-1/2" THICK X 17"...
- Page 9 STEP 1: ATTACH FRONT AND REAR TO SIDES 1: LOCATE THE 18-3/4" H X 40" WIDE FRONT AND REAR PANELS AND TWO 18-3/4" H X 15-1/2" SIDE PANELS. NOTE THE FRONT AND REAR PANELS ARE THE SAME. 2: PLACE ALL THE PANELS SO THAT THE STEPPED AREA IS FACING UP. 3: THE PERIMETER FRAME OF THE FRONT PANEL WILL OVERLAP PERIMETER FRAME OF THE SIDE PANELS.
- Page 10 STEP 2: ATTACH BOTTOM 1: ROLL THE TOY CHEST ASSEMBLY ONTO THE BACK SIDE WITH THE STEPPED AREA FACING AWAY FROM YOU. 2: PLACE THE 14" X 37"BOTTOM INSIDE THE TOY CHEST ASSEMBLY. THE PERIMETER FRAME OF THE BOTTOM SHOULD BE FLUSH TO THE BOTTOM OF THE FRONT/REAR AND SIDES 3: ATTACH THE BOTTOM TO THE FRONT/REAR AND SIDE PANELS WITH #8 X 1-1/2"...
- Page 11 STEP 3: LID 1: LOCATE THE 17" X 40" TOY CHEST LID AND TWO 1/2" DIAMETER X 22" LONG PIECES OF ROPE. 2: PUSH THE ENDS OF THE ROPE THROUGH THE HOLES IN THE TOP OF THE LID. 3: TIE A KNOT IN EACH END ON THE BOTTOM SIDE OF THE LID. 4: GRAB THE ROPE IN YOUR HAND AND MAKE SURE THAT IT CANNOT WRAP AROUND YOUR HAND.
- Page 12 STEP 4: DRAINAGE HOLES 1: IN THIS STEP YOU WILL DRILL HOLES IN THE BOTTOM OF THE TOY CHEST TO ALLOW ANY WATER TO DRAIN OUT THE BOTTOM OF THE TOY CHEST. 2: DRILL HOLES FROM INSIDE THE TOY CHEST TOWARD THE BOTTOM SO IF THE BOARD SPLINTERS OUT THE SPLINTERS WILL NOT BE INSIDE THE TOY CHEST.
