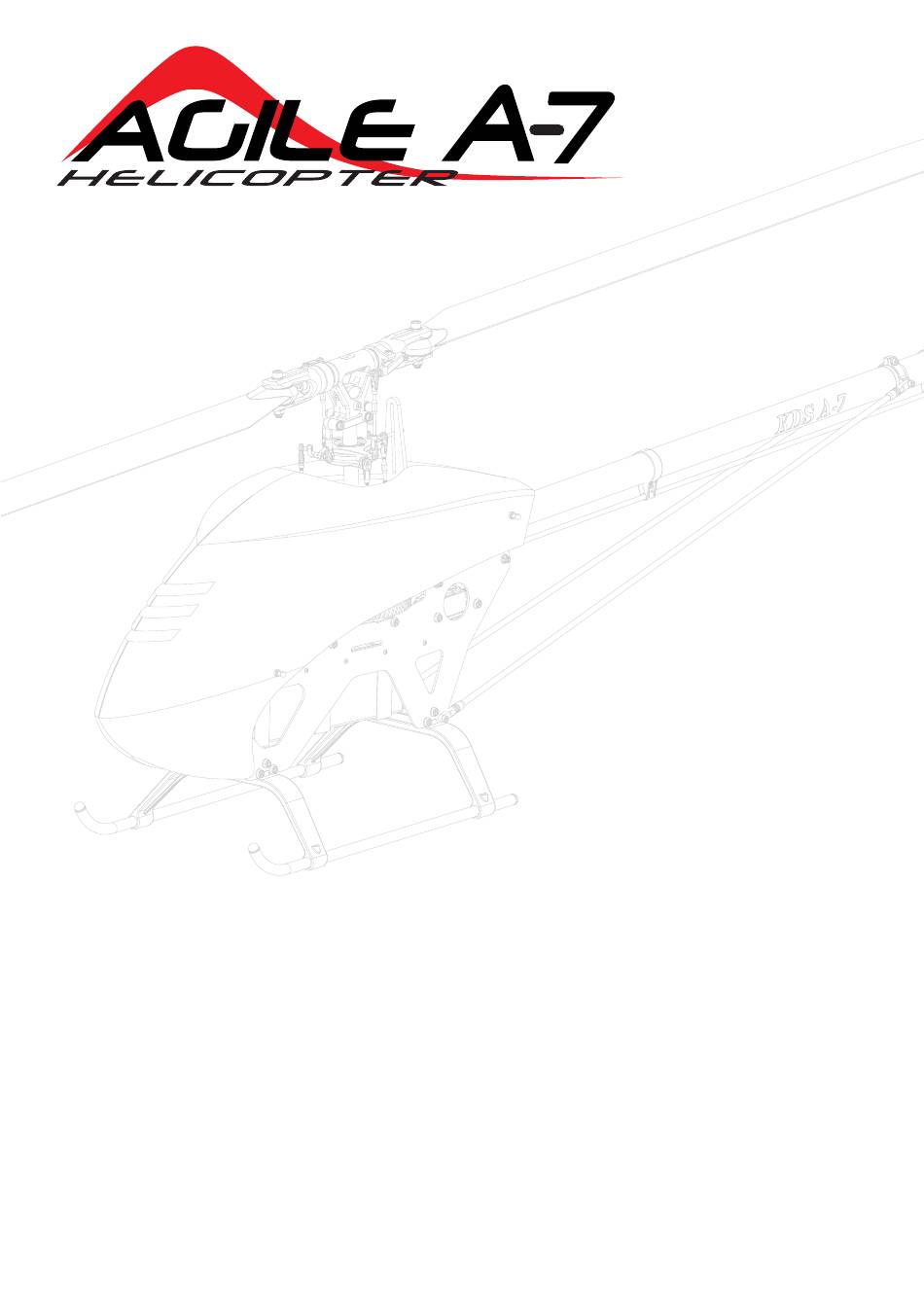

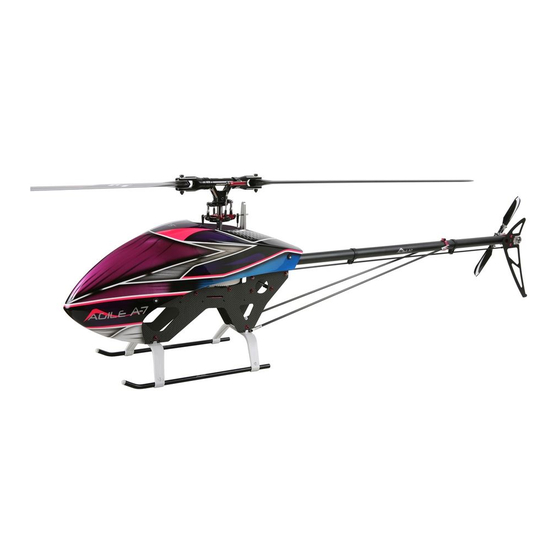

AGILE A-7 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
使 用 说 明 书
使 用 说 明 书
INSTRUCTION MANUAL
INSTRUCTION MANUAL
机身 长 度：1370mm
机身 高 度：420mm
机身 宽 度：200mm
主旋 翼 直径：& 1560
主旋 翼 长度：690-710mm
尾旋 翼 直径：& 294mm
尾旋 翼 长度：105-115mm
马达 齿 ：20T
马达KV ：540KV
传动 齿 轮：（20/54）（20/66）
传动 比 ：20T （8.91:1）
尾传 动 比：4.75:1
空机 重 量：2650G(含头 罩/主 桨/尾桨)
起飞 重 量：5400G
电池 ：22.2V 5000MAH*2
电调 ：160-200A
Thank you for buying Agile products. Please read this
manual carefully before assembling. We recommend that
you keep this manual for future reference regarding tuning
and maintenance.
感 谢 您 选 购 KDS AGILE产 品 ， 请 您 详 细 的 阅 读 完 这
本 说 明 书 之 后 再 进 行 组 装 以 及 操 作 这 台 直 升 机 ， 同 时
请 您 妥 善 的 保 存 这 本 说 明 书 ， 作 为 日 后 进 行 调 整 以 及
维修 与 参考。
Length：1370mm
Height：420mm
Width：200mm
Main Rotor Diameter：Ø1560
Main Blade Length：690-710mm
Tail Rotor Diameter：Ø294mm
Tail Blade Length：105-115mm
Motor Pinion：20T
Motor KV：540KV
Driving Gear：(20/54)(20/66)
Gear Ratio：20T (8.91:1)
Tail Gear Ratio: 4.75:1
Weight(w/o power)：2650g(含头罩/主桨/尾桨)
Flying Weight: 5400g
Battery：22.2V 5000mAh x2
ESC：160-200A
：
Version No
20190318

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGILE A-7

Summary of Contents for AGILE A-7

  • Page 1 感 谢 您 选 购 KDS AGILE产 品 ， 请 您 详 细 的 阅 读 完 这 本 说 明 书 之 后 再 进 行 组 装 以 及 操 作 这 台 直 升 机 ， 同 时...

  • Page 2: Safety Notes

    Please read this manual carefully before using and make sure to be conscious of your own personal safety and the safety of others and your environment when operating all AGILE products. Agile A 7 , KDS Model, their affiliates and authorized distributors are not responsible for personal injuries to the operators and others, and property damages that could occur from the assembly, maintenance or your use/misuse of this product.
  • Page 3 1.简介 恭 喜 你 购 买 AGILE A 7 无 线 电 遥 控 直 升 机 ，AGILE A 7 是 来 自 欧 洲 的 设 计 师ENG.Gaziano Roberto 设 计 ， 由 KDS 模 型 生 产 制 造 完 成 。 我 们 的 目 标 是 用 最 少 的 配 件 ， 为 客 户 提 供 高 质 量 产 品 ， 容 易 维 护 以 及 达 到 出 色 的 飞 行...

  • Page 4: Safety Check Before Flying

    -Threadlock blue * (medium) -Threadlock red * (high strength) -Bearing retainer compound -Epoxy A+B Glue -Grease -Oil *Colors may vary depending on your area. Page 03 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 5 • 焊铁+焊 锡（焊 马 达+电调转 接 头） • 螺距 规 • 十字 盘水 平 仪 • 蓝色 螺丝 胶 （中等 ） • 红色 轴承 胶 （高强 度 ） • 环氧 树脂A+B胶 • 润滑 油 Page 04 Agile 系列直升机商标为欧洲Flight Research RC 所持有,由深圳KDS模型荣誉生产。...

  • Page 6: Equipment Required For Assembly

    Skid pipe x2 Colorful painting canopy x1 Main blade holder x1 Landing skid x2 Screws bag Metal parts of main Rotor Head x1 Metal parts of main frame x1 Metal parts of Tail Unit x1 Page 05 Agile 系列直升机商标为欧洲Flight Research RC 所持有,由深圳KDS模型荣誉生产。...
  • Page 7 • 105-115mm 尾旋 翼 碳纤桨 叶 • 6通 以 上，2.4G 遥 控 器 • 6通 以 上接收 机 与发射 机 匹配 6.包装说明 第一层：全部为碳纤配件 尾管*1 传动轴*1 尾撑杆*2 尾拉杆*1 脚架管*2 彩绘头罩*1 大桨夹固定座零件*1 脚架零件*2 螺丝包 金属旋翼头零件*1 金属主机架零件*1 金属尾总成零件*1 Page 06 Agile 系列直升机商标为欧洲Flight Research RC 所持有,由深圳KDS模型荣誉生产。...
  • Page 8 CF Frame connection plate 轴承 沉头内六角螺丝 Bearing Countersunk head socket screw φ6Xφ13X5 M2.5*6 马达固定下座 Motor under mount 侧板连接柱 Frame connecting bolt Page 07 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 9 杯头内六角螺丝 Hexagon socket head cap screws M3X8 杯头内六角螺丝 Hexagon socket head cap screws M3X8 机壳支柱 Canopy support 机米螺丝 Set screw M3X10 Page 08 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 10 Hexagon socket head cap screws the side panels need to be 90 degrees vertical M3X8 机身 组装好 后 两侧板 须 水平面 垂 直成90度 Page 09 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 11 φ12Xφ24X6 舵机固定支架 杯头内六角螺丝 轴承 Servos mount Hexagon socket head Bearing cap screws φ8Xφ16X5 杯头内六角螺丝 M3X10 Hexagon socket head cap screws M3X8 Page 10 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 12 杯头内六角螺丝 M3X12 Hexagon socket head cap screws M3X10 After the frame is installed, tighten the Main shaft locating ring screws 主轴定位环螺丝装入机架后再锁紧 Page 11 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 13 The Main shaft locating ring jacked up , Then tighten the screws . 主齿 轮 组装好 后,齿 轮向下 压 紧, 主轴 固 定环向 上 顶紧,后将 螺 丝锁紧 Page 12 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 14 Hexagon socket head cap screws M3X8 螺丝垫片 Screw gasket 杯头内六角螺丝 杯头内六角螺丝 Hexagon socket head Hexagon socket head cap screws cap screws M3X8 M3X8 Page 13 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 15 #4. It should be difficult to push motor belt 1.用手沿着主轴反方向推动马达; 2.锁紧螺丝#1; 3.锁紧马达螺丝#2; 4.用手转动马达，确保皮带与大齿平行; 5.锁好#3; 6.最后检查马达皮带松紧，用一个手指 穿过孔推动皮带，困难时需调整适合松紧度; Page 14 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 16 Swashplate under cap 关节轴承 Knuckle bearing 十字外盘 Swashplate outer plate 轴承 Bearing φ30Xφ37X4 十字内盘下盖 Swashplate inner plate 圆头螺丝 Round head screw M2X4 Page 15 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 17 Have "A" sign ball link pointing out 球 头扣有 “A”字面朝外 螺距舵机 Pitch Servo 升 降 舵机 Elevator scrvo 副 翼 舵机 Ailcron scrvo Page 16 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 18 传动轴销 Drive shaft pin 机米螺丝 轴承 Set screw Bearing M4X4 φ8Xφ16X5 尾波箱 Tail gear box 尾传动螺旋锥齿轮20T Tail drive spiral bevel gear Page 17 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 19 球头 C Bails 尾桨夹 Tail blade grip 垫片 Washer 7X9.8X0.5 防松螺母M3 Locknut 轴承 Bearing φ5Xφ10X4 止推轴承 Thrust bearing 垫片 Washer 3X8X1.0 Page 18 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 20 CF Tail pinch connecting piese connection mount 螺母M2 法兰轴承 Flange Bearing φ2.5Xφ6X2.6 球头 A Bails A 半圆头内六角螺丝 Hexagon socket screws M2X6 Page 19 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 21 垫片 Washer 3X5X0.5 半圆头内六角螺丝 Hexagon socket screws M3X6 机米螺丝 Set screw M4X4 法兰轴承 Flange Bearing φ2.5Xφ6X2.6 半圆头内六角螺丝 Hexagon socket screws M3X6 Page 20 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 22 To facilitate the loading of the gasket into the Tail boom, the gasket surface needs to be coated with lubricating grease 为方便胶圈装入尾管胶圈表面须涂抹润滑油脂 传动轴销 Drive shaft pin 尾管 Tail boom Page 21 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 23 杯头内六角螺丝 Hexagon socket head cap screws M2X10 Pay attention to the installation direction of the Tail boom 注 意尾管 安 装方向 Page 22 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 24 9. 组装说明 ASSEMBLY SECTION 双头螺杆 Double head screw 尾管固定铝垫 Tail boom fixed aluminum gasket 机壳支柱 Canopy support 防松螺母M3 Locknut 200mm 350mm Page 23 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 25 Boom support head 尾撑杆 Tail boom brace rob 杯头内六角螺丝 Hexagon socket head cap screws M3X8 杯头内六角螺丝 Hexagon socket head cap screws M3X12 Page 24 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 26 杯头内六角螺丝 Hexagon socket head cap screws M3X14 杯头内六角螺丝 Hexagon socket head cap screws M3X6 支臂球头 大桨夹支臂 Ball Main blade grip arm Page 25 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 27 中联 Main rotor heuseing 垫片 Washer φ3Xφ5X0.5 杯头内六角螺丝 Hexagon socket head cap screws M3X12 杯头内六角螺丝 Hexagon socket head cap screws M3X12 Page 26 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 28 Bail link 70mm 电池板固定座 Battery plate buckle mount 碳纤电池板 CF Battery plate 沉头内六角螺丝 电池 Bcountersunk head Battery socket screw M2.5*6 双面胶 Page 27 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 29 碳纤主旋翼 CF Blades 碳纤尾旋翼 防松螺母M3 CF Tail Blades Locknut 尾桨夹垫片 Tail blade grip washer 杯头内六角螺丝 Hexagon socket head cap screws M4X8 Page 28 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 30 无副翼陀螺仪 Flybarless module 无刷电调 ESC(Speed controler) Note: after the battery's is installed , please tighten the battery strap 注：电池装好后请桨电池绑带绑紧， 锂电池 Battery Page 29 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...

  • Page 31: Parts List

    3 x Hexagon socket screws M2.5X6 半圆头内六角螺丝 2 x Nylon lock nuts M3 尼龙螺母 2 xOne-way Bearingφ10Xφ14X12 单向轴承 10 x Conical washers Page 30 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 32 1 x Drive shaft pin Ø3x12mm 传动轴销子 尾传动前万向轴 2 x Ball head buckle for tail holder 尾桨夹球头扣 2 x Surface bearing Ø8xØ16x5mm 平面轴承 Page 31 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 33 5 x Short ball headφ5.0x10mm M2 球头 2 x Linkage Ball φ5.0 球头扣 2 x Surface bearings Ø10xØ14x12mm 单向轴承 Battery straps x2 电池绑带 Page 32 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...
  • Page 34 1 x Motor gear 马达齿轮 1 x Motor gear 马达齿轮 2 x Set screws M4X5mm 2 x Set screws M4X5mm 2 x Set screws M4X4mm Page 33 Agile Helicopter is a Trademark of Flight Research Rc Europe , Proudly made by KDS Model Shenzhen...

  • Page 35: Regular Maintenance

    34.REGULAR MAINTENANCE Regular maintenance is required to keep the KDS AGILE 7.2 helicopter in optimal and safe flying condition. The model requires precise configuration of the components and settings to be kept by the owner. Maintain regular maintenance on the model to avoid accidents or loss, and optimum performance.
  • Page 36 请 定 期 检 查 ：KDS AGILE 7.2 电 动 遥 控 直 升 机 为 精 密 零 组 件 构 成 之 精 密 模 型 商 品 。 所 以 飞 行 者 须 注 意 确 保...
  • Page 37 ： Version No 20190318...
