www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY

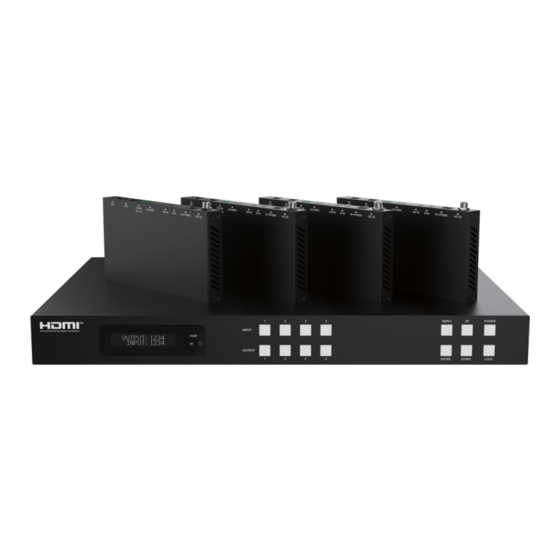

ALF- MUH44E
18Gbps 4 x 4 HDBaseT (150M) Matrix

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALF- MUH44E and is the answer not in the manual?

Questions and answers

Related Manuals for ALFAtron ALF- MUH44E

Summary of Contents for ALFAtron ALF- MUH44E

  • Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF- MUH44E 18Gbps 4 x 4 HDBaseT (150M) Matrix...
  • Page 2 Alfatron ALF-MUH44E FCC Statement This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Alfatron ALF-MUH44E Table of Contents 1. Introduction…………………………………………………………………..1 2. Features……………………………………………………………….………… 1 3. Package Contents…………………………………………………..………… 2 4. Specifications………………………………………………………….……..2 5. Operation Controls and Functions……………………………….………… 4 Matrix Panel……………………………………………………………………… 4 HDBaseT Receiver Panel……………………………………………………..6 6. IR Remote…………………………………...………………………………….. 7 7. IR Control System……………………………………………………………… 8 8.

  • Page 4: Introduction

    Alfatron ALF-MUH44E 1. Introduction The ALF-MUH44E 18Gbps 4x4 HDBaseT (150M) Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a CAT Cable output which runs simultaneously. The HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 6/7 cable with resolution up to 4K2K@60Hz 4:4:4.

  • Page 5: Package Contents

    Alfatron ALF-MUH44E 3. Package Contents 1 x 18Gbps 4x4 HDBaseT(150M) Matrix • 4 x HDBaseT Receiver • 1 x Matrix IR Remote • • 1 x 100~240V AC 50/60Hz Power cable • 1 x RS-232 serial cable (1.5 meters, male to female head) •...
  • Page 6 Alfatron ALF-MUH44E Connection Inputs: 4 x HDMI Type A [19-pin female] Outputs: 4 x HDMI Type A [19-pin female] 4 × HDBaseT port [RJ45] 4 × Coaxial audio [3.5mm Stereo Mini-jack] 4 × balanced analog audio [5-pin Phoenix Matrix connector] Controls: 5 x IR IN [3.5mm Stereo Mini-jack]...

  • Page 7: Operation Controls And Functions

    Alfatron ALF-MUH44E 5. Operation Controls and Functions 5.1 Matrix Panel Front Panel Name Function Description Displays matrix switching status, input / output port, EDID, OLED screen Baud rate, IP Address. The LED will illuminate green when the product is working Power LED normally, and red when the product is on standby.
  • Page 8 Alfatron ALF-MUH44E Rear Panel Name Function Description IR IN (1/2/3/4/ Connect to IR receiver cable: The IR receive signal will emit ALL) ports to the “IR OUT” port of the HDBaseT Receiver. IR OUT (1/2/3/4/ Connect to IR emitter cable, the IR emits signal is from the “IR IN”...

  • Page 9: Hdbaset Receiver Panel

    Alfatron ALF-MUH44E 5.2 HDBaseT Receiver Panel Name Function Description Power LED Red LED will be on when the receiver is powered on. SERVICE port Firmware update port. DC 24V/1A power supply input port. Note: The Matrix supports POC function, which means that...

  • Page 10: Ir Remote

    Alfatron ALF-MUH44E 6. IR Remote ① Power on or Standby: Power on the Matrix or set it to standby mode. ② Output 1: Press 1\2\3\4 button to select input source to HDMI OUTPUT 1. ③ Output 2: Press 1\2\3\4 button to select input source to HDMI OUTPUT 2.

  • Page 11: Ir Control System

    Alfatron ALF-MUH44E 7. IR Control System The ALF-MUH44E is not only a matrix switcher but also an extender. It supports bi- directional IR control; When Matrix is connected to HDBaseT Receiver through Cat 6/7 cable, you can control remote display device (HDBaseT) or input source device (Matrix) through IR signal transmission.
  • Page 12 Alfatron ALF-MUH44E At HDBaseT receiver (Remote end): IR signal follows video switch to change. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 2 port, so IR input signal of the HDBaseT Receiver 1 will emit to IR OUT 2 port of the Matrix. The HDMI output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 4 port.

  • Page 13: Ir Cable Pin Assignment

    Alfatron ALF-MUH44E 8. IR Cable Pin Assignment IR Receiver IR Emitter IR Emitter IR Emitter Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters;...
  • Page 14 Alfatron ALF-MUH44E The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 1080p, Stereo Audio 2.0 1080p, Dolby/DTS 5.1 1080p, HD Audio 7.1 1080i, Stereo Audio 2.0 1080i, Dolby/DTS 5.1 1080i, HD Audio 7.1 3D, Stereo Audio 2.0...

  • Page 15: Web Gui User Guide

    Alfatron ALF-MUH44E 10. Web GUI User Guide The Matrix can be controlled via Web GUI, the operation method is shown below: Step 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: The first way: You can get the IP address via panel buttons.
  • Page 16 Alfatron ALF-MUH44E Once entering the Web GUI page, there will be a Login page, as shown below: Select the Username from the list and enter the password. The default passwords are: Username User Admin user admin Password After entering the password, click the “LOGIN” button and the following Status page will appear.
  • Page 17 Alfatron ALF-MUH44E ■ Video Page You can do the following operations on the Video page: Output: The current device’s OUTPUT port. Signal source can be selected for it. • Input: You can click the drop-down menu to select signal source for the •...
  • Page 18 Alfatron ALF-MUH44E Set EDID for the User Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Ensure the correct file is selected, check the name of the selected file. Select “User 1” or “User 2”, then click “Upload”.
  • Page 19 Alfatron ALF-MUH44E ■ CEC Page You can perform CEC management on this page: Input Control: You can control the operation of each input source by pressing the • icons on the page. Multiple inputs can be controlled simultaneously. Output Control: You can control the operation of each display, such as power •...
  • Page 20 Alfatron ALF-MUH44E Click “OK” to search the IP Address again, as shown in the below: After search is completed, it will switch to the login page, and the default network setting is completed. Modify User Password Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”.
  • Page 21 Alfatron ALF-MUH44E ■ System Page Panel Lock: Click to lock/unlock panel buttons. “On” indicates that panel • buttons are unavailable; “Off” indicates panel buttons are available. Beep: Click to turn on/off the beep. • LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s).

  • Page 22: Rs-232 Control Command

    Alfatron ALF-MUH44E 11. RS-232 Control Command The ALF-MUH44E also supports RS-232 control. You will need a serial cable with an RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC.
  • Page 23 Alfatron ALF-MUH44E Example Function Description Feedback Command Code Default Setting Get the connection status of the r link in x! r link in 1! hdmi input 1: connect x input port，x=0~4(0=all) Get the connection status of the hdmi output 1: connect...
  • Page 24 Alfatron ALF-MUH44E Example Function Description Feedback Command Code Default Setting enable hdbt output 1 stream disable hdbt output 1 Set hdbt output y stream on/off, s hdbt 1 stream 1! stream s hdbt y stream z! y=0~4(0=all) enable z=0~1(0:disable,1:enable) s hdbt 0 stream 1!
  • Page 25 Alfatron ALF-MUH44E Example Function Description Feedback Command Code Default Setting r edid data hdmi y! Get the EDID data of the hdmi r edid data hdmi 1! EDID: 00 FF FF FF FF output y port，y=1~4 FF FF 00 ………...
  • Page 26 Alfatron ALF-MUH44E s cec hdbt out y set hdbt output y active source s cec hdbt out 1 hdbt output 1 active active! by CEC, y=0~4(0=all hdbt output) active! source - 23 / 28 -...
  • Page 27 Alfatron ALF-MUH44E Example Function Description Feedback Command Code Default Setting Network Setting IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 r ipconfig! Get the Current IP Configuration r ipconfig! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Mac address:...
  • Page 28 Alfatron ALF-MUH44E Example Function Description Feedback Command Code Default Setting Network reboot… IP Mode: Static IP: 192.168.1.72 Subnet Mask: 255.255.255.0 s net reboot! Reboot network modules s net reboot! Gateway: 192.168.1.1 TCP/IP port=8000 Telnet port=10 Mac address: 00:1C:91:03:80:01 Set the data length of x hdbt uart,...

  • Page 29: Application Example

    Alfatron ALF-MUH44E 12. Application Example - 26 / 28 -...
  • Page 30 Product Limited Warranty: Alfatron warrants that its products will be free from defects in materials and workmanship for seven years, which starts from the first day of purchase.
  • Page 31 Alfatron ALF-MUH44E Warranty Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
  • Page 32 Alfatron ALF-MUH44E repair and restore this product to its proper operating condition.; or 1.10.2 Replace this product with a direct replacement or with a similar product deemed by the Company to perform substantially the same function as the original product; or 1.10.3 Issue a refund of the original purchase price less depreciation to be determined...
