- Page 1 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual SKW92 EVB User Manual Revision History Revision Description Approved Date V1.01 Initial Release George 20170321 SKW92-EVB-UM-001,A/1 1/15...
-
Page 2: Table Of Contents
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual Contents 1.Introduction ............................ 3 2.EVB Details ............................ 3 EVB Details ........................... 4 3.Logging in to the module web ......................5 4.Setup Guide ........................... 7 1).Setup “Gateway Mode” ......................9 2).Setup “AP Client Mode” ......................12 5.Contact Information ........................ -
Page 3: Introduction
The Evaluation Kit includes the following items: One SKW92 module. One SKW92 EVB. One DC adapter with micro USB connector cable. Two WiFi antenna. This Manual. 2. EVB Details This section describes the various interfaces and switch settings for the SKW92-EVB board. SKW92-EVB-UM-001,A/1 3/15... -

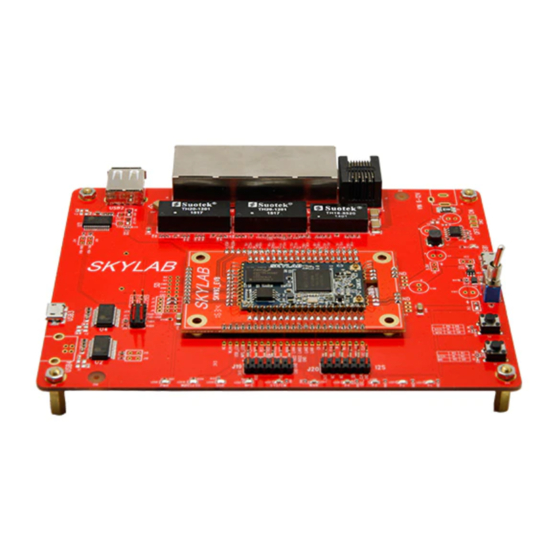

Page 4: Evb Details
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual EVB Details Connector Function Description DC Power Connector DC 6-15V Input Micro USB Power Connector USB DC 5V Input USB Type-B Port UART0:USB TO TTL Micro USB Port UART1:USB TO TTL USB Type-A Port... -
Page 5: Logging In To The Module Web
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual EVB Hardware Installation Step 1: Insert the module to the EVK board. Step 2: Connect the another LAN port into PC`s RJ45 port. Step 3: Connect the WiFi antenna. Step 4: Insert the DC adapter into the power-supply connector. - Page 6 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual Step 4: IP address set as gain automatically； 3）Check IP address according to the yellow tag in the pic； SKW92-EVB-UM-001,A/1 6/15...
-
Page 7: Setup Guide
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual 4）Web browser address: “http: //10.10.10.254”； 5）User account: admin； Password: admin 4. Setup Guide a. Choose the language； SKW92-EVB-UM-001,A/1 7/15... - Page 8 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual b. Choose Operation Mode； SKW92-EVB-UM-001,A/1 8/15...
-
Page 9: Setup "Gateway Mode
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual Three Operation Mode: 1）Gateway 2）AP Client 3）Bridge 1).Setup “Gateway Mode” A. Choose Gateway in the mode setting； B. Network setting as“WAN”； C. There are ADSL、L2TP、PPTP、3G these ways to connect to WAN in“WAN connected mode”，The following is 3G mode；... - Page 10 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual ②Set the WAN online mode to 3G，then select the 3G modem (by default)； SKW92-EVB-UM-001,A/1 10/15...
- Page 11 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual ③Through the 3G network connection： In the above table is filled with operators to provide the corresponding APN, PIN, Dial, Number, USB and 3G card support models are as follows, only supports the following models, if there are other models need support, please contact our technical support；...
-
Page 12: Setup "Ap Client Mode
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual D. Wireless Network Setting； 2).Setup “AP Client Mode” SKW92-EVB-UM-001,A/1 12/15... - Page 13 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual A. First setting IP of AP router and SKW92： Outer default AP router IP address is 192.1681.1.1； SKW92 use the own IP address，192.168.2.254； B. Click“AP Client”—>“Scan”； SKW92-EVB-UM-001,A/1 13/15...
- Page 14 Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual C. Select AP, click“Apply”； D. Modify the wireless channel, make it the same as the channel of the AP； Note：AP Router and AP client set to the same channel. SKW92-EVB-UM-001,A/1 14/15...
-
Page 15: Contact Information
Skylab M&C Technology Co., Ltd. SKW92-EVB-User Manual 5. Contact Information Skylab M&C Technology Co., Ltd. 深圳市天工测控技术有限公司 Address: 6 Floor, No.9 Building, Lijincheng Scientific & Technical park, Gongye East Road, Longhua District, Shenzhen, Guangdong, China Phone: 86-755 8340 8210（Sales Support） Phone: 86-755 8340 8510（Technical Support）...
