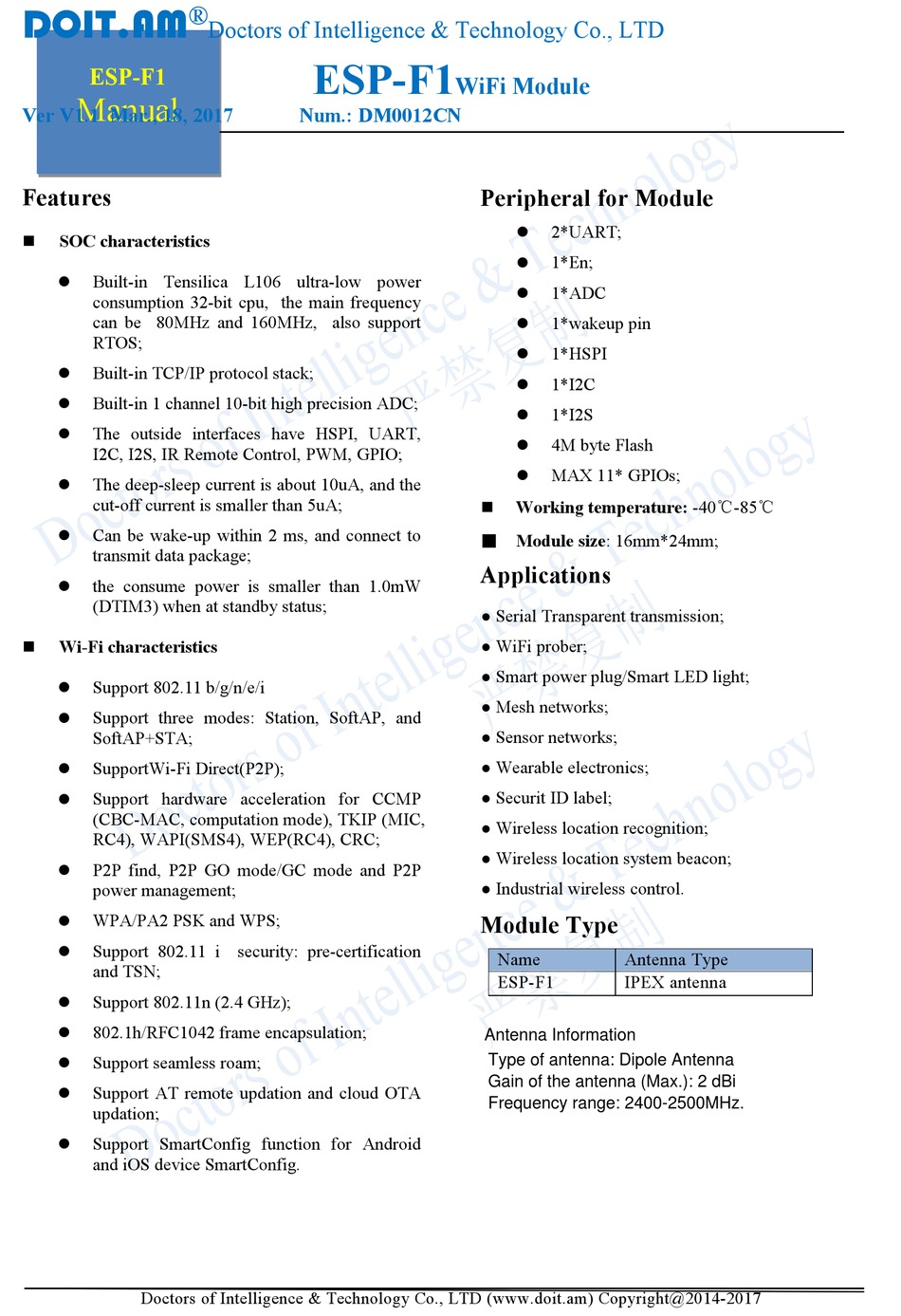

Doit ESP-F1 Manual

®
DOIT.AM
ESP-F1
Manual
Ver V1.1 Mar., 18, 2017
Features
SOC characteristics

Built-in Tensilica L106 ultra-low power

consumption 32-bit cpu, the main frequency
can be 80MHz and 160MHz, also support
RTOS;
Built-in TCP/IP protocol stack;

Built-in 1 channel 10-bit high precision ADC;

The outside interfaces have HSPI, UART,

I2C, I2S, IR Remote Control, PWM, GPIO;
The deep-sleep current is about 10uA, and the

cut-off current is smaller than 5uA;
Can be wake-up within 2 ms, and connect to

transmit data package;
the consume power is smaller than 1.0mW

(DTIM3) when at standby status;
Wi-Fi characteristics

Support 802.11 b/g/n/e/i

Support three modes: Station, SoftAP, and

SoftAP+STA;
SupportWi-Fi Direct(P2P);

Support hardware acceleration for CCMP

(CBC-MAC, computation mode), TKIP (MIC,
RC4), WAPI(SMS4), WEP(RC4), CRC;
P2P find, P2P GO mode/GC mode and P2P

power management;
WPA/PA2 PSK and WPS;

Support 802.11 i security: pre-certification

and TSN;
Support 802.11n (2.4 GHz);

802.1h/RFC1042 frame encapsulation;

Support seamless roam;

Support AT remote updation and cloud OTA

updation;
Support SmartConfig function for Android

and iOS device SmartConfig.
Doctors of Intelligence & Technology Co., LTD (www.doit.am) Copyright@2014-2017
Doctors of Intelligence & Technology Co., LTD

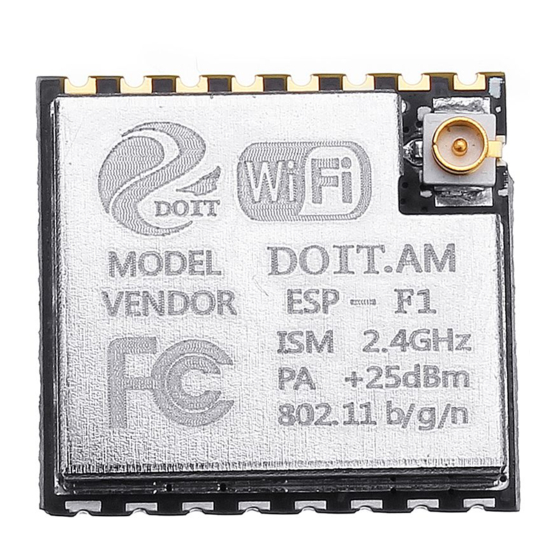

ESP-F1
Num.: DM0012CN
WiFi Module
Peripheral for Module
2*UART;

1*En;

1*ADC

1*wakeup pin

1*HSPI

1*I2C

1*I2S

4M byte Flash

MAX 11* GPIOs;

Working temperature: -40℃-85℃


Module size: 16mm*24mm;
Applications
● Serial Transparent transmission;
● WiFi prober;
● Smart power plug/Smart LED light;
● Mesh networks;
● Sensor networks;
● Wearable electronics;
● Securit ID label;
● Wireless location recognition;
● Wireless location system beacon;
● Industrial wireless control.
Module Type
Name Antenna Type
ESP-F1 IPEX antenna
Antenna Information
Type of antenna: Dipole Antenna
Gain of the antenna (Max.): 2 dBi
Frequency range: 2400-2500MHz.
