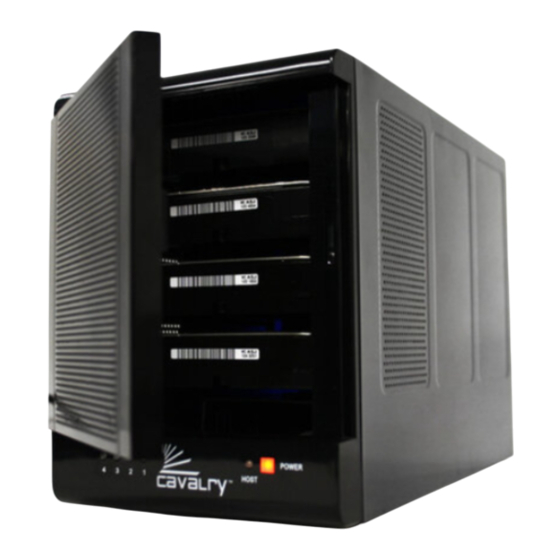

CADA-SA4 Series
How to configure a RAID 5 volume for the CADA-SA4 Series using Silicon Image
SATARAID5 Tools for Windows XP/2003
Before beginning, have the correct drivers for your RAID5 controller card installed and
the Silicon Image SATARAID5 Tools configuration manager program installed and ready.
The guide for installing the card, drivers, and software is in your Resources CD or at
www.cavalrystorage.com/manuals.htm. The appropriate software is in your Resources
CD or online at www.cavalrystorage.com/su_download.htm. Note that this entire process
may take several hours, especially building the RAID and reformatting.

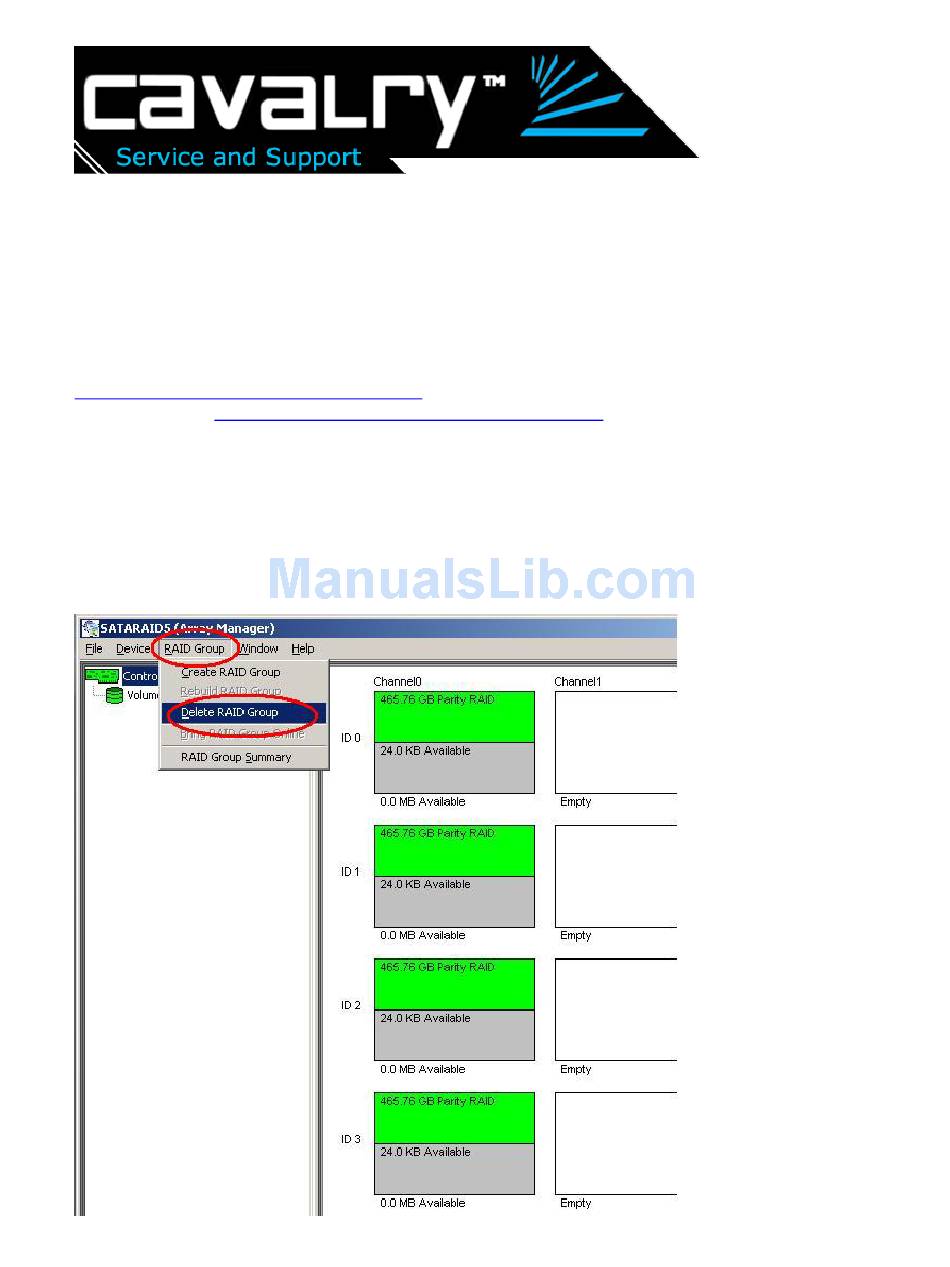

Open the SATARAID5 Tools configuration manager. It should look like the picture below.
If your drives are not configured (i.e. your configuration manager looks different), that's
ok. The steps that follow will re-configure the volume. Your RAID5 controller card will
appear on the upper left indicated by a green card icon, followed by the volume which
looks like a cylindrical pile of disks. Click 'RAID Group' top menu item and select 'Delete
RAID Group'.
1
