Summary of Contents for Maximum OUT LOOK

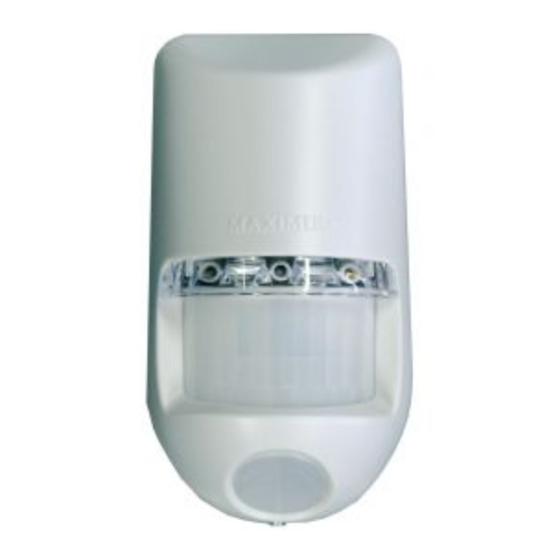

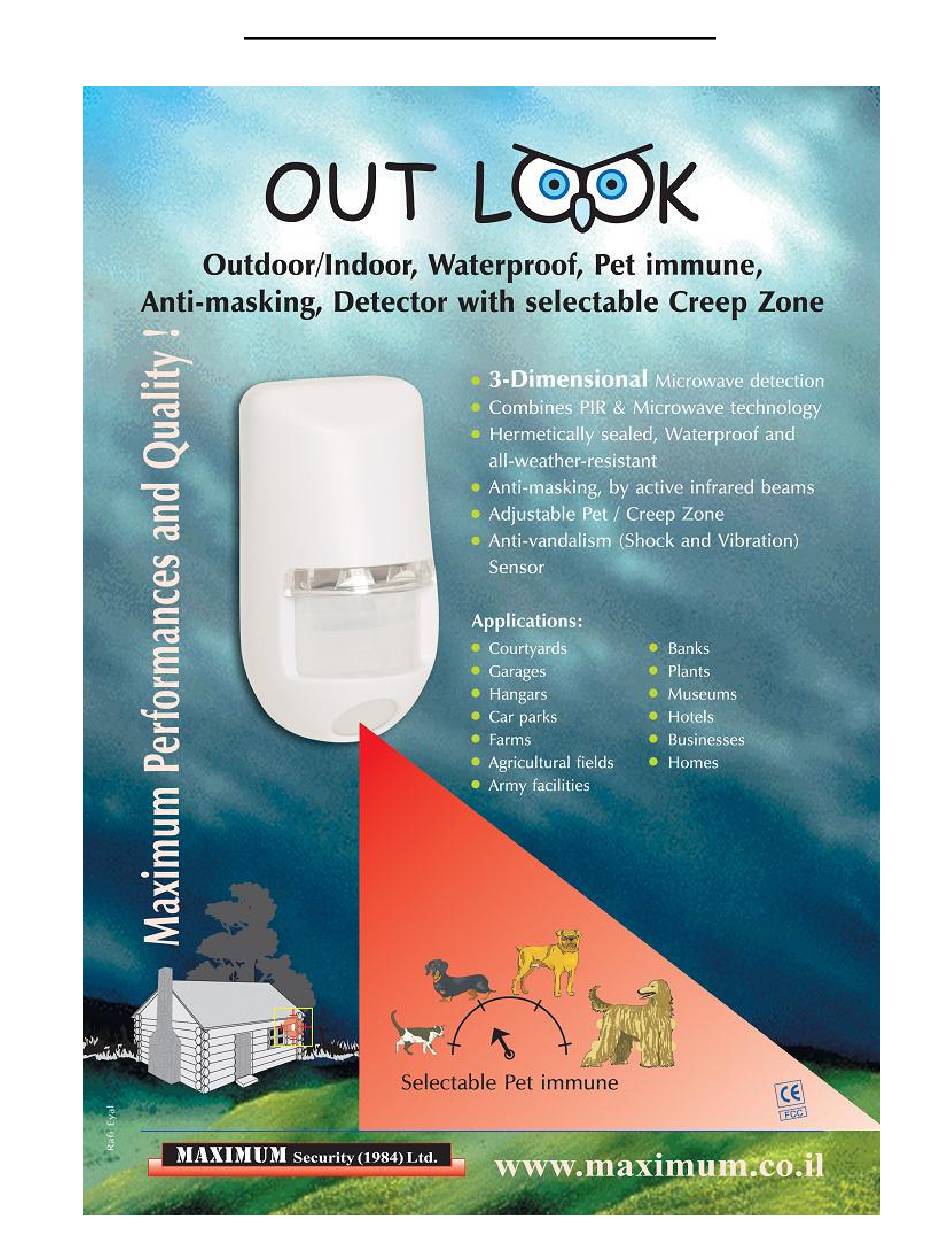

- Page 1 OUT-LOOK Outdoor/indoor intrusion detector Preliminary Quick Reference Ver.1 28/05/2008 Page (of 6)
- Page 2 OUT-LOOK Outdoor/indoor intrusion detector Preliminary Quick Reference Ver.1 28/05/2008 DIP SWITCH SETTING Microwave and PIR sensitivity adjustment LEDs After 15 minutes Microwave Pulse Count Sensitivity Adjustment Anti-masking High Sensitivity and High Learning, High and Detection Technology Combination Physical Setting setting, Detection by "Walk Range Setting...
- Page 3 2. Close the detector's case immediately and go to the most distant point of the desired detection range (Not over the detector's maximum detection range limitations!) and wait there, for a few seconds, until the Green LED will glow alone.
- Page 4 TAMPER MASK RELAY Anti-masking Tamper Switch Alarm Relay 12V DC 8mA @ 12Vdc 8mA @ 12Vdc Vibration/Shock Maximum. Maximum. Relay 20mA @ 5Vdc 20mA @ 5Vdc 8mA @ 12Vdc max. Maximum Maximum 20mA @ 5Vdc max. Input Terminal ! System Armed = 0V.
- Page 5 OUT-LOOK Outdoor/indoor intrusion detector Preliminary Quick Reference Ver.1 28/05/2008 WIRING TERMINAL SPECIFICATIONS * Terminal No. 8+9 Indicated on the circuit as: These are the 9V to 14V DC power supply inputs. * Terminal No. 6+7 Indicated on the circuit as: RELAY Represents the contacts of the “Alarm Relay”, which are Normally in Closed state N.C.
- Page 6 2. Upon the position of DIP switch number-3 (LED indicator) is changed. Study procedure: - Immediately close the detector’s case (within 30 seconds maximum). - Keep at least 1 meter away from its front part, until the study procedure is complete, about 2 minutes.
