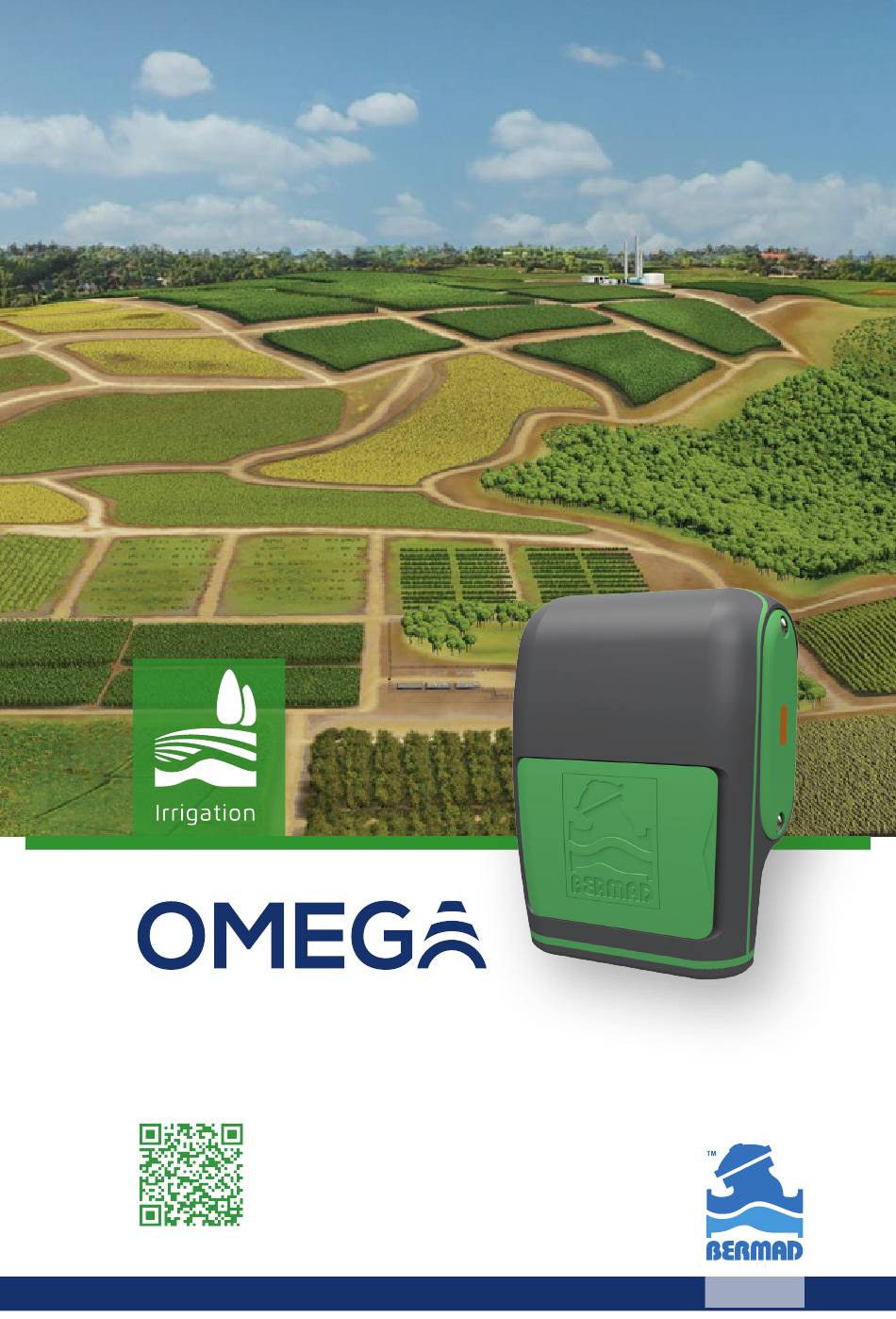

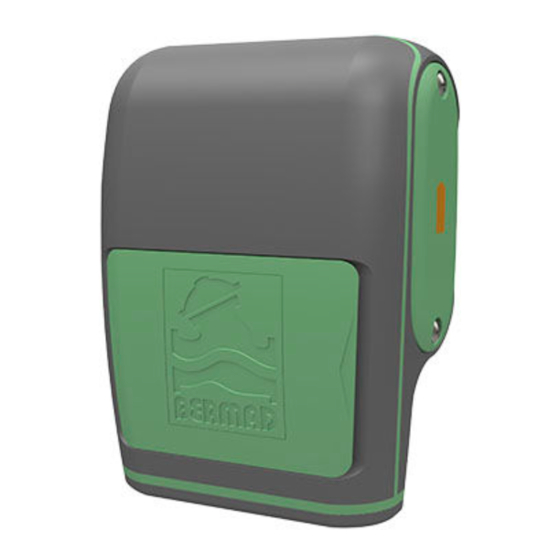

- Page 1 Quick Start Guide Scan QR code to view full manual...
-
Page 2: Table Of Contents
Introduction Omega Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 3: Safety
Power connector Mounting bracket SMA connector for external antenna² NOTE: This product conforms with FCC and CE regulations . Please see the installation and operation guide for more information Available in Omega RS, RF, and X models only Not standard... -
Page 4: Typical Connection Layout
Typical Connection Layout Up to ten extension controllers – total of 44 latch outputs, 44 digital inputs, and 22 analog The following can connect to the Omega inputs (RS models only) controller’s connection terminals: Latch output connection terminals: „ ▪... -
Page 5: Cloud Management System
Cloud Management System BERMAD Cloud provides a centralized web-based user interface for the Omega controller, allowing Omega for anywhere-anytime management and real- Cloud time visual monitoring of the irrigation system using a PC, tablet, or smartphone. BERMAD Cloud offers the following benefits: Password protected login „... -
Page 6: Mounting Omega Wall Mounting
MOUNTING OMEGA Wall Mounting Attach the mounting Position the Omega bracket to the wall using controller onto the two screws bracket Verify the bracket is fully inserted into the controller slot... -
Page 7: Valve Mounting
BERMAD is designed for horizontal installations, and is suitable for the BERMAD 200 series valves without further need for adjustments Attach the bracket adapter plate to the valve using the bolt and nut which... - Page 8 Insert the mounting Position the mounting bracket into the Omega bracket onto the bracket controller adapter plate Verify the bracket is fully inserted into the controller slot Verify the bracket adapter plate clicks in place and is securely fastened to...
-
Page 9: Pole Mounting
Attach the U-clamp U-clamp using a bolt and nut to the pole using two nuts NOTE: The U-clamp is an optional accessory that must be ordered separately . The U-clamp provided by BERMAD fits 1” (DN25) to 2” (DN50) pole diameters... - Page 10 Insert the mounting Position the mounting bracket into the Omega bracket onto the bracket adapter controller plate Verify the bracket is fully inserted into the controller slot Verify the bracket adapter plate clicks in place and is securely fastened to the...
-
Page 11: Powering Omega Battery Power Supply
POWERING OMEGA Battery Power Supply The Omega controller is powered by four LR-14 (C-size) alkaline batteries (see battery datasheet in full manual) NOTE: In offline mode, the controller can run on battery power for up to five years Tip: For best performance... -
Page 12: External Power Source
External Power Source Verify the power supply The Omega controller can be powered by electrical provides 9-24 VDC/1 A grid power, external high-capacity batteries, or solar panels NOTE: An external power supply is necessary if operating the Omega controller in online... -
Page 13: Connecting Peripherals Latch Output Connections
CONNECTING PERIPHERALS Latch solenoid valve Latch Output Connections Up to five devices (such as valves and water pumps) can be connected to the Omega controller latch outputs Latch Pump relay NOTE: The Omega RS model A relay must be Activated via 25 ... -
Page 14: Digital Input Connections
Digital Input Connections Up to four devices (such as water meters and digital sensors) can be connected to the Omega controller digital inputs. 1 2 3 4 NOTE: Digital inputs can be connected to devices with one of the following outputs:... -
Page 15: Analog Input Connections
Two-wire active analog sensor (connected to an Up to two devices (such as the following types of external power source) analog sensors) can be connected to the Omega controller analog inputs. Three-wire passive analog sensor (powered by the Omega controller) NOTE: The controller supports ... -
Page 16: Communicating Via Rs-485 Cable
COMMUNICATING VIA RS-485 CABLE Additional inputs and outputs can be connected either wired or wirelessly to the Omega controller using an RS-485 cable. Each extension controller can connect to four latch outputs, four digital inputs, and two analog inputs Up to ten extension controllers can be... - Page 17 The information contained herein may be changed by BERMAD without notice. BERMAD shall not be held liable for any errors ©Copyright 2011-2021 BERMAD CS Ltd. PIEA20-OMEGA | May 2021...
