OWNER'S MANUAL

PLEASE READ CAREFULLY BEFORE

USING THE PRODUCT.

HD MULTI-PURPOSE CAMERA

CONTROL BOX

Model: MXN204-TVI

Design and specifications are subject to change without notice.

Table of Contents

Need help?

Do you have a question about the MXN204-TVI and is the answer not in the manual?

Questions and answers

Summary of Contents for MXN MXN204-TVI

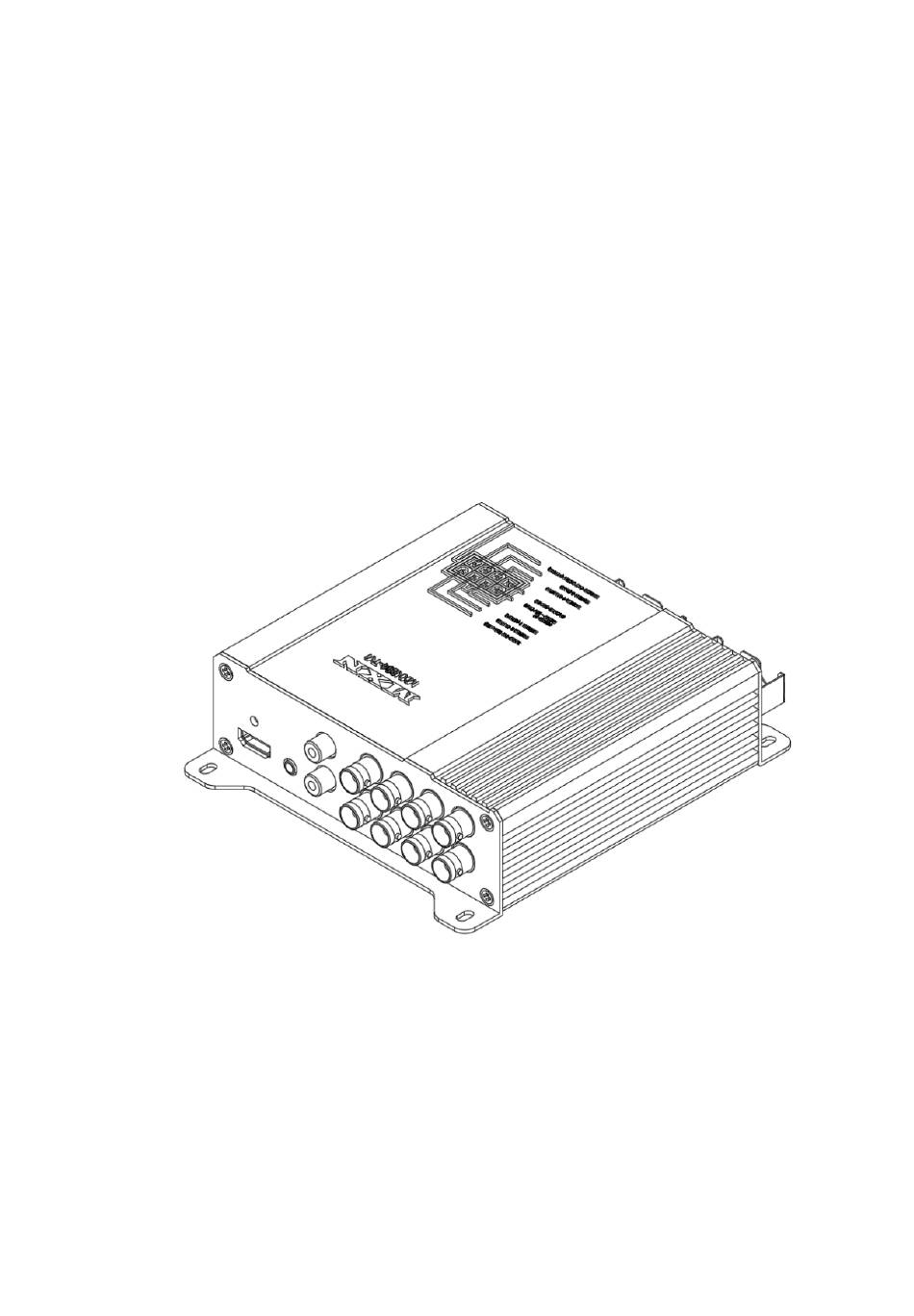

Page 1 OWNER’S MANUAL PLEASE READ CAREFULLY BEFORE USING THE PRODUCT. HD MULTI-PURPOSE CAMERA CONTROL BOX Model: MXN204-TVI Design and specifications are subject to change without notice.
Page 2 ■ INDEX PACKAGE CONTENTS INSTALLATION CONNECTION 05 - 06 OPERATION 07 - 19 REMOTE CONTROLLER MENU FUNCTION PICTURE NORMAL/MIRROR AUDIO TRIGGER AUDIO CAMERA TRIGGER DISTANCE MARKER DISTANCE MARKER ADJUSTMENT AUTO PICTURE SCAN CAMERA NAME SPEED SWITCH SPLIT CONFIGURATION TRIPLE CONFIGURATION QUAD CONFIGURATION MANUAL SELECTION MENU LOCK ON/OFF FUNCTION...
Page 3 ■ PACKAGE CONTENTS CONTROL BOX POWER CABLE RCA CABLE REMOTE CONTROLLER IR RECEIVER MANUAL CABLE BRACKET CABLE BRACKET SCREW MOUNT SCREW CONTROL BOX POWER CABLE RCA CABLE REMOTE CONTROLLER IR RECEIVER MANUAL CABLE BRACKET CABLE BRACKET SCREW ( FH M3X5 ) MOUNT SCREW ( PH M4X30 STAINLESS)
Page 4 ■ INSTALLATION □ Bracket Cable : Fix the bracket jack with provided screw after connecting the cameras ★ SCREW : M3 X 5 4EA □ Mounting on the floor, console, etc ★ SCREW : M4 X 30 4EA...
Page 5: Wire Color
■ CONNECTION ③ ⑦ ① ⑤ ⑧ ② ④ ⑥ Power & Trigger wire connection WIRE COLOR DESCRIPTION ① Power IN DC 10V ~32V ② BLACK Ground ③ GREEN Trigger 1 IN ( Power IN DC 10V ~32V ) ④ YELLOW Trigger 4 IN ( Power IN DC 10V ~32V ) ⑤...
Page 6 ■ CONNECTION CAMERA IN CAM4 CAM3 CAM2 CAM1 HDMI OUT AUDIO OUT IR-IN CVBS OUT CAM4 CAM3 CAM2 CAM1 Loop OUT AUDIO INPUT CVBS INPUT POWER TRIGGER IN VGA INPUT CAM4 HDMI INPUT CAM3 CAMERA IN CAM2 CAM1...
Page 7: Remote Controller
■ OPERATION REMOTE CONTROLLER ① POWER button Remote Controller Press POWER button to turn the control box on or off. When a trigger signal is activated, the control box does not Respond at the remote control’s signal. (Please refer to TRIGGER MODE in MAIN MENU for further information) Status of RED LED in IR Receiver STANDBY : LED ON...
Page 8 ■ OPERATION MENU FUNCTION PICTURE NORMAL/MIRROR AUDIO TRIGGER AUDIO CAMERA TRIGGER DISTANCE MARKER AUTO PICTURE SCAN CAMERA NAME SPEED SWITCH SPLIT TRIPLE QUAD MANUAL SELECTION MENU TREE Change the setting value by pressing the MENU button. FUNCTION Set functions on the monitor. PICTURE Set the color and brightness on the monitor.
Page 9 ■ OPERATION FUNCTION LANGUAGE ENGLISH SYSTEM AUTO VIDEO OUT NTSC CAMERA INPUT DIN-4P AUTO POWER RESET >> SYSTEM INFO VER 1.00 FUNCTION LANGUAGE Provide 6 Multi-lingual OSD [ENGLISH, SWEDISH, DANISH, NORWEGIAN, DUTCH, FINNISH]. Select the preferred LANGUAGE. SYSTEM Select AUTO/TVI/AHD/NTSC/PAL VIDEO OUT Select NTSC/PAL for video output format CAMERA INPUT...
Page 10: Picture Menu
■ OPERATION PICTURE & NORMAL/MIRROR CONTRAST BRIGHTNESS COLOR TINT PICTURE MENU Press [LEFT/RIGHT] button to adjust the PICTURE of the monitor. PICTURE MENU is for the settings of PICTURE from CAM1, CAM2, CAM3, CAM4, SPLIT1, SPLIT2, TRIPLE, QUAD mode. CAM1 NORMAL CAM2 NORMAL...
Page 11 ■ OPERATION AUDIO & TRIGGER AUDIO CAM1 AUDIO CAM2 AUDIO CAM3 AUDIO CAM4 AUDIO SPLIT TRIPLE QUAD AUDIO Audio ACTIVATED Mode in normal mode. When the mode is [ON], audio will be on (activated) When the mode is [OFF], audio will be off (mute). TRIG1 AUDIO ENTER TRIG2 AUDIO...
Page 12: Camera Trigger
■ OPERATION CAMERA TRIGGER & DISTANCE MARKER TRIGGER1 CAM1 TRIGGER2 CAM2 TRIGGER3 CAM3 TRIGGER4 CAM4 TRIG1. DELAY TRIG2. DELAY TRIG3. DELAY TRIG4. DELAY CAMERA TRIGGER TRIGGER 1/2/3/4 (Trigger source selection Select the required trigger source at CAM1/CAM2/CAM3/CAM4/SPLIT1/ SPLIT2/TRIPLE / QUAD REMARK TRIGGER PRIORITY: TRIGGER 1 >...
Page 13 ■ OPERATION DISTANCE MARKER ADJUSTMENT >> Marker A >> Marker B DISTANCE MARKER ADJUSTMENT Users can make adjustments by pressing the SELECT button in the menu. (It is not available on the split mode screen) Marker A- Parking line The left/right/both markers will be selected in order each time you press the SELECT button. When the marker is red it can be adjusted UP/DOWN or LEFT/RIGHT.
Page 14: Camera Name
■ OPERATION AUTO PICTURE SCAN & CAMERA NAME AUTO SCAN CAM1 SCAN TIME CAM2 SCAN TIME CAM3 SCAN TIME CAM4 SCAN TIME SPLIT1 SCAN TIME SPLIT2 SCAN TIME TRIPLE SCAN TIME QUAD SCAN TIME AUTO PICTURE SCAN Each scanning time of CAM1/CAM2/CAM3 /CAM4/SPLIT1/SPLIT2/TRIPLE/QUAD can be managed. REMARK If the SCAN TIME is set as[0], monitor skips its channel during scanning.
Page 15: Speed Switch
■ OPERATION SPEED SWITCH SPEED SWITCH FREQUENCY 67Hz UNDER FREQUENCY CAM CAM3 OVER FREQUENCY DISPLAY OVER FREQUENCY CAM CAM1 SPEED SWITCH The orange wire needs to be connected with the vehicle’s tacho signal and via MENU the SPEED SWITCH needs to be selected ON.
Page 16 ■ OPERATION SPLIT CONFIGURATION SPLIT 1 SPLIT 2 SPLIT1 SOURCE1 CAM1 SPLIT1 SOURCE2 CAM2 SPLIT2 SOURCE1 CAM3 SPLIT2 SOURCE2 CAM4 AUDIO CAM1 MODE SPLIT1 CROP SPLIT1 CROP SPLIT2 CROP SPLIT2 CROP SPLIT configuration: SOURCE 1 Select S1 Camera(CAM1~CAM4). SOURCE 2 Select S2 Camera(CAM1~CAM4).
Page 17 ■ OPERATION TRIPLE CONFIGURATION SOURCE1 CAM1 SOURCE2 CAM2 SOURCE3 CAM3 AUDIO CAM1 MODE TRIPLE configuration: SOURCE 1 Select S1 Camera(CAM1~CAM4). SOURCE 2 Select S2 Camera(CAM1~CAM4). SOURCE 3 Select S3 Camera(CAM1~CAM4). AUDIO Select TRIPLE of Audio(CAM1~CAM4). MODE Select TRIPLE MODE...
Page 18: Manual Selection
■ OPERATION QUAD CONFIGURATION & MANUAL SELECTION SOURCE1 CAM1 SOURCE2 CAM2 SOURCE3 CAM3 SOURCE4 CAM4 AUDIO CAM1 MODE QUAD configuration: SOURCE 1 Select S1 Camera(CAM1~CAM4). SOURCE 2 Select S2 Camera(CAM1~CAM4). SOURCE 3 Select S3 Camera(CAM1~CAM4). SOURCE 4 Select S4 Camera(CAM1~CAM4). AUDIO Select QUAD of Audio(CAM1~CAM4).
Page 19 ■ OPERATION MENU LOCK & SCAN ON/OFF FUNCTION MENU LOCK ON/OFF FUNCTION LOCK ON/OFF FUNCTION The setup menu can be locked to ban any unauthorized users. LOCK ON mode At the Power-ON mode, press the [DOWN] button for 10 seconds to activate the LOCK ON function. When [LOCKED] is displayed on the screen, the user can use only [POWER, SELECT, VOLUME] buttons and the user can edit settings for the PICTURE menu.
Page 20: Specifications
Power Consumption Max. 30Watt Video System HD-TVI (25fps, 30fps, 50fps, 60fps), AHD (25fps, 30fps) CVBS-PAL, CVBS-NTSC 4CH, Composite Video 1Vp-p 75Ω (MXN configuration) Camera Input (4-pin mini DIN) Video Input (BNC) 4CH, Composite Video 1Vp-p 75Ω A/V Input (HDMI) 1CH, Up to 2160p 50/60 1CH, Composite Video 1Vp-p 75Ω...
