Summary of Contents for Firefly OMNIGUARD 540

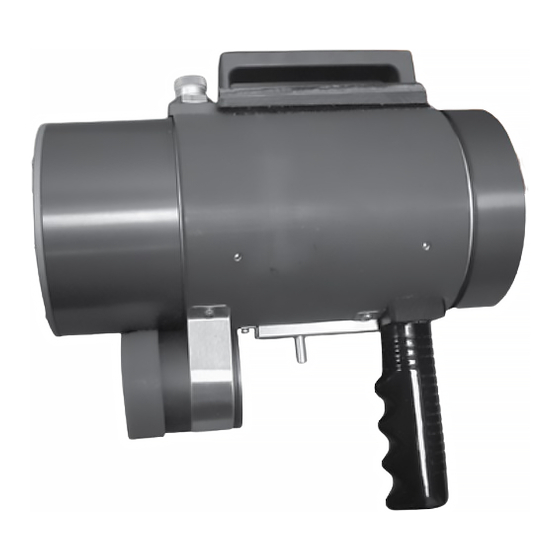

- Page 1 OMNIGUARD MODEL 540/545 TEST SOURCE Operating and service manual...
- Page 2 Do not remove the rear cover. First plug The model 545 is not an absolute calibration source however, and the connector of the Omniguard charger (Firefly part no. 22663) into is only intended to generate sufficient UV and IR radiation in a ratio the test source socket, then plug the charger into the AC outlet.
- Page 3 Ø142 (5.56) BATTERY CONNECTOR J1 (9.7) IR SOURCE UV SOURCE Measurement in [mm] ([inches]) (WITH END CAP REMOVED) Picture shows Omniguard model S40 test source. Model 545 test source has the same dimension as model 540. ©Firefly AB (November 2015)
- Page 4 Firefly AB Phone: +46 (0)8 449 25 00 E-mail: omniguardsales@firefly.se www.omniguardbyfirefly.se Address Textilgatan 31 120 30 Stockholm Publication No. 23462 Sweden...
