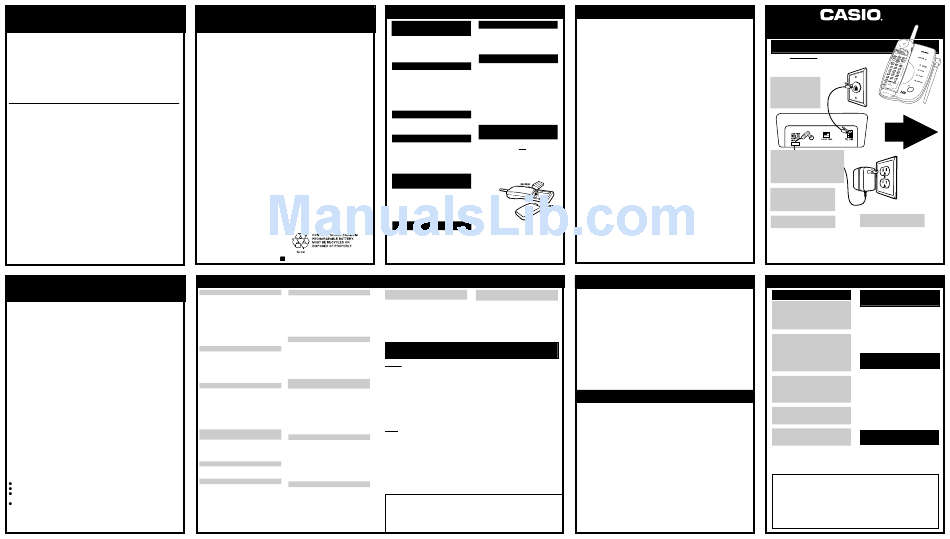

IMPORTANT CORDLESS
TELEPHONE INFORMATION
G
INTERFERENCE INFORMATION
Notice: This cordless telephone uses radio communications between the handset and the base unit,
and may not ensure privacy of communication. Other devices including other cordless telephones
may interfere with the operation of this cordless telephone or cause noise during operation. Cordless
telephone equipment generates and receives radio waves and, if not installed and used properly, may
pick up interference.
To prevent interference:
Avoid locations such as heating appliances, electrical equipment (e.g., fluorescent lamp, TV, radio,
refrigerator, computer), places subject to direct sunlight, excessive dust, moisture, vibration, etc.
Locate the base unit in a high place in the house (such as the second floor) in order to receive the
most effective communication range. Fully extend the base unit antenna. Telephones must not cause
interference to any licensed radio service.
Charge the Handset Battery Before Using the Cordless Telephone
The battery loses its charge during shipping and storage. Be sure to charge the battery before you use
the CP-2070 cordless telephone. Place the handset in the base unit. The CHARGING INDICATOR on the
base will light. Leave the handset in the base unit for 12-15 hours. Remember to make sure that the
wall outlet is still supplying power to the unit when you leave the room. Leave the wall outlet switch on
if necessary.
Optimize the 2.4 GHz Cordless Performance
For maximum distance and noise free operation, place the base unit away from electrical appliances.
Place the base unit in a central location with no obstructions such as walls. If you experience
interference while using the handset near other electrical appliances or other cordless phone base units,
move away from the electrical appliance or other cordless phone base units and closer to the CP-2070
base unit.
Digital Security Code
The Digital Security Coding System automatically resets a new personal security code, to one of over
64,000 combinations, every time you return the CP-2070 handset to the base unit. (Whenever the
handset is returned to the base unit, you will hear a beep.) The security code prevents unauthorized
use of your telephone line, false rings and false dialing.
FCC REQUIREMENTS
USER INSTRUCTIONS
K
1. This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label
that contains, among other information, the FCC registration number and Ringer Equivalence
Number (REN) for this equipment. If requested, provide this information to your telephone company.
2. The REN is useful to determine the quantity of devices you may connect to your telephone line and
still have all of those devices ring when your number is called. In most, but not all areas, the sum of
the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may
connect to your line, as determined by the REN, you should call your local telephone company to
determine the maximum REN for your calling area.
3. If your answering machine causes harm to the telephone network, the telephone company may
discontinue your service temporarily. If possible, they will notify you in advance. But if advance
notice is not practical, you will be notified as soon as possible. You will be advised of your right to
file a complaint with the FCC.
4. Your telephone company may make changes in its facilities, equipment, operations, or procedures
that could affect the proper operation of your equipment. If they do, you will be given advance notice
so as to give you an opportunity to maintain uninterrupted service.
5. If there is a problem with this unit, the telephone company may ask you to disconnect this
equipment from the network until the problem has been corrected or you are sure that the
equipment is not malfunctioning.
6. Repairs can only be made by the manufacturer or an authorized service agency. Unauthorized
repairs void registration and warranty. Contact seller or manufacturer for details of permissible user-
performed routine repairs, and where and how to have other than routine repairs made.
7. This equipment may not be used on coin service provided by the telephone company. Connection to
party lines is subject to state tariffs. (Contact your state public utility commission or corporation
commission for information.)
Jack: RJ11 Ringer Equivalence: See bottom/underside of the CP-2070 base unit.
CASIO COMMUNICATIONS, Inc. 20665 Manhattan Place, Torrance, CA 90501
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes made by the user not approved by CASIO COMMUNICATIONS can void the user's
authority to operate the equipment. This product is hearing aid compatible.
IMPORTANT
SAFETY INSTRUCTIONS
H
INSTALLATION INSTRUCTIONS
sans fil). Ceci peut présenter un risque de
choc électrique causé par la foudre.
1.
Never install telephone wiring during a
3.
Ne pas utiliser l'appareil téléphonique pour
lightning storm.
signaler une fuite de gaz s'il est situé près de
2.
Never install telephone jacks in wet locations
la fuite.
unless the jack is specifically designed for
4.
Utiliser seulement le cordon d'alimentation et
wet locations.
le type de piles indiqués dans ce manuel. Ne
3.
Never touch uninsulated telephone wires or
pas jeter les piles dans le feu: elles peuvent
terminals unless the telephone line has been
exploser. Se conformer aux règlements
disconnected at the network interface.
pertinents quant à l'élimination des piles.
4.
Use caution when installing or modifying
telephone lines.
CAUTION/ATTENTION
IMPORTANT SAFETY INSTRUCTIONS
Danger of explosion if battery is incorrectly
When using your telephone equipment, basic
safety precautions should always be followed to
replaced. Replace only with the same or equiva-
reduce the risk of fire, electric shock and injury to
lent type recommended by the manufacturer.
persons, including the following:
Dispose of used batteries according to the
1.
Do not use this product near water, for
manufacturer's instructions.
example, near a bath tub, wash bowl, kitchen
Il y a danger d'explosion s'il y a remplacement
sink, or laundry tub, in a wet basement, or
incorrect de la batterie. Remplacer uniquement
avec une batterie du même type ou d'un type
near a swimming pool.
équivalent recommandé para le constructeur.
2.
Avoid using a telephone (other than a
Mettre au rebut les batteries usagées
cordless type) during an electrical storm.
There may be a remote risk of electric shock
conformément aux instructions du fabricant.
from lightning.
1.
Use batteries only intended for recharging.
3.
Do not use the telephone to report a gas leak
Use only the following battery pack:
in the vicinity of the leak.
GP60AAS3BMJ Nickel-Cadmium
4.
Use only the power cord and batteries
Rechargeable, 3.6 volts, 600 mAh.
indicated in this manual. Do not dispose of
2.
Do not dispose of the battery in a fire. The
batteries in a fire. They may explode. Check
cell may explode. Check with local codes for
special disposal instructions.
with local codes for possible special disposal
3.
Do not open or mutilate the battery Released
instructions.
electrolyte is corrosive and may cause
IMPORTANTES MESURES DE SÉCURITÉ
damage to the eyes or skin. It may be toxic if
Certaines mesures de sécurité doivent être prises
swallowed.
lors de l'utilisation de matérial téléphonique afin
4.
Exercise care when handling the battery in
de réduire les risques d'incendie, de chocs
order not to short the battery with
électriques et de blessures. En voici quelques-
conducting materials such as rings,
unes.
bracelets, and keys. The battery or conductor
1.
Ne pas utiliser l'appareil près de l'eau, par
may overheat and cause burns.
exemple, près d'une baignoire, d'un lavabo,
d'un évier de cuisine, d'un bac à laver, dans
un sous-sol humide ou près d'une piscine.
2.
Éviter d'utiliser le téléphone pendant un
orage électrique (sauf s'il s'agit d'un appareil
SAVE THESE INSTRUCTIONS
CONSERVEZ CES DIRECTIVES
TROUBLESHOOTING
"Blocked" and "Unavailable" Messages.
The handset does not ring.
If a caller chooses to partially or completely
1. Check the ringer switch on the side of the
"block" Caller ID information, a message will
handset and make sure it is not set to "OFF".
appear on the display indicating that the name
2. Check AC adaptor and telephone cord
and/or phone number has been blocked. If, for
connection at the charging cradle and wall
any other reason, the name and/or number
outlet.
information is currently not available from your
3. Was the battery pack charged for at least 12-
local phone company, an "Unavailable" message
15 hours? Does "Low Battery" appear on the
will appear on the display. The time and date
display?
information for the call will be recorded into the
"Line Error" Message
CP-2070's memory.
The "Line Error" message may occasionally
Local Area Code Setting
appear due to electrical static on the telephone
If you live in a 7 digit dialing area and you
line. This is normal. However, if you consistently
program your local area code into the unit, the
see this message when you should be receiving
CP-2070 can make returning phone calls easier by
Caller ID data (i.e. between the first and second
automatically dialing stored Caller ID numbers. If
rings), you may have a problem with your phone
you live in a 10 or 11 digit dialing area, leave this
line. Contact your local telephone company.
setting at 000.
You hear continuous short beeps instead of a
Call Waiting Caller ID does not work
dial tone when using the cordless handset.
1. You must subscribe to the combined package
The beep tones are a warning alarm to let you
service Call Waiting Caller ID from your local
know:
telephone company to use this feature. Simply
1. That the handset is out of communication
subscribing to Call Waiting and Caller ID may
range with the charger cradle. Move the
not be sufficient to receive incoming Caller ID
handset closer to your charger cradle.
information while you are on the line.
2. That the charger cradle had some problem like
2. Turn the CP-2070's Call Waiting Caller ID
a power failure. Return the handset to the
option on.
charger cradle for 5 seconds and make sure all
cords are connected correctly.
LINE IN USE INDICATOR lights yet the handset
or extension phone are not in use.
Interference Noise is heard.
The telephone cord is not properly plugged in.
1. The handset is too far from the charger cradle.
Connect one end of the telephone cord to the wall
2. The cordless handset is picking up
jack and connect the other end of the telephone
interference from one of several sources:
line cord to the back of the CP-2070.
electrical appliances such as radio, TV,
fluorescent lights, etc. Move the charger cradle
No sound from the handset.
to reduce interference.
Check the VOLUME CONTROL . It may have been
3. Press CHANNEL to select another channel.
programmed to a low level.
4. Raise the charging cradle antenna.
No Dial Tone is heard when calling out.
No Page Tone is heard at the Handset.
1. Was the battery pack charged for at least 12-
1. Check the AC ADAPTER and telephone cord
15 hours? Does "Low Battery" appear on the
connection.
display?
2. You may have had a power failure. Return the
2. Check the AC adaptor and telephone cord
handset to the charger cradle for 5 seconds to
connection at the charging cradle and wall
reset the Digital Security Code.
outlet.
3. Check the connection of the battery pack.
ADDITIONAL INFO
I
HANDSET CHARGING
TWO-LINE INSTALLATION
INDICATOR
Two-line installations may require a two-line
T-adapter for the CP-2070 to operate correctly.
The HANDSET CHARGING INDICATOR lights
The T-adapter allows you to connect your
solid when the handset is placed in the charger.
machine to Line 1 or Line 2. The CP-2070 will
Place the handset in the charger for
only answer one line. (See Accessories.)
12-15 hours before the first use or when the
CLEANING THE CP-2070
battery begins to run low.
LINE-IN-USE INDICATOR
CAUTION: Disconnect the CP-2070 from the
power outlet before cleaning.
The LINE-IN-USE INDICATOR (located on the
Use a damp cloth or moist sponge only to clean
charging cradle) will light solid whenever the
the antenna, the plastic cabinet of the handset
CP-2070 is in "TALK" mode, whenever any other
and charging cradle, and the battery charging
extension telephone on the same line is being
contacts on the handset.
used, or whenever the telephone cord is not
A mild soap, like dishwashing detergent, will
properly plugged into the wall jack or telephone.
help remove grease or oil. Do not spray cleaners
It will flash slowly whenever the CP-2070 is in
directly onto the unit. Cleaners should only be
hold mode.
used on the plastic surfaces. Thoroughly dry all
HANDSET-IN-USE INDICATOR
parts of the handset and charging cradle before
re-using.
The handset-in-Use Indicator (located on the
charging cradle) will light solid whenever the
HANDSET BATTERY
CP-2070 is in "TALK" mode.
INSTALLATION
MOVING THE CP-2070
THIS UNIT IS SHIPPED WITH A HANDSET
Unplug the CP-2070 from the wall outlet if you
BATTERY PACK THAT IS NOT INSTALLED.
wish to move the unit. Place the handset in the
To install the battery pack:
charging cradle after relocating the CP-2070.
1. Press down on the battery compartment
This will reset the CP-2070's security code. All
cover and slide it toward the bottom of the
autodial, Caller ID and redial numbers will be
handset.
saved.
2. Install the new battery pack with the red wire
POWER FAILURE/
on the right side of the black wire (see
drawing.)
NON-VOLATILE MEMORY
The CP-2070's memory backup system
maintains up to 20 autodial names and numbers
and stored Caller ID information (up to 50
records) indefinitely until you erase them. This
non-volatile memory does not require battery
power.
3. Replace the battery cover by sliding it up from
MULTI-LINE INSTALLATION
the bottom.
Installations with more than two lines, such as
4. Place the handset in the charger cradle and
business PBX or Key Systems, may require a
charge the battery pack for 12-15 hours.
separate RJ11 jack for answering machines.
WARNING: Use only NiCd Rechargeable
Please contact your telephone equipment
Battery Pack (3.6 volts 600 mAh.)
provider for additional information. (See
Handset battery life: 6 hours talk time, 7 days
Accessories.)
standby time.
L
A beep is heard each time the handset is
After several attempts the CP-2070 will not
returned to the charger cradle.
operate properly.
This is normal operation. The handset is updating
Unplug the AC ADAPTER PLUG from the back of
the security code.
the CP-2070 for 10 seconds. Remove the battery
from the handset. Plug the AC ADAPTER back into
the charging cradle and re-insert the battery in the
handset. Return the handset to the charger cradle
for 10 seconds.
QUESTIONS?
HERE'S HOW TO REACH US
By Phone:
AUTHORIZED FACTORY SERVICE CENTER
For repairs, please bring or send your unit to:
HELPLINE: (310) 320-9810, Monday - Friday,
Phone Masters Repair Center
8 a.m. to 4:45 p.m., PST
11899 Valley View Street
AUTHORIZED FACTORY SERVICE CENTER:
Garden Grove, CA 92845
Phone Masters Repair Center
1. Pack your product securely in a sturdy
(714) 373-4233, Monday - Friday,
shipping box.
8 a.m. to 5 p.m., PST
2. Include a clear and specific explanation of the
PARTS ORDERS USING A CREDIT CARD:
problem.
Pacific Coast Parts Distributors, Inc.
3. Include your name, street address (sorry, no
(800) 421-5080 or (310) 515-0207,
P.O. box), and daytime phone number.
Monday - Friday, 8 a.m. to 4:30 p.m., PST
4. Provide a legible photocopy of the dated
store receipt for one-year warranty purposes.
On-line:
CUSTOMER RELATIONS:
WEBSITE: www.casiocomm.com
E-MAIL: cpmicust@casio.com
AUTHORIZED FACTORY SERVICE CENTER:
WEBSITE:
www.members.home.net/skelly1/PM1.htm
E-MAIL: phonemasters@hotmail.com
PARTS AND ACCESSORIES:
WEBSITE: www.pacparts.com
E-MAIL: orders@pacparts.com
Design and specifications are subject to change without notice.
CASIO COMMUNICATIONS, INC.
20665 Manhattan Place, Torrance, CA 90501-1827
Internet Website: http://www.casiocomm.com
M1S1 4/00
Printed in China
5472-920-0-01
IMPORTANT FEATURES
J
2.4 GHz Hybrid Cordless Technology
Advanced technology provides enhanced clarity and superior reception. 2.4 GHz operates on a higher
frequency than conventional 900 MHz telephones.
Caller ID
If you subscribe to a Caller Identification Service (available from most local telephone companies), the
CP-2070 can display the name and phone number of incoming calls. With the Caller ID feature, you can
see who is calling before you answer a call.
Call Waiting Caller ID
If you subscribe to a Call Waiting Caller ID service from your local telephone company, the CP-2070 can
display the name and number of an incoming call while you are already talking to another party on the
cordless handset. NOTE: You must order the complete package that is known as "CALL WAITING/
CALLER ID" from your local telephone company. If you simply order the two services of CALL WAITING
and CALLER ID you may not receive Call Waiting Caller ID service. Turn on Call Waiting Caller ID in
programming if you subscribe to this feature, otherwise leave it off.
Caller ID Memory
The CP-2070 automatically stores the Caller ID names and numbers of the last 50 calls you have
received.
Ultra Clear
®
Noise Reduction Circuit
Reduces background noise - reception is superior to conventional cordless telephones.
Supertwist Nematic (STN
TM
) LCD
Advanced LCD technology in your CP-2070 provides clear, multi-angle viewing of caller's name and
phone number if you subscribe to Caller ID service from your local telephone company.
Autodial Memory Backup
CASIO's memory backup system maintains up to 20 autodial names and numbers indefinitely until you
erase them. This non-volatile memory does not require battery power.
Charging The Battery
Charge the battery for 12-15 hours before using the cordless handset for the first time. The handset is
always charging while it is in the charging cradle and cannot be overcharged.
To charge the battery, first check the AC Adapter to see that it is connected correctly. Then, place the
handset in the charging cradle. The CHARGING INDICATOR on the charging cradle lights solid to
indicate that the CP-2070 is charging.
Local Area Code Setting
If you are planning to use the Caller ID features on the CP-2070 and you reside in a 7-digit dialing area,
you may want to program your local area code into the handset's memory after you have charged the
battery for the first time. The CP-2070 uses this information to automatically dial stored Caller ID
numbers correctly from a 7-digit dialing area. If you have 10 or 11 digit dialing in your area, leave the
area code setting at 000. The CP-2070 will prompt you to choose between 7, 10, or 11 digit dialing
each time you make a caller ID call.
Headset Jack / Belt Clip Included
The CP-2070 handset has a 2.5mm jack for attachment of a headset (headset not included). The belt
clip snaps into the back of the handset.
ACCESSORIES
M
To order accessories, to check on parts availability or to order parts using a credit card, call
(800) 421-5080 or (310) 515-0207, Monday - Friday, 8 a.m. to 4:30 p.m., PST.
To order on-line: www.pacparts.com
E-MAIL: orders@pacparts.com
Lightning Arrestor
- Helps protect telephone devices from damage caused by lightning-strikes to the telephone line.
Recommended for areas prone to electrical storms.
Rechargeable Battery Pack
- For Model CP-2070
AC Adapter
- For Model CP-2070
Modular Duplex T-Adapter
- Converts a single modular telephone jack to a double jack.
Modular Two Line T-Adapter
- Splits one RJ14 two line jack into two RJ11 single line jacks.
Headset (over ear)
Headset (over head)
Belt Clip
LIMITED WARRANTY
N
IMPORTANT! SALES SLIP OR EVIDENCE OF PURCHASE DATE REQUIRED
This limited warranty gives you specific legal rights; you may also have other rights which vary from state
to state.
The limited warranty is extended only to the original consumer of a CASIO COMMUNICATIONS product and
is valid only with respect to consumers within the United States of America and Canada. Should this
product prove defective by reason of improper workmanship or material during the period of one (1) year
from the date of original purchase, CASIO COMMUNICATIONS will repair or, at its option, replace the
product without charge for parts or labor. If CASIO COMMUNICATIONS elects to replace the product, such
replacement may be accomplished with a factory-reconditioned unit. This limited warranty does not apply:
(a) to any product damaged by accident, misuse, improper line voltage, lightning, fire, water, or other acts
of nature, (b) if the product is altered or repaired by anyone other than CASIO COMMUNICATIONS, INC. or
one of its authorized warranty stations or (c) if the FCC-approved connector plugs are removed. This
limited warranty does not cover broken or marred cabinets.
Except to the extent prohibited by applicable law, all implied warranties made by CASIO COMMUNICATIONS
in connection with this product are limited in duration to a period of one (1) year from the date of original
purchase, and no warranties, whether expressed or implied, shall apply to this product after said period.
Should this product prove defective in workmanship or material, the consumer's sole remedies shall be
such repair or replacement as is herein-above provided. Under no circumstances shall CASIO
COMMUNICATIONS be liable for any loss or damage, direct, consequential, or incidental arising out of the
use of or inability to use this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusion may not apply to you.
In order to obtain warranty service, you must provide evidence of purchase date. For your convenience,
keep the dealer's dated bill of sale or delivery ticket as evidence of the purchase date. See Troubleshooting
section above for details. Before returning or exchanging your product, call the CASIO COMMUNICATIONS
Helpline at (310) 320-9810.
EASY TO USE
CP-2070
OWNER'S GUIDE
2.4 GHz CORDLESS PHONE WITH
CALL WAITING CALLER ID
INSTALLATION
A
This unit is not shipped with the handset
battery installed. Please install and
charge the handset battery pack before
initial setup and use.
PLUG
1
the CP-2070's
telephone cord into a
telephone wall jack.
PLUG
the other end of
the cord into the back of
the base unit.
Open for easy
operating guide!
CONNECT
2
the AC Adapter Plug into
the AC Adapter Outlet on the back of
LOOP
the CP-2070 charging cradle.
the cord through the AC Adapter Cord
Holder to prevent accidental
disconnection.
3
PLUG
the AC Adapter into an
electrical wall outlet. Place the
handset (with battery pack
installed) in the cradle.
5
Raise the charging cradle
4
It may be necessary to set the
antenna for clear reception.
T ONE/PULSE SWITCH.
REFERENCIA RÀPIDA
O
INSTALACIÓN
USO EN PARED O
ESCRITORIO
1
ENCHUFE
el cordón de su CP-2070 en
Se incluye un soporte para empotrado en pared
un enchufe para teléfono en la pared.
si se desease. Enrolle en forma apretada el
ENCHUFE
el otro extremo del cordón
cordón telefónico al rededor de las cuatro guías
telefónico en la parte posterior de la
en la parte interior del soporte para empotrado.
unidad base.
Haga pasar el cordón telefónico a través del
orificio en el centro del soporte. Vea el dibujo. El
CONECTE
2
el enchufe del adaptador de
auricular puede ser cargado en la posición
CA en la entrada de tomacorriente para
mirando hacia afuera o boca abajo, aún si se ha
adaptador de CA que hay en la parte de
empotrado en la pared.
atrás de la base para carga de su CP-2070.
ENGANCHE
INTERRUPTOR SELECTOR
el cordón en el sujetador de
cordón para evitar una desconexión
TONOS/PULSOS
accidental.
Este interruptor le indica a su CP-2070 que la
marcación de números es a través de tonos o
ENCHUFE
3
el adaptador de CA en un
por pulsos de acuerdo al tipo e servicios que
tomacorriente eléctrico de pared.
tenga de su compañía de servicios telefónicos.
Coloque el auricular (con su paquete de
Su CP-2070 es empacado con el interruptor
pilas ya instalado) en la unidad base para
TONE/PULSE (Tonos/Pulsos) en la posición
carga.
para operación por tonos "TONE." Si usted no
tuviera servicio telefónico por tonos, cambie el
4
Puede que se necesite ajustar el
interruptor a la posición PULSE (Pulsos) en la
interruptor selector para modo de
parte posterior de la base para carga.
operación TONOS o de PULSOS.
TONE = para servicio telefónico por tonos
PULSE = para servicio telefónico por pulsos
Saque y extienda completamente la
5
TIMBRE ENCENDIDO/
antena en la base para carga para lograr
APAGADO "ON/OFF"
la mejor recepción.
Su CP-2070 es empacado con los interruptores
para el timbre en la base y el auricular en la
posición encendido (ON). A su gusto, usted
puede tener apagados o encendidos los timbres
de su CP-2070.
¡IMPORTANTE! CARGUE COMPLETAMENTE LA PILA DEL AURICULAR
DE 12 A 15 HORAS ANTES DE USAR EL TELEFONO
El desempeño de la pila es determinado por la duración del primer ciclo de carga. Si usted
se precipita a usar su teléfono antes de que la pila haya cargado completamente, usted
reducirá el tiempo efectivo de uso por carga de su teléfono.
Instale la pila y conecte el teléfono como se muestra, luego coloque el auricular en la base
para cargar, con las teclas de números hacia abajo. El INDICADOR DE CARGA (CHARGE
INDICATOR) en la base se encenderá. Deje el auricular en la base de 12 a 15 horas.

Advertisement

loading

  Related Manuals for Casio CP-2070
