Summary of Contents for Simpex Electronic Fandis FF Series

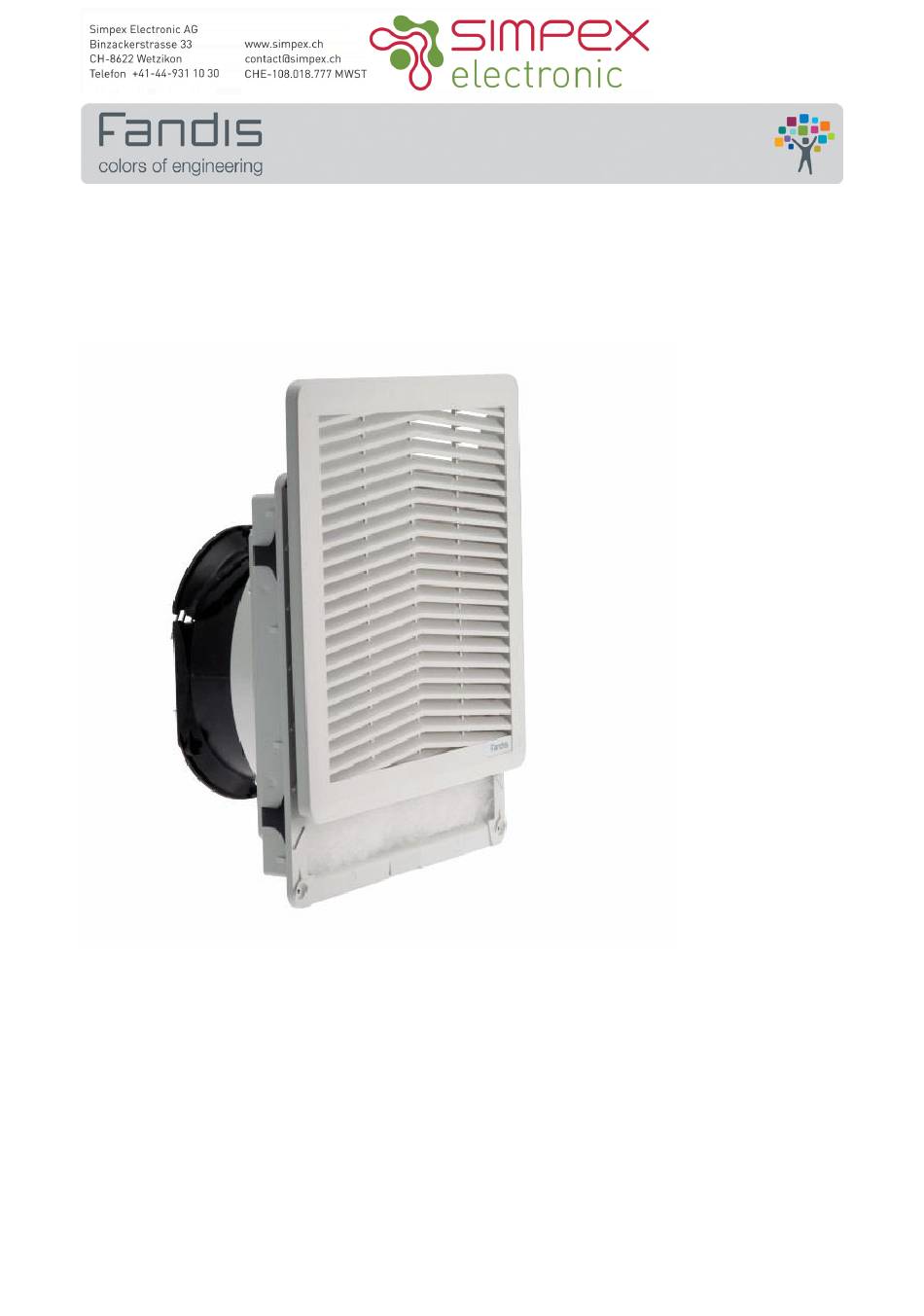

- Page 1 TECHNICAL DESCRIPTION FF SERIES The development of our FF series is the result of years of field experience and feedbacks from the market.
- Page 2 FF series the lower part of the cover can be raised up simply by one finger and pushed it upwards. 2) The Fandis FF series has a polyurethane gasket on the base which is automatically deposited by a dedicated machine. The gasket is housed in a recessed seat and...
- Page 3 3) The base has no openings in its structure thanks to the new fixing system of the cover and to the new mounting clips. 4) The ribbing designed on the base of the FF series facilitates the water runoff to the outside and towards the bottom of the filter.
- Page 4 5) The internal base profile has been raised both to facilitate the water runoff and to have an additional barrier against dust and water. 6) The lower part of the cover has two openings that, combined with the slight inclination of the interior part of the base, facilitate the water runoff to the outside and limit the water accumulation in the filter.
- Page 5 7) The innovative mounting clips allow mounting on 1 to 3.7mm thick plates, in particular: - for the FF08 filters and fan filters from 1mm to 2mm; - for the FF12 and the FF13 filters and fan filters from 1.3mm to 3.2mm; - for the FF15 and the FF20 filters and fan filters from 1.3mm to 3.7mm (up to 4mm with cut-out max tolerance).
