Table of Contents
To change the Daylight Saving Time (summer time) setting
1. In the Timekeeping Mode, hold down E until the currently selected
DST indicator
DST indicator
city code starts to fl ash. This is the city code setting screen.
Before the city code starts to fl ash, the message SET Hold
will appear on the display. Keep E depressed until SET Hold
disappears and the city code starts to fl ash.
2. Press D to display the DST setting screen.
3. Use A to cycle through the DST settings in the sequence shown
below.
Auto DST (AUTO)
The Auto DST (AUTO) setting will be available only when a city
code that supports time calibration signal reception is selected as
the Home City. While Auto DST is selected the DST setting will be
changed automatically in accordance with time calibration signal
data.
4. After all the settings are the way you want, press E twice to return to
the Timekeeping Mode.
The DST indicator appears to indicate that Daylight Saving Time is
turned on.
Confi guring Current Time and Date Settings Manually
You can confi gure current time and date settings manually when the watch is unable to receive a time
calibration signal.
To change the current time and date settings manually
1. In the Timekeeping Mode, hold down E until the currently selected
PM
PM
City
City
Month
Month
city code starts to fl ash. This is the city code setting screen.
indicator
indicator
code
code
Day
Day
Before the city code starts to fl ash, the message SET Hold
will appear on the display. Keep E depressed until SET Hold
disappears and the city code starts to fl ash.
2. Use A and C to select the city code you want.
Select your Home City code before changing any other setting.
For full information on city codes, see the "City Code Table".
Hour : Minutes
Hour : Minutes
Seconds
Seconds
3. Press D to move the fl ashing in the sequence shown below to select the other settings.
12/24-Hour
City Code
DST
Format
Thermometer/Barometer/
Power
Altitude unit
Saving
The following steps explain how to confi gure timekeeping settings only.
4. When the timekeeping setting you want to change is fl ashing, use A and/or C to change it as
described below.
Screen
Change the city code
Cycle between Auto DST (AUTO), Daylight Saving
Time (On) and Standard Time (OFF).
Toggle between 12-hour (12H) and 24-hour (24H)
timekeeping.
50
Reset the seconds to 00
Change the hour or minutes
Change the year, month, or day
5. Press E twice to exit the setting screen.
Note
For information about selecting a Home City and confi guring the DST setting, see "Confi guring
Home City Settings".
While 12-hour format is selected for timekeeping, a P (PM) indicator will appear for times from
noon to 11:59 p.m. No indicator appears for times from midnight to 11:59 a.m. With 24-hour format,
time is displayed from 0:00 to 23:59, without any P (PM) indicator.
The watch's built-in full automatic calendar makes allowances for different month lengths and leap
years. Once you set the date, there should be no reason to change it except after you have the
watch's rechargeable battery replaced or after power drops to Level 5.

Digital Compass

In the Digital Compass Mode, a built-in bearing sensor detects magnetic north at regular intervals and
indicates one of 16 directions on the display.
To take a digital compass reading
Direction
Direction
12 o'clock
12 o'clock
North
North
1. Make sure the watch is in the Timekeeping Mode or any one of the
indicator
indicator
position
position
pointer
pointer
sensor modes.
The sensor modes are: Digital Compass Mode, Barometer/
Thermometer Mode, and Altimeter Mode.
2. Place the watch on a fl at surface. If you are wearing the watch, make
sure that your wrist is horizontal (in relation to the horizon).
3. Point the 12 o'clock position of the watch in the direction you want to
measure.
4. Press C to start digital compass measurement.
Current
Current
time
time
COMP will appear on the display to indicate that a digital compass
Angle value (in degrees)
Angle value (in degrees)
operation is in progress.
See "Digital Compass Readings" for information about what
NW
NW
270
270
0
0
appears on the display.
Note
If a value appears to the right of the direction indicator, it means
that the bearing memory screen is displayed. If this happens, press
E to exit the bearing memory screen.
5. After you are fi nished using the digital compass, press D to return to
90
90
180
180
the Timekeeping Mode.

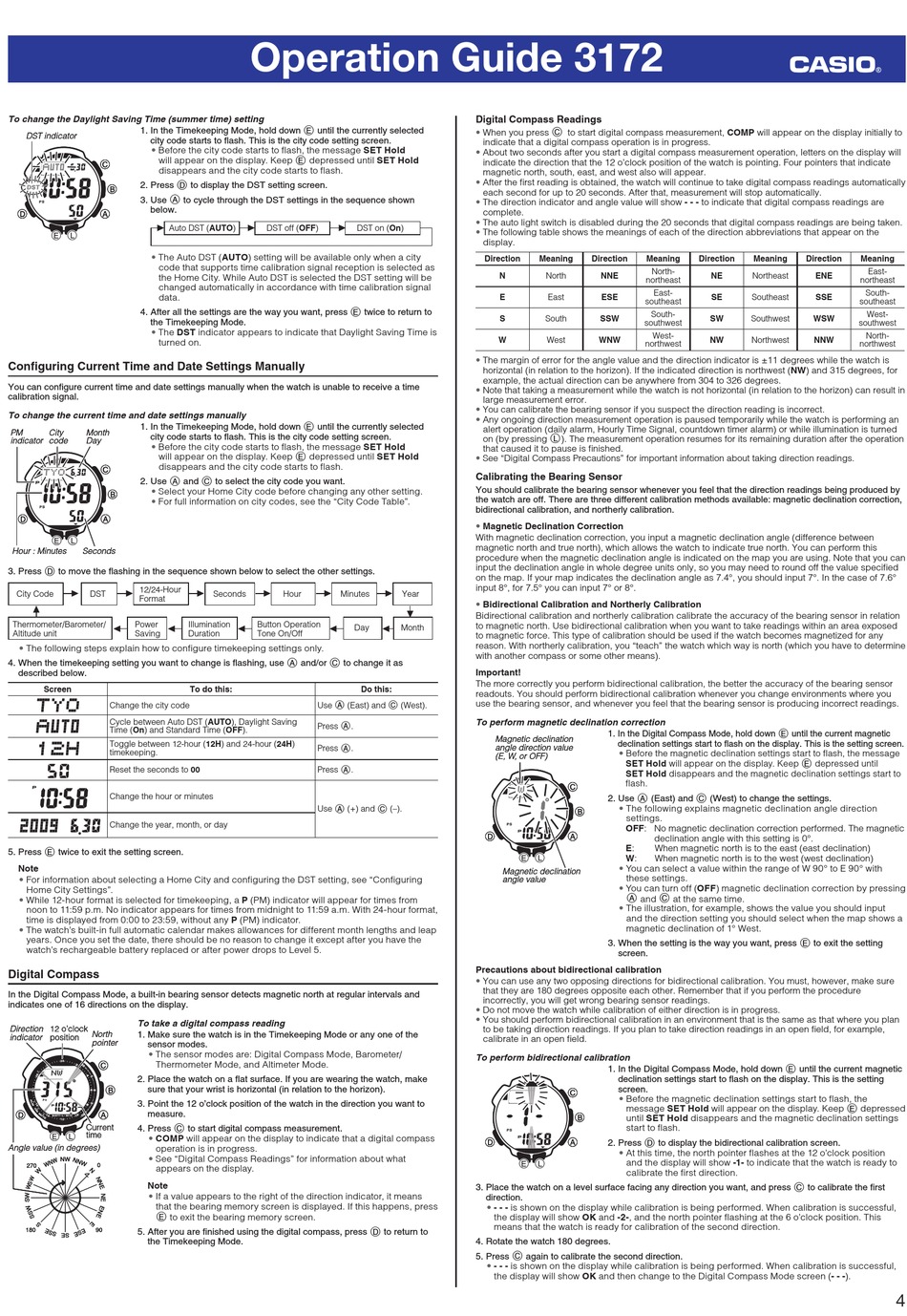

Operation Guide 3172
DST off (OFF)
DST on (On)
Seconds
Hour
Minutes
Illumination
Button Operation
Day
Duration
Tone On/Off
To do this:
Use A (East) and C (West).
Press A.
Press A.
Press A.
Use A (+) and C (–).
Digital Compass Readings
When you press C to start digital compass measurement, COMP will appear on the display initially to
indicate that a digital compass operation is in progress.
About two seconds after you start a digital compass measurement operation, letters on the display will
indicate the direction that the 12 o'clock position of the watch is pointing. Four pointers that indicate
magnetic north, south, east, and west also will appear.
After the fi rst reading is obtained, the watch will continue to take digital compass readings automatically
each second for up to 20 seconds. After that, measurement will stop automatically.
The direction indicator and angle value will show - - - to indicate that digital compass readings are
complete.
The auto light switch is disabled during the 20 seconds that digital compass readings are being taken.
The following table shows the meanings of each of the direction abbreviations that appear on the
display.
Direction
N
E
S
W
The margin of error for the angle value and the direction indicator is ±11 degrees while the watch is
horizontal (in relation to the horizon). If the indicated direction is northwest (NW) and 315 degrees, for
example, the actual direction can be anywhere from 304 to 326 degrees.
Note that taking a measurement while the watch is not horizontal (in relation to the horizon) can result in
large measurement error.
You can calibrate the bearing sensor if you suspect the direction reading is incorrect.
Any ongoing direction measurement operation is paused temporarily while the watch is performing an
alert operation (daily alarm, Hourly Time Signal, countdown timer alarm) or while illumination is turned
on (by pressing L). The measurement operation resumes for its remaining duration after the operation
that caused it to pause is fi nished.
See "Digital Compass Precautions" for important information about taking direction readings.
Calibrating the Bearing Sensor
You should calibrate the bearing sensor whenever you feel that the direction readings being produced by
the watch are off. There are three different calibration methods available: magnetic declination correction,
bidirectional calibration, and northerly calibration.
Magnetic Declination Correction
With magnetic declination correction, you input a magnetic declination angle (difference between
magnetic north and true north), which allows the watch to indicate true north. You can perform this
procedure when the magnetic declination angle is indicated on the map you are using. Note that you can
input the declination angle in whole degree units only, so you may need to round off the value specifi ed
on the map. If your map indicates the declination angle as 7.4°, you should input 7°. In the case of 7.6°
input 8°, for 7.5° you can input 7° or 8°.
Year
Bidirectional Calibration and Northerly Calibration
Bidirectional calibration and northerly calibration calibrate the accuracy of the bearing sensor in relation
to magnetic north. Use bidirectional calibration when you want to take readings within an area exposed
Month
to magnetic force. This type of calibration should be used if the watch becomes magnetized for any
reason. With northerly calibration, you "teach" the watch which way is north (which you have to determine
with another compass or some other means).
Important!
The more correctly you perform bidirectional calibration, the better the accuracy of the bearing sensor
Do this:
readouts. You should perform bidirectional calibration whenever you change environments where you
use the bearing sensor, and whenever you feel that the bearing sensor is producing incorrect readings.
To perform magnetic declination correction
Magnetic declination
Magnetic declination
angle direction value
angle direction value
(E, W, or OFF)
(E, W, or OFF)
Magnetic declination
Magnetic declination
angle value
angle value
Precautions about bidirectional calibration
You can use any two opposing directions for bidirectional calibration. You must, however, make sure
that they are 180 degrees opposite each other. Remember that if you perform the procedure
incorrectly, you will get wrong bearing sensor readings.
Do not move the watch while calibration of either direction is in progress.
You should perform bidirectional calibration in an environment that is the same as that where you plan
to be taking direction readings. If you plan to take direction readings in an open fi eld, for example,
calibrate in an open fi eld.
To perform bidirectional calibration
3. Place the watch on a level surface facing any direction you want, and press C to calibrate the fi rst
direction.
- - - is shown on the display while calibration is being performed. When calibration is successful,
the display will show OK and -2-, and the north pointer fl ashing at the 6 o'clock position. This
means that the watch is ready for calibration of the second direction.
4. Rotate the watch 180 degrees.
5. Press C again to calibrate the second direction.
- - - is shown on the display while calibration is being performed. When calibration is successful,
the display will show OK and then change to the Digital Compass Mode screen (- - -).
Meaning
Direction
Meaning
Direction
North-
North
NNE
NE
northeast
East-
East
ESE
SE
southeast
South-
South
SSW
SW
southwest
West-
West
WNW
NW
northwest
1. In the Digital Compass Mode, hold down E until the current magnetic
declination settings start to fl ash on the display. This is the setting screen.
Before the magnetic declination settings start to fl ash, the message
SET Hold will appear on the display. Keep E depressed until
SET Hold disappears and the magnetic declination settings start to
fl ash.
2. Use A (East) and C (West) to change the settings.
The following explains magnetic declination angle direction
settings.
OFF: No magnetic declination correction performed. The magnetic
declination angle with this setting is 0°.
E:
When magnetic north is to the east (east declination)
W:
When magnetic north is to the west (west declination)
You can select a value within the range of W 90° to E 90° with
these settings.
You can turn off (OFF) magnetic declination correction by pressing
A and C at the same time.
The illustration, for example, shows the value you should input
and the direction setting you should select when the map shows a
magnetic declination of 1° West.
3. When the setting is the way you want, press E to exit the setting
screen.
1. In the Digital Compass Mode, hold down E until the current magnetic
declination settings start to fl ash on the display. This is the setting
screen.
Before the magnetic declination settings start to fl ash, the
message SET Hold will appear on the display. Keep E depressed
until SET Hold disappears and the magnetic declination settings
start to fl ash.
2. Press D to display the bidirectional calibration screen.
At this time, the north pointer fl ashes at the 12 o'clock position
and the display will show -1- to indicate that the watch is ready to
calibrate the fi rst direction.
Meaning
Direction
Meaning
East-
Northeast
ENE
northeast
South-
Southeast
SSE
southeast
West-
Southwest
WSW
southwest
North-
Northwest
NNW
northwest
4
