Airflow Instruments PAN300 Series Operation And Service Manual

Positive and negative duct accreditaion system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

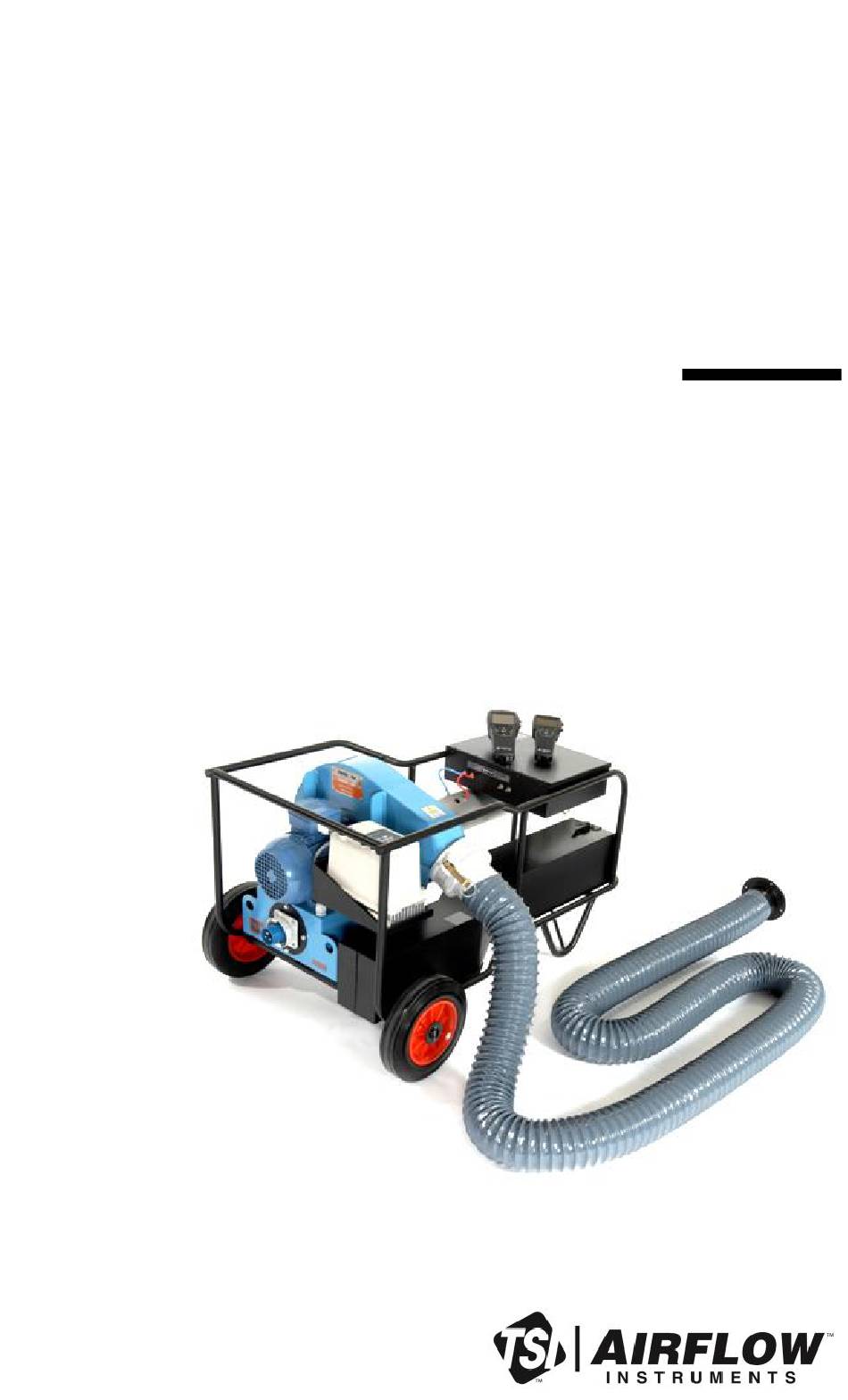

POSITIVE AND NEGATIVE
DUCT ACCREDITATION
(PANDA) SYSTEM
AIRFLOW
INSTRUMENTS
™
MODEL PAN300 SERIES
OPERATION AND SERVICE MANUAL
P/N 6005447, REV B
MARCH 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAN300 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Airflow Instruments PAN300 Series

  • Page 1 POSITIVE AND NEGATIVE DUCT ACCREDITATION (PANDA) SYSTEM AIRFLOW INSTRUMENTS ™ MODEL PAN300 SERIES OPERATION AND SERVICE MANUAL P/N 6005447, REV B MARCH 2021...
  • Page 3 Copyright TSI Incorporated / 2011-2021 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective February 2015) (For country-specific terms and conditions outside of the USA, please visit www.tsi.com.) Seller warrants the goods, excluding software, sold hereunder, under normal use and service as described in the operator's manual, to be free from defects in workmanship and material for 24 months, or if less, the length of time specified in the operator's...
  • Page 4 SELLER WILL REPAIR OR REPLACE DEFECTIVE SOFTWARE OR IF UNABLE TO DO SO, WILL REFUND THE PURCHASE PRICE OF THE SOFTWARE. IN NO EVENT SHALL SELLER BE LIABLE FOR LOST PROFITS, BUSINESS INTERRUPTION, OR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES. SELLER SHALL NOT BE RESPONSIBLE FOR INSTALLATION, DISMANTLING OR REINSTALLATION COSTS OR CHARGES.

  • Page 5: Table Of Contents

    CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION ..... 1 CHAPTER 2 PREPARING PAN300 SYSTEM FOR AIR DUCT LEAK TESTING ..............5 CHAPTER 3 PERFORMING A DUCT LEAKAGE TEST ....11 Measuring Duct Static Pressure ........... 11 Measuring Duct Leakage Flow ............. 12 Turning on the PAN300 Duct Leakage Tester......
  • Page 6 (This page intentionally left blank)

  • Page 7: Chapter 1 Unpacking And Parts Identification

    Chapter 1 Unpacking and Parts Identification Carefully unpack the PANDA system and instrument cases from the shipping container. Check the individual parts against the list of ® components below. If anything is missing or damaged, notify TSI ® Incorporated (TSI ) immediately.
  • Page 8 Description Part Number Reference Picture 20-in. (500-mm) silicone AFL9020005 tubes (blue) 16-ft (5-m) silicone tube AFL9020005 (blue) Smoke cap holder AFL71549801 assembly Smoke pellets AFL9004167 K-type thermocouple AFL82859201 probe Instrument adapter AFL82859401 Operation and User’s 6005447 manual Chapter 1...
  • Page 9 The following two instruments should be used in conjunction with the PANDA unit: TA465-P Multi- Refer to TA465 Operation and function Instrument Service Manual supplied with the instrument for additional parts supplied as standard. PVM620 Refer to PVM620 Operation and Micromanometer Service Manual supplied with the instrument for additional parts...
  • Page 10 (This page intentionally left blank) Chapter 1...

  • Page 11: Chapter 2 Preparing Pan300 System For Air Duct Leak Testing

    Chapter 2 Preparing PAN300 System for Air Duct Leak Testing The following procedure should be followed carefully so that safe and accurate leakage testing can be achieved: Successfully completing a duct leakage test requires certain information be compiled prior to starting the test. Refer to Appendix B for a discussion of standards relating to duct leakage testing.
  • Page 12 CAUTION Remove the power cord from the PANDA duct leakage tester before tilting it to the vertical position to avoid damaging the cord. Fan Speed Control Fan Control Switch On/Off Switch 110 V 230 V Figure 1. 110V and 230V Fan Speed Controllers NO T E The control pad on the Fan Speed Controller has been disabled.
  • Page 13 6. Fit the primary duct adapter spigot (black sheet metal with rubber bung) to one end of the 4-in. (100-mm) diameter flexi-tube. Make an air-tight seal using one of the over lock straps and lever- locking cam provided as shown in Figure 4. Adjust the fit of the over lock strap with a screwdriver.
  • Page 14 a. For positive pressure, high-flow testing, remove the low flow nozzle if it is installed. Then, connect the grey cast-aluminum cam lock connector to the outlet side of the blower per Figure 6. Close both cam lock Cam Lock arms at the same time Outlet Connector to ensure proper fit.
  • Page 15 c. For negative pressure, high-flow testing, remove the low flow nozzle if it is installed. Then, connect the grey cast aluminum cam lock connector to the inlet side of the blower per Figure 8. Close Cam Lock both cam lock arms at Connector Inlet the same time to...
  • Page 16 (This page intentionally left blank) Chapter 2...

  • Page 17: Chapter 3 Performing A Duct Leakage Test

    Chapter 3 Performing a Duct Leakage Test The PAN300 duct leakage test system includes a Model PVM620 Micromanometer and a Model TA465-P Ventilation Meter. During duct leakage testing, the Model PVM620 Micromanometer measures the duct static pressure while the Model TA465-P Ventilation Meter measures the airflow rate.

  • Page 18: Measuring Duct Leakage Flow

    Measuring Duct Leakage Flow 1. Turn ON Model TA465-P. 2. Zero the Model TA465-P pressure sensor with both ports open to the atmosphere. 3. Connect the Model TA465-P to the PAN300 by connecting the (+) and (-) ports on the Model TA465-P to the P1 (+) and P2 (+) ports located inside the black box of the...

  • Page 19: Using Leakage Test Application In The Model Ta465-P

    Using Leakage Test Application in the Model TA465-P CAUTION The Model PVM620 and Model TA465-P meters must be zeroed before entering the Leakage Test Application. 1. Press the MENU key to access MENU the menu system on the Zero Press Model TA465-P.
  • Page 20 Instrument Operation if EN Standard Test Protocol is Selected 1. Enter key parameters: LEAKAGE TEST Surface Area a. Surface Area of ductwork section to be tested. Static Pressure Flow Device b. Static Pressure of test, as Tightness Class measured by Model Test Length PVM620 micromanometer.
  • Page 21 Instrument Operation if SMACNA Test Protocol is Selected 1. Enter key parameters: LEAKAGE TEST Surface Area a. Surface Area of ductwork section to be tested. Static Pressure Flow Device b. Static Pressure of test, as Leakage Class measured by Model Test Length PVM620 micromanometer.

  • Page 22: Troubleshooting Guide

    DANGER Turn the isolation switch to the OFF position and wait 10 minutes prior to disconnecting power. Troubleshooting Guide Symptom Recommended Action • Check the power connection. Fan motor will not run. • Circuit Breaker may have tripped. • Check the connections. Static pressure reading (on PVM620) is zero.

  • Page 23: Appendix A Specifications

    Appendix A Specifications Pressure Measurement (PVM620) Range ........± 3,735 Pa (± 15 in. W.G.) Resolution ......0.1 Pa (0.001 in. W.G.) Accuracy ......1% of reading ± 1 Pa (± 0.005 in. W.G.) Actual duct static range ..± 2,500 Pa (± 10 in. W.G.) at Zero Flow Volume Flow Measurement (TA465-P) Wilson radial flow grid ..
  • Page 24 Panda Fan Performance Graph (metric units) 3000 2500 2000 1500 1000 Volume Flow l/s Appendix A...
  • Page 25 Panda Fan Performance Graph (imperial units) Volume Flow CFM Specifications...
  • Page 26 Environmental Requirements Ambient Air Temperature ..-10 to +40°C Relative Humidity ....0~95%, non-condensing Altitude ........ 2000m or less Transportation and Storage Storage Temperature ..-10 to +40°C IMPORTANT— Read Before Using the PANDA for the First Time It is IMPORTANT that the PANDA be connected to the power supply using a 30 mA residual-current device (RCD) or Ground Fault Circuit Interrupter (GFCI).

  • Page 27: Appendix B Leakage Testing Standards Highlights

    Appendix B Leakage Testing Standards Highlights Different standards are used throughout the world to specify duct air tightness and leakage requirements. The PAN300 duct leakage test system has a duct leakage application to automatically compare the actual leakage flow with the maximum allowed leakage flow for EN and SMACNA standards.

  • Page 28: Eu Standards

    The scope of the standards listed above includes many items other than duct leakage. This summary, however, is limited to duct leakage testing. EU Standards Ductwork classification and maximum air leakage. Note that EN1507, EN12237 Eurovent 2/2 and DW/143 all have the same formula to determine f , the Air Leakage Limit, although DW/143 uses units of l/s/m...
  • Page 29 • Eurovent 2/2 Air Tightness For Installed Duct Testing: Air Tightness Air leakage limit (f Class • DW/143: A Practical Guide to Ductwork Leakage Testing Static Pressure Limit Duct Maximum Air leakage Pressure Positive Negative Air Velocity limits Class l/s/m 0.65 Low-pressure 0.027*p...
  • Page 30 • The measured leakage flow rates shall be corrected if the temperature and/or barometric pressure are different from standard conditions (+20ºC and 101 325 Pa) as follows: where: =corrected flow leakage rate = measured flow leakage rate measured t = measured temperature (ºC) p = measured barometric pressure (Pa) •...

  • Page 31: Us Standards

    • For tests including several test pressures it is recommended to plot the leakage factors as a function of test pressure in a diagram together with the air leakage limit curve. US Standards Ductwork classification and maximum air leakage ½-, 1-, Duct Class 3-inwg 4-, 6-, 10-inwg...
  • Page 32 Figure 13. Allowable Air Duct Leakage from Round Ducts, per SMACNA Standard Figure 14. Allowable Air Duct Leakage from Rectangular Ducts, per SMACNA Standard • The SMACNA standard does not generally require correcting leakage flow rates to standard conditions, unless: 1.
  • Page 33 Should one of these conditions not be satisfied, then correcting the leakage to standard conditions may be done using one of these formulas: 1. ACFM=SCFM * (460+T)/530 where T = actual dry bulb air temperature (ºF) moisture is negligible pressure between -20 and +20 inwg 2.
  • Page 34 (This page intentionally left blank) Appendix B...

  • Page 35: Appendix C Typical Setup

    Appendix C Typical Setup...
  • Page 36 (This page intentionally left blank) Appendix C...

  • Page 37: Appendix D Procedure For Using Smoke Pellets In Leakage Testers

    Appendix D Procedure for Using Smoke Pellets in Leakage Testers As shown in the sketch below, a rubber bung is fitted into the hole in the duct adapter which holds the wire coil. When a smoke pellet is required to be used, remove the bung and fit a pellet into the wire coil as shown in the sketch.
  • Page 38 (This page intentionally left blank) Appendix D...
  • Page 40 TSI Instruments Ltd. Visit our website at www.tsi.com for more information. Tel: +44 149 4 459200 Germany Tel: +49 241 523030 France Tel: +33 1 41 19 21 99 P/N 6005447 Rev B ©2021 TSI Incorporated Printed in U.S.A.
