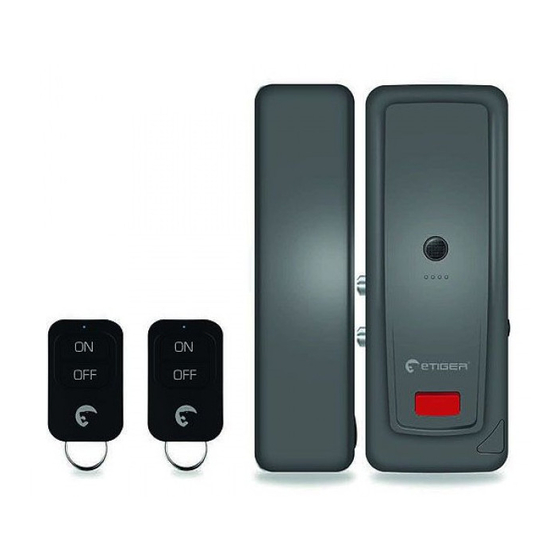

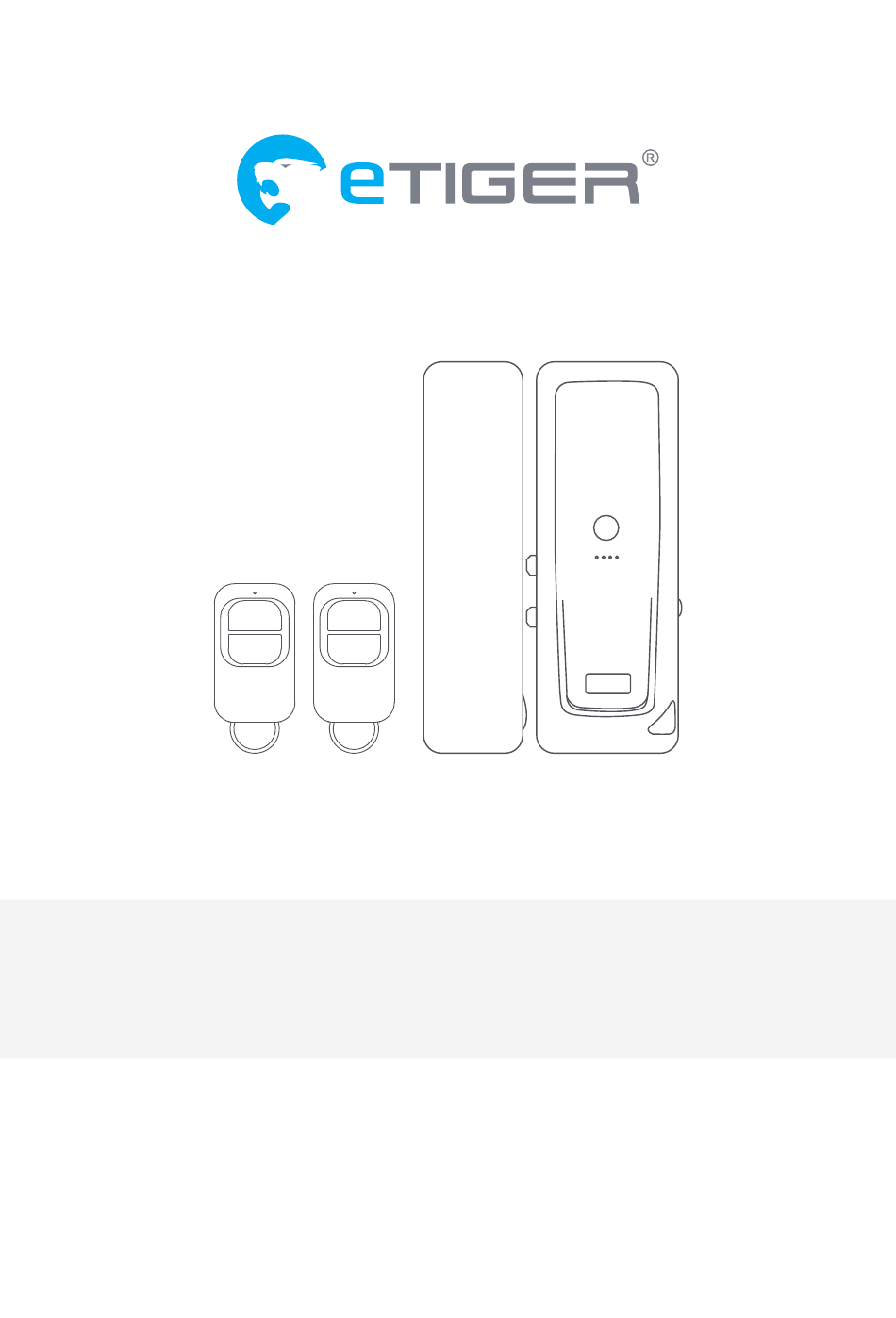

- Page 1 ES-DLS-02 Wireless Security DockLock Base Set www.etiger.com...
- Page 4 INTRODUCTION Smart Access Door Lock set inter gate the Wireless technology, compatible with Etiger Home secure Alarm Set S5/S6/secure Box V2/ secure Bub/ secure Hub Heating.The Main lock is fixed inside of door, it is highly protected to be destroyed by thief from outside.
-
Page 5: Specifications
SPECIFICATIONS User Capacity: 4-8 Digits PIN Length: Card Type: 13.56M Hz M1 Card Operating Voltage 4 units of AA batteries Wireless Lock: Remote Transmitter: 1 unit of 2032 Lithium battery Idle Current: All items ≤10uA Working Current Wireless Lock: ≤42mA ≤3mA Remote Transmitter: 433MHz... -
Page 6: Major Parts
Major Parts Remote Transmitters Wireless Lock The user can select the following accessories (another sale) to unlock the lock as required: Instruction of the keys on lock body Exit Button Mechanical Switch Pairing Key ON/OFF Switch LED Light OFF: Power off ON: Power on Note: 1.Mechanical Switch: Used for installation and equipment trouble, please don’t press it often... - Page 7 INTRODUCTION Stick by 3M stickers The device packed with 3M double-side stickers, can easily stick the Wireless Keypad and Wireless Lock on glass door (We use high-quality 3M stickers, the stickiness will be the best after sticking in 24 hours). Below introduction for how to install Wireless Lock intensively, the way of installing Wireless Keypad is almost the same.
- Page 8 Simplified Instruction Function description Operation Enter the Program Mode: *(123456)# (123456 is the factory default master code) Change the Master Code: 0 (New Code) # (Repeat New Code) # IMPORTANT NOTE: Please remember (code: 6 digits) the New Master Code as it can’t be reset to default if forgotten Add PIN User: 1 (User ID) # (PIN) #(Repeat PIN) #...
-
Page 9: Change Pin
Add Users PIN(s) User ID: 0~499 PIN length: 4~8 digits Programming Step Keystroke Combination 1. Enter Program Mode: * (Master Code) # 2. Add PIN: 1 (User ID) # (PIN) # (Repeat PIN) # The users can be added continuously 3. -
Page 10: Delete Users
Delete Users Programming Step Keystroke Combination 1. Enter Program Mode: * (Master Code) # 2. Delete user: 2 (User ID) # The users can be deleted continuously. Delete Card: 2 (Read Card) # Delete all users: 2 (Master Code) # 3. -
Page 11: Users Operation
OTHERS Users Operation Programming Step Keystroke Combination PIN User Access: (PIN) # Card User Access: (Read Card) Fingerprint Access: (Read Fingerprint) PIN + Card User Access: (Read Card) (PIN) # By Remote Transmitter: Press Lock in Urgent Situation The Wireless Lock will be locked automatically around 8-10 seconds after we open it. If we want to lock it faster, please press “0 #”... -
Page 12: Sound And Light Indication
Sound and Light Indication Operation Green Low battey Red LED Buzzer Device Status ICON Standby Enter into Shines program per 1.5 One beep mode seconds Unlock ON for 3 One beep the lock seconds Press key One beep Wrong Three beeps Keypad operation (finger-... -
Page 13: Packing List
Packing List Name: Quantity Packaging box: Wireless Lock: Remote Transmitters: 2pcs Manual: Screw Driver: Wall Fixing Plus: 4pcs 4pcs Self Tapping Screws for keypad: (Smaller ones) Self Tapping Screws for lock: 10sets (Bigger ones, just in case if needed) 3M Stickers: 4pcs Opposite paster: 2pcs...
