artisan ARTC-SBM-01 Assembly Instructions Manual

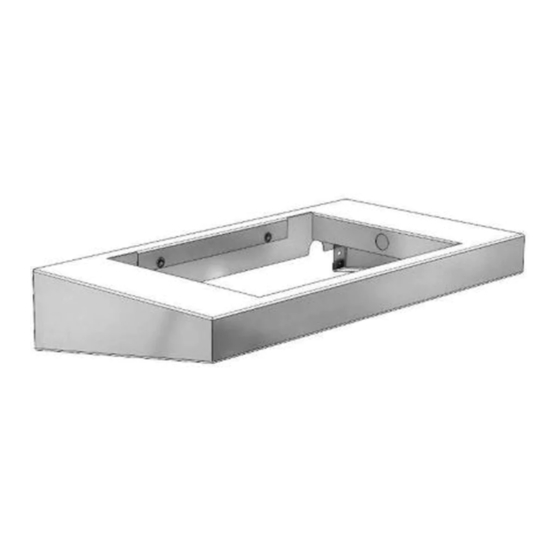

Side burner mounting shelf for artisan cart models
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTC-SBM-01 and is the answer not in the manual?

Questions and answers

Related Manuals for artisan ARTC-SBM-01

Summary of Contents for artisan ARTC-SBM-01

  • Page 2 STANDARD #2 PHILIPS SCREWDRIVER EXISTING ASSEMBLY PROCEDURE: SHELF STEP 1: To begin installing the Side Burner Mount- Artisan ing Shelf in your cart, you must first remove the appropriate existing shelf unit out of it. On older model carts (2019 and older), this...
  • Page 3 NEW ARTC-SBM-01 STEP 2: SHELF UNIT Install the ARTC-SBM-01 shelf unit by using the same screws and washers you saved on STEP 1. Tighten screws while align- ing the shelf to the sides and top edges of the cart unit’s side panel.
  • Page 4 EXISTING WASHERS GROMMET Figure # 4 Guide the supply gas line thought the existing grommet in the cart Artisan and connect to the BBQ unit as required and shown on the ART-SB1 Manual. STEP 5: When fully assembled with your...
  • Page 5 NOTES:...
  • Page 6 Artisan ™ ARTC-SBM-01 Assembly Instructions Artisan ™ USA Grills All Rights Reserved • 04/2020...
