IHP UZY-6-B Installation Instructions

INSTALLATION INSTRUCTIONS FOR INSTALLING UZY-6-B REPLACEMENT BLOWER KIT
FOR USE WITH WOOD-BURNING FIREPLACES LISTED IN TABLE 1
KIT CONTENTS
1 ea. UZY-6-B Blower Assembly
1 ea. Mill-Pack
1 ea. Instruction Sheet
TOOLS NEEDED
Robertson (square) or Phillips (star) screwdriver
Cat. No. Model
Ladera™, Brentwood™ LV, WRT3820WS, WRT4820WS,
J8003 UZY-6-B
BIS Nova and BIS Ultima
®
Table 1
GENERAL INFORMATION
This blower kit can easily be installed when the fireplace has a pre- installed
junction box with 3 prong receptacle. You just have to plug it in.
If you encounter any problems, need clarification of these instructions or
are not qualified to properly install this kit, contact your local distributor
or dealer.
Read this instruction sheet in its entirety before beginning the installation.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
SHUT DOWN THE APPLIANCE AND ALLOW IT TO COMPLETELY COOL
BEFORE PROCEEDING.
The blower must be plugged directly into a properly grounded
three-prong receptacle, 120 VAC, 60 Hz, single phase. Do not
cut or remove the grounding prong from this plug.
Installation must be in accordance with National Electrical
Code, ANSI/NFPA 70 - latest edition. In Canada, the current
CSA C22.1 Canadian Electrical Code - latest edition.
Blower Kit
Where Used
WARNING
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
P/N 900597-00
Rev. NC, 10/2015
INSTALLATION INSTRUCTIONS
Step 1. Open door, and remove the andirons, using a square or phillips
screwdriver. Then remove front and bottom refractories.
Step 2. Unscrew the access plate located in the firebox floor (12 screws).
Remove the access plate and the high heat cement used to seal it.
Step 3. Unplug the blower from the electric receptacle located on the
right side of the fireplace.
Step 4. Unscrew the blower using a Robertson (square) or Phillips
(star) screwdriver. The location of the (2) screws depends on
the version of the blower installed (see Figure 1). They can be
at each end of the support bracket close to the floor (Version B)
or on top of the support bracket near the left side (Version A).
See Figure 1.
Step 5. Take the blower out of the fireplace through the access opening.

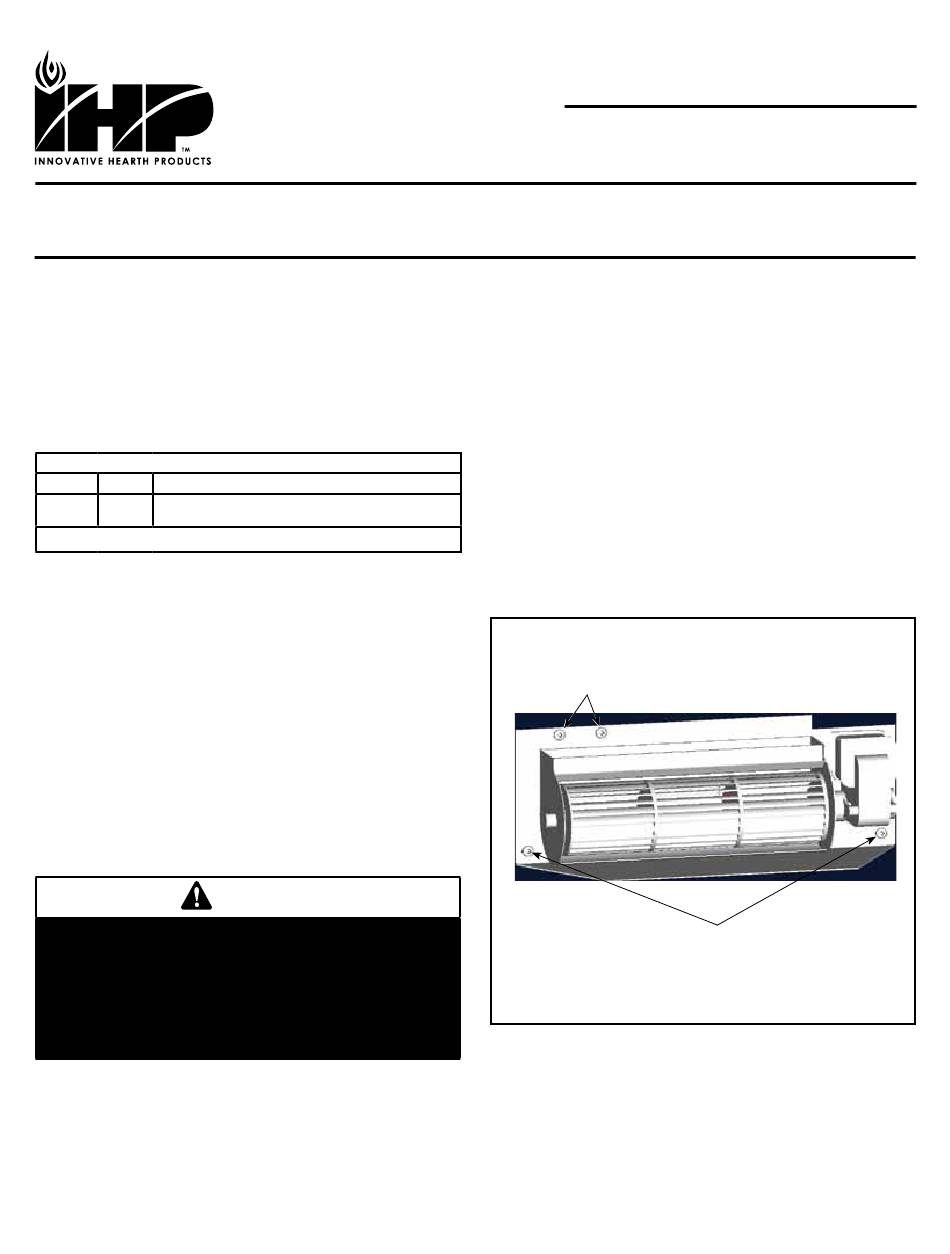

Version A Unscrew these
two screws
Or these screws
to remove the blower
Figure 1
HEARTH PRODUCTS
KITS AND ACCESSORIES
UZY-6-B BLOWER KIT
Version B
1
