Geba Tronic DC2 S Instructions For Assembly And Use

Electronic control for tubular drives

Advertisement

Quick Links

Service display

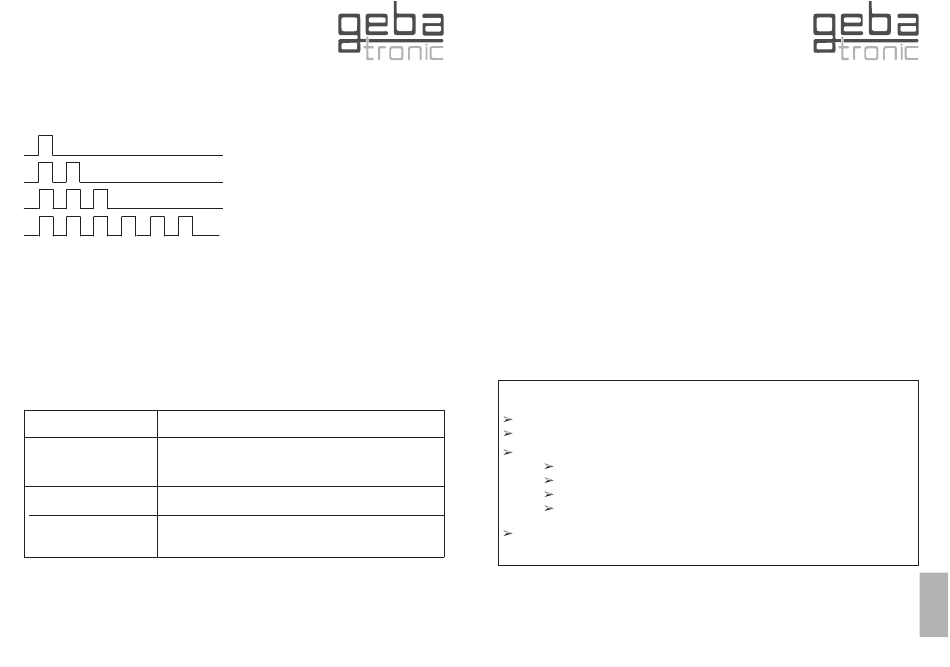

The 4 most likely faults are indicated by the service display lamp by means of a
simple flashing code system as below:
Technical Data:
Supply voltage
Output
Connections
Ambient-
temperature
geba GmbH is released of its obligations regarding guarantee and product liability if - without
prior permission - the unit has been modified, or if the installation is improper or not in accordance
with our instruction manual.
The installer has to take care that the EMC-regulations are respected.
industrial controls
1x flash
safety edge defect
2x flash
limit switch not reached
or defect
3x flash
pre-limit switch defect
steady glow
safety edge activated
230 V AC 50 Hz
2x relay contact, 5 A / 230 V
1x relay contact, 2 A / 230 V
1x supply Voltage 24V/50mA
2
1.5 mm
max.,
-20 ˚C to +60 ˚C
®
Instructions for Assembly and Use
Electronic control for tubular drives
The DC2 "S" is a modern and safe alternative to conventional control gear. For ope-
ning or closing of the door the drive unit is activated through a handtransmitter
(radio control) or through a push-button on the housing.
After pushing of the push-button or the handtransmitter the door is triggered UP or
DOWN.
The most important characteristics of the DC2 "S" are:
Simple operation, programming and assembly.
Water-protected enclosure.
A maximum of safety:
The electronic decoder is separately installed in the protected area
Nearly unlimited data security, even with power failure
Direct connection to safety edge
Rolling code transmitter
High switching capacity for direct control of appliances
24V / 50 mA output for lphoto beam
industrial controls
DC2 "S"
®
GB
