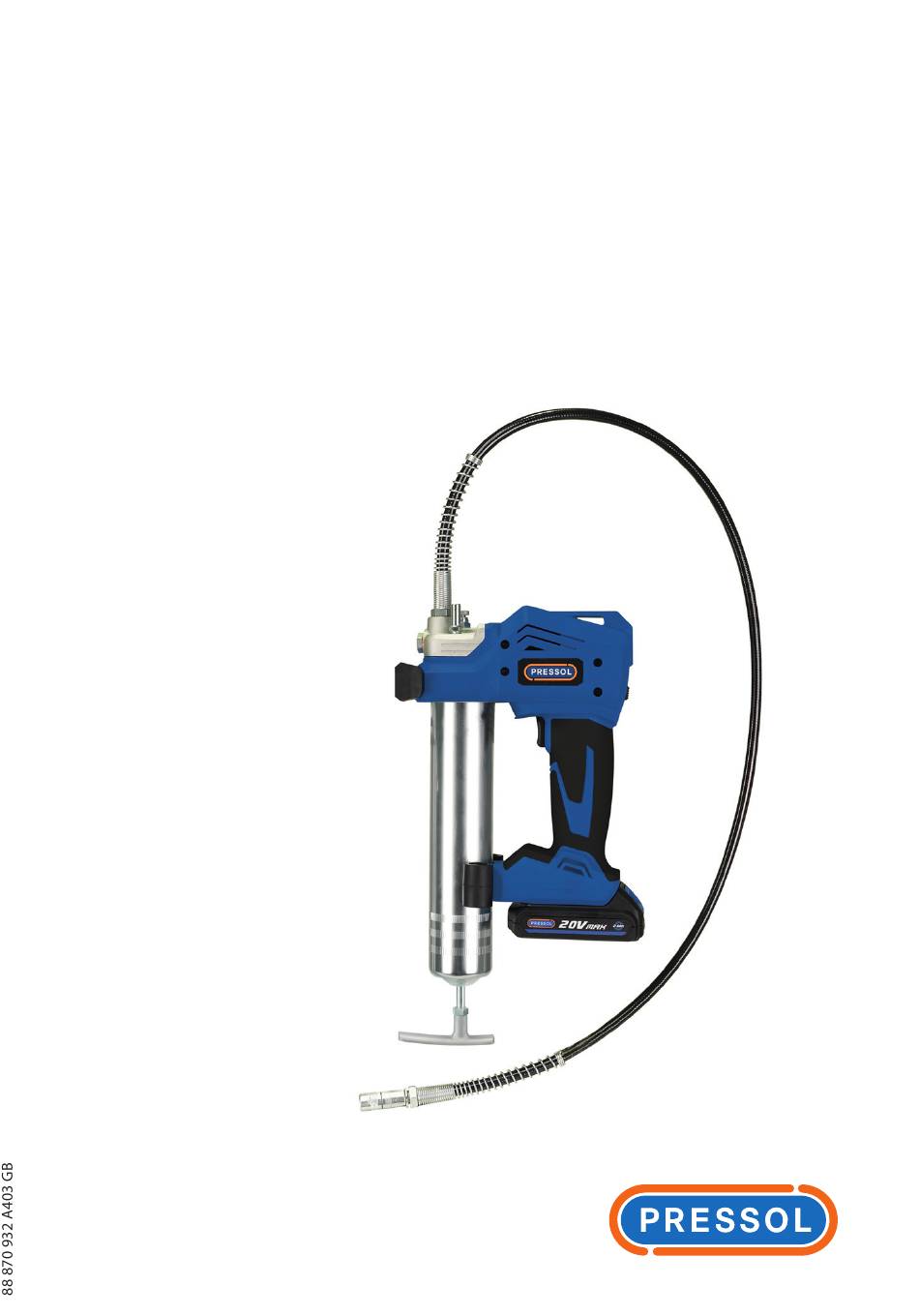

- Page 1 OPERATING INSTRUCTIONS AND SAFETY NOTES Battery Grease Gun with Accessories...
-
Page 2: Table Of Contents
Operating Instructions - Battery Grease Gun Pressol Schmiergeräte GmbH This documentation is exclusively intended for the operating company and their staff. Without our written consent, the content of this documentation (textes, figures, drawings, charts, diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose of competition or passed on/made availabe to third parties. -
Page 3: Introduction
Please carefully read these operating instructions and observe in particular all safety notes! Our staff will be pleased to provide support if you have any questions about the product. Yours sincerely, Pressol Schmiergeräte GmbH Obligations of the personnel Before commencing work, all persons who are entrusted to work with the battery grease gun are obliged: –... -
Page 4: Hazard Symbols
Operating Instructions - Battery Grease Gun NOTE Indicates further information or tips which facilitate work. 1.3.2 Hazard symbols Symbol Meaning General hazard symbol. The warning note marked in this way contains sup- plementary information on the type of hazard. This symbol warns of dangerous electrical voltages. This symbol warns of a hazardous explosive atmosphere. -
Page 5: Reasonably Foreseeable Misuse
Operating Instructions - Battery Grease Gun Reasonably foreseeable misuse Foreseeable misuse could be: – Using the battery grease gun with a cartridge that is not conform to the DIN 1284 standard. – Use greases that do not comply with the NLGI 2 viscosity class. Design and functional description The battery grease gun is powered by a lithium ion battery. -
Page 6: Technical Data
Designation Item no. Designation 18 042 High pressure-grease hose 81 871 Grease gun tube complete 18 051 100 Li-Io battery-20 V-2000 mAh 85 277 Venting valve 18 051 101 Li-Io battery-20 V-4000 mAh 00 442 Flat gasket for grease gun head... -
Page 7: Area Of Application
Operating Instructions - Battery Grease Gun Voltage (V) Charging time (minutes) approx. 120 Delivery/Battery load 50 pieces 400 g cartridges (without counter pressure) 15 pieces 400 g cartridges (at approx. 100 bar counter pressure) Dimensions LxWxH (mm) 118 x 76 x 65 Weight (kg) 0,632 Tab. -
Page 8: Filling The Grease Gun
Operating Instructions - Battery Grease Gun Filling the grease gun There are various possibilities to fill the grease gun: – Filling with grease cartridge according to DIN 1284. – Filling with grease gun filling device by filling nipple. – Filling with bulk grease from a large container. 7.1.1. -
Page 9: Making The Grease Gun Ready For Operation
Operating Instructions - Battery Grease Gun Making the grease gun ready for operation Check to ensure that the grease gun tube is tightly screwed in the device. To remove trapped air, open the venting valve while the push rod is moved forward. The grease gun is now ready for operation. Switching on the display and the LED light: Switching on the display: Press button 1 or operate the trigger/switch. -
Page 10: Battery
Operating Instructions - Battery Grease Gun Battery The battery is only partially charged at delivery. When used for the first time, it must be fully charged to ensure satisfactory performance. When the tool performance begins to drop sharply, it indicates the battery needs to be recharged. -
Page 11: Safety Instructions When Handling The Battery
Operating Instructions - Battery Grease Gun Safety instructions wh en handling the battery WARNING Risk of injuries by burns! Never throw the battery in a fire. Risk of explosion! ■ ■ Never charge defective (leaky) batteries. ■ ■ Never allow the battery to come into contact with water. ■... -
Page 12: Troubleshooting
Operating Instructions - Battery Grease Gun Before each Check the general condition of the grease gun. ■ ■ Check all moving parts for possible irregularities. use: ■ ■ Look out for burst or broken components, a leaking battery, damaged hoses ■... -
Page 13: Exploded View Of The Battery Grease Gun
Operating Instructions - Battery Grease Gun 12. Exploded view of the battery grease gun Fig. 12.-1 Exploded view of the accu grease gun Pos. Quantity Description Selection button Spring On/Off switcher Stand (left) Housing (left) Control panel assembly LED light cover Grease gun tube assembly Cross headed screw O ring... -
Page 14: Battery Charger For Li-Io Battery 20 V
Use only the specified rechargeable battery (18 051 100) included with this ■ ■ device for the charger. Charger also for (18 051 101). Other types of batteries can burst, cause personal injury and property damage. Use only the specified charger to charge the battery. The charger and the ■... -
Page 15: Repair / Service
The battery grease gun has been developed and produced according to the highest quality standards. Should a problem develop, despite of all quality controls, please contact our customer service: PRESSOL Schmiergeräte GmbH Tel +49 9462 17-246 Fax +49 9462 1063 service@pressol.com... -
Page 16: Ec Declaration Of Conformity
Operating Instructions - Battery Grease Gun 18. EC Declaration of Conformity Manufacturer: Pressol Schmiergeräte GmbH Parkstraße 7 93167 Falkenstein Declares under his sole responsibility that the machine: Model type Battery Grease Gun 18 051 Electromotor voltage 20 V Weight without fat... - Page 17 Operating Instructions - Battery Grease Gun...
