Alcatel-Lucent Enterprise OmniAccess Stellar AP1320 Series Installation Manual

Alcatel-Lucent Enterprise
OmniAccess Stellar AP1320 series
Installation Guide
060455-10 Rev. B
*060455-10 Rev. B*
https://www.al-enterprise.com
The Alcatel-Lucent name and logo are trademarks of Nokia used under license by ALE. To view
other trademarks used by affiliated companies of ALE holding, visit:
https://www.al-enterprise.com/en/legal/trademarks-copyright. All other trademarks are the
property of their respective owners. The information presented is subject to ALE without notice.
Neither ALE Holding nor any of its affiliates assumes any responsibility for inaccuracies
contained herein. (2019)
Summary of Installation Steps
• WLAN Planning. Usually, a comprehensive site survey is required
before installation, such as installation location, brackets, cables,
power source, etc.
• Unpack the AP box and check all contents
• Install the AP bracket on ceiling or wall
•
Installing the AP
•
Connecting required cables
•
Power connection
• Verifying post-installation connectivity
• AP provisioning
Access points are radio transmission devices and are subject to
governmental regulation. Network administrators who are responsible
for the configuration and operation of access points must comply with
local broadcast regulations. Specifically, access point must use channel
assignments appropriate to the location where the access point will be
deployed.
Package Contents
Item Name
1 Access Point
Quick Start Guide
Installation Guide
2
Regulatory Compliance and Safety
Information
User Guide Info Card
Optional Accessories（To be ordered separately）
◆
Item Name Description
Indoor mounting kit, Type B1(9/16") and
1 OAW-AP-MNT-B
B2(15/16") for T shaped ceiling rail.
Indoor mounting kit, Type C1(Open
2 OAW-AP-MNT-C Silhouette) and C2 (Flanged Interlude),
for other shaped ceiling rail mounting.
Indoor mounting kit, Type W wall and
3 OAW-AP-MNT-W
ceiling mounting with screws.

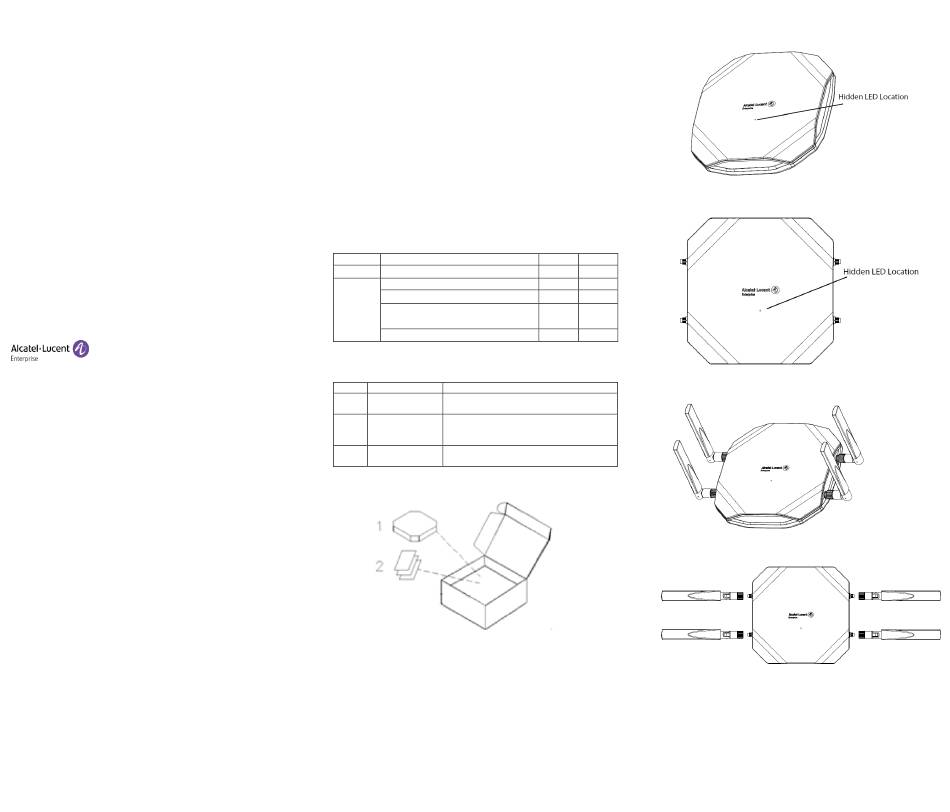

Figure1: Product Packing
Inform your ALE sales representative of incorrect, missing, or
damaged parts. If possible, retain the carton, including the
original packing materials. Use these materials to repack and
return the unit to the supplier if needed. Additional mounting
kits for use with the OmniAccess Stella AP1201 series access
points are sold separately. Contact your ALE sales representative
for details.

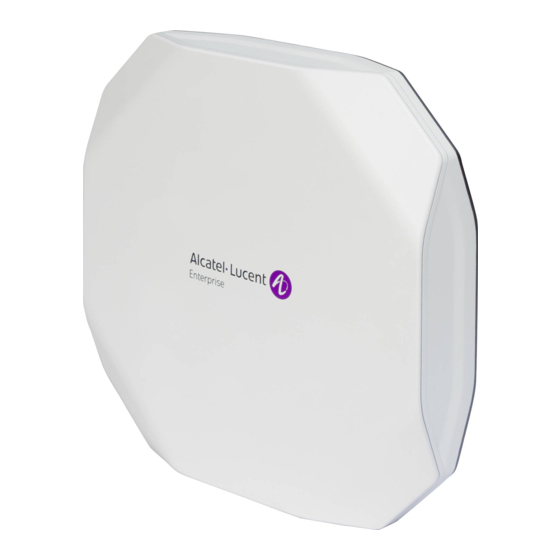

Hardware Overview
The following sections outline the hardware components of the
OAW-AP1320 Series access point.
Figure 2: OAW-AP1321 Front View
Figure 3: OAW-AP1322 Front View
Qty Unit
1 Pcs
1 Pcs
1 Pcs
1 Pcs
1 Pcs
Figure 4: OAW-AP1322 Include Antennas Front View
Figure 5: Install the external antenna on OAW-AP1322.
◆ The external antennas is sold separately.
LED
The OAW-AP1320 Series access point is equipped with hidden LED
display that indicates different status with different color.
For the details of the LED status, please refer to the Quick Start Guide.
