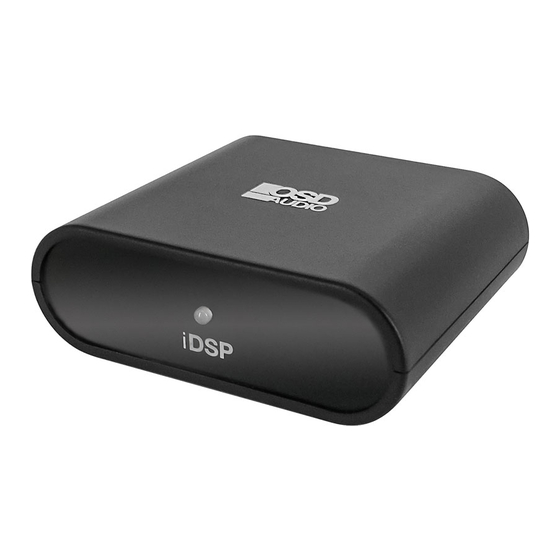

Summary of Contents for OSD Audio iDSP

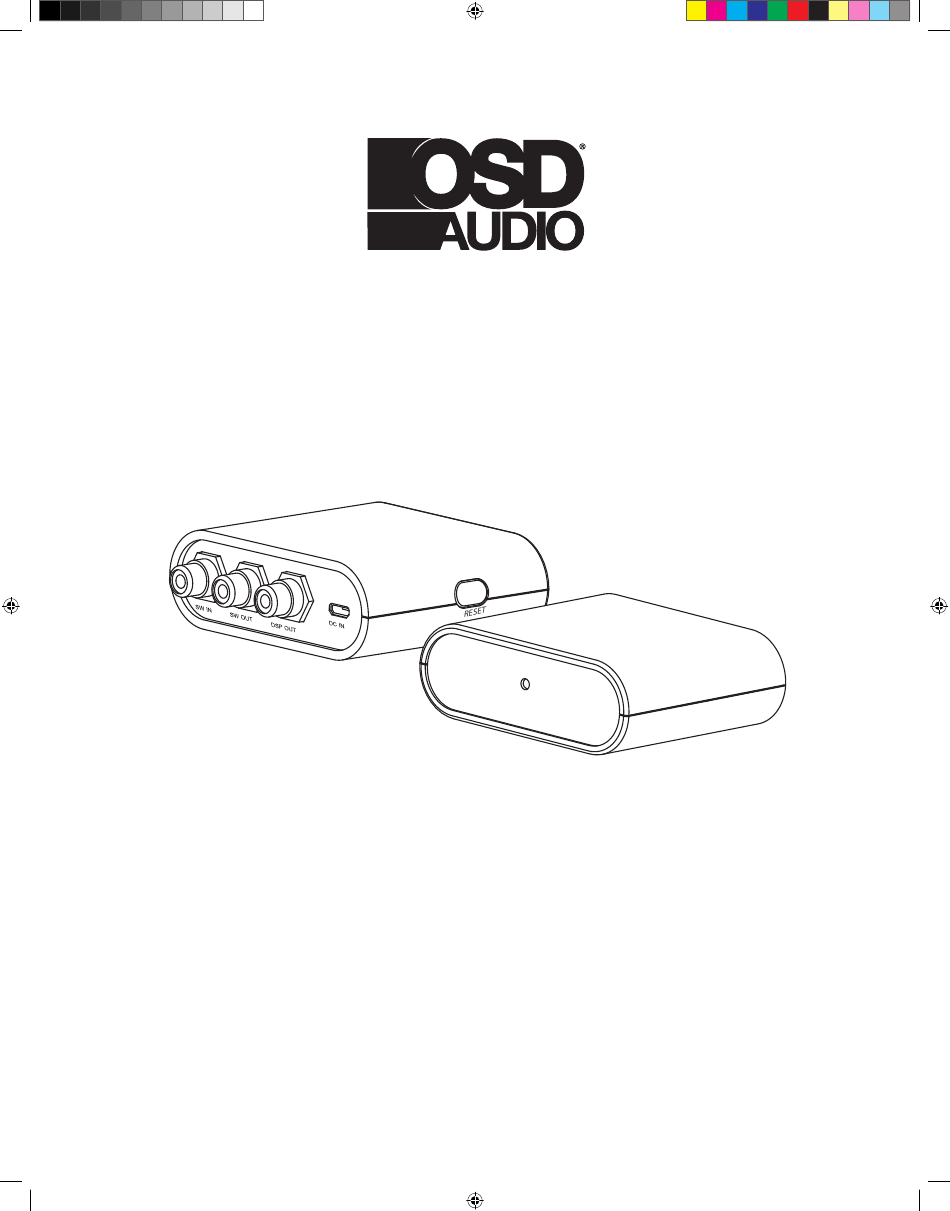

  • Page 1 INSTALL GUIDE iDSP manual rev1 simon.indd 1 12/7/20 8:28 AM...

  • Page 2: Installation Precautions

    Always disconnect the power supply cable and any audio cables connected to the subwoofer before moving it. This will prevent a short circuit or damage to any plugs or connecting cables. Before switching the unit on Double check that all connections are correct and that the volume is turned all the way down. iDSP manual rev1 simon.indd 2 12/7/20 8:28 AM...

  • Page 3: Connection & Controls

    2 minutes,the led will turn 5. RESET off automatically. Press the reset key and hold about 4 seconds (led blinks one time), the pariing code of bluetooth would be changed to digital “0”. iDSP manual rev1 simon.indd 3 12/7/20 8:28 AM...
  • Page 4 INSTALL GUIDE Connection: 1. Setup for one Subwoofer 2. Setup for multiple Subwoofers 3. Download the iWoofer App and continue reading to setup the iWoofer app and iDSP features. iWoofer App iDSP manual rev1 simon.indd 4 12/7/20 8:28 AM...

  • Page 5: Device Connection And Setup

    Connecting the iDSP to a typical AV receiver is easy. Simply use the provided RCA cable by plugging the RCA end into the ‘sub out’ port on your AV Receiver (AVR) and the other end into the input side of your iDSP. It is okay only to use either the red or white RCA plug, and leave the other one unused, but you can also use an RCA Y Adapter that is 2 Female to 1 Male to eliminate this.
  • Page 6 If you have two subwoofers in your system, you can use an RCA male to dual RCA female cable (also known as an ‘aux splitter’) or other types of “Y” cables on the output of the iDSP to hook up both of your subwoofers. You could even use a typical RCA male to stereo RCA cable, and use the white RCA plug for one subwoofer, and the red RCA plug for the other subwoofer.
  • Page 7 OFF, as the iDSP does not have any hardware controllers and leaving these on can result in a distortion of frequency response (because nothing is connected to these pins in the iDSP. Note: If you restore the iDSP to factory defaults, you MUST turn these settings off again as they might be activated by the factory reset.
  • Page 8 If the sweep is not audible once confirming the subwoofer is connected correctly, try restarting the app and or removing and then reconnecting power to the iDSP hardware unit. The iDSP unit has a standby function and will temporarily shut off if it does not receive input for a period of time, but you can quickly kick it out of standby with a power cycle.
  • Page 9 (PEQ), to add a new PEQ tap to “+” icon, to delete “Trash” icon. Slide right/left to set a frequency, up/down to set a gain (db), zoom-in/zoom-out to control a Q factor (PEQ bandwidth), double tap (or tap&holdon > 1S) on PEQ to select it. iDSP manual rev1 simon.indd 9 12/7/20 8:28 AM...
  • Page 10 5:15 (more means wider). The function sets HPF and LPF frequencies, and builds preliminary response, as dashed blue. Auto level function obtains optimal volume level for an accurate frequency response measurement. Controls: On/Off, Target -30:-8db (-8db means louder). Room correction menu. Room correction settings menu. iDSP manual rev1 simon.indd 10 12/7/20 8:28 AM...
  • Page 11 Reference by double tap on that plot or tap & hold > 1S, slide up/down on the Compensate/Resp window to adjust a smoothness. Response & Compensation window. Response & Compensation window after response. iDSP manual rev1 simon.indd 11 12/7/20 8:28 AM...
  • Page 12 Controls: Frequency step delay 50:1000mS (a large hall may need a longer delay to compensate echo’s decay time), Reference Shape Smoothness 0:100% (the target curve becomes 0db line if Smoothness = 100%), Max Boost 0:10db. Fir coefficients transferring to hardware. Result response after compensation iDSP manual rev1 simon.indd 12 12/7/20 8:28 AM...

  • Page 13: Spl Meter

    Controls: White Noise generation On/Off. Peak hold reset by windows change. For instance, go to X-Over window and back again to the SPL Meter to reset Peak Hold data. SPL meter window. iDSP manual rev1 simon.indd 13 12/7/20 8:28 AM...
  • Page 14 (for example, an area of a few square feet, like an armchair or at most an entire couch). Although the algorithm isn’t optimized for it, and OSD Audio does not recommend it, you can try to use it to correct the sound across the entire room by averaging responses across the room in the 2nd step.
  • Page 15 “low level” Response/Compensation menu to get the control on a lot of parameters. Please keep reading the app’s hints (!), which contains info about many, if not for all, functions. Start Boomy region correction. Boomy region correction is complete. iDSP manual rev1 simon.indd 15 12/7/20 8:28 AM...
  • Page 16 2nd step, this measurement might not be totally reflective of how successful the correction was, as this final measurement is only taken in one spot. Start Near Field correction. Near Field correction is complete. iDSP manual rev1 simon.indd 16 12/7/20 8:28 AM...
  • Page 17 INSTALL GUIDE Options window. Preset manager window. iDSP manual rev1 simon.indd 17 12/7/20 8:28 AM...
  • Page 18 Phase: the 1st order all pass filter F 10:10000Hz. Sometimes needed to match a phase with full range in the crossover point. Main window. Main window (continuation). iDSP manual rev1 simon.indd 18 12/7/20 8:28 AM...
  • Page 19 Decay to 2-5db/S. Faster Decay could be suitable rather for a club’s subwoofers. The Attack time at max db/S in most cases. Dynamic Bass is one more dynamic processing algorithm aka band compressor, you can adjust the frequency range, bass boost and threshold for the effect. Limiter-Compressor window. Dynamic Bass window. iDSP manual rev1 simon.indd 19 12/7/20 8:28 AM...

  • Page 20: Warranty Information

    During the warranty period OSD Audio will replace any defective part and correct any defect in workmanship without charge for either parts or labor OSD Audio may replace returned speakers with a product of equal value and performance.
