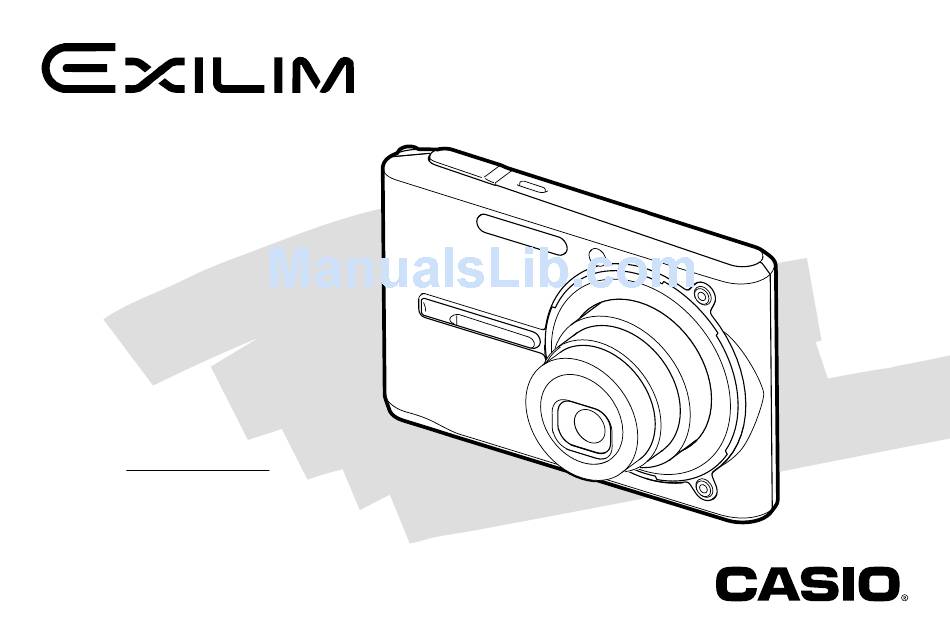

Page 1: Digital Camera
Digital Camera EX-S600 User’s Guide Thank you for purchasing this CASIO product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official EXILIM Website at http://www.exilim.com/.
Page 2: Introduction
INTRODUCTION INTRODUCTION Unpacking Check to make sure that all of the items shown below are included with your camera. If something is missing, contact your dealer as soon as possible. Rechargeable Lithium Ion Camera CD-ROMs (2) • Note that the shape of the AC adaptor depends on the area where you purchased the camera. Special AC Adaptor (Inlet Type) (AD-C52G) USB Cradle...
Page 3: Table Of Contents
INTRODUCTION Contents INTRODUCTION Unpacking ... 2 Features ... 9 Precautions ... 13 QUICK START GUIDE First, charge the battery! ... 18 To configure display language and clock settings ... 19 To record an image ... 20 To view a recorded image ... 21 To delete an image ...
Page 4 INTRODUCTION Using the Self-timer ... 65 Specifying Image Size ... 68 Specifying Image Quality ... 69 OTHER RECORDING FUNCTIONS Selecting the Focus Mode ... 71 Using Auto Focus Using the Macro Mode Using Pan Focus Using the Infinity Mode Using Manual Focus Using Focus Lock Exposure Compensation (EV Shift) ...
Page 5 INTRODUCTION REC Mode Camera Settings ... 112 Assigning Functions to the [ ] and [ ] Keys Turning the On-screen Grid On and Off Turning Image Review On and Off Using Icon Help Specifying Power On Default Settings Specifying ISO Sensitivity Selecting the Metering Mode Using the Filter Function Specifying Outline Sharpness...
Page 6 INTRODUCTION OTHER SETTINGS Configuring Sound Settings ... 157 To configure sound settings To set the confirmation tone volume level To set the audio volume level for movie and audio snapshot playback Specifying an Image for the Startup Screen ... 158 Specifying the File Name Serial Number Generation Method ...
Page 7 INTRODUCTION VIEWING IMAGES ON A COMPUTER Using the Camera with a Windows Computer ... 186 Using the Camera with a Macintosh Computer ... 194 Using a Memory Card to Transfer Images to a Computer ... 199 Memory Data ... 200 DCF Protocol Memory Folder Structure Image Files Supported by the Camera...
Page 8 EX-S600. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or losses suffered by you or any third party due to the use of Photo Loader and/or Photohands.
Page 9: Features
INTRODUCTION I LCD Panel The LCD panel is a product of the latest LCD manufacturing technology that provides a pixel yield of 99.99%. This means that less than 0.01% of the total pixels are defective (they do not turn on or always remain turned on).
Page 10 • Restoring an Old Photograph (page 94) You can use the procedure in this section to restore an old, faded photograph with the color provided by modern digital camera technology. • High-resolution movie recording with audio (page 97) VGA size, 30 fps, MPEG-4 AVI format...
Page 11 INTRODUCTION • Movie button (pages 99, 105) Simply press [ ] (MOVIE) to start recording a movie, without any troublesome mode changes. You can even press the shutter button during movie recording to record a snapshot. • A choice of movie recording functions (page 98) Movie recording functions include Normal Movie, Short Movie (movie is a preset length that starts before [ (MOVIE) was pressed and ends after it is pressed), and...
Page 12 INTRODUCTION • PictBridge and USB DIRECT-PRINT support (page 180) Connect directly to a PictBridge or USB DIRECT-PRINT compatible printer and you can print images without going through a computer. • PRINT Image Matching III Compatible (page 185) Images include PRINT Image Matching setting and other camera setup information).
Page 13: Precautions
• Never try to open the case of the camera or attempt your own repairs. High-voltage internal components create the risk of electric shock when exposed. Always leave maintenance and repair work up to a CASIO authorized service center. • Keep the small parts and accessories of this camera out of the reach of small children.
Page 14 Next, remove the camera’s battery and/or unplug the AC adaptor power cord from the power outlet, and contact your dealer or nearest CASIO authorized service center. • Never use the camera inside of an aircraft or in any other area where its use is prohibited.
Page 15: Data Error Precautions
INTRODUCTION I Data Error Precautions • Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in file memory. — Removing the battery or memory card, or setting the camera onto the USB cradle while the camera is performing a record or memory access operation —...
Page 16: Power Supply
INTRODUCTION I Condensation • When you bring the camera indoors on a cold day or otherwise expose it to a sudden change of temperature, there is the possibility that condensation can form on the exterior or on interior components. Condensation can cause malfunction of the camera, so you should avoid exposing it to conditions that might cause condensation.
Page 17: Caring For Your Camera
INTRODUCTION I Lens • Never apply too much force when cleaning the surface of the lens. Doing so can scratch the lens surface and cause malfunction. • You may sometimes notice some distortion in certain types of images, such as a slight bend in lines that should be straight.
Page 18: Quick Start Guide
QUICK START GUIDE QUICK START GUIDE First, charge the battery! Load the battery into the camera (page 32). Stopper Place the camera onto the USB cradle to charge the battery (page 33). • Note that the shape of the AC adaptor depends on the area where you purchased the camera.
Page 19: To Configure Display Language And Clock Settings
QUICK START GUIDE To configure display language and clock settings • Be sure to configure the following settings before using the camera to record images. See page 47 for details. 2, 3, 4, 5, 6, 7, 8, 9 [SET] Press the power button to turn on the camera. Use [ ], [ ], [ ], and [ ] to select the language you want.
Page 20: To Record An Image
QUICK START GUIDE To record an image See page 50 for details. Auto recording icon Operation lamp Focus frame Before using a commercially available memory card, be sure to first format it using the camera’s formatting procedure. For details about formatting a memory card, see page 172.
Page 21: To View A Recorded Image
QUICK START GUIDE To view a recorded image See page 122 for details. Press [ ] (PLAY). • This enters the PLAY (playback) mode. Use [ ] and [ ] to scroll through the images. To delete an image 2, 3, 4, 5 Press [ ] (PLAY).
Page 22: Getting Ready
The following table defines the terminology used in this manual. This term as used in this Means this: manual: “camera” The CASIO EX-S600 Digital Camera “file memory” The location where the camera is currently storing images you record (page 51) “battery”...
Page 23: General Guide
GETTING READY I File Memory The term “file memory” in this manual is a general term that refers to the location where your camera is currently storing the images you record. File memory can be any one of the following three locations. •...
Page 24 GETTING READY I Back Operation lamp ] (PLAY mode) button ] (REC mode) button ] (MOVIE) button Zoom button Strap ring Speaker [ ][ ][ ][ ] [SET] button [BS] (BEST SHOT) button [MENU] button Monitor Screen I Bottom Stopper Memory card slot Battery compartment Battery cover...
Page 25: Usb Cradle
GETTING READY USB Cradle Simply placing your CASIO digital camera onto the USB cradle lets you perform the following tasks. • Battery charging (page 33) • Viewing of images using the Photo Stand slideshow feature (page 140). • TV connectability for viewing of images on a television screen (page 146).
Page 26: Monitor Screen Contents
GETTING READY Monitor Screen Contents The monitor screen uses various indicators and icons to keep you informed of the camera’s status. • Note that the example screens in this chapter are for illustrative purposes only. They do not exactly match the screen contents actually produced on the camera.
Page 27 GETTING READY Recording types Shutter speed value (page 52) Auto recording BEST SHOT Aperture value (page 52) Movie ISO sensitivity Short Movie (page 117) Past Movie Date and time Voice Recording (page 160) • appears when a BEST SHOT mode scene other than Focus frame Short Movie, Past Movie, or (page 51)
Page 28: Play Mode
GETTING READY Digital zoom indicator (page 58) Zoom indicator (page 58) • Left side indicates optical zoom. • Right side indicates digital zoom. PLAY Mode PLAY mode file type Folder name/File name (page 151) Snapshot Example : When a file named Movie CIMG0023.JPG is stored in a folder Short Movie...
Page 29 (page 36) Histogram (page 109) EV value (page 79) IMPORTANT! • Some information may not display properly if you display an image that was recorded using a different Auto digital camera model. Daylight Cloudy Shade Day White Daylight Tungsten Manual...
Page 30: Changing The Contents Of The Monitor Screen
GETTING READY I PLAY Mode Changing the Contents of the Monitor Screen Each press of [ ] (DISP) changes the contents of the monitor screen as shown below. I REC Mode Indicators on Histogram/Details on Indicators on Histogram on Indicators off Indicators off...
Page 31: Attaching The Strap
GETTING READY IMPORTANT! • Pressing [ ] (DISP) will not change monitor screen contents during standby or recording of an audio snapshot. • You can use [ ] (DISP) to turn off the monitor screen only when voice recording in the REC mode. You cannot turn off the monitor screen for any other recording function.
Page 32: Power Requirements
GETTING READY Power Requirements Your camera is powered by a rechargeable lithium ion battery (NP-20). Loading the Rechargeable Battery Slide the battery cover in the direction indicated by the arrow, and then swing it open. With the EXILIM logo on the battery facing upwards (in the direction of the monitor screen), hold the stopper in the direction indicated by the arrow as you slide the...
Page 33: To Charge The Battery
GETTING READY Swing the battery cover closed, and then slide it in the direction indicated by the arrow. IMPORTANT! • Use only the special NP-20 rechargeable lithium ion battery to power this camera. Use of any other type of battery is not supported. The battery is not fully charged when you use the camera for the first time after purchasing it.
Page 34 GETTING READY NOTE • The bundled AC adaptor is designed for operation with any power supply in the range of 100V to 240V AC. Note, however, that the shape of the AC power cord plug varies according to country or geographic area.
Page 35 GETTING READY • It takes about 120 minutes to achieve a full charge. Actual charging time depends on current battery capacity and charging conditions. After charging is complete, remove the camera from the USB cradle. IMPORTANT! • Use only the USB cradle (CA-30) that comes with the camera or the optionally available charger (BC-10L) to charge the special NP-20 rechargeable lithium ion battery.
Page 36: Low Battery Indicator
• If the same symptoms occur again when you place the camera on the USB cradle after taking the above steps, contact a CASIO authorized service center. I Low Battery Indicator The following shows how the battery capacity indicator on the monitor screen changes as battery power is used.
Page 37: To Replace The Battery
GETTING READY I Tips to Make the Battery Last Longer • If you do not need the flash while recording, select (flash off) for the flash mode. See page 60 for more information. • Enable the Auto Power Off and the Sleep features (page 43) to protect against wasting battery power when you forget to turn off the camera.
Page 38: Power Supply Precautions
Be sure to read the following Safety Precautions before using the battery for the first time. NOTE • The term “battery” in this manual refers to the CASIO NP-20 Rechargeable Lithium Ion Battery. • Use only the USB cradle (CA-30) that comes with the...
Page 39 Prolonged contact with battery fluid can cause skin irritation. G PRECAUTIONS DURING USE • The battery is designed for use with this CASIO digital camera only. • Use only the USB cradle that comes with the camera or the specified optional charger to charge the battery.
Page 40 Doing so creates the risk of fire and electric shock. • Should the cord of the AC adaptor become damaged (exposed internal wiring), contact your dealer or nearest CASIO authorized service center. A damaged AC adaptor cord creates the risk of fire or electric shock.
Page 41: Turning The Camera On And Off
GETTING READY • Use the AC adaptor where it will not be splashed with water. Water creates the risk of fire and electric shock. • Do not place a vase or any other container Caution! filled with liquid on top of the AC adaptor. Water creates the risk of fire and electric shock.
Page 42: To Turn Off The Camera
GETTING READY NOTE • Pressing [ ] (REC) to turn on the camera enters the REC mode, while pressing [ the PLAY mode. • Pressing [ ] (PLAY) while in the REC mode switches to the PLAY mode. The lens retracts about 10 seconds after switching modes.
Page 43: Configuring Power Saving Settings
GETTING READY Configuring Power Saving Settings You can configure the settings described below to conserve battery power. Sleep : Automatically turns off the monitor screen if no operation is performed for a specified amount of time in the REC mode. Performing any button operation causes the monitor screen to turn back Auto Power Off : Turns off power if you do not perform any operation for a specified amount of...
Page 44: Using The On-Screen Menus
GETTING READY • The Auto Power Off and Sleep features are disabled in the following cases. — When the camera is connected to a computer or some other device through the USB cradle — While a slideshow is in progress —...
Page 45 GETTING READY Press [MENU]. [MENU] [SET ] Settings G Menu Screen Operations Selection cursor (indicates the currently selected item) When you want to do this: Move between tabs Move from the tab to the settings Move from the settings to the tab Move between the settings Display the options...
Page 46 GETTING READY Press [ ] or [ ] to select the tab you want, and then press [SET] to move the selection cursor from the tab to the settings. Use [ ] and [ ] to select the feature whose setting you want to configure, and then press [ ].
Page 47: Configuring Display Language And Clock Settings
GETTING READY Configuring Display Language and Clock Settings Be sure to configure the following settings before using the camera to record images. • Display language • Home city • Date Style • Date and time Note that the current date and time settings are used by the camera to generate the date and time that are stored along with image data, etc.
Page 48: Configuring Display Language And Clock Settings
GETTING READY To configure display language and clock settings Press the power button, [ ] (PLAY) to turn on the camera. Use [ ], [ ], [ ], and [ ] to select the language you want, and then press [SET]. : Japanese English : English...
Page 49 GETTING READY Use [ ] and [ ] to select the date format setting you want, and then press [SET]. Example: December 24, 2005 To display the date like this: Select this format: 05/12/24 YY/MM/DD 24/12/05 DD/MM/YY 12/24/05 MM/DD/YY Set the current date and the time.
Page 50: Basic Image Recording
BASIC IMAGE RECORDING BASIC IMAGE RECORDING This section describes the basic procedure for recording an image. Recording an Image Aiming the Camera Use both hands to hold the camera still when shooting an image. Holding the camera with one hand increases the chance of movement, which can blur your images.
Page 51: Recording An Image
BASIC IMAGE RECORDING Recording an Image Your camera automatically adjusts shutter speed in accordance with the brightness of the subject. Images you record are stored in the camera’s built-in memory, or to a memory card if you have one loaded in the camera. •...
Page 52 BASIC IMAGE RECORDING Press the shutter button half way to focus the image. • When you press the shutter button half way, the camera’s Auto Focus feature automatically focuses the image, and displays the shutter speed value, the aperture value, and the ISO sensitivity.
Page 53 BASIC IMAGE RECORDING *1 The amount of time the shutter remains open, allowing light passing through the lens to reach the CCD. A larger shutter speed value indicates that the shutter remains open longer, which means more light reaches the CCD. The camera adjusts this setting automatically. *2 The size of the opening (aperture) that allows light passing through the lens to reach the CCD.
Page 54: Recording Precautions
BASIC IMAGE RECORDING You can turn the AF assist light on or off. It is recommended that you turn off the AF assist light when recording images of nearby people, etc. In the REC mode, press [MENU]. Use [ ] and [ ] to select the “REC” tab. Use [ ] and [ ] to select “AF Assist Light”, and then press [ ].
Page 55: About Auto Focus
BASIC IMAGE RECORDING • When recording a dimly lit subject while “Auto” is selected for the ISO sensitivity setting (page 117), the camera increases sensitivity and uses a faster shutter speed. Because of this, you need to guard against camera movement if you have flash turned off •...
Page 56: Using Zoom
BASIC IMAGE RECORDING I About the REC Mode Monitor Screen • The image shown on the monitor screen in the REC mode is a simplified image for composing purposes. The actual image is recorded in accordance with the image quality setting currently selected on your camera. The image saved in file memory has much better resolution and detail than the REC mode monitor screen image.
Page 57 BASIC IMAGE RECORDING Zoom out Compose the image, and then press the shutter button. NOTE • The optical zoom factor also affects the lens aperture. • Use of a tripod is recommended to protect against hand movement when using the telephoto setting (zoom in).
Page 58: Digital Zoom
BASIC IMAGE RECORDING Digital Zoom Digital zoom digitally enlarges the part of the image at the center of the image screen. The range of digital zoom is 3X to 12X (in combination with optical zoom). IMPORTANT! • When you perform a digital zoom operation, the camera manipulates the image data to enlarge the center of the image.
Page 59 BASIC IMAGE RECORDING Release the zoom button momentarily, and then hold down its telephoto ( to move the zoom pointer into the digital zoom range. • The zoom pointer will also stop when you move the pointer back to the switch over point to re-enter the digital zoom range.
Page 60: Using The Flash
BASIC IMAGE RECORDING Using the Flash Perform the following steps to select the flash mode you want to use. • The approximate effective range of the flash is shown below. Wide Angle Optical Zoom: Approximately 0.4 to 2.8 meters (1.3´ to 9.2´) (ISO Sensitivity: Auto) Telephoto Optical Zoom: Approximately 0.4 to 1.4 meters (1.3´...
Page 61 BASIC IMAGE RECORDING IMPORTANT! • The flash unit of this camera fires a number of times when you record an image. The initial flashes are pre-flashes, which the camera uses to obtain information that it uses for exposure settings. The final flash is for recording.
Page 62: Flash Unit Status
BASIC IMAGE RECORDING IMPORTANT! Note the following important points when using red- eye reduction. • Red-eye reduction does not work unless the people in the image are looking directly at the camera during the pre-flash. Before pressing the shutter button, call out to the subjects so they all look at the camera while the pre-flash operation is performed.
Page 63: Changing The Flash Intensity Setting
BASIC IMAGE RECORDING Changing the Flash Intensity Setting Perform the following steps to change the flash intensity setting. In the REC mode, press [MENU]. Use [ ] and [ ] to select the “Quality” tab. Use [ ] and [ ] to select “Flash Intensity”, and then press [ ].
Page 64 BASIC IMAGE RECORDING Use [ ] and [ ] to select “Auto”, and then press [SET]. • Selecting “Off” disables flash assist. IMPORTANT! • Flash assist may not produce the desired result for some types of subjects. • Flash assist may have little effect on your image if you changed any of the following settings when you recorded it.
Page 65: Using The Self-Timer
BASIC IMAGE RECORDING • When the flash is turned off ( ), mount the camera on a tripod to record images in an area where available lighting is dim. Recording images under dim lighting without the flash can cause digital noise, which makes images appear coarse.
Page 66 BASIC IMAGE RECORDING To do this: Specify a 10-second self-timer Specify a 2-second self-timer Specify Triple Self-timer Disable the self-timer • This causes an indicator identifying the selected self-timer type to appear on the monitor screen. • With the Triple Self-timer, the camera records a series of three images in the sequence described...
Page 67 BASIC IMAGE RECORDING Press the shutter button to record the image. • When you press the shutter button, the AF assist light/self-timer lamp flashes and the shutter releases after the self-timer reaches the end of its countdown (about 10 seconds or two seconds).
Page 68: Specifying Image Size
BASIC IMAGE RECORDING Specifying Image Size “Image size” is the size of the image, expressed as the number of vertical and horizontal pixels. A “pixel” is one of the many tiny dots that make up the image. More pixels provide finer detail when an image is printed, but a higher pixel count also causes the image’s file size to be larger.
Page 69: Specifying Image Quality
BASIC IMAGE RECORDING • The above print sizes are all approximate values when printing at a resolution of 200 dpi (dots per inch). Use a larger setting when you want to print at a higher resolution or when you plan to produce a larger size print. •...
Page 70 BASIC IMAGE RECORDING To get this: Select this setting: High image quality, large file Fine size Normal image quality and Normal normal file size Low image quality, small file Economy size IMPORTANT! • Actual file size depends on the type of image you record.
Page 71: Other Recording Functions
OTHER RECORDING FUNCTIONS OTHER RECORDING FUNCTIONS Selecting the Focus Mode You can select one of five different focus modes: Auto Focus, Macro, Pan Focus, Infinity, and Manual Focus. In the REC mode, press [MENU]. Select the “REC” tab, select “Focus”, and then press [ ].
Page 72: Using Auto Focus
OTHER RECORDING FUNCTIONS Using Auto Focus As its name suggests, Auto Focus focuses the image automatically. The automatic focus operation starts when you press the shutter button down half way. The following is the Auto Focus range. Range: 40cm to ∞ (1.3´ to ∞) •...
Page 73 OTHER RECORDING FUNCTIONS NOTE • When proper focusing is not possible because the subject is closer than the Auto Focus range, the camera automatically switches to the Macro mode range (page 75). • Whenever you perform an optical zoom operation (page 56) while recording with Auto Focus, a value will appear on the monitor screen as shown below to tell you the focusing range.
Page 74: Specifying The Auto Focus Area
OTHER RECORDING FUNCTIONS I Specifying the Auto Focus Area You can use the following procedure to change the Auto Focus area used in the Auto Focus mode and the Macro mode. Note that the configuration of the focus frame changes in accordance with the Auto Focus area you select.
Page 75: Using The Macro Mode
OTHER RECORDING FUNCTIONS Using the Macro Mode Use the Macro mode when you need to focus on close up subjects. The following shows the approximate focus range in the Macro mode. Range: 15cm to 50cm (5.9˝ to 19.7˝) • Using optical zoom causes the above range to change. In the REC mode, press [MENU].
Page 76: Using Pan Focus
OTHER RECORDING FUNCTIONS Using Pan Focus Pan Focus comes in handy when recording under conditions where Auto Focus is difficult for some reason, or in cases where Auto Focus operation noise is too noticeable in the movie audio. In the REC mode, press [MENU]. Select the “REC”...
Page 77: Using Manual Focus
OTHER RECORDING FUNCTIONS Using Manual Focus With the Manual Focus mode, you can adjust the focus of an image manually. The following shows focus range in the Manual Focus mode. Optical Zoom Factor Approximate Focus Range 15cm (5.9˝) to infinity (∞) 40cm (15.7˝) to infinity (∞) •...
Page 78: Using Focus Lock
OTHER RECORDING FUNCTIONS NOTE • Whenever you perform an optical zoom operation (page 56) while recording with manual focus, a value will appear on the monitor screen as shown below to tell you the focusing range. cm - ∞ Example: MF will be replaced by the actual focusing range value.
Page 79: Exposure Compensation (Ev Shift)
OTHER RECORDING FUNCTIONS Keeping the shutter button pressed half way down, re- compose the image as you like. When the image is composed the way you want, press the shutter button the rest of the way to record it. • The focus and image recording operations are identical to those in the Auto Focus mode.
Page 80 OTHER RECORDING FUNCTIONS Use [ ] and [ ] to change the exposure compensation value, and then press [SET]. • Pressing [SET] registers the displayed value. [ ] : Increases the EV value. A higher EV value is best used for light-colored subjects and backlight subjects.
Page 81: Adjusting White Balance
OTHER RECORDING FUNCTIONS Adjusting White Balance The wavelengths of the light produced by various light sources (daylight, light bulb, etc.) can affect the color of a subject when it is recorded. White balance lets you make adjustments to compensate for different lighting types, so the colors of an image appear more natural.
Page 82: Configuring The White Balance Setting Manually
OTHER RECORDING FUNCTIONS NOTE • When “Auto” is selected for the white balance setting, the camera automatically determines the white point of the subject. Certain subject colors and light source conditions can cause problems when the camera tries to determine the white point, which makes proper white balance adjustment impossible.
Page 83 OTHER RECORDING FUNCTIONS Use [ ] and [ ] to select “Manual”. • This causes the object you last used to adjust manual white balance to appear on the monitor screen. If you want to use the same settings you configured during a previous manual white balance setting...
Page 84: Recording Consecutive Images (Continuous Shutter Mode)
OTHER RECORDING FUNCTIONS Recording Consecutive Images (Continuous Shutter Mode) You can configure the camera to record only a single snapshot each time the shutter button is pressed, or to keep recording as long as the shutter button remains depressed (and there is enough memory available to store the images).
Page 85: Best Shot Mode For Snapshots And Movies
OTHER RECORDING FUNCTIONS BEST SHOT Mode for Snapshots and Movies Selecting one of the BEST SHOT sample scenes automatically sets up the camera for recording a similar type of image. I Example Sample Scene • Portrait • Scenery • Night Scene •...
Page 86 OTHER RECORDING FUNCTIONS • Selecting the “Auto” scene changes the recording type to snapshot auto recording (“ (page 51). To record a snapshot, press the shutter button. To record a movie, press [ • To stop recording, press [ ] (MOVIE) again. IMPORTANT! ”...
Page 87: Displaying Sample Scenes Individually
OTHER RECORDING FUNCTIONS • When recording the image of a night scene, fireworks, or some other image using a slow shutter speed, use of a tripod is recommended to prevent hand movement. NOTE • Operation guidance and the currently selected BEST SHOT scene appear on the display for about two seconds if the camera is in the BEST SHOT mode when you turn it on.
Page 88: Creating Your Own Best Shot Setup
OTHER RECORDING FUNCTIONS Creating Your Own BEST SHOT Setup You can use the procedure below to save the setup of an snapshot or movie you recorded as a BEST SHOT scene. After that, you can recall the setup whenever you want to use it.
Page 89: To Delete A Best Shot User Setup
OTHER RECORDING FUNCTIONS NOTE • The following are the settings that are included in a snapshot setup: focus mode, EV shift value, white balance mode, flash mode, ISO sensitivity, Metering, Flash Intensity, Flash Assist, Filter, Sharpness, Saturation, and Contrast. The following are the settings that are included in a movie setup: focus mode, EV shift value, white balance mode, Filter, Sharpness, Saturation, and Contrast.
Page 90: Reducing The Effects Of Hand Or Subject Movement
OTHER RECORDING FUNCTIONS Reducing the Effects of Hand or Subject Movement You can reduce the effects of subject movement, and for hand movement that tends to occur when shooting a far- away subject using telephoto, a fast-moving subject, or under dim lighting conditions. •...
Page 91: Shooting With High Sensitivity
OTHER RECORDING FUNCTIONS Shooting with High Sensitivity Higher sensitivity makes it possible to record brighter images, without using flash, even when there is not enough lighting available to obtain normal exposure. In the REC mode, press [BS] (BEST SHOT). Use [ ], [ ], [ ], and [ ] to select the “High Sensitivity”...
Page 92: Recording Images Of Business Cards And Documents (Business Shot)
OTHER RECORDING FUNCTIONS Recording Images of Business Cards and Documents (Business Shot) Recording a business card, document, whiteboard, or similarly shaped object from an angle can cause the subject to appear misshaped in the resulting image. Business Shot automatically corrects the shape of rectangular objects to make them appear like the camera was positioned directly in front of them.
Page 93: Before Recording With Business Shot
OTHER RECORDING FUNCTIONS Before recording with Business Shot • Before recording, compose the image so outline of the item you want to record fits entirely within the monitor screen. • Make sure the subject is against a background that allows the outline of the subject to stand out.
Page 94: Restoring An Old Photograph
OTHER RECORDING FUNCTIONS Use [ ] and [ ] to select “Correct”, and then press [SET]. • Selecting “Cancel” in place of “Correct” stores the original image as-is, without correcting it. IMPORTANT! • Digital zoom is disabled while recording with Business Shot.
Page 95: To Restore An Old Photograph
OTHER RECORDING FUNCTIONS NOTE • When the camera is at an angle to the old photograph, one side of the recorded image may appear longer than the side opposite from it. This is called “keystoning,” which is caused by the difference in distance from the camera lens to each side of the photograph.
Page 96 OTHER RECORDING FUNCTIONS Use [ ] and [ ] to select the contour candidate you want to correct. Use [ ] and [ ] to select “Trim”, and then press [SET]. • This displays a cropping boundary on the monitor screen. •...
Page 97: Recording A Movie
OTHER RECORDING FUNCTIONS IMPORTANT! • Digital zoom is disabled while recording an old photograph. However, you can use optical zoom. • The camera will not be able to recognize an old photograph in the following cases. — When part of the photograph extends outside of the monitor screen —...
Page 98: Specifying Movie Image Quality
(page 85). NOTE • You can play movie files on your computer using Windows Media Player 9. • Installing CASIO AVI Importer component on your Macintosh makes it possible to use QuickTime to playback movies recorded with the camera (page 222).
Page 99: Recording A Movie
OTHER RECORDING FUNCTIONS Approximate Setting Data Rate Higher 4.0 megabits (640 × 480 pixels) Quality per second Normal 2.1 megabits (640 × 480 pixels) per second Lower 745 kilobits (320 × 240 pixels) Quality per second Recording a Movie Frame Rate 30 frames/ In the REC mode, point the camera at the second...
Page 100: Recording A Short Movie
OTHER RECORDING FUNCTIONS Recording a Short Movie Short Movie records a movie of preset length each time you press [ ] (MOVIE). Short Movie consists basically of two parts, as shown in the illustration below. • When 4-second past part and 4-second future part is specified Press [ ] MOVIE...
Page 101 OTHER RECORDING FUNCTIONS Past part Use [ ] and [ ] to specify the length of the past part (the part before [ ] (MOVIE) is pressed), and then press [ ]. • Times can be specified in one-second units. •...
Page 102: Recording A Past Movie
OTHER RECORDING FUNCTIONS Point the camera at the subject and then press [ ] (MOVIE). • This will record a movie of the length specified by the time values you specified in steps 3 and 4. Recording stops automatically. • To stop recording part way through, press [ (MOVIE) again.
Page 103: Movie Recording Precautions
OTHER RECORDING FUNCTIONS Point the camera at the subject and then press [ ] (MOVIE). • This will record anything that went on in front of the lens during the previous five seconds and continue recording from the point that [ pressed.
Page 104 OTHER RECORDING FUNCTIONS • The movie recording capacity of built-in memory is very small. Use of a memory card (page 169) is recommended when recording movies. • Certain types of memory cards take longer to record data, which can cause movie frames to be dropped. flash on the monitor screen during recording to let you know when a frame has been dropped.
Page 105: Recording A Snapshot During Movie Recording (Snapshot-In-Movie)
OTHER RECORDING FUNCTIONS Recording a Snapshot during Movie Recording (Snapshot-In-Movie) You can use the procedure below to record a snapshot during movie recording. Point the camera at the subject you want to record, and then press [ ] (MOVIE). • This will start movie recording. When you want to record a snapshot, press the shutter button.
Page 106: Recording Audio
OTHER RECORDING FUNCTIONS Recording Audio Adding Audio to a Snapshot You can add audio to a snapshot after you record it. • Image Format: JPEG JPEG is an image format that provides efficient data compression. The file extension of a JPEG file is “.JPG”. •...
Page 107: Recording Your Voice
OTHER RECORDING FUNCTIONS Press the shutter button to start audio recording. • The operation lamp will flash green while recording is in progress. Recording stops after about 30 seconds or when you press the shutter button. IMPORTANT! • Audio snapshot recording is not supported (audio cannot be recorded) for the following types of recording: “X3”...
Page 108 OTHER RECORDING FUNCTIONS In the REC mode, press [BS] (BEST SHOT). Use [ ], [ ], [ ] and Recording time [ ] to select the “Voice Recording” scene, and then press [SET]. • Selecting the “Voice Recording” scene causes “...
Page 109: Using The Histogram
OTHER RECORDING FUNCTIONS I Audio Recording Precautions • Take care that you do not block the microphone with your fingers. • Good recording results are not possible when the camera is too far from the subject. • Pressing the power button or pressing [ recording and stores any audio recorded up to that point.
Page 110 OTHER RECORDING FUNCTIONS • An RGB histogram that shows the distribution of R (red), G (green), and B (blue) components is also displayed. This histogram can be used to determine whether there is too much or too little of each of the color components in an image.
Page 111 OTHER RECORDING FUNCTIONS • A centered histogram indicates that there is good distribution of light pixels and dark pixels. This type of histogram results when the overall image is at optimal lightness. IMPORTANT! • Note that the above histograms are shown for illustrative purposes only.
Page 112: Rec Mode Camera Settings
OTHER RECORDING FUNCTIONS REC Mode Camera Settings The following are the settings you can configure before recording an image using the REC mode. • L/R key setting • Grid on/off • Image Review on/off • Icon Help on/off • Power on default settings •...
Page 113: Turning The On-Screen Grid On And Off
OTHER RECORDING FUNCTIONS Use [ ] and [ ] to select the setting you want, and then press [SET]. • After you assign a function, you can change its setting simply by pressing the [ ] and [ ] keys. —...
Page 114: Turning Image Review On And Off
OTHER RECORDING FUNCTIONS Turning Image Review On and Off Image review displays the images you record on the monitor screen as soon as you record them. Use the following procedure to turn image review on and off. In the REC mode, press [MENU]. Select the “REC”...
Page 115: Specifying Power On Default Settings
OTHER RECORDING FUNCTIONS Use [ ] and [ ] to select the setting you want, and then press [SET]. To do this: Display guidance text when you select an icon on the monitor screen. Turn off Icon Help IMPORTANT! • The icons listed below do not appear on the display while Icon Help is turned off.
Page 116 OTHER RECORDING FUNCTIONS Function BEST SHOT* Flash Focus White Balance AF Area Setting when Metering camera is turned off Self-timer Flash Intensity Digital Zoom Last Auto Focus position that was in MF Position effect before you switched to manual focus Zoom Position* *1 Specifies whether startup is performed with BEST SHOT scene selection as-is.
Page 117: Specifying Iso Sensitivity
OTHER RECORDING FUNCTIONS Specifying ISO Sensitivity You can change the ISO sensitivity setting for better images in places where lighting is dim or when you are using faster shutter speeds. • ISO sensitivity is expressed in terms of values that originally indicated the sensitivity to light for photographic film.
Page 118: Selecting The Metering Mode
OTHER RECORDING FUNCTIONS Selecting the Metering Mode The metering mode determines what part of the subject is metered for exposure. You can use the following procedure to change the camera’s metering mode. In the REC mode, press [MENU]. Select the “Quality” tab, select “Metering”, and then press [ ].
Page 119: Using The Filter Function
OTHER RECORDING FUNCTIONS IMPORTANT! • When “Multi” is selected as the metering mode, certain procedures cause the metering mode setting to change automatically as described below. • Changing the exposure compensation setting (page 79) to a value other than 0.0 changes the metering mode setting to “Center Weighted.”...
Page 120: Specifying Outline Sharpness
OTHER RECORDING FUNCTIONS Specifying Outline Sharpness Use the following procedure to control the sharpness of image outlines. In the REC mode, press [MENU]. Select the “Quality” tab, select “Sharpness”, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET].
Page 121: Specifying Contrast
OTHER RECORDING FUNCTIONS Specifying Contrast Use this procedure to adjust the relative difference between the light areas and dark areas of the image you are recording. In the REC mode, press [MENU]. Select the “Quality” tab, select “Contrast”, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET].
Page 122: Playback
The actual display image appears a short while after the preview image. This does not apply to images copied from another digital camera. Image quality Image size Date and time...
Page 123: Playing An Audio Snapshot
PLAYBACK Playing an Audio Snapshot Perform the steps below to display an audio snapshot (indicated by ) and play its audio. In the PLAY mode, use [ ] and [ ] until the image you want is displayed. Press [SET]. •...
Page 124: Zooming The Display Image
PLAYBACK Zooming the Display Image Perform the following procedure to zoom the image currently on the monitor screen up to eight times its normal size. In the PLAY mode, use [ ] and [ ] to display the image you want. Press the zoom button ( ) to enlarge...
Page 125: Resizing An Image
PLAYBACK Resizing an Image You can resize a recorded image to one of three sizes. In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Resize”, and then press [ ]. • Note that this operation is possible only when a snapshot image is on the monitor screen.
Page 126: Cropping An Image
PLAYBACK IMPORTANT! • Resizing an image creates a new file that contains the image in the size you select. The file with the original image also remains in memory. • Note that you cannot resize the following types of images. —...
Page 127 PLAYBACK Use the zoom button to zoom the image. • The part of the image displayed on the monitor screen is the cropped part. Use [ ], [ ], [ ], and [ ] to to scroll the part to be cropped up, down, left, and right. Press [SET] to extract the part of the image enclosed in the cropping boundary.
Page 128: Playing And Editing A Movie
PLAYBACK Playing and Editing a Movie Playing a Movie Use the following procedure to play a movie you recorded with this camera. In the PLAY mode, use [ ] and [ ] to scroll through movies on the monitor screen and display the one you want.
Page 129: Playing Back A Movie With Anti Shake
PLAYBACK IMPORTANT! • You can adjust the volume level of movie audio during movie playback only. • You can zoom a movie up to 4.5 times normal size. • The camera’s playback function may not be able to play back movies recorded with another camera, movies transferred from your computer, etc.
Page 130: Editing A Movie
PLAYBACK NOTE • You can press [ ] (MOVIE) to turn Anti Shake on and off while the movie is stopped or playing. • You can also use the following procedure to turn Anti Shake on and off. 1. While a movie is playing, press [MENU]. 2.
Page 131 PLAYBACK • Splicing of two different movies into a single movie or cutting one movie into multiple parts are not supported by camera operations. However, you can splice movies and cut movies into multiple parts on your computer using the bundled Ulead Movie Wizard SE VCD application.
Page 132 PLAYBACK Display the frame where you want the cut to be located. To do this: Do this: Fast forward or fast reverse Press [ ] or [ ]. playback Pause or unpause movie Press [SET]. playback Scroll paused playback one Press [ ] or [ ].
Page 133 PLAYBACK I To cut everything between two specific frames While the movie is playing, press [SET]. • This will pause movie playback. Press [ ]. • You can also display the same screen while in the PLAY mode, by pressing [MENU], selecting the “PLAY”...
Page 134: Capturing A Still Image From A Movie (Motion Print)
PLAYBACK Repeat step 4 to display the ending frame where you want the second cut to be located. • The red portion of the indicator bar shows what part will be cut. Use [ ] and [ ] to select “Yes”, and then press [SET].
Page 135 PLAYBACK I To capture a still image from a movie In the PLAY mode, use [ ] and [ ] to scroll through movies on the monitor screen and display the one that contains the frames you want. Press [MENU]. Select the “PLAY”...
Page 136: Displaying The 9-Image View
PLAYBACK Displaying the 9-image View The following procedure displays nine images on the monitor screen at the same time. In the PLAY mode, press the zoom button • This displays the 9-image screen with the image that was on the monitor screen in step 2 in the center, with a selection boundary around it.
Page 137: Displaying The Calendar Screen
PLAYBACK Displaying the Calendar Screen Use the following procedure to display a 1-month calendar. Each day shows the first file recorded on that day, which makes it easy to find the file you want. In the PLAY mode, press the zoom button ) twice.
Page 138: Playing A Slideshow
PLAYBACK Playing a Slideshow A slideshow automatically plays back images in sequence at a fixed interval. In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Slideshow”, and then press [ ]. Use the screen that appears to configure the image, time, interval, and effect settings.
Page 139 PLAYBACK • Pattern 1, 2, 3 Applies a preset effect when transitioning from one image to another. • Random Effect Randomly applies the preset patterns (1, 2, and 3). • OFF Effects turned off. Use [ ] and [ ] to select “Start”, and then press [SET].
Page 140: Using The Photo Stand Feature
“Images” setting is “Favorites” or “ Only”, or when the slideshow “Interval” setting is “MAX”, “1 sec”, or “2 sec”. • Images copied from another digital camera or a computer may take longer time to appear than the slideshow interval time you specify.
Page 141: Rotating The Display Image
PLAYBACK • Pressing [MENU] displays a screen for configuring slideshow settings. To restart the slideshow, press [MENU] while the menu screen is displayed, or select “Start” and then press [SET]. • During audio playback, you can adjust volume by pressing [ ] and then using [ ] and [ ]. To stop the Phot Stand slideshow, press [PHOTO] again.
Page 142: Using Image Roulette
(page 152). • You may not be able to rotate a digital image that was recorded with another type of digital camera. • You cannot rotate the following types of images. — Movie images and the voice recording file icon —...
Page 143: Adding Audio To A Snapshot
PLAYBACK IMPORTANT! • Image Roulette does not play movie files or display the voice recording file icon. • Image Roulette is disabled when there is only one snapshot image available. • If an image you have rotated appears during Image Roulette, the unrotated version is displayed (page 141).
Page 144: To Re-Record Audio
PLAYBACK In the PLAY mode, use [ ] and [ ] to scroll through snapshots until the one to which you want to add audio is displayed. Press [MENU]. Select the “PLAY” tab, select “Dubbing”, and then press [ ]. Press the shutter button to start audio recording.
Page 145: Playing Back A Voice Recording File
PLAYBACK IMPORTANT! • Take care that you do not block the microphone with your fingers. • Good recording results are not possible when the camera is too far from the subject. • The (Audio) icon appears on the monitor screen after audio recording is complete.
Page 146: Displaying Camera Images On A Tv Screen
PLAYBACK To do this: Do this: Fast forward or fast reverse Hold down [ ] or [ ]. the audio Pause and unpause audio Press [SET]. playback Press [ ] and then use [ ] Adjust audio volume and [ ]. Toggle monitor screen Press [ ] (DISP).
Page 147 PLAYBACK AV cable [AV OUT] (AV output port) Video input terminal Turn off the camera. Set the camera onto the USB cradle. Turn on the TV and select its video input mode. Press [ ] to turn on the camera, and then perform the required operation for playback.
Page 148: Selecting The Video Output System
PLAYBACK Selecting the Video Output System You can select either NTSC or PAL for the video system to match the system of the TV you are using. In the REC mode or the PLAY mode, press [MENU]. Select the “Set Up” tab, select “Video Out”, and then press [ ].
Page 149: Deleting Files
DELETING FILES DELETING FILES You can delete a single file, or you can delete all files currently in memory. IMPORTANT! • Note that file deletion cannot be undone. Once you delete a file, it is gone. Make sure you really do not need a file anymore before you delete it.
Page 150: Deleting All Files
DELETING FILES Deleting All Files In the PLAY mode, press [ ] ( Use [ ] and [ ] to select “All Files Delete”, and then press [SET]. Use [ ] and [ ] to select “Yes”. • To exit the file delete operation without deleting anything, select “No”.
Page 151: File Management
FILE MANAGEMENT FILE MANAGEMENT The file management capabilities of the camera make it easy to keep track of images. You can protect files against deletion and store the files you want in the camera’s built-in memory. Folders Your camera automatically creates folders in its built-in memory or on the memory card.
Page 152: Protecting Files
FILE MANAGEMENT Protecting Files Once you protect a file it cannot be deleted (page 149). You can protect files individually or you can protect all files in memory with a single operation. IMPORTANT! • Even if a file is protected, it still will be deleted by a memory card format operation (page 172) or a built- in memory format operation (page 167).
Page 153: To Protect All Files In Memory
FILE MANAGEMENT To protect all files in memory In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Protect”, and then press [ ]. Use [ ] and [ ] to select “All Files : On”, and then press [SET]. •...
Page 154 FILE MANAGEMENT Use [ ] and [ ] to select “Save”, and then press [SET]. • This displays the names of the files in built-in memory or on the loaded memory card. Use [ ] and [ ] to select the file you want to copy to the FAVORITE folder.
Page 155: To Display A File In The Favorite Folder
FILE MANAGEMENT To display a file in the FAVORITE folder In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Favorites”, and then press [ ]. Use [ ] and [ ] to select “Show”, and then press [SET]. •...
Page 156: To Delete A File From The Favorite Folder
FILE MANAGEMENT To delete a file from the FAVORITE folder In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “Favorites”, and then press [ ]. Use [ ] and [ ] to select “Show”, and then press [SET]. Press [ ] ( Use [ ] and [ ] to select the file you want to delete from the FAVORITE folder.
Page 157: Other Settings
OTHER SETTINGS OTHER SETTINGS Configuring Sound Settings You can configure different sounds to play whenever you turn on the camera, press the shutter button half-way or all the way, or perform a key operation. To configure sound settings Press [MENU]. Select the “Set Up”...
Page 158: To Set The Audio Volume Level For Movie And Audio Snapshot Playback
OTHER SETTINGS To set the audio volume level for movie and audio snapshot playback Press [MENU]. Select the “Set Up” tab, select “Sounds”, and then press [ ]. Use [ ] and [ ] to select “ Use [ ] and [ ] to specify the playback volume setting you want, and then press [SET].
Page 159: Specifying The File Name Serial Number Generation Method
OTHER SETTINGS IMPORTANT! • You can select any one of the following types of image as the startup image. — The camera’s built-in image — A snapshot — The image only of an audio snapshot • Only one image can be stored in startup image memory at one time.
Page 160: Setting The Clock
OTHER SETTINGS Setting the Clock Use the procedures in this section to select a Home Time Zone, and to change its date and time settings. If you want to change the time and date setting only without changing the Home Time Zone, perform the procedure under “To set the current time and date”...
Page 161: To Set The Current Time And Date
OTHER SETTINGS To set the current time and date Press [MENU]. Select the “Set Up” tab, select “Adjust”, and then press [ ]. Set the current date and the time. To do this: Do this: Change the setting at the current Press [ ] or [ ].
Page 162: Using World Time
OTHER SETTINGS Using World Time You can use the World Time screen to select a time zone and instantly change the time setting of the camera’s clock when you go on a trip, etc. World Time lets you select one of 162 cities in 32 time zones.
Page 163: Editing The Date And Time Of An Image
OTHER SETTINGS Use [ ], [ ], [ ], and [ ] to select the geographical area you want, and then press [SET]. Use [ ] and [ ] to select the city you want, and then press [SET]. When the setting is the way you want, press [SET] to apply it and exit the setting screen.
Page 164: Changing The Display Language
OTHER SETTINGS To do this: Do this: Change the value at the cursor Press [ ] or [ ]. location Move the cursor between settings Press [ ] or [ ]. Toggle between 12-hour and 24- Press [BS]. hour timekeeping When all the settings are the way you want, press [SET] to apply them.
Page 165: Changing The Brightness Of The Monitor Screen
OTHER SETTINGS Changing the Brightness of the Monitor Screen You can use the following procedure to toggle the brightness of the monitor screen between two levels. Press [MENU]. Select the “Set Up” tab, select “Screen”, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET].
Page 166 OTHER SETTINGS • Mass Storage (USB DIRECT-PRINT) causes the camera to see the computer as an external storage device. Use this setting for normal transfer of images from the camera to a computer (using the bundled Photo Loader application). • PTP (PictBridge) simplifies the transfer of image data to the connected device.
Page 167: Formatting Built-In Memory
OTHER SETTINGS To configure this operation: Power turns on when [ ] (REC) or ] (PLAY) is pressed (but does not turn off) Power turns on or off when [ (REC) or [ ] (PLAY) is pressed Power does not turn on or off when ] (REC) or [ ] (PLAY) is pressed...
Page 168 OTHER SETTINGS Check to make sure there is no memory card loaded in the camera. • If there is a memory card loaded in the camera, remove it (page 171). Press [MENU]. Select the “Set Up” tab, select “Format”, and then press [ ].
Page 169: Using A Memory Card
USING A MEMORY CARD USING A MEMORY CARD You can expand the storage capabilities of your camera by using a commercially available memory card (SD memory card or MultiMediaCard). You can also copy files from built-in memory to a memory card and from a memory card to built-in memory.
Page 170: Using A Memory Card
USING A MEMORY CARD Using a Memory Card IMPORTANT! • Make sure you turn off the camera before inserting or removing a memory card. • Be sure to orient the card correctly when inserting it. Never try to force a memory card into the slot when you feel resistance.
Page 171: To Replace The Memory Card
• Should water or any foreign object ever get into the card slot, immediately turn off the camera, remove the battery, and contact your dealer or nearest CASIO authorized service center. • Never remove a card from the camera while the operation lamp is flashing green. Doing so can cause the file save operation to fail, and even damage the memory card.
Page 172: Formatting A Memory Card
USING A MEMORY CARD Formatting a Memory Card Formatting a memory card deletes any data already stored on it. IMPORTANT! • Be sure to use the camera to format a memory card. Formatting a memory card on a computer and then using it in the camera can slow down data processing by the camera.
Page 173: Copying Files
USING A MEMORY CARD I Memory Card Precautions • If a memory card starts to behave abnormally, you can restore normal operation by reformatting it. However, we recommend that you always take along more than one memory card whenever using the camera far away from the home or office.
Page 174: To Copy All The Files In Built-In Memory To A Memory Card
USING A MEMORY CARD To copy all the files in built-in memory to a memory card Load the memory card into the camera. Turn on the camera. Next, enter the PLAY mode and press [MENU]. Select the “PLAY” tab, select “Copy”, and then press [ ].
Page 175: To Copy A Specific File From A Memory Card To Built-In Memory
USING A MEMORY CARD To copy a specific file from a memory card to built-in memory Files can be copied from a memory card to built-in memory one at a time. You cannot batch copy multiple files. Perform steps 1 through 3 of the procedure under “To copy all the files in built-in memory to a memory card”.
Page 176: Printing Images
PRINTING IMAGES PRINTING IMAGES A digital camera provides you with a variety of different ways to print the images it records. The three main printing methods are described below. Use the method that best suits your needs. I Professional Print Service The camera’s DPOF feature lets you specify which images...
Page 177: Dpof
The letters “DPOF” stand for “Digital Print Order Format”, which is a format for recording on a memory card or other medium which digital camera images should be printed and how many copies of the image should be printed. Then you can print on a...
Page 178: To Configure Print Settings For A Single Image
PRINTING IMAGES To configure print settings for a single image In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “DPOF”, and then press [ ]. Use [ ] and [ ] to select “Select images”, and then press [ ]. Use [ ] and [ ] to display the image you want.
Page 179: To Configure Print Settings For All Images
PRINTING IMAGES To configure print settings for all images In the PLAY mode, press [MENU]. Select the “PLAY” tab, select “DPOF”, and then press [ ]. Use [ ] and [ ] to select “All images”, and then press [ ]. Use [ ] and [ ] to specify the number of copies.
Page 180: Using Pictbridge Or Usb Direct-Print
PRINTING IMAGES IMPORTANT! • DPOF settings are not cleared automatically after printing is complete. This means that if you perform another printing operation without clearing DPOF settings, printing will be performed in accordance with the last settings you configured. If you want to prevent this from happening, perform the procedure under “To configure print settings for all images”...
Page 181 PRINTING IMAGES Press [MENU]. Select the “Set Up” tab, select “USB”, and then press [ ]. Use [ ] and [ ] to select the setting you want, and then press [SET]. When connecting to this type of Select this setting: device: Computer or USB DIRECT- Mass Storage (USB...
Page 182 PRINTING IMAGES Turn off the camera, and then set the camera on the USB cradle. Turn on the printer. Load paper for printing the images into the printer. Press the USB cradle’s [USB] button. • This displays the print menu on the camera’s monitor screen.
Page 183 PRINTING IMAGES 11 . Use [ ] and [ ] to specify the print option you want. • To print a single image: Select “1 Image” and then press [SET]. Next, use [ ] and [ ] to select the image you want to print.
Page 184: Date Printing
PRINTING IMAGES Date Printing Any one of the procedures described below can be used to include the recording date in image prints. Correct date printing requires that the current date be set on the camera before the image is recorded. •...
Page 185: Print Image Matching Iii
PRINTING IMAGES PRINT Image Matching III Images include PRINT Image Matching data (mode setting and other camera setup information). A printer that supports PRINT Image Matching reads this data and adjusts the printed image accordingly, so your images come out just the way you intended when you recorded them.
Page 186: Using The Camera With A Windows Computer
VIEWING IMAGES ON A COMPUTER VIEWING IMAGES ON A COMPUTER After using the USB cradle to establish a USB connection between the camera and your computer, you can use your computer to view images in file memory and copy images to your computer’s hard disk or other storage media.
Page 187 VIEWING IMAGES ON A COMPUTER IMPORTANT! • Low battery power can cause the camera to power down suddenly during data communication. Use of the special AC adaptor is recommended to power the camera during data communication. • If you are using battery power without the AC adaptor, make sure that the battery is fully charged.
Page 188 VIEWING IMAGES ON A COMPUTER What you should do first depends on whether your computer is running under Windows XP, 2000, Me, 98SE, or 98. Windows 98SE/98 Users • Start from step 2 to install the USB driver. • Note that the example installation presented here uses Windows 98.
Page 189 VIEWING IMAGES ON A COMPUTER When the final setup screen appears, click the [Exit] button on the CD-ROM menu to exit the menu, and then remove the CD-ROM from your computer. • With some computer operating systems, a message prompting you to restart your computer may appear. If this happens, restart your computer.
Page 190 VIEWING IMAGES ON A COMPUTER Connect the USB cable that comes bundled with the camera to the USB cradle and your computer’s USB port. USB cable (bundled) USB port Connector A • Take care when connecting the USB cable to the USB cradle or your computer.
Page 191 VIEWING IMAGES ON A COMPUTER Place the camera onto the USB cradle. • Do not place the camera onto the USB cradle while it is turned on. Press the USB cradle’s [USB] button. • This will cause your computer to create a hardware profile for camera’s built-in memory or the memory card loaded in the camera.
Page 192 VIEWING IMAGES ON A COMPUTER On your computer, double-click “My Computer”. • If you are running Windows XP, click [Start] and then [My Computer]. Double-click “Removable Disk”. • Your computer sees the camera’s file memory as a removable disk. Double-click the “Dcim” folder. Double-click the folder that contains the image you want.
Page 193 VIEWING IMAGES ON A COMPUTER Windows XP 1. In the camera’s file memory (Removable Disk), right- click the “Dcim” folder. 2. On the shortcut menu that appears, click [Copy]. 3. Click [Start] and then [My Documents]. 4. On the My Documents [Edit] menu, click [Paste]. •...
Page 194: Using The Camera With A Macintosh Computer
VIEWING IMAGES ON A COMPUTER Depending on the version of Windows you are running, use one of the following procedures to terminate the USB connection. Windows XP/98SE/98 Users • After pressing the USB cradle’s [USB] button and making sure that the [USB] lamp is not lit, remove the camera from the USB cradle.
Page 195 VIEWING IMAGES ON A COMPUTER IMPORTANT! • If you want to transfer files from the camera’s built-in memory to a computer, make sure there is no memory card loaded in the camera before you place it onto the USB cradle. •...
Page 196 VIEWING IMAGES ON A COMPUTER Connect the USB cable that comes bundled with the camera to the USB cradle and your computer’s USB port. [DC IN 5.3V] • Take care when connecting the USB cable to the USB cradle or your computer. USB ports and cable plugs are shaped for proper positioning.
Page 197 VIEWING IMAGES ON A COMPUTER Press the camera’s power button to turn it on, and then press its [MENU] button. Select the “Set Up” tab, select “USB”, and then press [ ]. Use [ ] and [ ] to select “Mass Storage (USB DIRECT-PRINT)”, and then press [SET].
Page 198 VIEWING IMAGES ON A COMPUTER Double-click the file that contains the image you want to view. • For information about file names, see “Memory Folder Structure” on page 201. NOTE • If you open a rotated image on your Macintosh, the original unrotated version will appear (page 141).
Page 199: Using A Memory Card To Transfer Images To A Computer
VIEWING IMAGES ON A COMPUTER I USB Connection Precautions • Do not leave the same image displayed on your computer screen for a long time. Doing so can cause the image to “burn in” on the screen. • Never disconnect the USB cable, or perform any camera or USB cradle operation while data communication is in progress.
Page 200: Dcf Protocol
VIEWING IMAGES ON A COMPUTER Using a Commercially Available SD Memory Card Reader/Writer See the user documentation that comes with the SD memory card reader/writer for details about how to use it. Using a Commercially Available PC Card Reader/Writer and PC Card Adaptor (for an SD memory card or MMC) See the user documentation that comes with the PC card reader/writer and PC card adaptor for details about how to use them.
Page 201: Memory Folder Structure
* These folders are created in built-in memory only. I Folder and File Contents • DCIM folder Folder that stores all of the digital camera files • Storage folder Folder for storing files created by the digital camera • Image file...
Page 202: Image Files Supported By The Camera
VIEWING IMAGES ON A COMPUTER • FAVORITE folder (Built-in memory only) Folder that contains Favorites image files (Image Size: 320 × 240 pixels) • DPOF file folder Folder that contains DPOF files • Snapshot BEST SHOT folder (Built-in memory only) Folder that contains Snapshot BEST SHOT user setup files •...
Page 203 VIEWING IMAGES ON A COMPUTER I Built-in Memory and Memory Card Precautions • Note that the folder named “DCIM” is the parent (top) folder of all the files in memory. When transferring memory contents to a hard disk, CD-R, MO disk, or other external storage, treat all the contents inside a DCIM folder as a set and always keep them together.
Page 204: About The Bundled Cd-Rom
Macintosh (see page 219). Using the Camera with a Windows Computer Your digital camera comes bundled with useful applications for using it in combination with a computer. Install the applications you need on your computer. About the bundled CD-ROM The CD-ROM that comes bundled with the camera contains the applications described below.
Page 205 USING THE CAMERA WITH A COMPUTER Purpose Software Name Snapshot retouching, Photohands 1.0 reorientation, printing Movie playback Windows Media Player 9 * DirectX 9.0c Windows 98 WMP6.4 codec Movie editing Ulead Movie Wizard SE – Viewing of user Adobe Reader 6.0 documentation (PDF) files –...
Page 206: Computer System Requirements
USING THE CAMERA WITH A COMPUTER Computer System Requirements Computer system requirements are different for each of the applications. Be sure to check the requirements for the particular application you are trying to use. Note that the values provided here are minimum requirements for running each application.
Page 207 USING THE CAMERA WITH A COMPUTER Photohands 1.0 OS: XP/2000/Me/98SE/98 Memory: At least 64MB HD: At least 10MB DirectX 9.0c OS: XP/2000/Me/98SE/98 HD: At least 65MB free space during installation, 18MB after installation is complete. Adobe Reader 6.0 OS: XP/2000/Me/98SE CPU: Pentium Memory: 32MB HD: 60MB...
Page 208: Managing Images On A Pc
USING THE CAMERA WITH A COMPUTER Managing Images on a PC To manage images on a PC, you need to install the Photo Loader application from the CD-ROM that comes with the camera. • Use the CD-ROM whose contents label shows “Photo Loader”.
Page 209 USING THE CAMERA WITH A COMPUTER I Viewing the Contents of the “Read me” File You should always read the “Read me” file for “Photo Loader” before installing it. The “Read me” file contains information you need to know when installing the application.
Page 210 USING THE CAMERA WITH A COMPUTER I Checking for the Proper Version of DirectX In order to manage images using Photo Loader, your computer also needs to have DirectX 9.0 or higher installed. You can check the installed version of DirectX using your PC’s DirectX Diagnostic Tool.
Page 211: Retouching, Reorienting, And Printing A Snapshot
USING THE CAMERA WITH A COMPUTER Retouching, Reorienting, and Printing a Snapshot In order to retouch, reorient, or print snapshots on your PC, you need to install Photohands from the CD-ROM that comes bundled with the camera. • Use the CD-ROM whose contents label shows “Photohands”.
Page 212 USING THE CAMERA WITH A COMPUTER I Viewing the Contents of the “Read me” File You should always read the “Read me” file for “Photohands” before installing it. The “Read me” file contains information you need to know when installing the application.
Page 213: Playing A Movie
USING THE CAMERA WITH A COMPUTER Playing a Movie In order to play a movie recorded with this camera on your PC using Windows Media Player, you need to install MPEG-4 codec. I To install the codec on a PC that can connect to the Internet Connect the PC to the Internet.
Page 214 USING THE CAMERA WITH A COMPUTER I To install the codec on a PC that cannot connect to the Internet If your PC cannot connect to the Internet, install Windows Media Player 9 from the CD-ROM that comes bundled with the camera.
Page 215 USING THE CAMERA WITH A COMPUTER G Viewing the Contents of the “Read me” File You should always read the “Read me” file for “Windows Media Player 9” before installing it. The “Read me” file contains information you need to know when installing the application.
Page 216: Editing A Movie
USING THE CAMERA WITH A COMPUTER I Movie Playback Precaution The recommended system requirements described below are necessary to use your computer to play back movies recorded with this camera. OS: XP CPU: Pentium M 1GHz or higher Pentium 4 2GHz or higher Required software: Windows Media Player 9 (bundled with camera) DirectX 9.0c (bundled with camera)
Page 217: Getting Started
USING THE CAMERA WITH A COMPUTER I Getting Started Start up your computer and insert the CD-ROM into its CD- ROM drive. This will automatically launch the menu application, which displays a menu screen on your computer. • The menu application may not start up automatically on some computers.
Page 218: Viewing User Documentation (Pdf Files)
USING THE CAMERA WITH A COMPUTER Viewing User Documentation (PDF Files) In the “Manual” area, click the name of the manual you want to read. IMPORTANT! • You must have Adobe Reader or Adobe Acrobat Reader installed on your computer in order to view the contents of a PDF file.
Page 219: Using The Camera With A Macintosh Computer
USING THE CAMERA WITH A COMPUTER Using the Camera with a Macintosh Computer Your digital camera comes bundled with useful applications for using it in combination with a computer. Install the applications you need on your computer. About the bundled CD-ROM The CD-ROM that comes bundled with the camera contains the applications described below.
Page 220: Computer System Requirements
Macintosh using the USB cable. CASIO AVI Importer component 1.0 OS: OS X 10.2.8 or greater QuickTime: QuickTime 6.5.2 or greater IMPORTANT! •...
Page 221: Managing Images On A Macintosh
USING THE CAMERA WITH A COMPUTER Managing Images on a Macintosh I To manage images on a Macintosh running OS 9 Install the Photo Loader application from the CD-ROM that comes with the camera. • Use the CD-ROM whose contents label shows “Photo Loader”.
Page 222: Playing Back A Movie On Your Macintosh
In the “Library” folder, double-click “QuickTime”. Drag “CASIO AVI Importer. component” to the “QuickTime” folder. • This installs “CASIO AVI Importer. component” in the “QuickTime” folder. • If there are any other AVI components in the [QuickTime] folder, it can make proper movie playback impossible.
Page 223 USING THE CAMERA WITH A COMPUTER Restart your Macintosh and confirm that QuickTime can play the movies properly. IMPORTANT! • Be sure to move the movie data to the hard disk of your Macintosh before trying to play it. Proper movie playback may not be possible for data accessed over a network, from a memory card, etc.
Page 224: To Register As A Camera User
I To view the Photo Loader user’s guide On the CD-ROM, open the “Manual” folder. Open the “Photo Loader” folder and then open the “English” folder. Open “PhotoLoader_english”. To register as a camera user Internet registration only is supported. Visit the following CASIO website to register: http://world.casio.com/qv/register/...
Page 225: Menu Reference
APPENDIX APPENDIX Menu Reference The following shows lists of menus that appear in the REC mode and the PLAY mode, and their settings. • The settings that are underlined in the following table are initial defaults. I REC Mode G REC Tab Menu Focus (Auto Focus) / (Pan Focus) /...
Page 226 APPENDIX G Quality Tab Menu 6M (2816 × 2112) / Size 6M (3:2) (2816 × 1872 (3:2)) / 4M (2304 × 1728) / 3M (2048 × 1536) / 2M (1600 × 1200) / VGA (640 × 480) Quality Fine / Normal / Economy (Snapshots) Quality HQ / Normal / LP...
Page 227 APPENDIX I PLAY Mode G PLAY Tab Menu Slideshow Start / Images / Time / Interval / Effect / Cancel MOTION PRINT 9 frames / 1 frame / Cancel Anti Shake On / Off Movie Editing Cut (Before) / (Between) / Favorites Show / Save / Cancel DPOF...
Page 228: Indicator Lamp Reference
APPENDIX Indicator Lamp Reference The camera has two indicator lamps: an operation lamp and an AF assist light/self-timer lamp. These lamps light and flash to indicate the current operational status of the camera. Operation lamp * There are three lamp flash patterns. Pattern 1 flashes once per second, Pattern 2 flashes twice per second, and Pattern 3 flashes four times per second.
Page 229 APPENDIX AF assist light / Operation Lamp self-timer lamp Green Amber Memory card problem / Memory card is unformatted. / Pattern 2 BEST SHOT setup cannot be registered. Memory card is locked. / Cannot create folder. / Memory is full. / Write error Pattern 3 Low battery alert Pattern 3...
Page 230: Usb Cradle Indicator Lamps
APPENDIX I PLAY Mode AF assist light / self- Operation Lamp timer lamp Green Operational (Power on, recording enabled) One of the following operations is being performed: delete, DPOF, image protect, copy, format, power Pattern 3 down, image resizing, image trimming, after recording, MOTION PRINT, movie editing Memory card problem / Memory...
Page 231: Troubleshooting Guide
APPENDIX Troubleshooting Guide Symptom Power does not turn on. 1) The battery is not oriented correctly. 2) The battery is dead. Camera suddenly powers 1) Auto Power Off activated (page 43). down. 2) The battery is dead. Image is not recorded 1) The camera is in the PLAY mode.
Page 232 APPENDIX Symptom Auto Focus does not focus 1) The lens is dirty. properly. 2) The subject is not located in the center of the focus frame when you compose the image. 3) The subject you are shooting is a type that is not compatible with Auto Focus operation (page 72).
Page 233 APPENDIX Symptom Camera powers down The battery is dead. during self-timer countdown. Monitor screen image is 1) You are using the Manual Focus mode ( out of focus. and have not focused the image. 2) You are trying to use the Macro mode ( when shooting a scenery or portrait shot.
Page 234 APPENDIX Symptom Vertical lines on the Recording a very brightly lit subject can cause a monitor screen. vertical band to appear in the monitor screen image. Out of focus images. The subject is outside the shooting range of the camera. Digital noise in images.
Page 235 APPENDIX Symptom All buttons and switches Circuit problem caused by electrostatic charge, are disabled. impact, etc. while the camera was connected to another device. Monitor screen is off. USB communication is in progress. Cannot transfer files over a 1) Camera is not set securely on the USB cradle. USB connection.
Page 236: If You Have Problems Installing The Usb Driver
Windows 98SE/98 before installing the USB driver from the bundled CD-ROM, or if you have another type of driver installed. This will make it impossible for the computer to recognize the digital camera when it is connected. If this happens, you will need to re-install the camera’s USB driver.
Page 237: Display Messages
APPENDIX Display Messages Battery is low. The battery is dead. Cannot correct Keystone correction cannot be performed for some image! reason. The image will be stored as-is, without correction (pages 93, 95). Can not find the file. The camera cannot find a image specified by the slideshow “Images”...
Page 238 SYSTEM ERROR Your camera system is corrupted. Contact your retailer or a CASIO service center. The card is locked. The LOCK switch of the SD memory card is locked. You cannot store images to or delete images from a memory card that is locked.
Page 239: Specifications
APPENDIX Specifications Product ... Digital Camera Model ... EX-S600 I Camera Functions Image Files Format Snapshots ... JPEG (Exif Ver.2.2); DCF (Design rule for Camera File system) 1.0 standard; DPOF compliant Movies ... AVI (MPEG-4) Audio ... WAV Recording Media ... 8.3MB built-in memory...
Page 240 APPENDIX • Movies Image Maximum Approximate Approximate Size Recording Data Rate Recording (Pixels) Time Per (Frame Rate) Time for File Built-in Memory 8.3 MB Until 4.0 megabits 13 seconds 640 × 480 memory per second full (30 frames / second) Normal Until 2.1 megabits...
Page 241 APPENDIX Exposure Control Light Metering ... Multi-pattern, center-weighted, spot by Exposure ... Program AE Exposure Compensation ... –2EV to +2EV (1/3EV units) Shutter ... CCD electronic shutter; mechanical shutter Snapshot mode (Auto): 1/8 to 1/2000 second • Shutter speed is different for the following BEST SHOT scenes.
Page 242: Power Requirements
APPENDIX Monitor Screen ... 2.2-inch TFT color LCD 84,960 pixels (354 × 240) Viewfinder ... Monitor screen Timekeeping Functions ... Built-in digital quartz clock Date and Time ... Recorded with image data Auto Calendar ... To 2049 World Time ... City; Date; Time; Summer time; 162 cities in 32 time zones Input/Output Terminals ...
Page 243 APPENDIX *2 Continuous Recording Conditions • Temperature: 23°C (73°F) • Monitor screen: On • Flash: Off • Image recorded every 15 seconds, alternating full wide-angle and full telephoto zoom *3 Continuous Snapshot Playback Conditions • Temperature: 23°C (73°F) • Scroll one image about every 10 seconds *4 Approximate time for continuous movie recording, without using zoom.
Page 244 APPENDIX I Special AC Adaptor (Inlet Type) (AD-C52G) Power Requirement ... 100 to 240V AC, 50/60Hz, 83 mA Output ... 5.3V DC, 650 mA Dimensions ... 50(W) × 20(H) × 70(D) mm (2.0˝(W) × 0.8˝(H) × 2.8˝(D)) (excluding projections and cable) Weight ...
Page 245 CASIO COMPUTER CO.,LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MA0512-C...

This manual is also suitable for:

Ex-s600be Ex-s600eo Ex-s600sr

Casio Exilim EX-S600 User Manual

Introduction

Quick Start Guide

Getting Ready

Basic Image Recording

Other Recording Functions

Playback

Deleting Files

File Management

Other Settings

169 Using a Memory Card

Printing Images

186 Viewing Images on a Computer

204 Using the Camera with a Computer

225 Appendix

Quick Links

Digital Camera

Related Manuals for Casio Exilim EX-S600

Summary of Contents for Casio Exilim EX-S600
