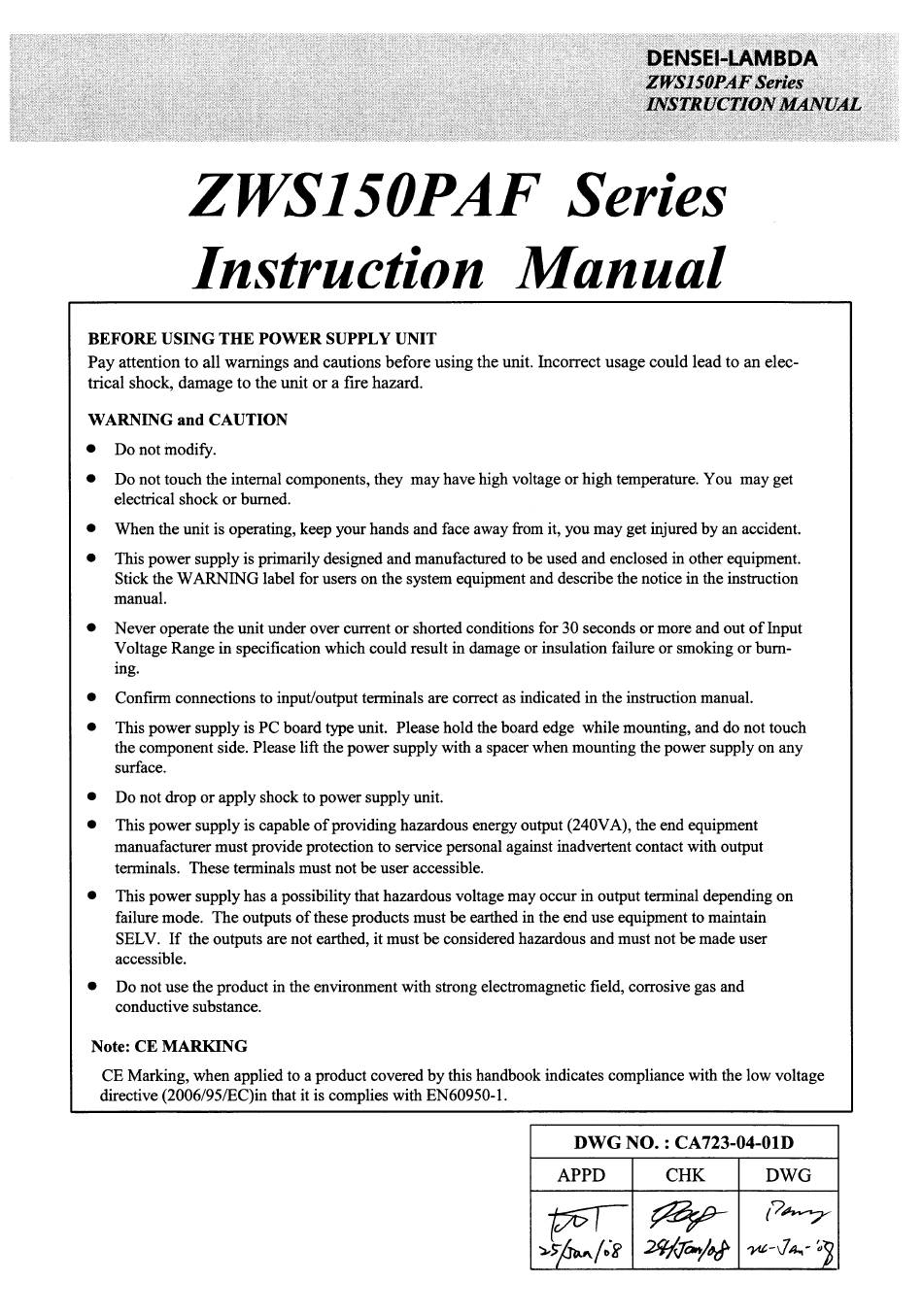

Summary of Contents for Densei-Lambda ZWS150PAF Series
- Page 3 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL 1-2. ZWS150PAF/J L: AC Input terminal (pin 1 of CN1) Live line (fuse in line) N: AC input terminal (pin 3 of CN1) Neutral line *Input & Output connector ( J.S.T ) FG: Input terminal FG (pin 5 of CN1)
- Page 4 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL 1-3. ZWS150PAF/T L: AC Input terminal L (M4 screw) Live line (fuse in line) N: AC input terminal N (M4 screw) Neutral line FG: Input terminal FG (M4 screw) Safety earth (Frame Ground) * Input & Output connector ( EMUDEN )
- Page 5 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL 1-4. ZWS150PAF/S L: AC Input terminal L (M4 screw) Live line (fuse in line) N: AC input terminal N (M4 screw) Neutral line *Input & Output connector ( EMUDEN ) FG: Input terminal FG (M4 screw)
- Page 6 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL 2. Terminal Connecting Method Pay attention to the input wiring. If it is connected to wrong terminal, the power supply will be damaged. • Input must be off when making connections. • Connect FG terminal of input connector and mount- able FG to ground terminal of the equipment.
- Page 7 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL ZWS150PAF/T ZWS150PAF/S - 6 -...
- Page 8 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL comes larger. In this case, electrolytic capacitor, film ca- 3. Explanation of Functions and Precautions pacitor, etc. might be necessary to use across the load ter- minal. The output ripple cannot be measured accurately if 3-1.
- Page 9 Terminal eration examples for ZWS150PAF-24. Please note that the actual Io in peak load operation is low . 3-10. Peak Output Current For ZWS150PAF series, the peak output current should Max allowable Examples of peak load satisfy the conditions below:...
- Page 10 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL Using CN2 3-12. Isolation Test It is controlled by short or open between +R & -R of CN2. CN2 is provided in the primary circuit for ON/OFF control Isolation resistance between output and FG (Chassis) shall by means of a switch or other device.
-
Page 11: Mounting Directions
DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL ( F ) ( E ) Prohibit Output Output ~ FG (Chassis) 500VAC 1min. ( 100mA ) AC(L) Input AC(N) +R(CN52) With chassis, with chassis&cover type -R(CN52) ( A ) ( B ) Input Withstand... - Page 12 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL • Output Derating Forced air cooling PCB type and with chassis type • Convection cooling PCB type and with chassis type Mounting (A),(B),(C),(D),(E) Mounting (A),(B) Mounting (C),(D),(E) -10 0 10 20 30 40 50 60 70 Ambient Temperature (°C)
- Page 13 DENSEI-LAMBDA ZWS150PAF Series INSTRUCTION MANUAL Test point (CORE) 4-2. Mounting Method PCB type Please use the mounting hole (4 holes of φ3.5) and insert the spacer (MAXφ8.0)of height over 8mm to lift the unit. Also use all 4 mounting holes for the unit installation. The...
