ESB00163 16A
ESB00323 32A

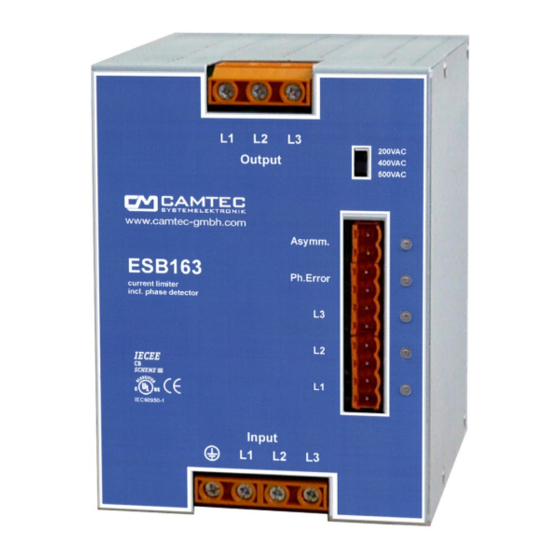

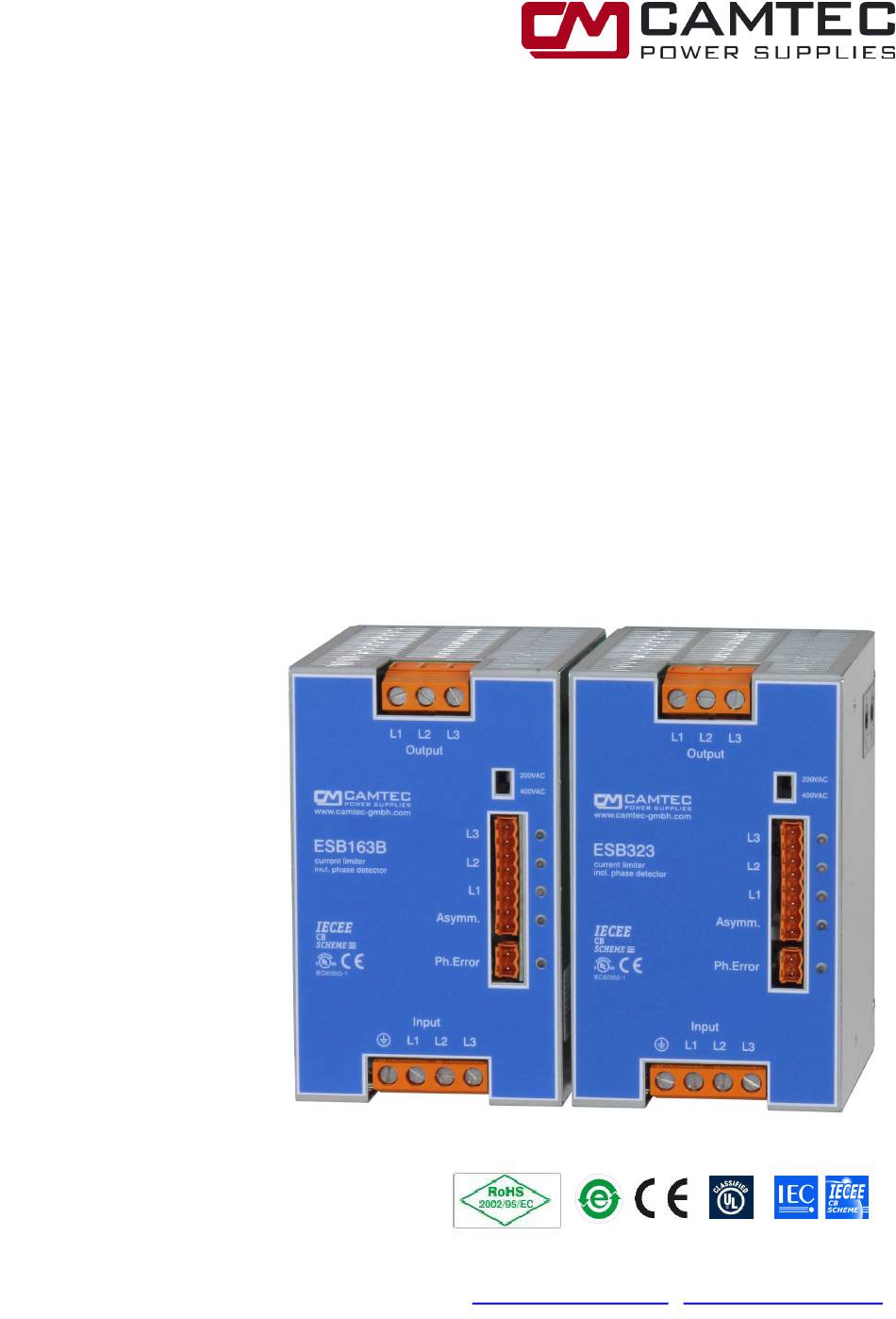

Inrush Current Limiter, Inrush Protector, 3-phase 200/400/500Vac
For inductive & capacitive loads, 16A/32A -40°C...+70°C
Short Specification:
•
Peak- / RMS Value Limiter
•
Integrated Phase Control Circuit
•
200/400/500Vac 3PH 16A/32A nominal
Voltage
•
DIN TS35mm Rail
•
Federzugklemmen 0,5...16mm²
•
Integrated Bypass-Relay
•
Capacitive Load 2.000uF
•
Built-In Temperature Control Circuit
•
IP20 Housing
Integrated
Phase Controller
No simple NTC-Version!
A Camtec-ESB allows
effective reduction of
cabling cross sections.
It allows using quicker
circuit breakers.
The ESB prevents from
tripping the circuit
breakers by high inrush.
Camtec Power Supplies GmbH – Gewerbestraße 30 – DE76327 Pfinztal – Germany
Phone +49(0)721 46596-0 - Fax +49(0)721 46596-77 –
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
The ESB is a budget-priced inrush peak
current limiter for high loads in LED-
applications, complex automation systems
and in the machine building. The ESB offers
high recommended and interference free
operation with both, the inductive and the
capacitive load. It is simple to integrate into
existing
equipment.
powering and does not require an external
power supply.
www.camtec-gmbh.com
Made in Germany
The
ESB
is
In accordance with IEC60950-1
p.1/6 12.13B
-
info@camtec-gmbh.com
self-
