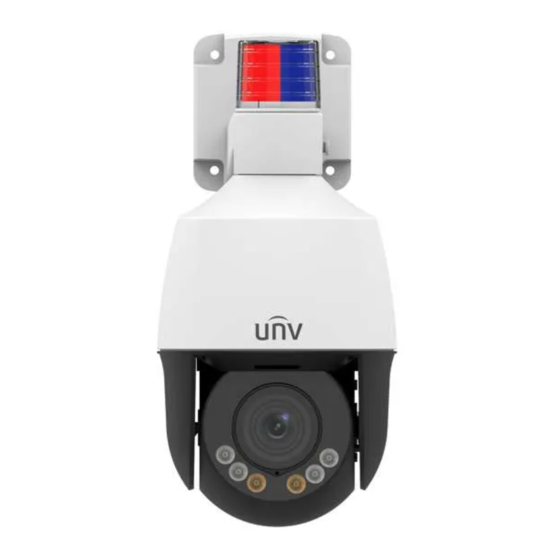

Summary of Contents for Connect Uniview LightHunter PTZ

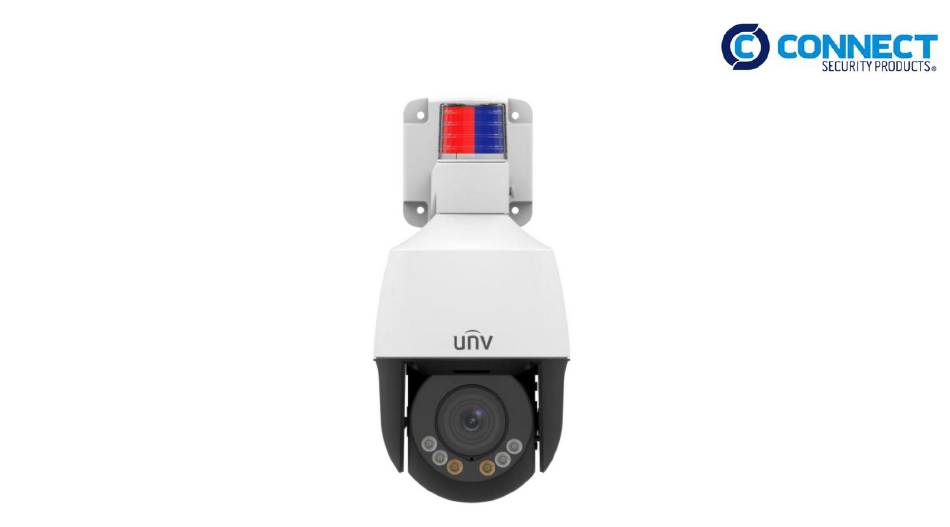

- Page 1 Uniview LightHunter PTZ...
- Page 2 Uniview LightHunter PTZ Login • To access the camera on a PC you can use the web browser interface or EZStation. • To access the web browser interface – open a web browser and type the camera IP address into the address bar.
-
Page 3: Web Interface
Uniview LightHunter PTZ Web Interface 1. Menu 2. PTZ control area 3. Live view window 4. Live view toolbar... -
Page 4: Ptz Control Toolbar
Uniview LightHunter PTZ PTZ Control Toolbar... -
Page 5: Add A Preset
Uniview LightHunter PTZ Add a preset • On the Live View page, click Preset on the control panel. • Adjust the camera to its desired position, zoom, and focus. • Click to add the view as a preset – enter a number and... - Page 6 Uniview LightHunter PTZ Go to a preset • On the Live View page, click Preset on the control panel. • Position the cursor over the preset you want to go to and press • The camera will go to the selected preset.
-
Page 7: Delete A Preset
Uniview LightHunter PTZ Delete a preset • On the Live View page, click Preset on the control panel. • Position the cursor over the preset you want to delete and press • Confirm you want to delete the preset by pressing OK. - Page 8 Uniview LightHunter PTZ Add a patrol route • On the Live View page, click Patrol on the control panel. • Click • On the Add Patrol page, enter the route ID and name, then click Add • Up to 64 actions are allowed •...
- Page 9 Uniview LightHunter PTZ Make a patrol plan • On the Live View page, click Patrol on the control panel • Click the page for setting patrol plans will display • Set the correct patrol time and route • Select Enable Patrol Plan...
- Page 10 Uniview LightHunter PTZ Start a patrol route 1. On the Live View page, click Patrol on the control panel 2. Click for the patrol route you want to start...
-
Page 11: Auto Tracking
Uniview LightHunter PTZ Auto Tracking Set the tracking timeout (unit: sec) or set continuous tracking Click Save Click Setup > Intelligent > Smart. Enable Auto Tracking and then click... -
Page 12: Alarm Light
Uniview LightHunter PTZ Alarm Light You can set the alarm light to activate when the camera detects a person • Go to Setup > Intelligent > Smart > Human Body Detection click • In Rule Settings click under Snapshot Area to add an area which will activate the alarm light if entered •... - Page 13 Uniview LightHunter PTZ Alarm Light • In Trigger Actions enable Alarm Light • Set the length of time you want the light to activate for in the Blink Time field (unit: sec) • Click Save...
- Page 14 Uniview LightHunter PTZ Alarm Light Schedule • Under Plan you can set the hours the Human Body Detection and alarm light will be active. • By default detection is active all the time • If you want to turn it off choose Unarmed and then drag the hours...
-
Page 15: Alarm Sound
Uniview LightHunter PTZ Alarm Sound You can set the alarm sound to activate when the camera detects a person • Go to Setup > Intelligent > Smart > Human Body Detection click • In Rule Settings click under Snapshot Area to add an area which will activate the alarm sound if entered •... - Page 16 Uniview LightHunter PTZ Alarm Sound • In Trigger Actions enable Alarm Sound • Select the audio track you want to be played from the drop down box field Audio • Choose the number of times you want the audio to be played from the Repeat field •...
- Page 17 Uniview LightHunter PTZ Alarm Sound • The numbers in the drop down box of the Audio field on the previous page relate to this list • To see this list go to Setup > Video & Audio > Audio • You can add your own files here (files must be...
- Page 18 Uniview LightHunter PTZ Alarm Sound Schedule • Under Plan you can set the hours the Human Body Detection and alarm sound will be active. • By default detection is active all the time • If you want to turn it off choose Unarmed and then drag the hours...
- Page 19 Uniview LightHunter PTZ 2-way Audio You can use the 2-way audio functionality on the EZView app to communicate through the camera. • Add the camera through the Devices menu • In the Live View screen press the 2-way Audio button on the bottom bar •...
