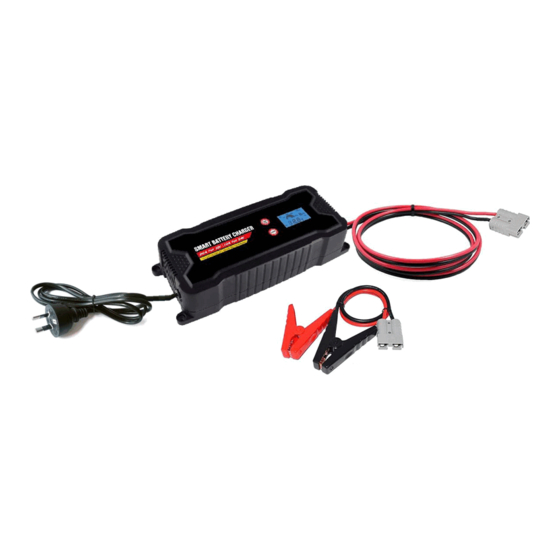

BCSMART20 8-Stage Automatic Battery
Charger Instruction Manual
WARNING
Risk of chemical burns!
Batteries contain acid, which could damage the eyes and skin.
Charging batteries further generates gasses and vapors hazardous to
the health.
Avoid any contact with caustic battery acid, immediately thoroughly
flush skin and any objects which have come into contact with acid. If
eyes have come into contact with battery acid flush eyes with running
water at least 5 minutes. Contact your physician.
Use safely googles and acid-proof safety gloves. Protective clothing,
e.g. with an apron.
Never tip the battery, as acid may leak.
Always ensure adequate ventilation.
Do not inhale emerging gasses and vapors.
www.elinz.com.au / sales@elinz.com.au / 1300 881 773
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Elinz BCSMART20
- Page 1 Use safely googles and acid-proof safety gloves. Protective clothing, e.g. with an apron. Never tip the battery, as acid may leak. Always ensure adequate ventilation. Do not inhale emerging gasses and vapors. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 2 Unplug from mains before connecting or disconnecting the charging cable with the battery, or when the device is no longer being used. Remove all the device cables from the battery before attempting to drive your vehicle. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 3 Never operate the device if it has been dropped or damaged in any other way. For inspection and repair, take it to a qualified electrician. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 4 The charger features the following safety features to prevent damage to the charger and the battery or the vehicle: Short circuit protection Reversed polarity protection Overheating Protection Excess current Overcharge protection LCD Display www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 5 If the connecting is "Reverse" or "Short Circuit", "Err" will be displayed on the screen. The charger can automatically recognize and choose 12V or 24V after connecting. LCD display can automatically show the percent of voltage. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 6 14.7V±0.3V, the charger stops working Normal (24V Mode) - When the battery voltage more than 28.6V±0.3V, the charger stops working Low temperature (24V Mode) - When the battery voltage more than 29.4V±0.3V, the charger stops working www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 7 Stage 4 Bulk Charge Allows the full voltage/current output of the charger required by the battery (depending on the chemistry mode selected) Stage 5 Absorption Automatically reduces the current output whilst maintaining the required voltage. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
- Page 8 Feel free to contact us at 1300 881 773, send us an email at sales@elinz.com.au or chat with us. www.elinz.com.au / sales@elinz.com.au / 1300 881 773...
