Sophos APX 320X Mounting Instructions

Sector / Directional Antenna Mounting Instructions

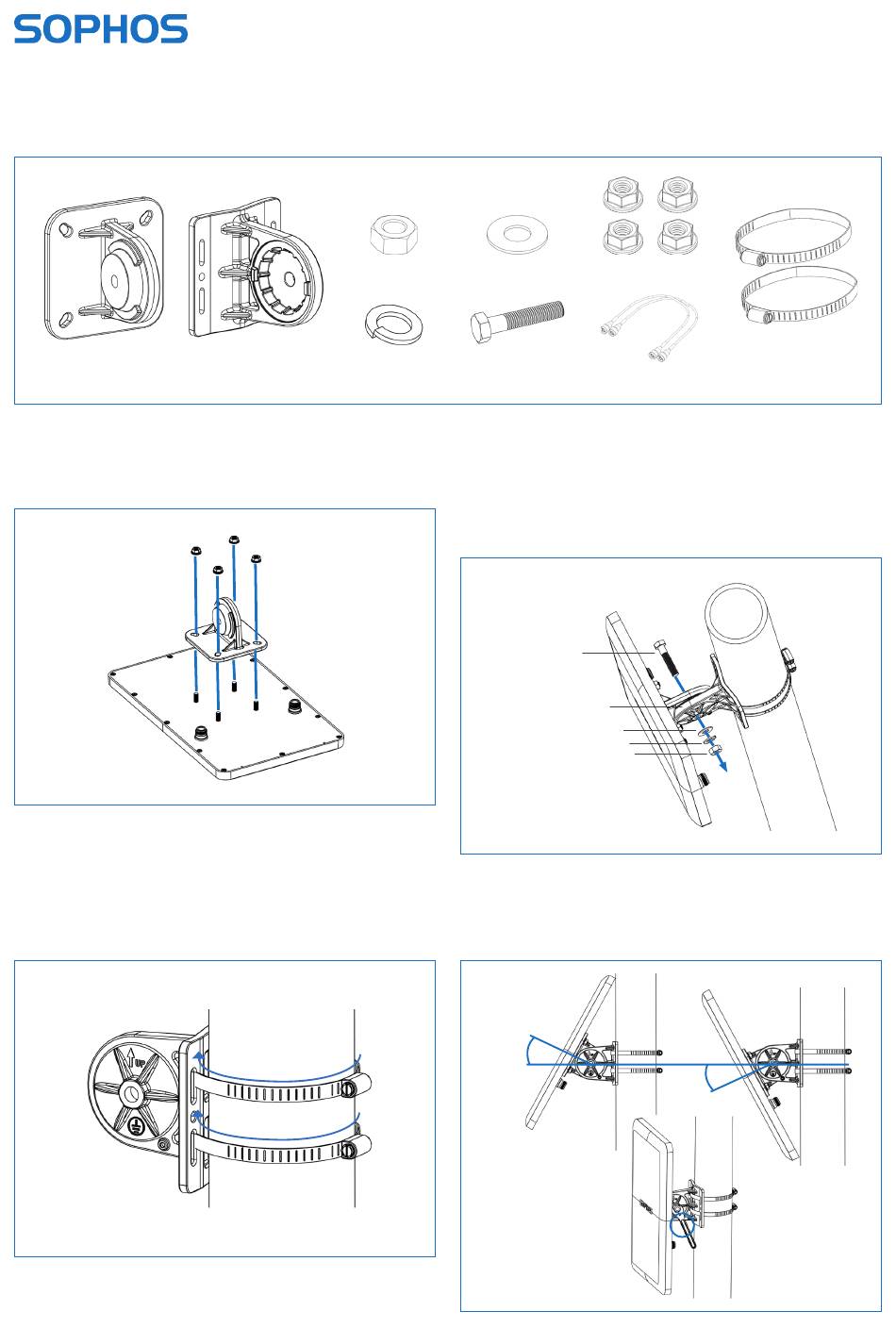

What is included in the box
Articulating Mount
1. Attach Articulating Mount onto the Antenna
Attach the articulating mount to the back of the Sector /
Directional antenna using four of the supplied M6 nuts.
2. Fix T-form Bracket to the Pole
Fix the T-form Bracket to the pole by using the two supplied
stainless hose clamps.
Please note: The clamps can be used for poles of 1.5-3"
(35-80mm) diameter.
M8*1.25P Nut
T-form Bracket SPW8
Spring Washer

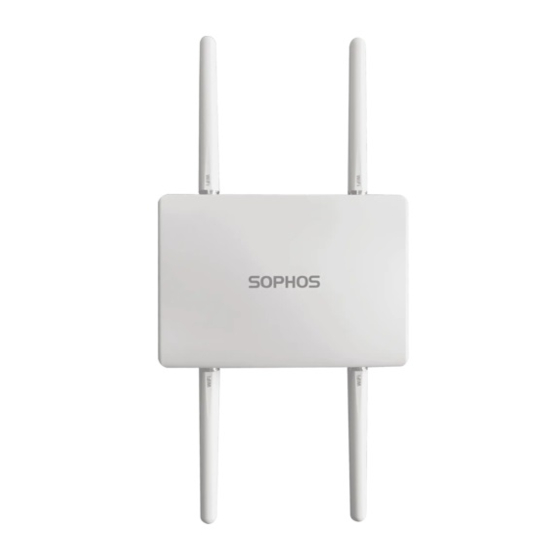

APX 320X
PW8 Washer 4 x M6*1.0P Nut
M8*1.25P*40
2x N Type Cable
Screw Bolts
3. Mount Antenna to the Pole
Fix the articulating mount to the T-form bracket by using
the supplied M8x40 bolts, nut, spring washer and washer.
For optimal coverage, make sure that the antenna is placed
at a height of at least 4 meters from the ground.
M8x40 Screw Bolts
T-form Bracket
Washer
Spring Washer
M8 Nut
4. Adjust and fix Antenna Angle
Direct the antenna upward or downward (max. angle is 27°)
and fix it into place.
27 0
2 x Stainless
Hose Clamp
(1.5~3 inch)
27
0
Use a No. 12
hexagonal wrench to
lock the M8 nut.
