Ikelite RCD H Quick Start Manual

I I K K E E L L I I T T E E R R C C D D L L I I G G H H T T S S
R R C C D D H H , , R R C C D D H H R R e e c c h h a a r r g g e e a a b b l l e e
R R C C D D S S u u p p e e r r - - 8 8 , , R R C C D D S S u u p p e e r r - - 8 8 R R e e c c h h a a r r g g e e a a b b l l e e

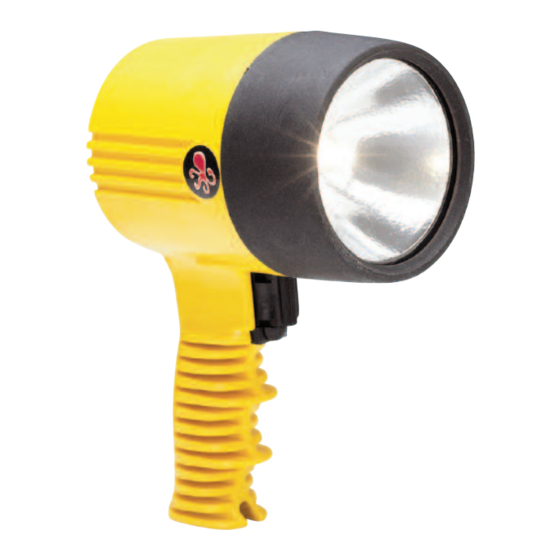

R R C C D D H H – Intense 7.5w medium spot beam powered by 4 D-cell alkaline batteries.
R R C C D D H H R R –Ultra-intense rechargeable. Penetrating 1 9w wide beam with blinding center spot.
R R C C D D S S u u p p e e r r - - 8 8 – Super intense 1 5w light powered by 8 alkaline D-cells. Interchangeable pistol
and lantern grip handles provided.
R R C C D D S S u u p p e e r r - - 8 8 R R – Blinding 25W intensity powered by industrial grade ni-cad module.
Interchangeable pistol and lantern grip handles provided.
RCD – Revolutionary Clamp Design assures easy opening and dependable resealing.
Comfortable hand grip for exploration night or day. Quartz halogen lamp and UV-coated
patterned reflector create a magnificient beam with good peripheral coverage. Virtually
indestructible casing.
Rubber shroud protects the front lens while blocking side reflections. Large rotating
switch and sliding lock afford easy operation even when wearing a bulky glove. Nickel
plated brass contacts boost the electrical efficiency and corrosion resistance. Waterproof
to 90m (300 feet).
L L e e g g e e n n d d a a r r y y F F l l i i p p - - L L o o c c k k D D e e s s i i g g n n –You will never find the RCD stuck shut. Unique flip-lock lever
makes opening and closing incredibly easy and dependable. Simply flip the locking lever up,
rotate, and the internal spring automatically pushes open the light for easy bulb or battery
replacement. Flip the locking lever down and the RCD seals with ease and confidence.
N N O O T T E E : : Ikelite's black vinyl lanyard is NOT recommended for use with RCD Super-8/8R. The
vinyl lanyard is designed to be broken in an emergency and the weight of the Super-8/8R
may cause the lanyard to break during normal use.
N N o o t t e e : : Please read all instructions before using this product.

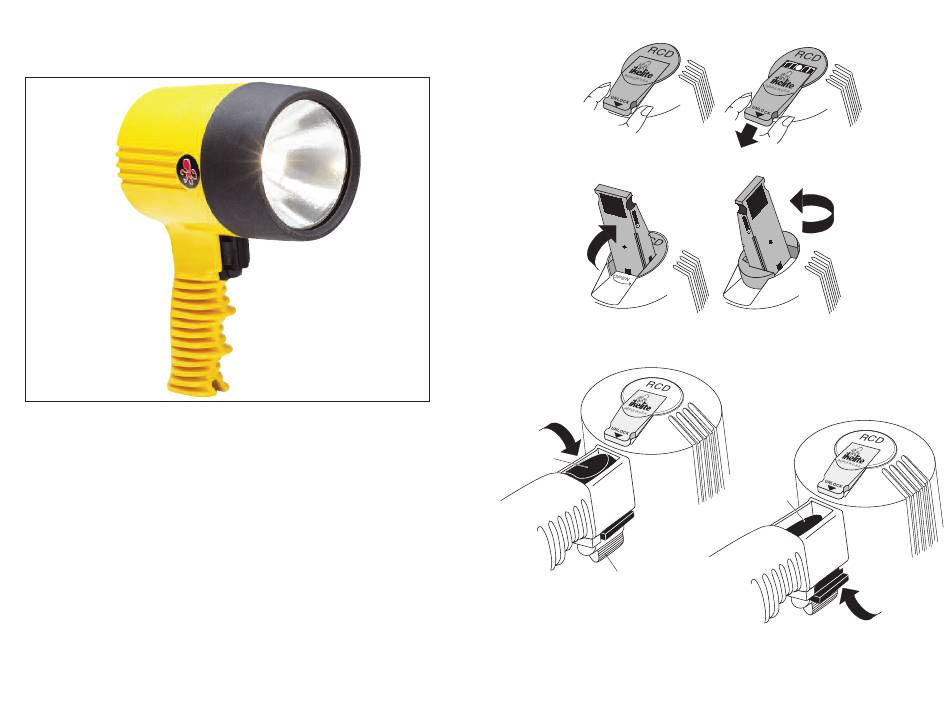

O O P P E E N N I I N N G G T T H H E E L L I I T T E E _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Flip Up
O O N N / / O O F F F F S S W W I I T T C C H H F F O O R R R R C C D D H H A A N N D D H H R R _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
ON/OFF SWITCH for RCD H and HR
Push to
LOCK
Switch
UnLocked
On/Off Switch
S S W W I I T T C C H H F F O O R R R R C C D D S S u u p p e e r r - - 8 8 M M O O D D E E L L N N O O T T S S H H O O W W N N _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Pull Out
Rotate
Switch
Locked
Push to
UNLOCK
2 2
