Capital Performance Series PSQSB2000 Use And Care Manual
Performance series side burners
Hide thumbs
Also See for Performance Series PSQSB2000:
- Product brochure (16 pages) ,
- Use and care manual (41 pages) ,
- Specifications (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Capital Performance Series PSQSB2000
Summary of Contents for Capital Performance Series PSQSB2000

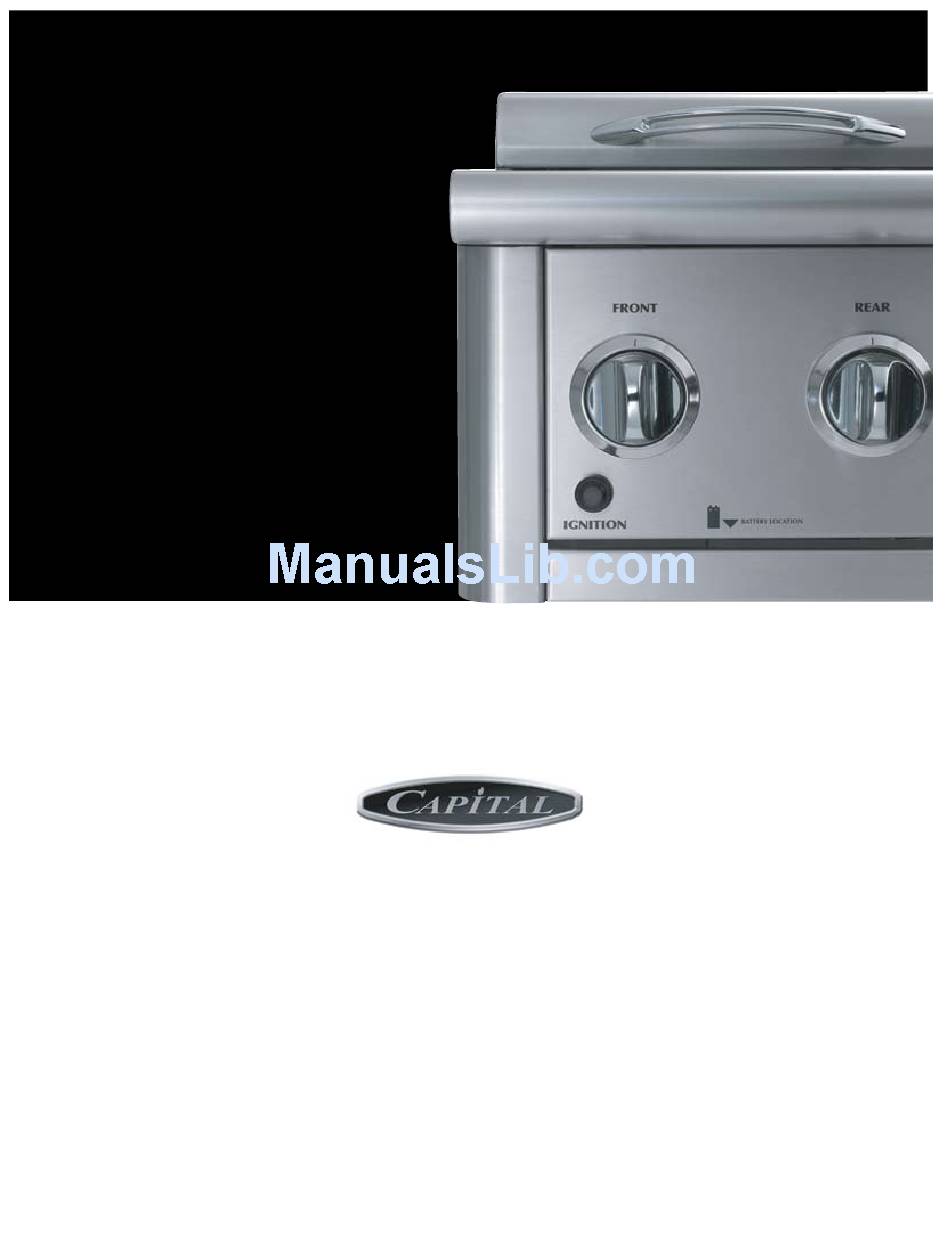

- Page 1 U S E A N D C A R E G U I D E P E R F O R M A N C E S E R I E S ™ S I D E B U R N E R S THE POWER OF PERFORMANCE...
-
Page 2: Table Of Contents
Introduction Warnings Safety Practices and Precautions Gas Requirements (NAT/LP) Leak Testing Built-In Clearances Replacing Regulators and Hose Lighting Instructions Care and Cleaning Troubleshooting Installer's Final Checklist We're here for you Wiring Diagram: Wiring Diagram—PSQSB2000 Warranty Notes TABLE OF CONTENTS... - Page 3 capital cooking is your friend hello and welcome to Capital... We thank you for choosing our Performance Series™ cooking equipment. Because of the unique features found in our products, we recommend spending some time to familiarize yourself with this booklet before using your product.
-
Page 4: Warnings
WARNINGS! important technical info: Tested in accordance with ANSI Z21.58b CAN/CGA 1.6b-2002 For US and Canada for LP and Natural Gas. STANDARD FOR OUTDOOR USE ONLY. Check your local building codes for the proper method of installation. In the abscence of local codes, this unit should be installed in accordance with the National Fuel gas Code No. -
Page 5: Safety Practices And Precautions
Factory Authorized Technician, call us at 1-866-402-45600 for details. DO NOT store items of interest to children in or around the grill or side burner. Never allow children to use the Performance Series™ grill or side burner. - Page 6 3/4 (75%) of its total filling capacity. 2. If you own or use an extra tank, or have a disconnected tank, you should never store it near or under the grill unit or heat box, or near any other ignition or heat source.
- Page 7 SPIDER AND INSECT WARNING!: Spiders and insects can nest in the burners of this and any other grill, and cause the gas to flow from the front of the burner. This is a very dangerous condition that can cause a fire to occur behind the valve panel, thereby damaging the grill and making it unsafe to operate.
-
Page 8: Gas Requirements (Nat/Lp)
Be sure to check on type and size or run, and how deep to bury the line. If the gas line is too small, the grill will not function properly. Any joint sealant used must be an approved type and be resistive to the actions of LP gases. -
Page 9: Lp Tank Requirements
NOTE: When an LP unit is directly attached into an LP house system, the step down regulator MUST be used to reduce the supply pressure to a max. 14" W.C. and min. 11" W.C. to the grill regulator. -
Page 10: Leak Testing
leak testing: GENERAL: Although all gas connections on the PSQSB2000 Side Burner are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. -
Page 11: Built-In Clearances
Never locate the grill in a building, garage, breezeway, shed or other such enclosed areas without an approved ventilation system. During heavy use, the grill will produce a lot of smoke. Ensure there is adequate area for it to dissipate. IMPORTANT: A minimum of 6"... -
Page 12: Replacing Regulators And Hose
The replacement pressure regulators and hose assembly must be the type specified by the manufacturer. Do not use the grill or side burner if the odor of gas is present. If the unit is LP,... -
Page 13: Lighting Instructions
The side burner cover protects the Side Burners from dust and debris and also acts as a work surface. When using the grill burners with the Side Burner cover in place, be careful as heat can conduct from the grill section and cause the cover to heat up. -
Page 14: Care And Cleaning
BEFORE REMOVING: ensure the gas supply is turned off and the knobs are in the “OFF” position. Make sure the grill is cool. Remove the top grate. Lift and remove the burner caps and clean sealed pan with a mild soap and warm water cleaner. -
Page 15: Troubleshooting
troubleshooting: Before Calling For Service: If your PSQSB2000 Side Burner does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. Troubleshooting is for general purposes only. If the problem persists and you feel you require a service call, contact your dealer or the nearest authorized service agency to perform service. -
Page 16: Installer's Final Checklist
final checklist: installer: initial beside each item INSTALLER FINAL CHECKLIST: Specified Clearances Maintained Side Burner Grates in Place User Informed of Gas Supply Shut-Off Location Nylon Straps Removed from Burners Pressure Regulator Connected and Set for 4.0" W.C. Natural or 10" W.C. LP gas All Internal Packaging Removed Manual Shut-Off Valve Installed and Accessible Knobs Turn Freely and Bezels Centered... -
Page 17: We're Here For You
we're here for you: HOW TO OBTAIN SERVICE: For service, contact one of our PERFORMANCE SERIES SPECIALISTS at 1-866-402-4600. Before you call, please have the following information ready: • Model Number • Serial Number • Date of purchase and Installation •... -
Page 18: Warranty
PERFORMANCE SERIES SIDE BURNERS • One (1) Year full parts and labor covers entire product. • Five (5) Year comprehensive warranty covering the porcelain coated cast iron range-top burners and porcelain enameled cast iron top grate. Should structural deterioration occur to the degree of non-performance, a replacement will be furnished.
