Summary of Contents for AQ HJSA

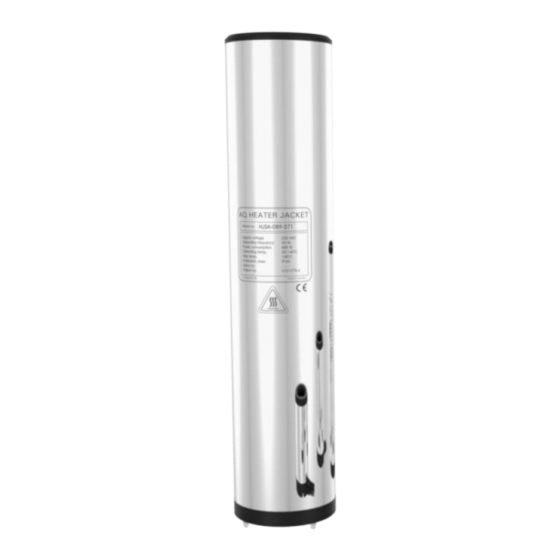

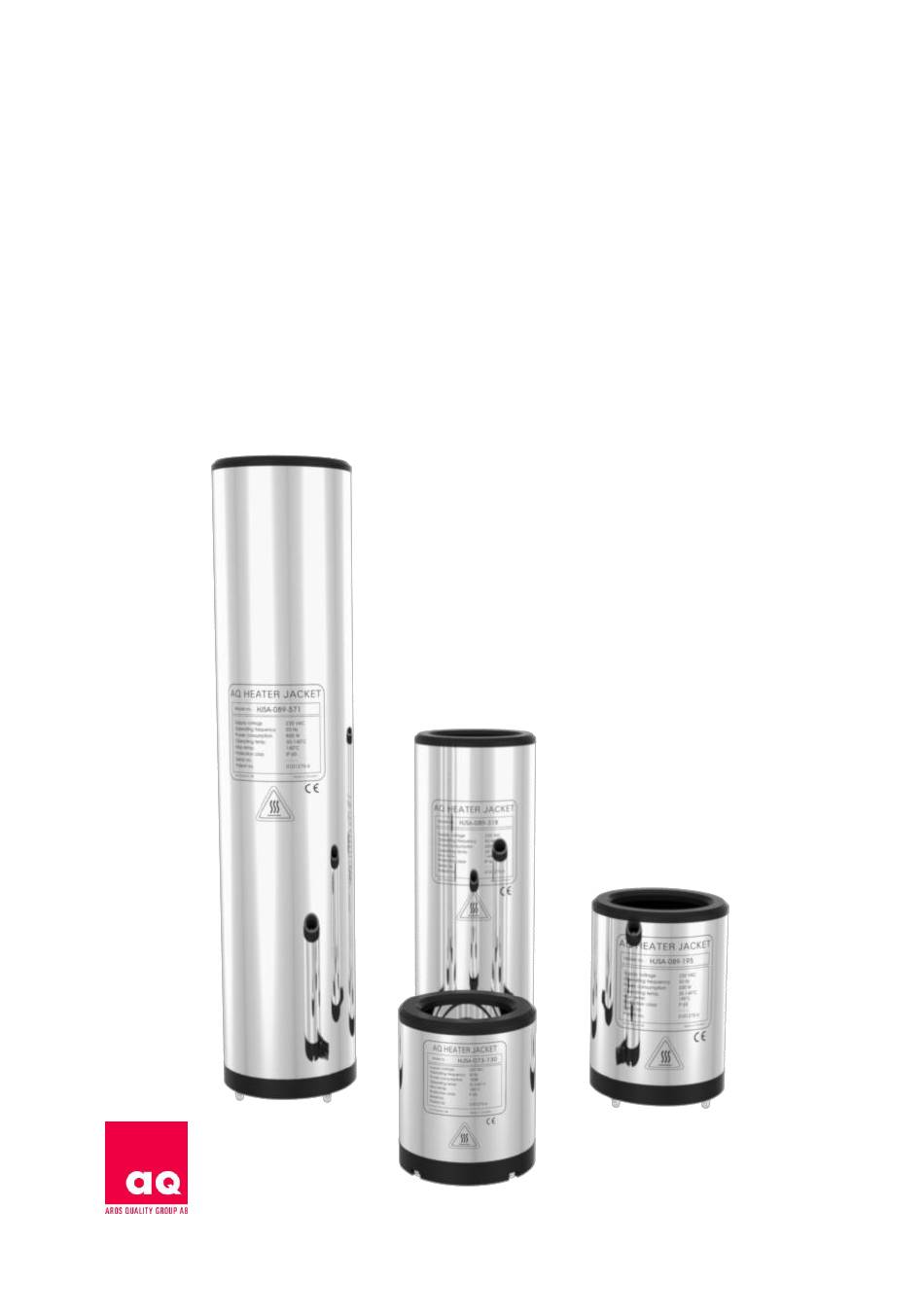

- Page 1 Heater Jacket Model HJSA & HJSB Manual AQ M-Tech AB...
- Page 2 Heater Jacket Model HJSA & HJSB Manual version 3.3 February 2017 AQ M-Tech AB...
- Page 3 Table of contents 1. Manufacturer information CE Declaration of conformity Limited Warranty Warning Manufacturer information 2. Introduction 3. Installing Heater Jacket 4. Cleaning 5. Connections 6. Technical specification 7. Material selection 8. Dismantling the Heater Jacket 9. Dimensions and weight 10.
- Page 4 The repair or replacement of other equipment in addition to the Heater Jacket can not be provided under the terms of this warranty. The purchaser pays the carriage charges to AQ M-Tech AB. AQ M-Tech AB can in no way be held liable by the purchaser for damage caused to any other equipment.
- Page 5 The HJ can then be removed from the filter housing. 1. HJ = Heater Jacket, HJSA, HJSB. The HJ is equipped with an automatic resetting, overheating cut-out that trips at 155 °C˚. 2. SV = Set value. Set working temperature. Shown on the regulator's display. See the manual for the Heater Jacket Control Unit “HJCU”.
- Page 6 The column filter is an example of a filter housing that matches with each HJ. Item no. Filter Width Height Top ring Weight Power Supply HJSA 089 - 572 Advanta 20" HJSB 089 - 572 Advanta 20" HJSA 089 - 318 Advanta 10" HJSB 089 - 318 Advanta 10" PLT 10”...
- Page 7 Contact the dealer warmer than the set value Faulty overheating cut-out Contact the dealer Faulty HJCU Contact the dealer 12. Dealer Dealer: AQ M-Tech AB Adress: Bolandsgatan 10 SE-753 23 Uppsala Sweden Phone: +46 (0)18-470 29 00 Fax: +46 (0)18-10 50 04 Web: www.aqmtech.se...
