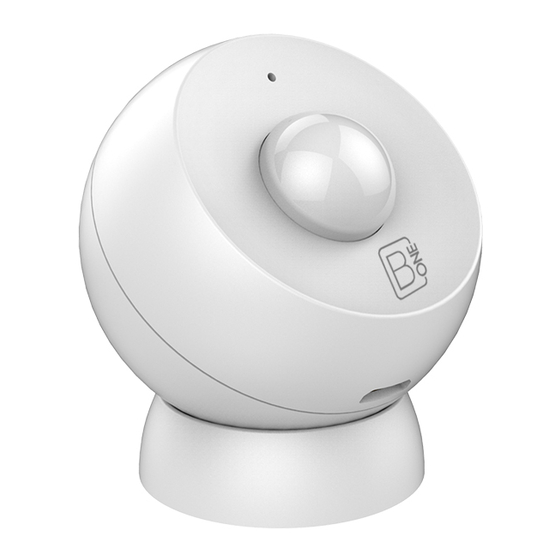

B.One Motion Sensor Engineering Specification
B.One Motion sensor is a universal Z-Wave Sensor. It can detect motion and communicate with
other associated Z-Wave devices, such as Gateway, Siren, Smart Switch, etc.
B.One Motion sensor can be included and operated in any Z-Wave network with other Z-Wave
certified devices.
The features list:
1) Z-Wave Plus certified for wide compatibility (500 serials product).
2) Supports security 0 and security 2 protected mode with AES-128 encryption.
3) Motion sensor.
4) Tamper alarm by shock sensor.
5) The battery life is up to 1 year.
6) Low battery alarm.
7) Support firmware OTA.
Ⅰ. GENERAL INFORMATION ABOUT MOTION SENSOR

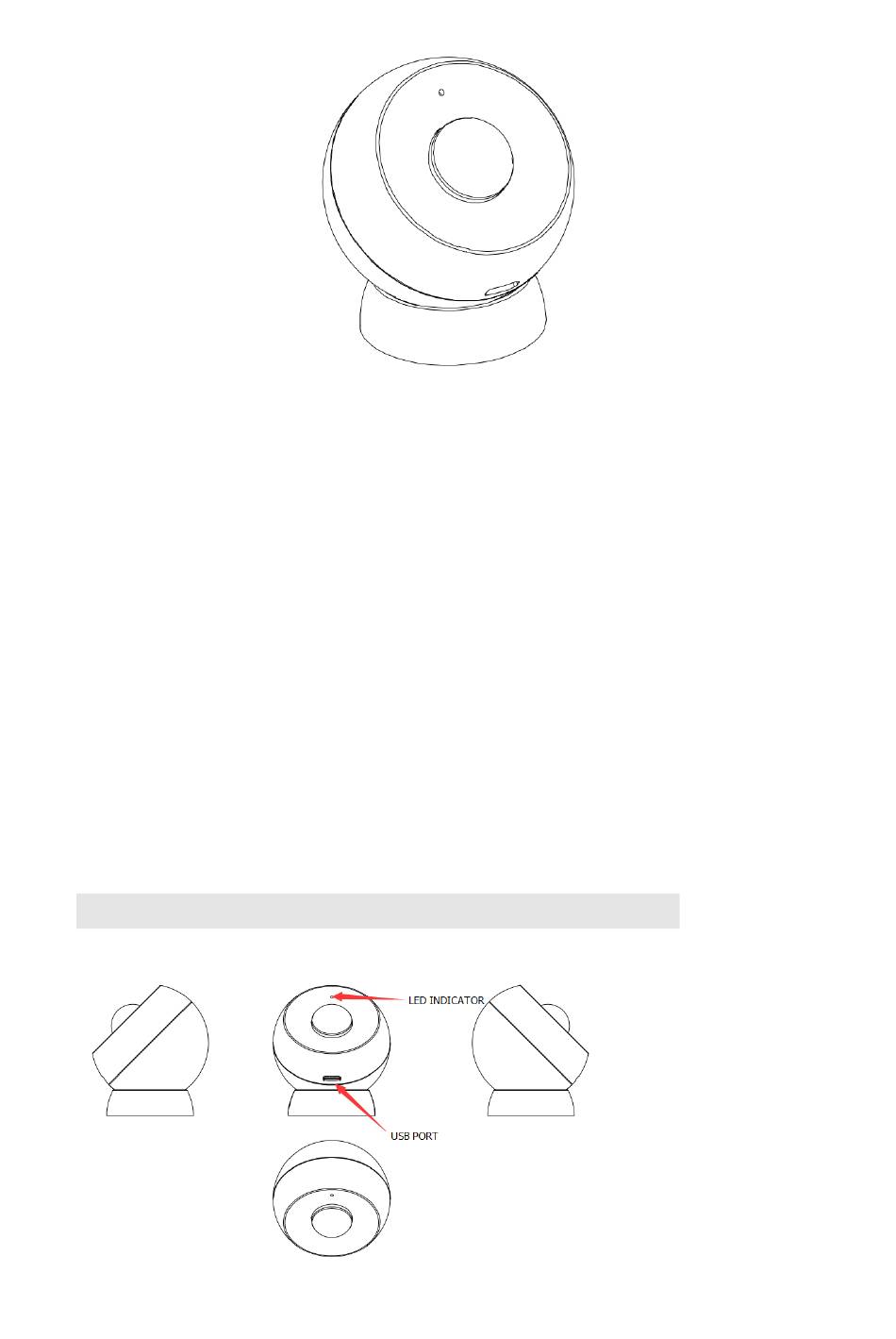

1. Product layout
Advertisement
Summary of Contents for B.one B1MS02-ZW-AU
- Page 1 B.One Motion Sensor Engineering Specification B.One Motion sensor is a universal Z-Wave Sensor. It can detect motion and communicate with other associated Z-Wave devices, such as Gateway, Siren, Smart Switch, etc. B.One Motion sensor can be included and operated in any Z-Wave network with other Z-Wave certified devices.
- Page 2 2. Specifications Power Supply: 3V: 1*CR123A or USB Storage environment: -40 -70℃ Operational temperature : 0 - 40℃ Radio protocol: Z-Wave Plus Radio frequency: 868.42MHz (EU) 908.42MHz (US) 921.42MHz(ANZ) Range: More than 100m outdoors About 30m indoors Dimensions: 50mm(Φ) Working current: About 50mA Standby current: About 55uA...
- Page 3 5. Place the sensor to anywhere you want. Ⅲ. ADDING/REMOVING THE DEVICE Adding 1) Open the cover. 2) Place the device within the direct range of your Z-Wave controller. 3) Set the main controller in security add mode (see the controller’s manual). 4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast.
- Page 4 5) Wait for the removing process to end. 6) Successful adding will be confirmed by the Z-Wave controller’s message. Ⅳ. Functions of each trigger Function of Action Button: B.One Motion Sensor is not in the Z-Wave network: Trigger Description Short press 1 time 1.
- Page 5 Z-Wave network when the Z-Button is released, this procedure will reset the Sensor to factory default. Ⅴ. Features of B.One Motion sensor in Z-Wave network B.One Motion Sensor can be included into a Z-Wave network as a non-security or security device. 1. Node info frame Network...
- Page 6 1. Basic Set. Motion Sensor will send Basic Set to associated nodes when the PIR is triggered. 1.2 Basic Command B.One Motion Sensor will send Basic Set to associated nodes when the PIR is triggered. 1.3Notification command parameters parameters Value...
-
Page 7: Default Setting
Parameter size: 1 [byte] Parameter No.15 VALUE OF THE BASIC SET B.One Motion Sensor can reverse its value of BASIC SET when motion is triggered. 0 –Send BASIC SET VALUE = 255 to nodes associated with group 2 when motion alarm is triggered. - Page 8 Default setting: 20 (20%) Parameter size: 1[byte] Ⅷ.DETECTION AREA B.One Motion Sensor’s motion detection area is shown below. Actual range of the sensor can be influenced by environment conditions. Should false motion alarms be reported, check for any moving objects within the sensor’s detection area, such as trees blowing in the wind, cars passing by, windmills.
- Page 9 means resetting is complete. 4) The reset feature works only when the device has been included into a Z-Wave network. NOTE Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. Ⅹ.FCC NOTICE This device complies with part 15 of the FCC Rules.
