MOM-4
Monitored Output Module
Description
The MOM-4 module provides a programmable source of power to control and operate output
devices including notification appliances and releasing devices. Additionally, it continuously
supervises wiring connected to terminals A+, A- for open or short circuits and 24+ and 24- when
24VDC is applied.
MOM-4 employs one red LED to indicate the status. In normal condition, the LED flashes. When the
output is activated, the LED will turn on constantly. In case of trouble, the LED will turn off.
Since the system allows maximum 13 LEDs on devices to turn on constantly, if system already has
13 lighted LEDs on devices, MOM-4 will not turn on the LED and keep flashing even if the output
of MOM-4 is activated.
Installation

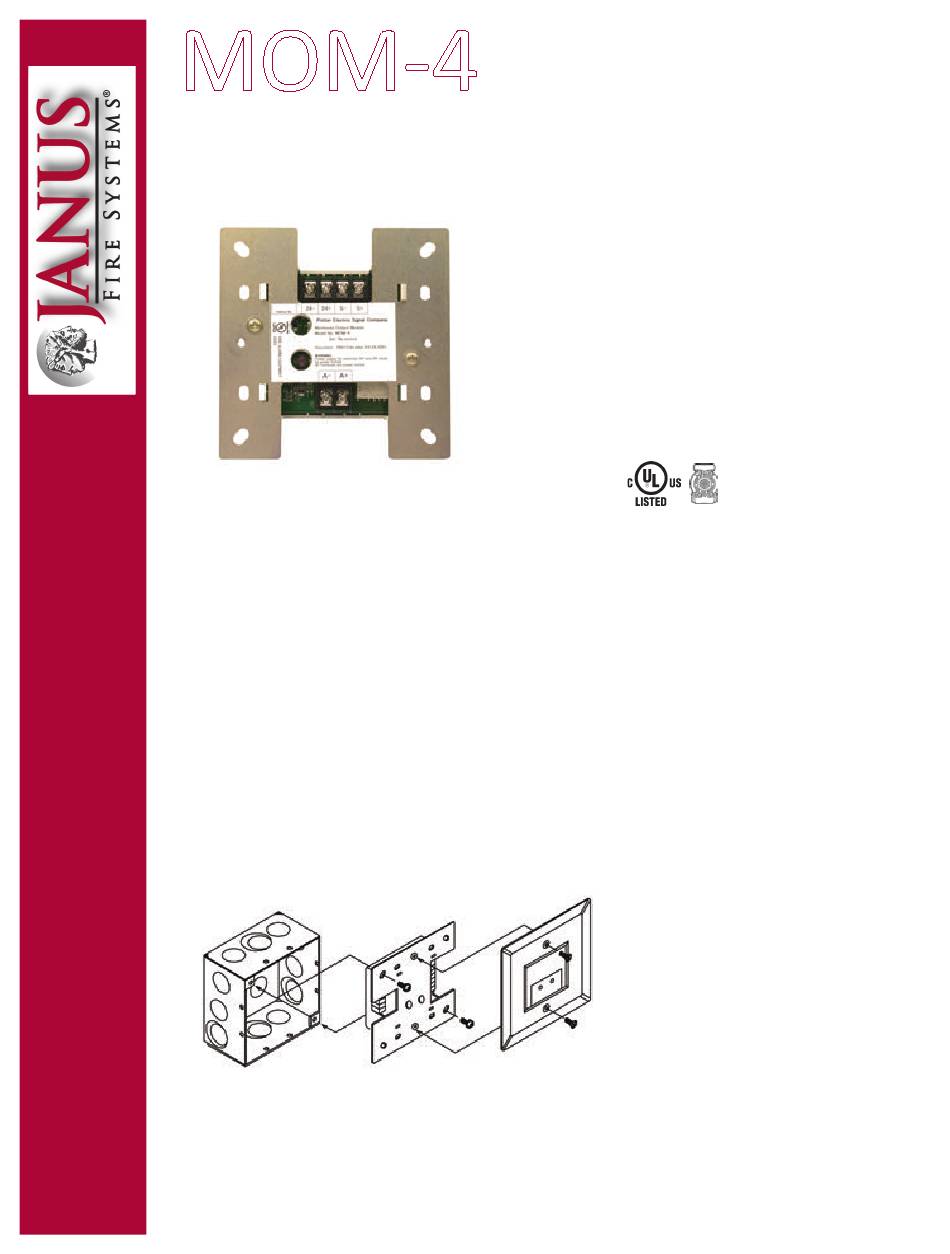

Figure 1: Installation into the compatible electrical box
DS1124
Revised: 10-Sep-2018
P/N 99239
© 2011 Janus Fire Systems. All rights reserved (4/2011) Janus Fire Systems® is a registered trademark of Janus Fire Systems.
Features
•
24 VDC Monitored Output Control
•
5.1k ohm EOL
•
NAC or Releasing Control
•
LED indicates activation of module
•
All terminals are power limited
•
Listed with Potter/Amseco®, Gentex®, & Cooper
Wheelock® sync modules and devices
•
Maximum standby and alarm current 250 μA
•
For JFS-A Series control panels or JFS-IP Series control
panels using Nohmi protocol
Advertisement
Table of Contents
Related Manuals for Janus MOM-4
Summary of Contents for Janus MOM-4
- Page 1 Since the system allows maximum 13 LEDs on devices to turn on constantly, if system already has 13 lighted LEDs on devices, MOM-4 will not turn on the LED and keep flashing even if the output of MOM-4 is activated.
- Page 2 3. Field wiring has no open or short circuits. Document discrepancies and notify appropriate personnel. There is a possibility that the relay in MOM-4 module has been accidentally set to “latched” position during shipment. THE SIGNAL LINE CIRCUIT (SLC) MUST BE CONNECTED BEFORE CONNECTING 24VDC.
- Page 3 “5” seconds on the program. • Only one Releasing Device can be connected per MOM-4 module. • The Manual Release Function immediately activates the Suppression System in the same zone. It overrides Delay Time and Abort Functions for that zone.
- Page 4 Ordering Information Model Number Description MOM-4 Monitored Output Module 99239 EOL Resistor/Diode Assembly for Releasing Circuit 18712 SMD10-3A Sync Module 18710 Note: Approvals/Listings maintained by and manufactured by Potter Electric Signal Company. The seller makes no warranties, express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, except as expressly stated in the seller’s sales contract or sales acknowledgment form.
