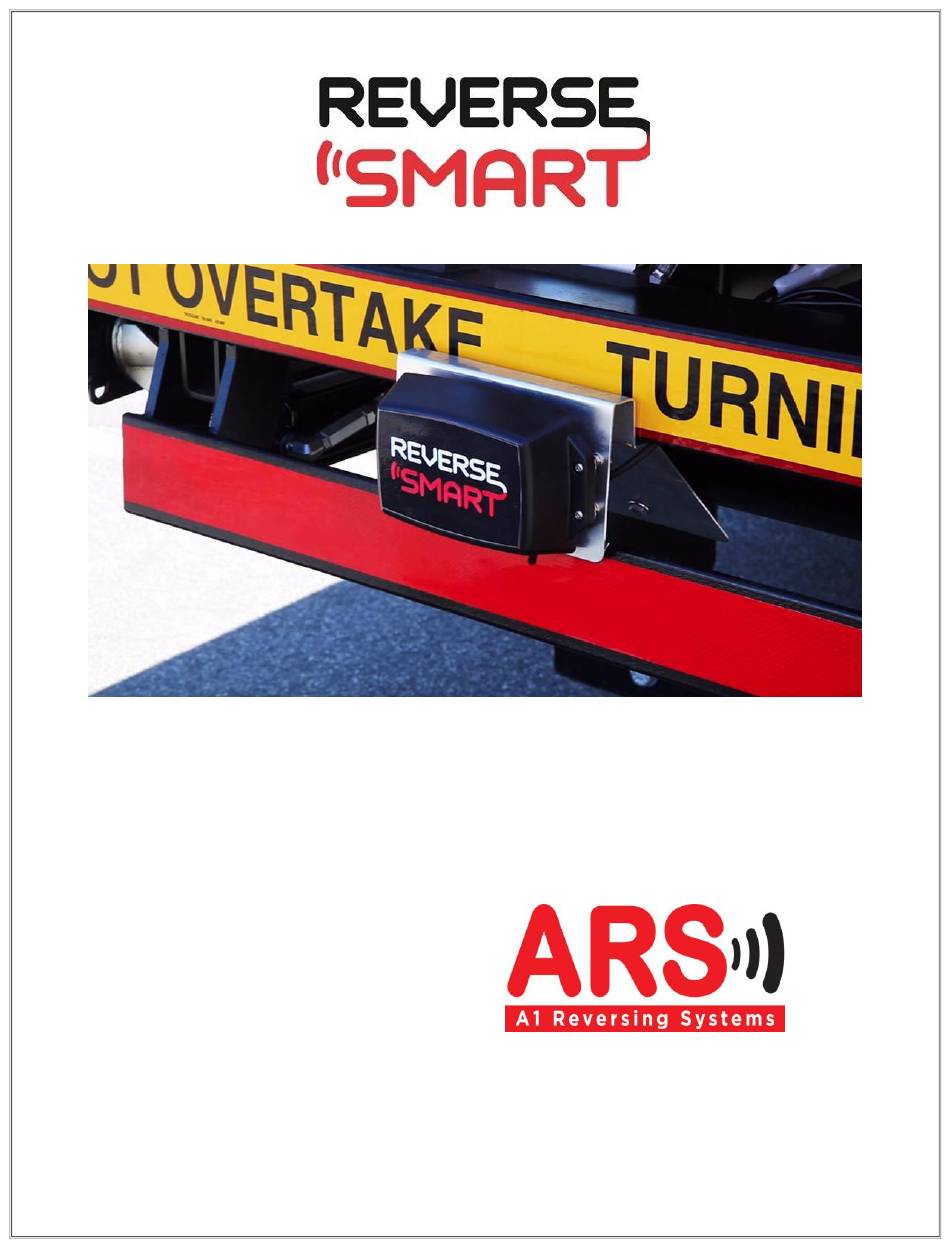

- Page 1 REVERSE SMART AEB OPERATING MANUAL Supplied by: A1 Reversing Systems Pty Ltd Phone: (03) 8899 6619...
- Page 2 4. The device may not be functional in all situations and the operator must consult and use the device in accordance with the operating parameters as set out on the Reverse Smart AEB operation Manual (“the Manual”) as supplied with the device.
-
Page 3: Table Of Contents
CONTENTS Page Overview of Reverse Smart AEB Activating the Reverse Smart system How the Reverse Smart system works Sleep Mode Operation Radar Operation 1. Introduction 2. Object Detection Capability 3. Factors Influencing the Detection of Objects 4. Display Initial System Power Up and Test 5. -
Page 4: Overview Of Reverse Smart Aeb
The Reverse Smart system will only operate once the vehicle is placed in reverse gear. When the system radar sensors detect a worker/member of the public or an object that is within the danger zone behind the vehicle, the unit will immediately and automatically activate the vehicle brakes –... -
Page 5: Activating The Reverse Smart System
ACTIVATING THE REVERSE SMART SYSTEM When the vehicle is started the Reverse Smart system will sound an audible alarm and red flashing lights will be displayed to indicate the system has been turned on, at this stage the system has NOT been activated. -
Page 6: Sleep Mode Operation
“braking” component of the Reverse Smart system can be put into a timed “Sleep” mode (30 seconds – 2 minutes) by depressing the LARGE RED BUTTON on the visual display (as shown below). -
Page 7: Radar Operation
Drivers of the vehicle to which the Reverse Smart system is fitted must be made fully aware of how to interpret the system so they will not be distracted by or rely completely on it. Distraction can cause collisions. -
Page 8: Factors Influencing The Detection Of Objects
Factors Influencing the Detection of Objects The Reverse Smart Radar shares in principle the advantages and limitations of all radar-based systems when compared to other sensing technologies. In general, it can reliably detect most objects in most environmental conditions such as dirt, dust, rain, snow, sun, fog, darkness, acoustic noise, mechanical vibration, electromagnetic noise or similar. -
Page 9: Display
The neck is adjustable in all directions up to 30° and is secured with a locking nut. Locking nut should only be tightened by hand and excessive torque should be avoided. The volume is adjustable from 65 to 90dB measured at 1m distance. REVERSE SMART AEB OPERATING MANUAL Page 9 of 12 July 2017... -
Page 10: Initial System Power Up And Test
If any or all of the Zone Lights remain constantly lit, check for any obstruction in the detection area, which may be detected by the sensor, and remove it. If the system is working as described, follow Section 6 “Testing and Maintenance”. REVERSE SMART AEB OPERATING MANUAL Page 10 of 12 July 2017... -
Page 11: Error States
Testing and Maintenance Vehicle Owner/Driver Instructions 1. The Reverse Smart system is intended as an “Object Detection System” and should not be relied upon as the primary defence for the safe operation of the vehicle. It is an aid to contribute in conjunction with other established safety programs and procedures to ensure a safe operation of the vehicle in relation to surrounding persons and objects. -
Page 12: Maintenance And Testing
More frequent inspections should be performed in cases where: The vehicle is operating in a particularly dirty or harsh environment. The operator has reason to suspect the system is not working or has been damaged. REVERSE SMART AEB OPERATING MANUAL Page 12 of 12 July 2017...
