Parts supplied:
3mm Allen Key x 1
Tools required:
Additional Parts:
Important
• Please unwrap and check it carefully to ensure it has not been damaged in handling or transport.
1 x (ARC23,ARC24)
• Please check that all parts have been supplied.
• Assemble basin stand on a mat to protect against scratch the surface.
• Installation should be completed by at least two suitably competent installers.
• The wall fixings supplied may not be suitable for your installation. You may need to source alternatives
depending on the material and strength of the wall you are fixing to.
• Please dispose of packaging in a responsible manner.
Maintenance
Clean with a damp cloth and washing up liquid or other mild detergent. Do not use strong detergents or
cleaners containing abrasives which may scratch the surface.
1
1 x (ARC24)
1 - 2

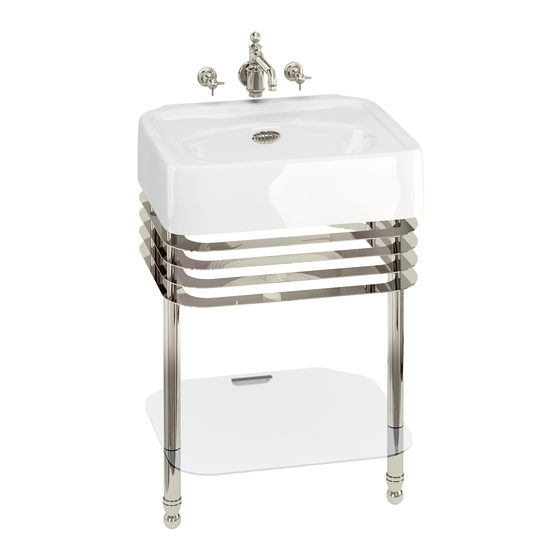

Arcade floor stand for 600mm basin inc glass shelve
Arcade floor stand for 900mm basin inc glass shelve
Arcade floor stand for 1200mm double basin inc glass shelve
2
ARC22
ARC23
ARC24
Ø8mm
B
Advertisement
Table of Contents
Related Manuals for Arcade ARC22
Summary of Contents for Arcade ARC22

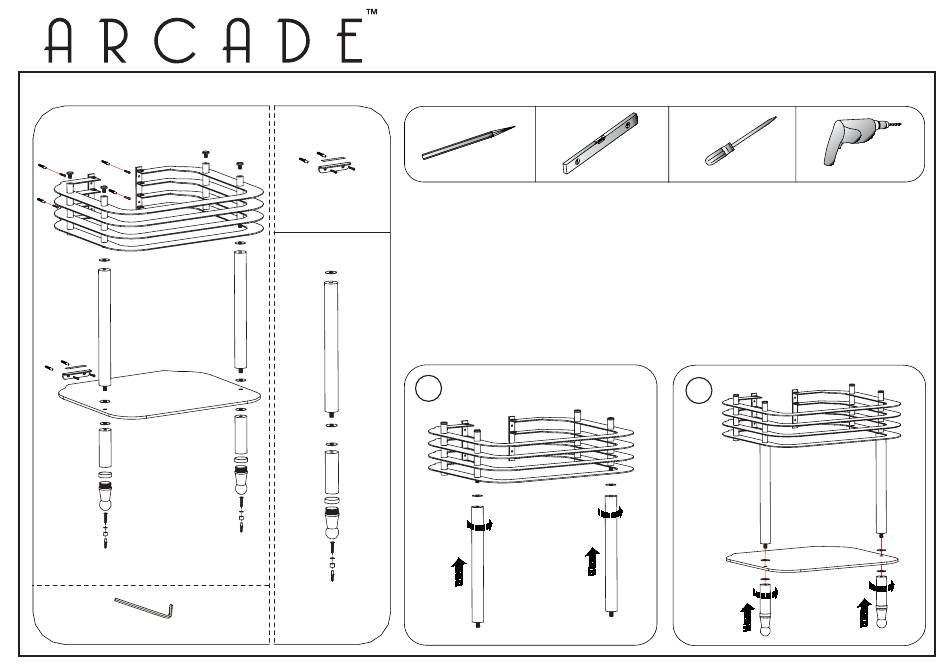

- Page 1 Arcade floor stand for 600mm basin inc glass shelve ARC22 Arcade floor stand for 900mm basin inc glass shelve ARC23 Arcade floor stand for 1200mm double basin inc glass shelve ARC24 Parts supplied: Tools required: Additional Parts: Ø8mm Important • Please unwrap and check it carefully to ensure it has not been damaged in handling or transport.
- Page 2 Apply padding if necessary. Ø8mm Please lift the glass up to avoid damages to the glass. Tighten the screws if necessary. Mount the basin in position. The basin must be fixed to the wall using wall fixing. Adjust the supports to make the basin level.
