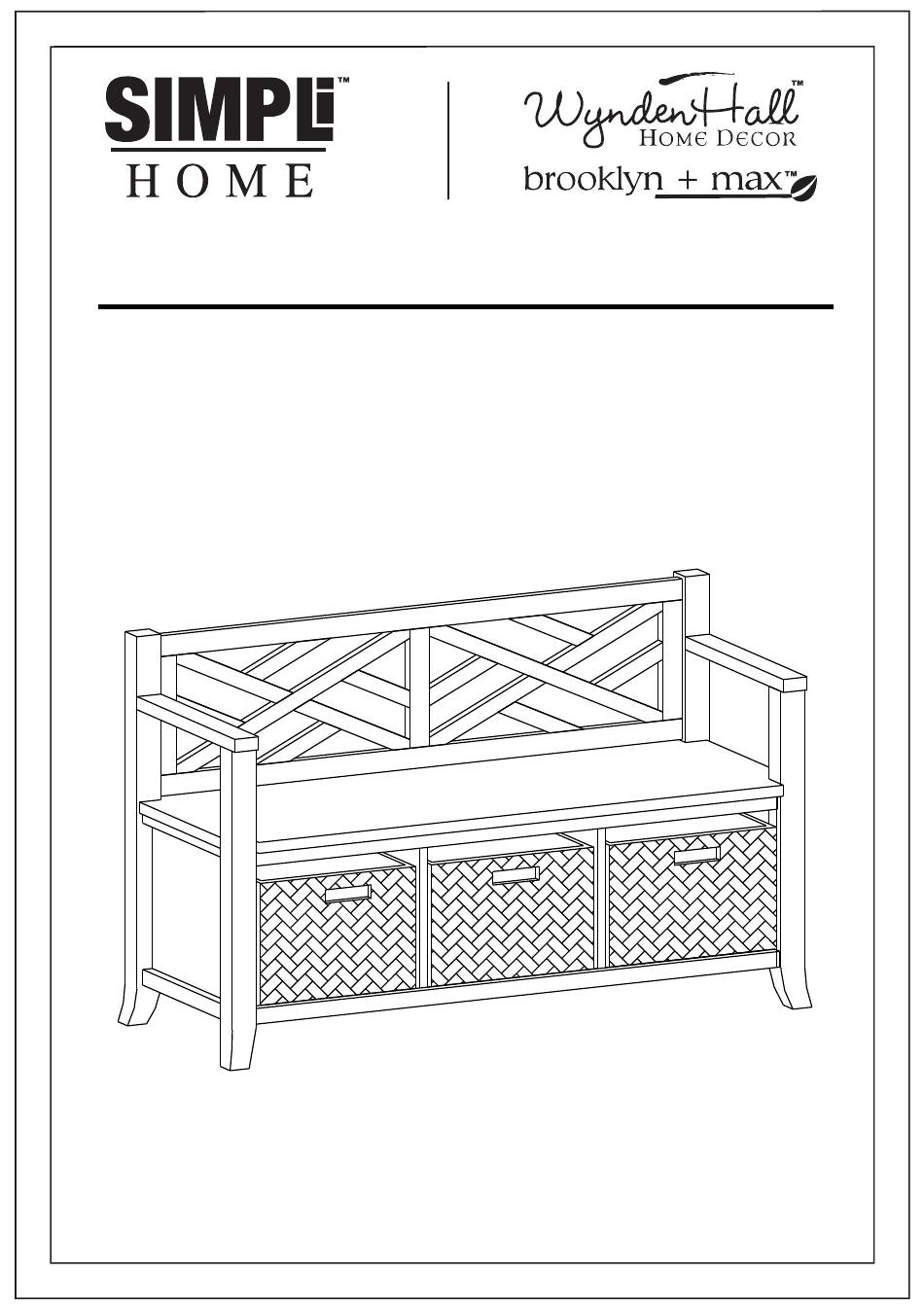

- Page 1 ADRIEN / NOLAN / REMINGTON ENTRYWAY STORAGE BENCH MODEL # INT-AXCADR-BNCH-EB 1/16...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/16...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
MODEL # INT-AXCADR-BNCH-EB PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE SEAT DIVIDER ( C QTY 1 PAIR QTY 1 QTY 1 PAIR BOTTOM SHELF BACKREST BACK PANEL QTY 1 QTY 1 QTY 1 BOTTOM SUPPORT LEG BASKET QTY 1 QTY 3 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # INT-AXCADR-BNCH-EB HARDWARE DESCRIPTION WOOD DOWEL ALLEN KEY SCREW 8 X 30 mm M6 x 30 mm ALLEN KEY QTY 8 QTY 16 QTY 1 PHILLIPS SCREW ROUND HEAD ALLEN KEY BOLT M4 x 15 mm WOOD BOLT CAP... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # INT-AXCSM-BNCH-EB 6/16...
- Page 7 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 1 1. Insert 4 Wood Dowels 3 into Dividers C & C ( 2 Dowels per each Divider ) 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of dowels should be exposed 3.
- Page 8 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 2 1. Attach Seat B to Dividers C & C using 4 Allen Key Screws 1 . 2. Use Allen Key 2 to tighten Screws. Do not over-tighten. 8/16...
- Page 9 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 3 1. Insert 2 Dowels 3 into Bottom Shelf D . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. ½ length of dowels should be exposed 3. Attach Side A to Bottom Shelf D and Seat B using 4 Allen Key Scews 1 .
- Page 10 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 4 1. Attach Backrest E to Side A using 2 Allen Key Bolts 5 . 2. Use Allen Key 2 to tighten Bolts. Do not over-tighten. 10/16...
- Page 11 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 5 1. Repeat Step-3 for the second Side A . 11/16...
- Page 12 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 6 1. Attach Bottom Support Leg G to Bottom Shelf D STEP 7 1. Attach Backrest E to Side A using 2 Allen Key Bolts 5 . 2. Use Allen Key 2 to tighten Bolts. Do not over-tighten.
- Page 13 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 8 1. Attach Back F to back frame using 16 Phillips Screw Round Heads 4 . 2. Use Phillips screwdriver to snugly tighten screws. 3. Insert 4 Wood Bolt Caps 6 into exposed bolt holes on side of bench. STEP 9 13/16...
-
Page 14: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 15 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 15/16...
- Page 16 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
