operation manual
Endoscopy Support Services, Inc.
3 Fallsview Lane • Brewster, NY 10509
914-277-1700 • Fax 914-277-7300
ess@endoscopy.com • http://www.endoscopy.com
service manual

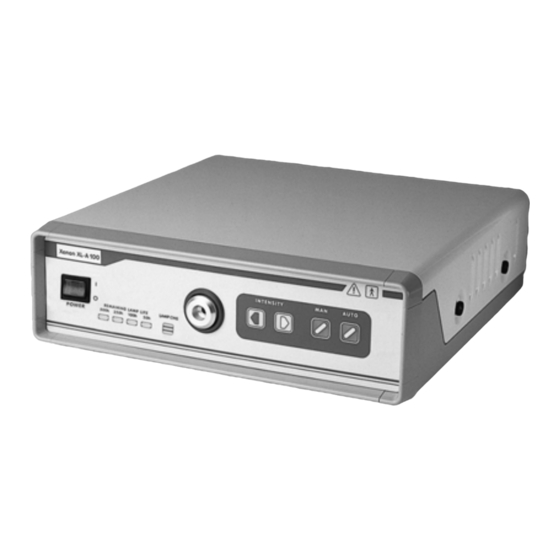

Xenon XL-A100
high-intensity light source
with automatic intensity-control
Xenon XL-M100
high-intensity light source
with manual intensity-control
Advertisement
Table of Contents
Summary of Contents for ESS Xenon XL-A100
- Page 1 Xenon XL-A100 high-intensity light source with automatic intensity-control Xenon XL-M100 high-intensity light source with manual intensity-control Endoscopy Support Services, Inc. 3 Fallsview Lane • Brewster, NY 10509 914-277-1700 • Fax 914-277-7300 ess@endoscopy.com • http://www.endoscopy.com...
-
Page 2: Table Of Contents
5.1.1 operating the equipment without video input ..................9 5.1.2 operating the equipment with video input (only Xenon XL-A100) ............9 service manual / maintenance of the equipment ______________________________________________11 possible causes / remedy.......................... 11 selection of the line voltage setting ......................11 exchanging the mains fuses........................ -
Page 3: Safety Reference / Place The Equipment
Xenon XL-A100 / Xenon XL-M100 safety reference / place the equipment page 2 1 safety reference / place the equipment 1.1 safety reference normal use The equipment may only be used with accessories, wearing parts and disposable items, which have been designated by E.S.S., Inc as suitable for the instrument or the safety use of which is... -
Page 4: General Advises / Signs And Symbols
Xenon XL-A100 / Xenon XL-M100 description of the equipment page 3 2 general advises / signs and symbols Thank you for your expression of confidence in the E.S.S., Inc brand name. Like all of our other products, this product is the result of years of experience and great care in engineering and manufacture. - Page 5 Xenon XL-A100 / Xenon XL-M100 description of the equipment page 4 rights All rights on this user manual, especially the rights of duplication and publication and the rights on translation are reserved. No part of this user manual may be reproduced by any means (by photo- static copy, microfilm or other methods) without preceding written consent of the E.S.S., Inc or be...
-
Page 6: Description Of The Equipment
Xenon XL-A100 / Xenon XL-M100 description of the equipment page 5 3 description of the equipment The light source you have purchased offers high intensity 100W Xenon illumination for use with almost every endoscopic discipline. The colour temperature equals daylight quality with a colour temperature of 5.600 K and the life expectancy amounts to 500 hours. -
Page 7: Operating Elements
Xenon XL-A100 / Xenon XL-M100 operating elements page 6 4 operating elements 4.1 operating elements on the frontpanel main switch LEDs remaining lamp life (only Xenon XL-A100) LED lamp change (only Xenon XL-A100) connector for lightguide push button ‘decrease intensity’... -
Page 8: Operating Elements On The Rear
Xenon XL-A100 / Xenon XL-M100 operating elements page 7 pushbutton ‘auto mode’ (only Xenon XL-A100) Use this button to enable the light source in automatic mode. This will be indicated by the green light inside the button. pushbutton ‘manual mode’ (only Xenon XL-A100) Use this button to enable the light source in manual mode. -
Page 9: Connecting And Operating The Equipment
Use the delivered protectively earthed power supply cord to connect the control unit to the mains. connect the external input devices (only Xenon XL-A100) As described before, there are several standards of video signal available on the rearpanel. Here you can connect external input. -
Page 10: Operating The Equipment
(when the respective key is pressed), this will be indicated by the yellow LED light in the corresponding key. 5.1.2 operating the equipment with video input (only Xenon XL-A100) switching on the equipment Connections or wiring of the equipment: Besides the mains connection and the connection of the light cable with endoscope, the video signal must now also be connect to the equipment. - Page 11 Xenon XL-A100 / Xenon XL-M100 connecting and operating the equipment page 10 the brightness of the picture, with the result that the camera can operate without problem with the video control of the light source. The electronic camera control must however operate very fast, and then this co-operation of the equipment will give very good results (fast and exact adjustment of brightness over the whole screen).
-
Page 12: Service Manual / Maintenance Of The Equipment
Xenon XL-A100 / Xenon XL-M100 service manual / maintenance of the equipment page 11 6 service manual / maintenance of the equipment general maintenance and repair advice The instructions and information given in this chapter are only for instructed personnel, who are aware of the safety precautions necessary for repair and maintenance of medical electronic de- vices. -
Page 13: Exchanging The Mains Fuses
Re-connect the plug that is attached to the new Xenon lamp. You cannot mix up the connectors due to its non-symmetric design. • Reset the operating time indicator (only Xenon XL-A100) to 500 hours. This is done by simply pushing the small slide-switch on the operating time indicator panel into opposite position. •... -
Page 14: Cleaning / Desinfecting
Xenon XL-A100 / Xenon XL-M100 service manual / maintenance of the equipment page 13 Further servicing, which should be done in conjunction with lamp replacement After 500 hours operation, dust may have been sucked through the ventilator blades into the equip- ment, depending on the conditions in the environment. -
Page 15: Technical Data
• manual: The picture brightness can be made brighter or darker by using two push buttons. • automatic (only Xenon XL-A100) Guided by the video signal, the monitor screen brightness is controlled automatically. lamp Xenon-high pressure lamp, which is built into a reflector, so that when you change the lamp, no resetting is necessary. - Page 16 Xenon XL-A100 / Xenon XL-M100 table ‘technical service-information’ page 15 9 table ‘technical service-information’ date check signature...
