E2S GNExCP6A-PB Instruction Manual

When wiring to Increased Safety terminal
enclosures, you are only permitted to connect one
wire into each way on the terminal block, unless a
pair of wires are crimped into a suitable ferrule.
Wire sizes allowable are 0.5sqmm to 4.0sqmm
The terminals are only permitted to be wired with
cable in an ambient temperature range of between
-10°C to 80°C. All terminal screws, used or
unused, must be fully tightened down.
Leads connected to the terminals must be
insulated for the appropriate voltage and this
insulation must extend to within 1mm of the metal
of the terminal throat.
8) Testing unit operation
The push button unit can be tested without the
need to replace any element.
To test, lift the cover lift flap to reveal the push
button. The button should be pressed into the body
to activate the unit and place it into the operated
condition.
The call point switch will now change over its
contacts to operate the alarm.
Once testing is complete the unit needs to be reset
from the operated condition.
Rotate the push button anticlockwise by an angle
of 55°, see guide alignment marks on the button
and cover, shown below (1). The push button
should pop back up to its original position.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document D154-00-101-IS Issue 2 13/06/12
Ensure that the push button has also twisted back
clockwise by 55° to its original position see guide
marks on button and cover, shown below (2). The
unit is now reset.

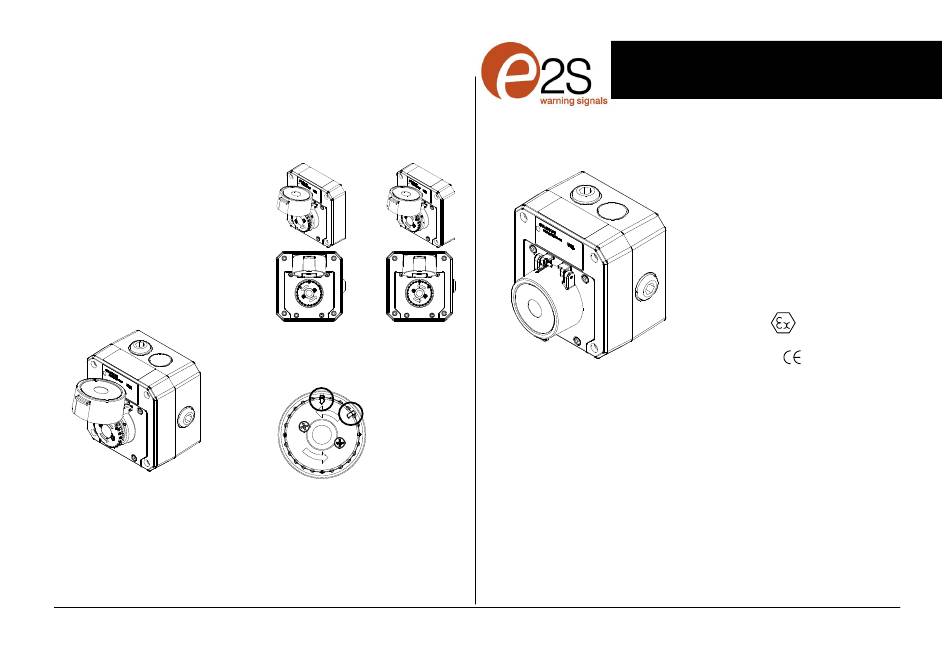

1. On operated unit 2. Button should pop
twist push button up and twist back to
anticlockwise 55° original position
to reset
Note: use alignment
marks circled to
indicate the push
buttons
status/position
Unit currently shown
as 'standby
condition'
Resetting an operated unit is the same as resetting
a tested unit.
GNExCP6A-PB Push Button Manual Call Point
For use in Flammable Gas and Dust Atmospheres
GNExCP6A-PB
Zone 1
Manual Call Point – Push Button
For use in Flammable Gas and Zone 2
Combustible Dust Atmospheres.
1) Introduction

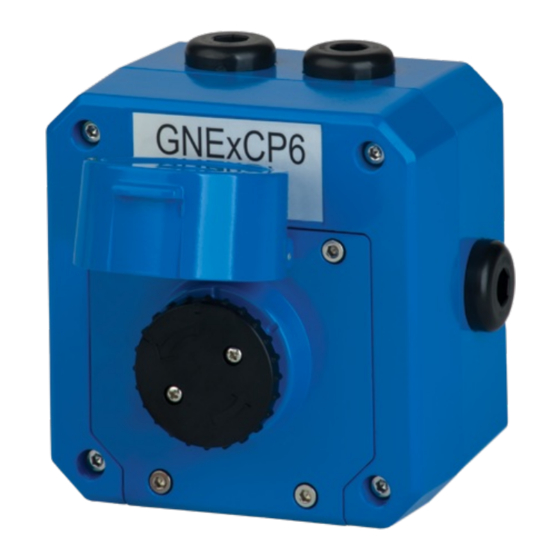

The GNExCP6A-PB is a push button manual call
point which is certified to the European and
International Gas and Dust standards. The unit
meets the requirements of the ATEX directive
94/9/EC and IECEx scheme.
The call point can be used in hazardous areas
where potentially flammable gas and dust
atmospheres may be present.
The GNExCP6A-PB has no monitoring resistors.
The units are Group II, EPL (equipment protection
level) Gb. The equipment is certified 'Ex e d IIC T6
Gb' and as such may be used in Zones 1 and 2
with flammable gases and vapours with gas groups
IIA, IIB & IIC and temperature classes T1, T2, T3,
T4, T5 and T6.
These units are also Group III, EPL Db. The
equipment is certified 'Ex t IIIC T60ºC Db' and as
such may be used in Zones 21 and 22 for
combustible dusts groups IIIA, IIIB & IIIC.
Sheet 1 of 2
INSTRUCTION MANUAL
2) Marking
Explosive gas air mixture likely to occur in
All units have a rating label, which carries the
normal operation.
following important information:-
Explosive gas air mixture not likely to occur,
Unit Type No.:
and if it does, it will only exist for a short time.
GNExCP6A-PB Manual Call Point
Input Voltage:
AC voltage 250V Max Current 5.0A Max
DC voltage 50V Max Current 1.0A Max
Code:
Ex e d IIC T6 Gb
Ex t IIIC T60 ºC Db
IP66
–40ºC <= Ta <= +55ºC
Certificate No.:
SIRA 09ATEX3286X
IECEx SIR 09.0121X
Epsilon x: II 2GD
CE Marking
Notified body No. 0518
Year/Serial No. i.e. 12/1CP6APB000001
WARNING - DO NOT OPEN WHEN AN
EXPLOSIVE ATMOSPHERE MAY BE PRESENT
3) Type Approval Standards
The call point has an EC Type examination
certificate issued by SIRA and have been approved
to the following standards:-
IEC 60079-0:2007
EN 60079-1:2004 / IEC 60079-1:2003
EN 60079-7:2007 / IEC 60079-7:2006
IEC 60079-18:2009
EN 61241-1:2004 / IEC 61241-1:2004
The equipment is certified for use in ambient
o o
temperatures in the range -40 C to +55 C and shall
not be used outside this range.
