- Page 1 FagronLab™ PRO User Manual www.fagronlab.com...
- Page 3 Favorite 6 Lift arm with quick-lock coupling • Hold the FagronLab™ logo on top of the jar to the front; insert the mixing shaft directly from the front into the lift arm • Insert the mixing unit from below •...
- Page 4 For additional support, operation handling and all other questions regarding the technology please feel free to contact your local Fagron company or dealer. Enjoy the successful production of quality assured compounding. Your FagronLab™ Compounding Support Team FagronLab™ PRO – User Manual | 4...
-
Page 5: Table Of Contents
Operation errors ........................................29 Cleaning the FagronLab™ PRO ..................................31 7. Service and warranty ......................................31 Notes on malfunctions ......................................31 Notes on safety ........................................32 Technical data of the FagronLab™ PRO ................................ 32 8. Manufacturing and Customer Service ............................33... -
Page 6: Installation Information

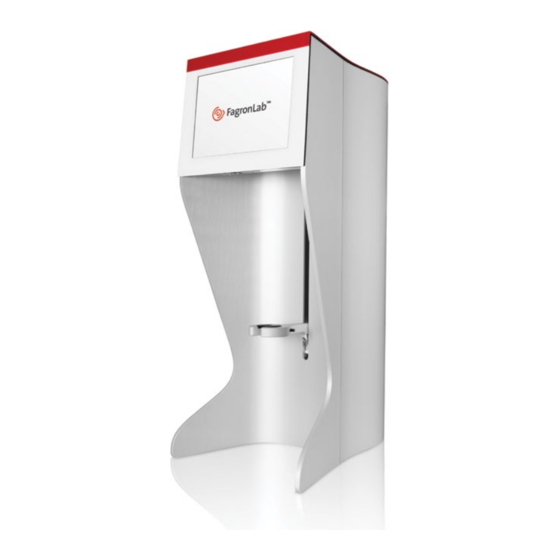

The socket outlet is located on the rear of the FagronLab™ PRO. First connect the power cord to the socket outlet and then plug the power cord into the power outlet. - Page 7 Touch - Display Automatic, replaceable lift arm with quick-lock coupling Pic.: FagronLab™ PRO front Description Power button/emergency button RS232 - ports (3x) Socket outlet USB - port (4x) RJ45 - port Pic.: FagronLab™ PRO rear FagronLab™ PRO – User Manual | 7...
-
Page 8: The Unguator Technology - Competence From The Start
Mixing Blade and the jar that serves as both, a hygienic mixing jar and a hygienic dispensing jar. The principle of the preparation method using technology in the closed FagronLab™ mixing system is quick and easy to... - Page 9 The optimized mechanics and electronics ensure a quiet operation • In addition, is the FagronLab™ PRO preloaded with a database of several mixing parameters for semi-solid NRF formulations. This will optimize the manufacturing of NRF and NRF similar formulations and increase the compound quality •...
-
Page 10: Fagronlab™ Assortment
Also ensure that the right shaft is used when working with the Disp. Blade. Both available shafts are marked for use with sizes 15-100 ml or 200 ml in the FagronLab™ jar. They have to be combined with the correct Disp. Blade. - Page 11 Pic.: FagronLab™ Disposable Blade Shaft FagronLab™ jar The FagronLab™ jar is both, a mixing and a dispensing jar, and is therefore designed as a disposable jar. The jar guarantees evaporation free and contamination free preparation in an air reduced mixing space.
- Page 12 The corresponding jar lids or jar bottoms can be ordered as spare parts in sets of five and used for the economical reuse of the body. FagronLab™ PRO – User Manual | 12...
- Page 13 Wszystkie surowce i barwniki odpowiadają niemieckiemu rozporządzeniu dotyczącym konsumentów towarów sl: Za izdelke se uporabljajo samo materiali in barvne cs: Pro výrobu tohoto produktu byly použity pouze materiály a barvy, které odpovídají německým vyhláškám o (BedGgstVO), europejskiemu rozporządzeniu (WE) komponente, ki ustrezajo nemškemu odloku o potrošniškem...
- Page 14 The diameter of the dispensing nozzle allows simple dosing of the quantity of ointment to be applied using approximate values. The regular dispensing nozzle in the screw lid of each FagronLab™ jar has a diameter of 8 mm. The varionozzles or applicators reduce the diameter to 4, 2 or 1 mm.
- Page 15 The FagronLab™ applicator long with a diameter of 2 mm allows formulations to be introduced into large orifices of the body or probes. In addition, the applicator long also comes inside each FagronLab™ 200 ml jar to help pushing up the bottom of this jar size in full.
- Page 16 • Contamination-free storage It is designed for FagronLab™ jar sizes from 300 to 2000 ml for hygienic transfer of the compound. The jar is attached to the base plate of the AirDynamic with the central hole at the bottom of the jar housing. By closing the easy-lock system on the side of the base plate, the jar is attached airtight.
-
Page 17: Display Handling
FagronLab™ PRO (1). Located above, is the power button (2), which is also the emergency button. Ensure that the power button of the FagronLab™ PRO is in its off position. First connect the power cord to the socket outlet and then plug the power cord into the power outlet •... -
Page 18: Compounding With The Fagronlab™ Pro
Device activation Please sign in to www.fagronlab.com/re with your FagronLab ID or create a new FagronLab ID for your FagronLab™ PRO organization. Use the below activation key to complete the device activation. - Page 19 Jar size: 30ml 5) helps for an easier documentation and reproducible Σ product quality. We recommend to record the ID- 1000 1200 Number on the manufacturing record Discard Save Pic.: Display summary mixing process FagronLab™ PRO – User Manual | 19...
-
Page 20: Additional Mixing Programs
Following, select "cancel" on the lower left (the mixing process ends immediately) or "free-spin" on the lower right (performs the free-spin). The touch-screen will show the start-screen. When aborting the mixing process, no ID-number is issued. FagronLab™ PRO – User Manual | 20... -
Page 21: Compounding Guidelines For The Technology
5. Compounding guidelines for the technology Preparing the FagronLab™ mixing unit The FagronLab™ mixing unit consists of a FagronLab™ jar, a FagronLab™ stirrer and the components of the formulation to be mixed. First, the jar cap (small red screw cap) of the jar and then the jar lid (large red, white or coloured screw cap) must be unscrewed from the jar. -
Page 22: The Mixing Process
Pic.: Quick-lock coupling Hold the FagronLab™ logo, on top of the jar, to the front. Load the stirring shaft directly from the front into the lift arm. Push the mixing unit up and with a slight turn counterclockwise (about a quarter turn) fix the mixing unit into the lift arm. -
Page 23: Mixing Programs
Compounds with a higher content of solids, e.g. pastes, warming of the compound during the mixing process may occur. This temperature rise may be reduced applying cooled foundation or using a cooling cuff. FagronLab™ PRO – User Manual | 23... - Page 24 The temperature control with a thermometer should take place in short intervals to make sure the compound is not overheating. To support the cool down process with the FagronLab™ PRO a cooling cuff can be used around the jar and the mixing process for larger jar sizes can be repeated.
-
Page 25: Requirements For Components Of A Formulation
The suppositories foundation can be warmed in a water bath directly in a transparent jar and afterwards stirred with the FagronLab™ to the soft melting point. An applicator long aids in the precise filling of the suppository mould. For a batch approximately 5 % to 10% added allowance is recommended. -
Page 26: After The Mixing Process Is Complete
Leaving the blade inside the jar will have no effect on dispensing the ointment through the jar lid. Removal of the disposable mixing blade is recommended, particularly when giving the ointment to elderly clients, since it might otherwise cause confusion if the ointment is traditionally dispensed. FagronLab™ PRO – User Manual | 26... -
Page 27: General Notes On The Fagronlab™ Mixing System
A label may be attached on the jar prior forwarding to the client, preferably together with a short illustration of how to use and apply the FagronLab™ dispensing system. After completion of every single process the FagronLab™ PRO issues automatically an identification number (ID). The display shows the ID and it conducts an easier documentation and an exact reproduction of the mixing process. - Page 28 The input of the rpm is assigned to the numbers 0 - 9, in which each number correlates to a defined rpm value: Level Rotation speed (rpm) 1000 1200 1400 1650 1900 2150 2400 Tab: Number/rpm correlation FagronLab™ PRO – User Manual | 28...
-
Page 29: Error Codes
The device needs to restart. Tap the home button (house upper right corner) and restart. The software communication was temporary Error 5 Shut down the FagronLab™ PRO using the On/ interrupted. Off-button (upper right corner) and restart the device. Tab: Error codes Please contact customer service for any malfunctions cannot be remedied using this information. - Page 30 Pic.: Quick-lock coupling Hold the FagronLab™ logo, on top of the jar, to the front. Load the stirring shaft directly from the front into the lift arm. Push the mixing unit up and with a slight turn counterclockwise (about a quarter turn) fix the mixing unit into the lift arm.
-
Page 31: Cleaning The Fagronlab™ Pro
An unauthorized opening of the FagronLab™ PRO device is not permitted. 7. Service and warranty Notes on malfunctions If the FagronLab™ device does not work, it may be due to a small problem that can be simply corrected. Before taking the unit for repair, please follow the instructions below: •... -
Page 32: Notes On Safety
Notes on safety • FagronLab™ devices must only be connected to grounding type receptacles with 230 V / 50 Hz(cps); 120 V / 60 Hz(cps) or rated country specific voltage installed according to the regulations of DIN VDE 0100 •... -
Page 33: Manufacturing And Customer Service
The license manufacturer of FagronLab™ products, the Gako International GmbH, D-96110 Schesslitz, is DIN EN ISO 9001:2015 certified. For inquiries regarding FagronLab™ technology products please refer to your local Fagron company or official dealer. Customer Service With all inquiries about technical data, service, warranty, customer service or replacement parts contact the customer service of your local Fagron company or official dealer. - Page 34 FagronLab™ PRO Notes ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 36 Together we create the future of personalized medicine. Fagron Hellas 12 km N.R. Trikala - Larisa T +30 24310 83633-5 P.C. 42100, P.O. Box 32 F +30 24310 83615 Trikala, Greece www.fagron.gr...
