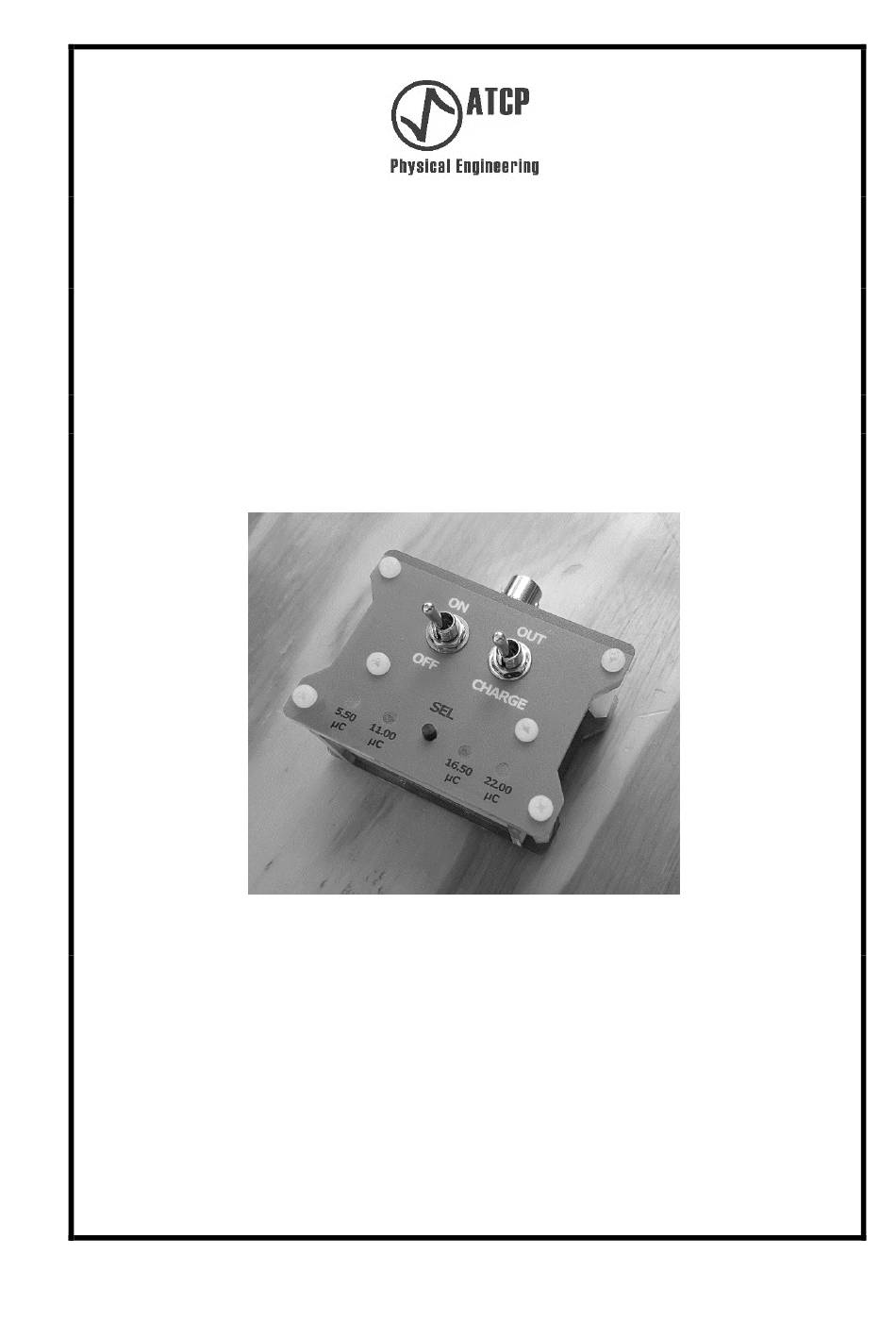

- Page 1 Specifications and Operation Manual PiezoClamping Calibration Kit ATCP Physical Engineering Rua Lêda Vassimon, n° 735-A - Ribeirão Preto - SP / Brazil - 14.026-567 Telephone: +55 (16) 3289-9481 / E-mail: ha@atcp-ndt.com www.atcp-ndt.com...
- Page 2 PiezoClamping Calibration Kit Copyright Copyright © 2020 by ATCP Physical Engineering All rights reserved. ATCP reserves the right to change the product and this manual without previous notice. Version 1 August / 2020 Page 2 of 14 www.atcp-ndt.com...
-
Page 3: Table Of Contents
PiezoClamping Calibration Kit Table of contents Introduction ....................4 Definitions and symbology ................5 Operation principle, nominal charges and uncertainty ........6 Parts, accessories and optional items ............7 Technical specifications and elements identification ........8 Configuration and use ................. 9 Battery charging .................. -
Page 4: Introduction
This functional test is recommended to guarantee the reliability of quality control processes employing PiezoClamping This manual aim instructing the user on how to set and operate the PiezoClamping Calibration Kit. Page 4 of 14 www.atcp-ndt.com... -
Page 5: Definitions And Symbology
PiezoClamping Calibration Kit 2. Definitions and symbology 2.1. Definitions Electrical charge: Charge is the fundamental property of forms of matter that exhibit electrostatic attraction or repulsion in the presence of other matter. The unit for electric charge is the Coulomb (C). The Coulomb is defined as the quantity of charge that passes through the cross section of an electrical conductor carrying one ampere for one second. -
Page 6: Operation Principle, Nominal Charges And Uncertainty
Calibration Kit 3. Operation principle, nominal charges and uncertainty 3.1. Operation principle The operation principle of PiezoClamping Calibration Kit consists in charging a capacitor of 2.2 µF applying a selectable precision voltage and then discharge it to the PiezoClamping ... -
Page 7: Parts, Accessories And Optional Items
PiezoClamping Calibration Kit 4. Parts, accessories and optional items PiezoClamping Calibration Kit is provided with the items described next. Parts: - PiezoClamping Calibration Kit (A). Accessories: - BNC-BNC cable (B). - USB cable (C). - Specifications and Operation Manual (D). -
Page 8: Technical Specifications And Elements Identification
Press and hold briefly to change the charge selection. [3] OUT/CHARGE toggle switch Switch the internal capacitor between “CHARGE” and the BNC connector “OUT”. [4] BNC connector “OUT” Connect the PiezoClamping here using a BNC- BNC cable. [5] LEDs Indicates the selected charge. -
Page 9: Configuration And Use
PiezoClamping Calibration Kit 6. Configuration and use This section describes how to configure and use the PiezoClamping Calibration Kit to calibrate the PiezoClamping equipment. Step-by-step procedure: Step 01 Turn the PiezoClamping equipment on. Then press [▲] or [▼] to access... - Page 10 Change the toggle switch OUT/CHARGE to “OUT” in order to discharge the selected charge in the PiezoClamping Step 07 Read the result on the PiezoClamping display, the result should match the selected charge with ±5% tolerance. To perform additional charge measurements, repeat steps 04 to 07.
- Page 11 17.32 µC 22.00 µC ±5 % 20.90 µC 23.10 µC As the values measured by PiezoClamping are within Table 2 acceptance ranges, the PiezoClamping equipment is calibrated and no action is needed. If any the results were out of range, the PiezoClamping ...
-
Page 12: Battery Charging
PiezoClamping Calibration Kit 7. Battery charging Follow these steps to charge the PiezoClamping Calibration Kit battery: Step 01 Switch the Calibration Kit OFF using the toggle switch ON/OFF [1]. Step 02 Connect a smartphone charger (not included) to the USB charger entry [6] using the USB cable (B). -
Page 13: Troubleshooting
8. Troubleshooting Problem Possible cause Solution Move the toggle switch The ON/OFF toggle switch is to the “ON” position. The PiezoClamping on the “OFF” position. Calibration Kit does not Charge the battery (see turn on. The battery is depleted. topic 7). -
Page 14: Technical Support, Warranty Terms And Statement Of Responsibility
If the equipment is defective or malfunctioning, check if the problem is related to any of those listed in topic 8 and follow the troubleshooting instructions. If the problem remains or is not listed in topic 8, please contact the ATCP Physical Engineering for further analysis and possible repairs.
