9.04.2021

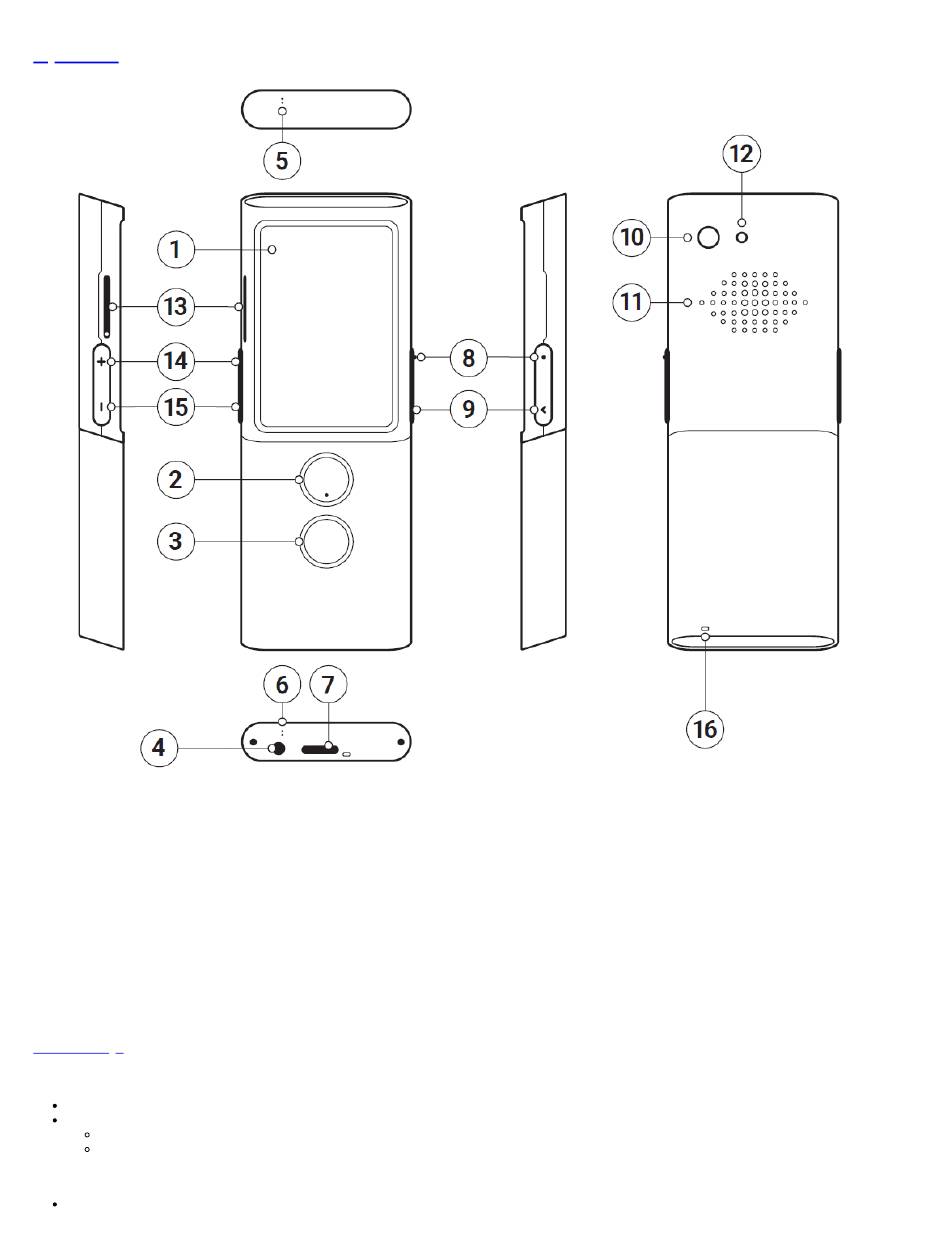

Operation
1. Touchscreen
2. Speech recognition button 1
3. Speech recognition button 2
4. Headphones input
5. Microphone
6. Microphone
7. USB - C
8. Power button
9. Back
10. Camera
11. Loudspeaker
12. LED Flash
13. SIM card slot
14. Volume up
15. Volume down
16. Lanyard hole
Function keys
Power (8)
Device turned off: hold this key for 3 seconds to turn on.
Device working:
push this key to turn the screen off, push again to turn it on
push and hold the key for 2 seconds and tap "Power off" to turn the device off
Volume
Device working: push up or down to increase or decrease the volume.
https://manuals.vasco-electronics.com/#/us/m3/manual
Document
1/27
Advertisement
Table of Contents
Related Manuals for Vasco M3
Summary of Contents for Vasco M3
- Page 1 2 seconds and tap “Power off” to turn the device off Volume Device working: push up or down to increase or decrease the volume. https://manuals.vasco-electronics.com/#/us/m3/manual 1/27...
- Page 2 The device is equipped with an international SIM card that allows it to work without WiFi. The in-built SIM card doesn’t require any contract. Initial start up Press and hold the power button for about 3 seconds to turn the device on. https://manuals.vasco-electronics.com/#/us/m3/manual 2/27...
- Page 3 9.04.2021 Document Select the display language and confirm by taping: https://manuals.vasco-electronics.com/#/us/m3/manual 3/27...
- Page 4 9.04.2021 Document Read and accept the terms of service. https://manuals.vasco-electronics.com/#/us/m3/manual 4/27...
- Page 5 Vasco Translator M3 recognizes your voice and translates full sentences into supported foreign languages. The translator pronounces the translated text out loud. For the full list of supported languages consult the Vasco website. Vasco Translator M3 needs a GSM or WiFi network in order to translate. You can also launch Translator from the “Application menu”.
- Page 6 Tap the flag symbol to see the list of available languages. Swipe up or down to find the language you need. Tap the name of the language to activate it. You can also use voice recognition to select a language Tap any flag. https://manuals.vasco-electronics.com/#/us/m3/manual 6/27...
- Page 7 Document Tap the microphone button. Say the language name e.g. Russian. The language you are looking for will appear on the screen. Tap the flag to select it. to repeat. to return to the language list. Voice recognition https://manuals.vasco-electronics.com/#/us/m3/manual 7/27...
- Page 8 History Tap “History” to enter the settings of the translation history. Remember - if the option is checked Vasco will remember the history of the translations. By confirming you will delete the previous history entries. Share - this option allows you to share selected translations or your entire translation history. To share selected translations to an email address, tap this option, check the translations you want to share, tap “Share”, enter the email address and tap “Send”.
- Page 9 Press a flag to select the language you want to translate the photo into. Tap ok to confirm. Point the camera at the subject. All the text should be visible on the screen. After the camera focuses automatically, touch the shutter icon https://manuals.vasco-electronics.com/#/us/m3/manual 9/27...
- Page 10 9.04.2021 Document If the photo is not sharp enough tap to discard or tap to confirm. The text will be recognized after a few seconds. Tap the screen to see the recognized text and the translation. https://manuals.vasco-electronics.com/#/us/m3/manual 10/27...
- Page 11 9.04.2021 Document Press the "Back" button on the right edge of the device, below the on/off button to go back to the previous screen. Zoom in or out by tapping to take another photo. https://manuals.vasco-electronics.com/#/us/m3/manual 11/27...
- Page 12 MultiTalk This application allows you to translate multilingual conversations, e.g. meetings or conferences in a group of up to 100 people. From the application menu tap “MultiTalk” to launch the application. Create user profile https://manuals.vasco-electronics.com/#/us/m3/manual 12/27...
- Page 13 9.04.2021 Document Tap the flag to select your language. Tap the field below, enter your name and tap OK to confirm. https://manuals.vasco-electronics.com/#/us/m3/manual 13/27...
- Page 14 9.04.2021 Document You can create your own conversation or join an existing one. In order to create a new conversation, tap “Create” and share the QR code or its number with another user. https://manuals.vasco-electronics.com/#/us/m3/manual 14/27...
- Page 15 9.04.2021 Document In order to join a conversation, tap “Join” and scan the QR code. https://manuals.vasco-electronics.com/#/us/m3/manual 15/27...
- Page 16 9.04.2021 Document You can also join a conversation by entering its number. Press to confirm. Then press and hold the "Speech Recognition" button and after the beep, say any sentence https://manuals.vasco-electronics.com/#/us/m3/manual 16/27...
- Page 17 Swipe up or down to find the language you need. Tap the name of the language to activate it. Follow the same steps in order to select the language of the person on the other end of the phone. https://manuals.vasco-electronics.com/#/us/m3/manual 17/27...
- Page 18 9.04.2021 Document A short tutorial on how to use the application will appear on the screen. Dial the number on your smartphone and wait for the connection. Press “Start”. https://manuals.vasco-electronics.com/#/us/m3/manual 18/27...
- Page 19 Hello, The person who’s calling you doesn’t speak your language so, for your convenience, this call will be translated using Vasco Translator. By calling out your language name, you will be notified, when it’s your turn to speak. Your sentences will be translated in real time.
- Page 20 Learning - is an application that helps you memorize words and learn vocabulary. From the application menu tap “Learning” to launch the application. NOTE! Connect to a WiFi network to update the vocabulary database. Without a Wi-Fi connection, only basic content is available. https://manuals.vasco-electronics.com/#/us/m3/manual 20/27...
- Page 21 Select the language you want to learn. Scroll the list and tap the flag to select language. The main screen shows the number of completed lessons. Tap My progress to display pie charts showing your progress and a list of already known words. https://manuals.vasco-electronics.com/#/us/m3/manual 21/27...
- Page 22 You can also change the speech rate by tapping “Speech” from the application settings To disable / enable automatic pronunciation, tap Swipe right to speed up the pronunciation speed. Swipe left to slow down. https://manuals.vasco-electronics.com/#/us/m3/manual 22/27...
- Page 23 The upper left corner shows the total number of words in the lesson and the number of the current word. The upper right corner of the learning shows the category icon. The word to remember appears in the middle. https://manuals.vasco-electronics.com/#/us/m3/manual 23/27...
- Page 24 When all the words are displayed, you can end the lesson or go to the next one. You can now start a new lesson or stop learning. to exit the application. Device settings https://manuals.vasco-electronics.com/#/us/m3/manual 24/27...
- Page 25 WARNING: A network without a padlock means that this network is open. You don’t need any password to connect to it. Please note, that some open networks require additional actions to be taken such as logging in or accepting terms and conditions. It’s not possible to use this type of network with Vasco Translator M3.
- Page 26 Icon shows the strength of the GSM signal. Icon means that the SIM card is damaged or not installed. DATA Icon means that mobile data is disabled. Status bar panel Swipe the screen down to display the status bar panel. https://manuals.vasco-electronics.com/#/us/m3/manual 26/27...
- Page 27 Display 240*320 QVGA 2.0” IPS Processor MT6737V/WM Quad-core CA53 1.1GHz RAM 1 GB ROM 16 GB 3G/4G Modem Yes Wi-Fi Yes Battery 1700 mAh Size 1.9 x 4.9 x 0.5in Weight 0.19lb Earphone output Mini Jack USB Type-C https://manuals.vasco-electronics.com/#/us/m3/manual 27/27...
