Summary of Contents for VGP Koryuu Transcoder

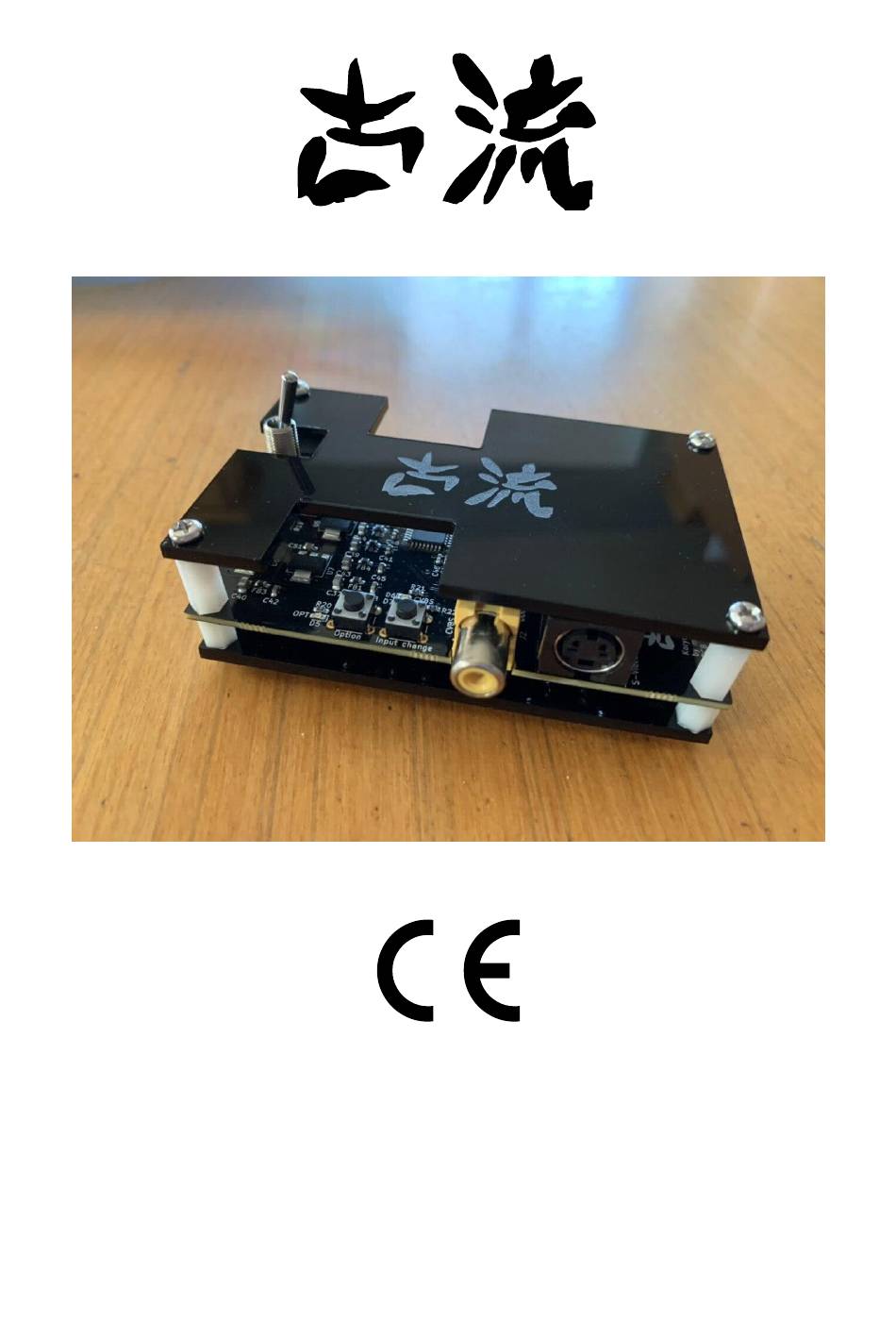

- Page 1 Koryuu Transcoder - Quick Start Guide This document is copyright © VGP Media Ltd 2020 All rights reserved worldwide VideoGamePerfection.com is a trading name of VGP Media Ltd Registered in Republic of Ireland number 637539...
-
Page 2: Table Of Contents
Using the Koryuu Transcoder with the OSSC................9 Using the Koryuu Transcoder with other devices..............9 Troubleshooting........................10 More information........................11 Disposing of your Koryuu Transcoder..................11 Thank you for purchasing the Koryuu Transcoder. Please take time to read through this short document before you start using the unit. Page 2... -
Page 3: Important Safety Information
Please observe the following safety precautions when using your Koryuu Transcoder. Use the correct power supply – The Koryuu Transcoder is designed to run with a 5 volt barrel jack power supply unit (PSU) supplying at least 1 amp of current. The tip must be 2.1 x 5.5mm and centre positive. -
Page 4: Overview
Koryuu Transcoder Quick Start Guide VideoGamePerfection.com Overview Koryuu Transcoder Front Option Button – This button is reserved for options available in future firmware updates. Currently, pressing the button will toggle a smoothing filter, but this feature is not correctly implemented yet. - Page 5 S-Video in – Connect a standard S-Video (separate video or Y/C) cable to this input. Insert the cable carefully and check for the correct orientation. Inserting the cable at an angle or forcing it into place can damage the cable and/or the Koryuu. If your device has both composite video and S-Video outputs, you should use S-Video for the best picture quality.
-
Page 6: Koryuu Transcoder Back
Koryuu Transcoder Quick Start Guide VideoGamePerfection.com Koryuu Transcoder Back Component video output – Connect a component video cable from the output connectors to your OSSC, display, capture card or other video device. All three component video cables must be connected in the correct order to achieve the correct video output. Please match the colours of the plugs with the colours on your target display or video device and remember the order of the plugs may not be consistent across devices. -
Page 7: Koryuu Transcoder Side
Koryuu Transcoder Side Power connector – The Koryuu Transcoder is designed to run with a 5 volt barrel jack power supply unit (PSU) supplying at least 1 amp of current. The tip must be 2.1 x 5.5mm and centre positive. Please ensure your power supply meets these requirements. Never connect a power supply... -
Page 8: Koryuu Transcoder Leds
VideoGamePerfection.com Koryuu Transcoder LEDs The Koryuu Transcoder has four LED (light emitting diodes) that illuminate to indicate various modes of operation. In the picture above we can see the location of these LEDs. Power LED – This LED will illuminate green whenever the Koryuu is powered on. -
Page 9: Using The Koryuu Transcoder
If connecting an S-video source, use the Input change button to select the correct input. Using the Koryuu Transcoder with the OSSC The Koryuu Transcoder is ideal for use with the OSSC and can add composite video and S-video connections to your OSSC device. -
Page 10: Troubleshooting
Koryuu Transcoder Quick Start Guide VideoGamePerfection.com Troubleshooting Symptom Possible Cause Solution No image Sync lost Power cycle Koryuu Transcoder. No image or image with wrong Output cables not connected correctly Check that the output cables are colours connected in the correct order. -
Page 11: More Information
Disposing of your Koryuu Transcoder If your Koryuu Transcoder malfunctions, please contact us via e-mail or through our website to arrange repair or replacement. All Koryuu Transcoder units sold by VideogamePerfection.com/VGP Media Ltd come with one years warranty. Please consider contacting us before disposing of your Koryuu Transcoder, even if you no longer want it.
