Summary of Contents for Pentagram VANQUISH R-TOUCH
- Page 1 User Manual The latest versions of manual, drivers and applications are available on www.pentagram.eu 2007-06-04...
- Page 2 NOTE! Any information and technical data are subject to change without prior notification and/or indication in this manual. Copyright 2007 PENTAGRAM All rights reserved; copying and reproduction is strictly forbidden.
-
Page 3: Table Of Contents
Vanquish R Touch (P 5112) INDEX INTRODUCTION......................................5 SYSTEM REQUIREMENTS ................................5 BOX CONTENTS ....................................5 BEFORE USE ......................................6 SAFETY PRECAUTIONS ..................................6 BATTERY CHARGING ..................................7 TF CARD READER ....................................7 USAGE.........................................8 PLAYER’S APPEARANCE................................8 BUTTONS ......................................9 TURNING PLAYER ON .................................. 10 BUTTONS LOCK..................................... 10 NAVIGATION ......................................11 MAIN MENU..................................... - Page 4 Vanquish R Touch (P 5112)
-
Page 5: Introduction
Vanquish R Touch (P 5112) Introduction Thank you for purchasing PENTAGRAM Vanquish R Touch. This player is a new type of portable digital multimedia player, it perfectly combines digital audio & video playing (MP3, WMA, WMV, ASF, WAV and AVI), recording, FM tuner, photo/eBook browsing, game and portable TF (TransFlash a.k.a. -
Page 6: Before Use
Please do not disassemble any part of the unit, any unauthorized disassembling will cause termination of • PENTAGRAM official warranty; Please don't use wet hand to plug/unplug or contact player for preventing shock or damage; •... -
Page 7: Battery Charging
Vanquish R Touch (P 5112) Battery charging When start using the unit, please fully charge and discharge the battery for about 2 - 3 times to ensure maximum battery life and power capacity. In top right corner of LCD display (in most modes) battery charge indicator is visible. If indicator is green – battery is fully charged, if it’s red–... -
Page 8: Usage

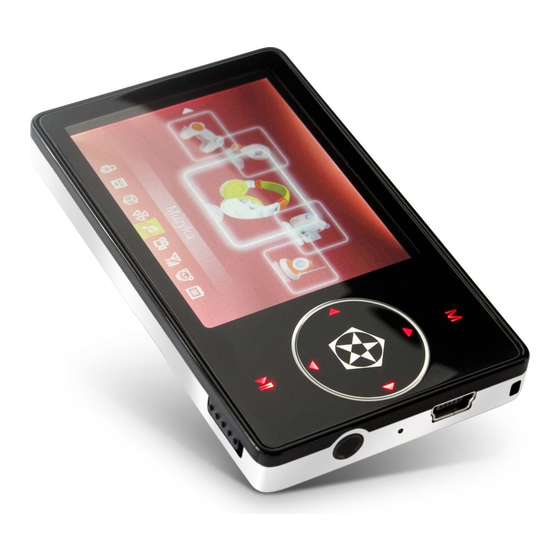

Vanquish R Touch (P 5112) Usage Player’s appearance Touch panel Lock button Neck strap hole USB port Microphone Earphones TF card socket Power switch... -
Page 9: Buttons
Vanquish R Touch (P 5112) Buttons Player’s Touch Panel is sensitive and it’s not recommended to use too much pressure when using it. Slight touch is enough for player to register button press. Familiarization with Touch Panel and required pressure is easy. All buttons have main function available all time and functions that depend on selected mode. -
Page 10: Turning Player On
Vanquish R Touch (P 5112) Turning player on To turn on player, you must move power switch to On position (closer to display) and then hold for 4 seconds lock button. To turn off player either hold for 4 seconds lock button or move power switch to Off position (closer to connectors). Buttons lock To lock player’s buttons press and hold simultaneously for 2 seconds lock button and button. -
Page 11: Navigation
Vanquish R Touch (P 5112) Navigation Main Menu Use ◄ and ► buttons to navigate through the main menu and press M to confirm selection. You can return to Main menu anytime by holding M button for 2-3 seconds. -
Page 12: Music Menu
Vanquish R Touch (P 5112) Music Menu In this mode you can listen to music in MP3, WMA and WAV formats. Buttons functions in this mode are: M – audio file list. ◄ / ► – previous / next audio file. ▲... -
Page 13: Video Menu
Vanquish R Touch (P 5112) Video Menu This mode is used for playing video files. Supported files are in AVI format (320x240) compressed with XVID codec. If video file is not compatible with player, you can use AviConverter application to convert it to supported format. Buttons functions in this mode are: M –... -
Page 14: Radio Menu
Vanquish R Touch (P 5112) Radio Menu This mode is FM tuner. In this mode connected earphones are used as antenna and should be connected before station tuning. Buttons functions in this mode are: M – Radio mode submenu: Manual – manual scanning. •... -
Page 15: Photo Menu
Vanquish R Touch (P 5112) Photo Menu This mode is photo (JPG format) browser. Buttons functions in this mode are: M – graphic file list. ◄ / ► – previous / next file. – enable / disable slideshow. Text Menu This menu is EBook (Text file) browser. -
Page 16: Record Menu
Vanquish R Touch (P 5112) Record Menu This mode can be used to record voice from built-in microphone (select Record from main menu) or from FM (press lock button in Radio mode). Buttons functions in this mode are: M – save recording and return to main menu / Radio mode. Lock button –... -
Page 17: Explorer Menu
Vanquish R Touch (P 5112) Explorer Menu This mode is file browser. Select file to play it in appropriate mode (i.e. MP3 file in Music mode). Buttons functions in this mode are: ▲ and ▼ – file / folder selection. M –... -
Page 18: Settings Menu
Vanquish R Touch (P 5112) Settings Menu Settings Menu is used to configure various player functions. Music – settings for Music mode: Repeat mode – select repeat mode: • Once – plays once selected file. Repeat One – repeats continuously selected file. Folder Once –... - Page 19 Vanquish R Touch (P 5112) Display – display settings: BLight Time – change idle time, after which backlight or display will be turned off. • Lum – select display brightness. • Blight Mode – select whether backlight or whole display will we turned off after idle time •...
-
Page 20: Connecting To Computer
Vanquish R Touch (P 5112) Connecting to computer The player has a high-speed USB2.0 port with the transmission speed of 5M/S, and is a standard USB disk, supports the systems including Windows98 (it needs to install the driver), over Windows2K (it’s unnecessary to install the driver), Mac OS 10.3 and over, Linux Redhat 8.0 and over. -
Page 21: Firmware Upgrade
Vanquish R Touch (P 5112) Firmware Upgrade NOTE: Firmware upgrade is to improve and optimize the performance of the player. The normal work of the player would not be affected even if the firmware isn’t upgraded. The wrong operation of upgrading firmware would cause the device not to work normally! The firmware upgrade software of this player does not apply to other series of players. -
Page 22: Troubleshooting
Vanquish R Touch (P 5112) Troubleshooting If you experience any of the following difficulties in using player, use the following guide for help. Should any problem persist, please visit www.pentagram.eu site and eventually contact PENTAGRAM Customer Service. Symptoms Possible cause... -
Page 23: Specification
Vanquish R Touch (P 5112) Specification Function Description Dimensions 80×47×9.8mm (W x H x D) Weight ~ 53g Display LCD 2,4” 320x200 – 260k colors Memory capacity 1GB ~ 4GB Power supply built-in Li-Ion 3,7V, charged via USB port or power adapter Music (power saving) Working time Video... - Page 24 Vanquish R Touch (P 5112) NOTES...
