- Page 1 OPERATING MANUAL ™ Exoskeleton...
-
Page 2: Ekso Bionics Customer Experience
WARNING: Potentially severe injury may occur from misuse. DO NOT use the Ekso EVO unless you are capable of protecting the safety of yourself and any other person in the vicinity. Ekso Bionics, Inc. is not responsible for any loss or damage that occurs in connection with your use of the Ekso EVO. -
Page 3: Table Of Contents
Table of Contents Contact Information ..................ii Ekso Bionics Customer Experience ..............ii Copyright ......................ii All Rights Reserved ..................ii Trademarks ......................ii Patents/Patents Pending .................ii Disclaimer ......................ii Table of Contents ................... iii CHAPTER 1: Introduction .................. 2 CHAPTER 2: What Is Included ................3 CHAPTER 3: EVO Sizing and Fit Adjustments .......... -
Page 4: Chapter 1: Introduction
Introduction CHAPTER 1: INTRODUCTION EVO is an upper body exoskeleton that alleviates the burden of repetitive work on the shoulders, which is the most common cause of lost workdays due to workplace injuries. Based on collaboration and insights from Ekso’s global install base and experience with its ground-breaking EksoVest technology, EVO is designed to improve the user experience and drive adoption. -
Page 5: Chapter 2: What Is Included

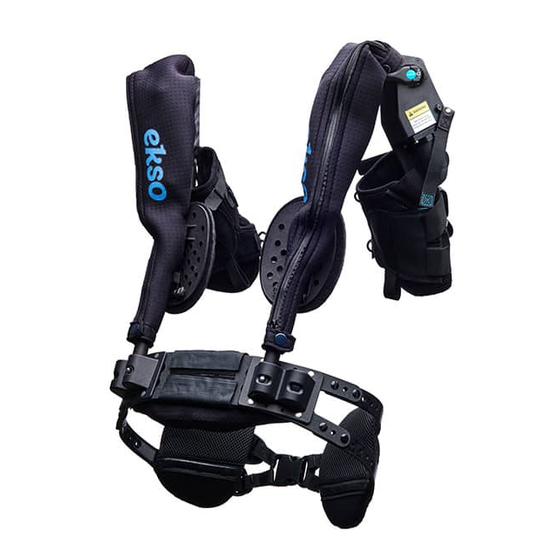

What Is Included CHAPTER 2: WHAT IS INCLUDED The mechanical and hardware components of each EVO are identified in the following drawing and table. Component Component Name Identifier Arm Cuff Plate Actuator Spring ON/OFF Switch and Tether Actuator Activation Zone Indicator Actuator Link Assembly Torso Pad Support... -
Page 6: Chapter 3: Evo Sizing And Fit Adjustments
EVO Sizing and Fit Adjustments CHAPTER 3: EVO SIZING AND FIT ADJUSTMENTS EVO is designed to be custom fit for each operator (see MEASUREMENT AND FITTING INFORMATION below). Record the operator’s measurements to find the ideal size configuration for a secure and comfortable fit. MEASUREMENT AND FITTING INFORMATION To find the initial size configuration for your EVO, take the measurements listed below using a flexible measuring tape. -
Page 7: Fit Guide Tables
EVO Sizing and Fit Adjustments Fit Guide Tables Table 1: Belt Size Belt Size Measurement Hip-to-Hip Distance Hip Belt Slot Setting 19 - 22.5 48.3 - 57.2 22.5 - 24 57.2 - 61 S/M WING 24 - 25.5 61 - 64.8 25.5 - 27 64.8 - 68.6 27 - 28.5... -
Page 8: Chapter 4: Donning And Doffing Evo
Donning and Doffing EVO CHAPTER 4: DONNING AND DOFFING EVO Now that the EVO has been custom fit to the operator, it is time to put it on. Donning EVO Before putting on EVO, make sure to unbuckle the hip belt, loosen the hip belt webbing, and loosen the arm cuff straps. -
Page 9: Doffing The Evo
Turning EVO On and Off Doffing the EVO Undo and loosen the arm cuff straps. Use the pull handle strap to slide each arm out of the arm cuff. Drape the EVO arms over your shoulders. Loosen the hip belt webbing, then release the hip belt buckle. -
Page 10: Chapter 6: Installing And Changing Actuator Springs
(2.2 – 3.1 kg) (3.1 – 4.0 kg) (4.0 – 5.4 kg) When sizing EVO, Ekso Bionics recommends beginning with a lower force spring and changing to a higher force level as needed. Installing Actuator Springs Installing/changing the actuator springs should be performed when the EVO is not being worn. -
Page 11: Chapter 7: Adjusting The Activation Zone
Adjusting the ACTIVATION Zone CHAPTER 7: ADJUSTING THE ACTIVATION ZONE EVO features an adjustable “activation zone”. The activation zone is the area in which EVO provides support to the operator’s arms while performing in-front and overhead work. EVO offers three different activation zone settings: H (high) setting (usually for overhead work) •... -
Page 12: Chapter 8: Fit Adjustments
Fit Adjustments When the indicator is at the desired setting, retighten the screw. The split clamp should be evenly spaced. Carefully guide the EVO arm downwards into the fully lowered (down) position. Flip the actuator switch to the OFF position. Repeat steps 1 through 6 on the opposite side, as needed. -
Page 13: Chapter 9: Maintenance And Troubleshooting
Ensure that all Velcro straps are secured before washing. Ekso Bionics recommends washing and drying items in a mesh bag. Actuator springs are loose. Hand tighten both actuator springs... -
Page 14: Chapter 10: Components And Accessories
Components and Accessories CHAPTER 10: COMPONENTS AND ACCESSORIES The items below are included with every EVO. Item Details EVO Kit Notes 108830 (Right) Included EVO Arm Assembly 108831 (Left) Large Torso Tube 108549 Included Hip Belt 108832 Included Large Belt 108701 (Large) Included Extensions...
