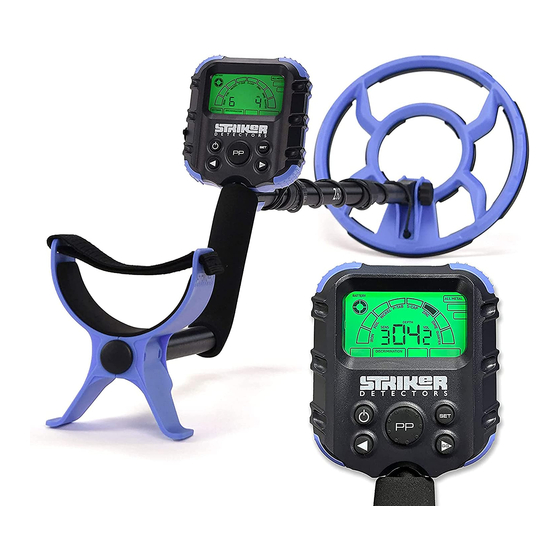

Striker Z60 User Manual
  1. Manuals
  2. Brands
  3. Striker Manuals
  4. Security Sensors
  5. Z60
  6. User manual

Striker Z60 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

60
Z
Model#
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Striker Z60

  • Page 1 Model# User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Terms Contents Assembly LCD Display Category Value How it Works 12-14 Detector Modes 15-16 How to Detect 17-18 Courtesy Warning Tone Recognition Trouble Shooting Warranty/Services 23-24 FCC Statement...

  • Page 3: Terms

    TERMS TO KNOW The terms below are standard words found within this manual and the detector. DISCRIMINATION Discriminating allows you to choose the metals you want to detect and the ones you want to “eliminate” or not look for. Discrimination makes it easier to avoid trash or other undesirable objects.
  • Page 4 GROUND GRAB* All soils contain minerals. Signals from ground minerals interfere with the signals from metal objects. If metal is detected in this mode it will make a sound. It doesn’t detect any of earth’s natural minerals so you can get a more accurate reading on what you find. Put simply, Ground Grab analyzes the signature of the natural minerals and local conditions and compensates for their frequencies so that only actual targets register a hit.

  • Page 5: Contents

    CONTENTS Battery Coil Compartment LCD Display Arm cuff Lock Wire Bracket Pinpoint Top Rod Button Bottom Rod Handle Bracket Stand...
  • Page 6 this page intentionally left blank...

  • Page 7: Assembly

    ASSEMBLY Assembling the coil unit Unscrew the bracket from the bottom rod. Fit the bottom rod inside the coil and replace the bracket. Then tighten. Please be careful not to overtighten. NOTE: The large hole faces down. Connect The Rods Connect the Top Rod to the Bottom Rod by sliding the Top Rod with the Locking Bracket end down.
  • Page 8 Connecting the Handle Unit Unscrew the bracket from the bottom rod. Fit the bottom rod inside the coil and replace the bracket. Then tighten. Please be careful not to overtighten. NOTE: The large hole faces down. Connecting the Wiring Take the cord that is connected to the coil and wrap it around the rods.
  • Page 9 Batteries Take the cord that is connected to the coil and wrap it around the rods. Continue wrapping up around the rods and then plug it into the back of the LCD display. Insert 6 AAA batteries according to the markings within the compartment. Caution: Never mix old and new batteries.

  • Page 10: Lcd Display

    LCD NAVIGATION DISPLAY (7 SLOTS) TWO DIGIT DEPTH DISTANCE (4 SLOTS) (0-4) (1-8) SETTINGS MENU/DETECTION MODES...

  • Page 11: Category Value

    CATEGORY VALUE...

  • Page 12: How It Works

    HOW IT WORKS POWER Button SETTINGS Button LEFT ARROW Button GROUND GRAB and RIGHT ARROW Button ENTER and PINPOINT Button...
  • Page 13 HOW IT WORKS Ground Grab - Press to Ground Grab (ground balance) Discrimination - Press and then (This mode uses your last Settings to detect) - Press to enter “Discrimination” Mode - Use to move to desired setting - Press to begin detecting in the selected option Pin Point - Press and hold...
  • Page 14 Settings - Press to enter “Settings” Mode - Press to move between Volume, Sensitivity and Discrimination - Press while Volume is selected to enter Volume options - Press to change the Volume - Press while Sensitivity is selected to enter Sensitivity options - Press to change the Sensitivity - Press...

  • Page 15: Detector Modes

    DETECTOR MODES Ground Grab All soils contain minerals. Signals from ground minerals interfere with the signals from metal objects. All soils differ, and can differ greatly in the type and amount of ground minerals present. This detector incorporates ground balancing algorithms which eliminate interference caused by the ground minerals found in most soils.
  • Page 16 Pinpointing Pinpoint does a narrow search that will give you the exact location of a buried object. It will identify an object by a signal and tone response. Hold the PP button to activate the pinpoint function. Once activated, sweep the coil over the target area in an “X”...

  • Page 17: How To Detect

    HOW TO DETECT Power ON by pushing the “POWER” button. Press the “SETTINGS” button. There will be three options to choose from: OPTION 1: Use the “<” and “>” arrow keys to the Sensitivity option and press the “PP” button to select. While in Sensitivity you can change the sensitivity by using the “<”...
  • Page 18 Press the “GG” button to perform a Ground Grab see p15. Display will show “OK” when ground grab is completed. If “ERROR” shows, there may be a metal object underground, find another clean area nearby to retry ground grab. While in Discrimination Mode keep the coil parallel to the ground moving it from left to right with a stable speed.

  • Page 19: Courtesy

    COURTESY PLEASE • Fill holes • Obey NO TRESPASSING signs • Respect private and public property • Obey all laws • Do not cause any willful damage to property • Do not destroy property • Pick up after yourself, do not leave trash...

  • Page 20: Warning

    WARNING All metal detector’s may discover objects that can cause personal injury if struck. For example; power lines, explosives, gas lines, etc. When searching for treasure, first observe these precautions: • Do not use a detector where you think there might be electrical lines or pipes buried below the surface.

  • Page 21: Tone Recognition

    TONE RECOGNITION There are eight tones indicating 8 different metals (iron, foil, nickel, P-Tab, S-Cap, Zinc, Dime and Quarter) that will help you to identify the material the detector has found.

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION Check to ensure that you are using Won’t turn ON, new batteries. there is no sound Check to see if the batteries were placed in the correct positions. Check the connection of the wire from the coil to control box Abnormal/erratic Outdoor use only.

  • Page 23: Warranty/Services

    DISCLAIMERS Striker Detector products are not designed or intended for medical or security uses or for detection on the human body. Know and understand the applicable laws for use of metal detection devices. Metal Detecting, LLC dba Kellyco Metal Detectors (“Kellyco” or “We”) is not responsible for damage, expense, or injury caused by improper, illegal, or unauthorized use of, alterations to, improper connection of, or abuse or neglect of the Striker Detector™...
  • Page 24 For product service, send to: Kellyco 120 Market Place Boulevard, Suite H Knoxville, TN 37922 4. What This Limited Warranty Does Not Cover This Limited Warranty does not cover any of the following: Damage to any Product on which the serial number or other identifying markings have been removed or made illegible;...

  • Page 25: Fcc Statement

    FCC STATEMENT Product Name: Metal Detector Trade Name: Striker Detectors Model# z60 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two criteria: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 26 QUICK GUIDE SITUATION actions • perform ground grab p15 Lost Ring • set mode to Jewelry • set sensitivity to 6 • keep the coil perpendicular to the ground and about 2” off • slowly scan the area using a grid pattern •...
  • Page 27 .com STRUCK DETECTORS 120 Market Place Boulevard, Suite H Knoxville, TN 37922 347-508-9608...
