Overview

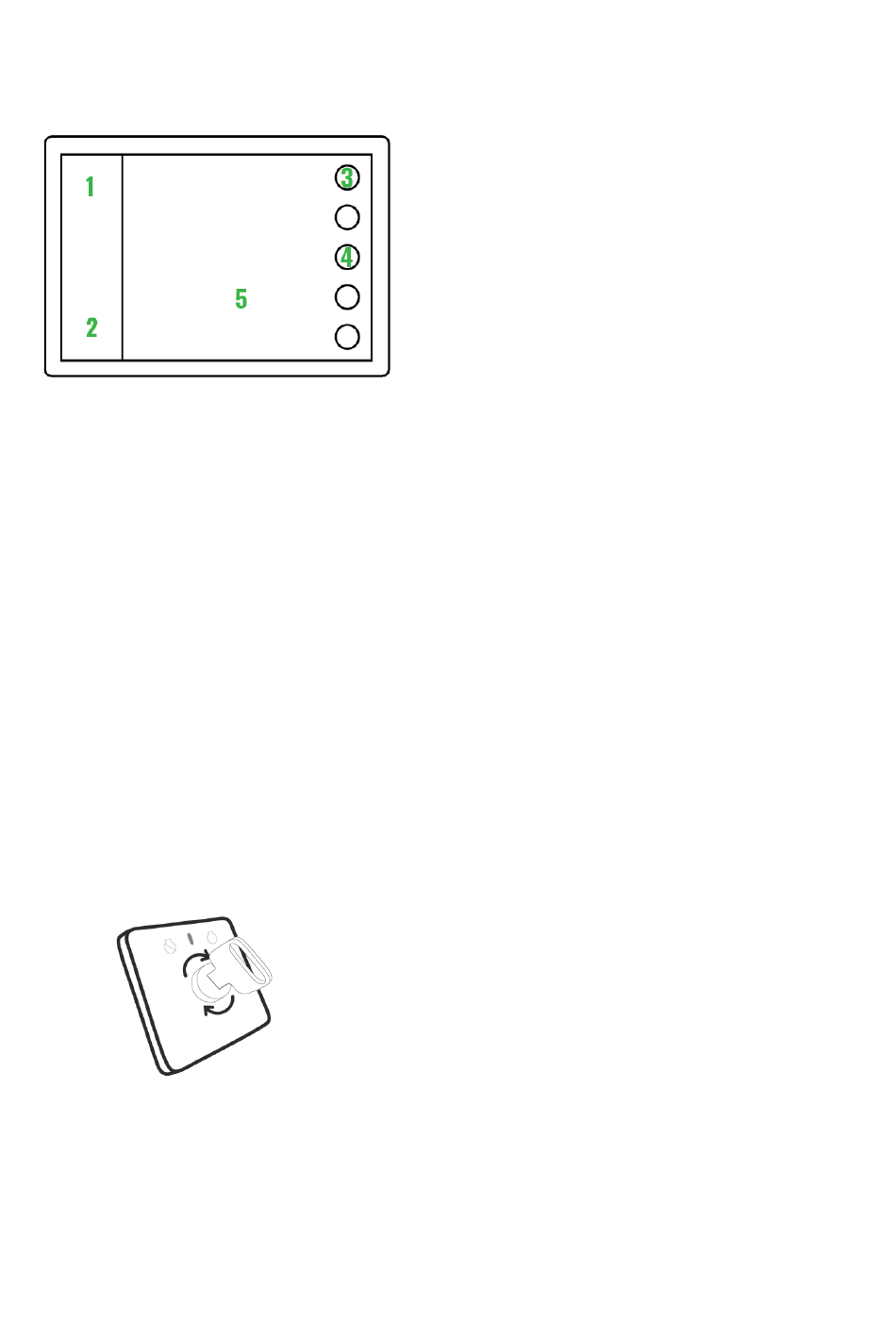

1. Sidebar contains important boating information, e.g. rpm and speed. If the boat has
a sounder attached, top part of the sidebar displays sounder data.
2.
You can switch modes and access their functions by using mode controls in
sidebar's lower part. Same controls can be found on the Q Remote if you have one.
3.
The soft key for main menu can be found in the top right corner. Applications and
settings can be accessed here.
4.
Other keys are function keys. Their number and function depend on the active
application.
5.
Applications such as Map, Dashboard and Radio open in the application area.
Quick Start
1.
Q system starts up when you turn the ignition key.
