Key 7 SA850-A31 Installation Manual

SA850-A31
INSTALLATIONS MANUAL
• PROX READER + KBD
• ACCESS CONTROL
• BY-PASS
• STAND ALONE + NETWORK
• SKAFOR cl. 3 approved
SA850-A31 is both access control and by-pass switch with individual outputs.
SA850-A31 isolated by-pass output and 1A open collector access output
SA850-A31 has up to 1000 user codes. (SA850-A30 is for 100 users)
SA850-A31 mounts easily on any building surface.
SA850-A31 tools make it easy to configure the unit.
SA850-A31 networks with other SA850's and PC (supervision/control).
SA850-A31 can be programmed from the keypad or from a PC.
SA850-A31 'clickable' keys, 3 bright LED's and multi-tone buzzer.
SA850-A31 buzzer and LED's are externally controllable.
SA850-A31 has a separate output for thread alarm (secret code).
SA850-A31 has a bell button with dedicated output.
SA850-A31 has input for EXIT-button.
SA850-A31 outputs are programmable to work as timer or toggle.
SA850-A31 can be connected to PC or printer for log function.
SA850-A31 has optical sensor for sabotage sensing.
SA850-A31 also available without prox reader (SA850-A20).
SA850-A31 also available without keypad (SA850-A40).

Daily use

Daily use is very simple:
Use prox card and then enter the code.

Configure / Change User Codes

P [b or s] [yyy] [k] [z] [e] P or
b=programcode, s=systemcode (8 digits)
yyy = address
k = hold prox card in front of SA850 (successful read is acknowledge with beeps)
z = user code (def. in 'Code length')
e = max usage (if none entered there are no limits)
Finishing:
P: Code is configured as an A-code (Access but only if by-passed)
: Code is configured as an AB-code (Access and By-pass)
If further codes must be configured the procedure can continue with yy.
If configuration is done terminate with P or

Delete user codes

P [b or s] [yyy] P
x = program code
yyy = address
all
Delete user codes
P [b or s] P 12 0000 P
System– and program code are not affected. Only user code are deleted.
Rev. 4.0
.

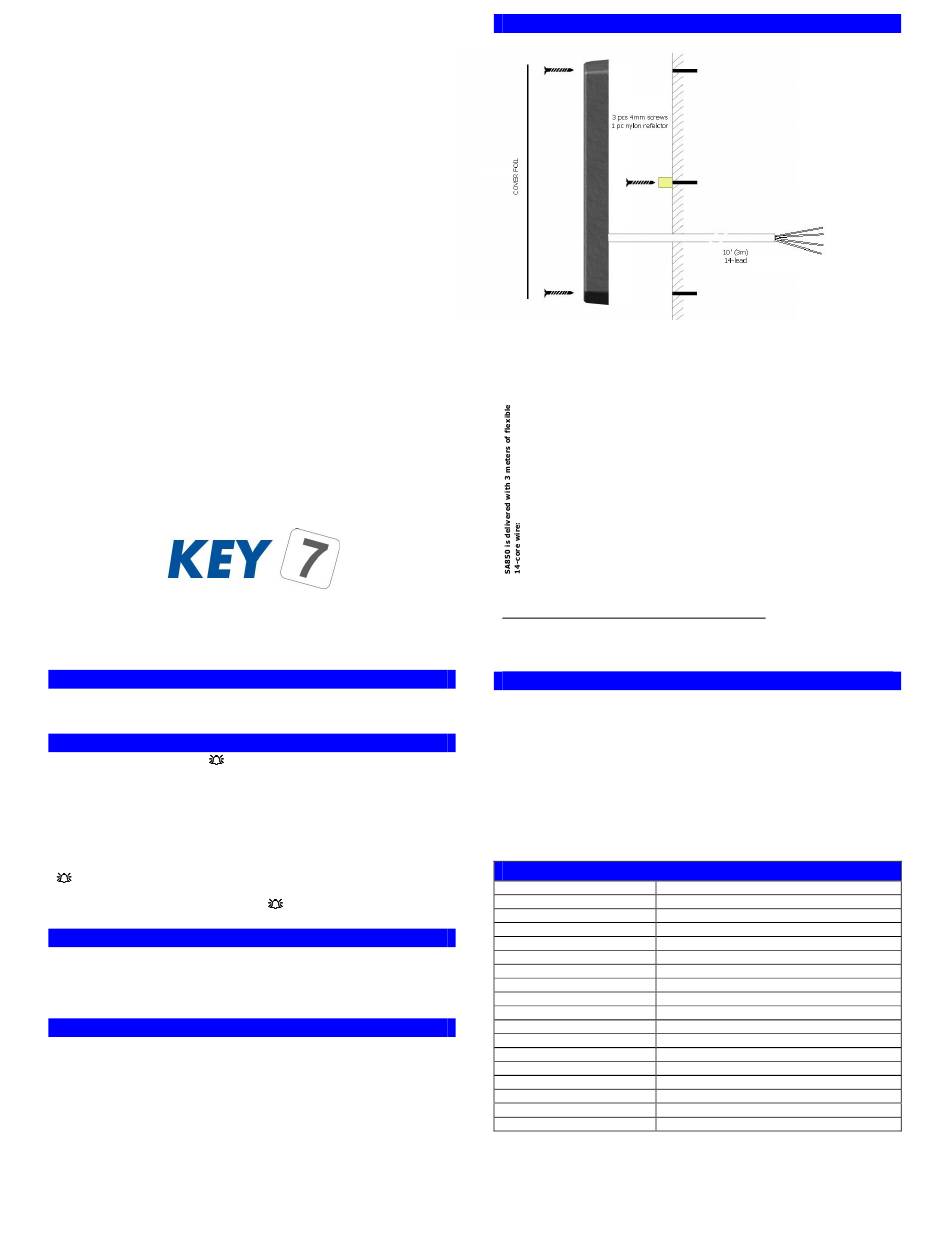

Mounting

SA850 mounts with only 2 screws on flat building surface
Connect SA850 wires appropriate and test tamper circuit with function 42 (
4
test)
. Tighten screws.
Clean key surface. Remove adhesive protection from front cover foil and place it
5
carefully on the SA850.
Red 8-24V DC
Back Ground. 0V
Yellow Access output. Open collector - "Makes a ground" when output is activated.
Green/White By-pass output, wire 1. Isolated output.
Green/Brown By-pass output, wire 2. Isolated output.
Blue Sabotage loop, wire 1. Isolated output.
Blue/Red Sabotage loop, wire 2. Isolated output.
Green Bell output. Open collector - "Makes a ground" when output is activated.
Violet Thread alarm output. Open collector - "Makes a ground" when output is activated.
Grey/Pink RS485 data, A
Grey RS485 data, B
White Status indicator input. Connects to a central unit that signals its (by-pass) state.
Pink Buzzer. Can be used to externally control the buzzer.
Brown Synchronizing. Only if two SA850's are placed closer than 50cm to each other.
DON'T FORGET DIODE ON INDUCTIVE LOADS!!!!

Reset to factory settings

Reset to factory settings following below steps:
1: Disconnect power supply and network wires
2: Connect Pink wire (buzzer) to Black wire (ground)
3: Re-connect power and wait 5 sec until red LED lights up
4: Release Pink wire (buzzer) from Black wire (ground) within 5
sec.
SA850 is now reset to factory settings and all codes are cleared.

Specifications

Power supply
Current consumption
Access output
By-pass output
Bell output
Thread alarm output
Sabotage loop
Prox reading distance
Prox type
User code memory
By-pass time
Access time
Thread alarm time
Wire
Dimensions (H-W-D) 0.59in-1.93in-0.59in (150mm-49mm-15mm)
Weight
Operating temperatures
Operating humidity
All specs are subject to change without prior notice. Latest information is available on www.keyseven.com.
1 Mark the 4 drilling holes with the
drill guide and drill the holes
according to the wall material.
2 Fasten the nylon reflector.
Guide the cable trough the hole in
3
the wall and fasten screws loosely.
Sabotage
8V to 24V DC
typical 80mA
open collector, max 1A, 24V
isolated, max100mA, 25 ohm, 50V
open collector, max 1A, 24V
open collector, max 1A, 24V
isolated, max100mA, 25 ohm, 50V
up to 4" (10 cm)
125kHz, auto-tuning, EM4102 compatible
1000 prox and/or 1000 key codes
on/off or 1 to 999 seconds
on/off or 1 to 999 seconds
3 seconds
10' (3 m), 14-lead
10.2oz (286g)
-30°F to 150°F (-35°C to 65°C)
0%-100%
